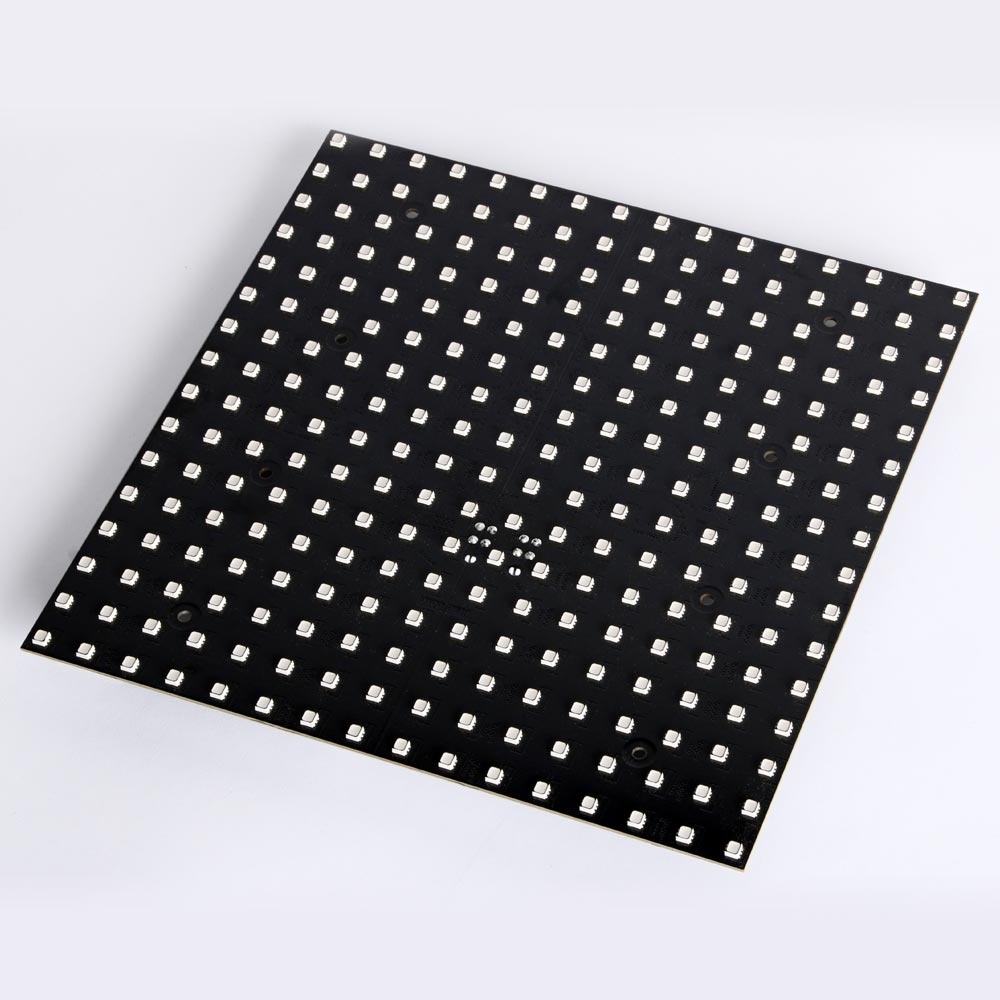

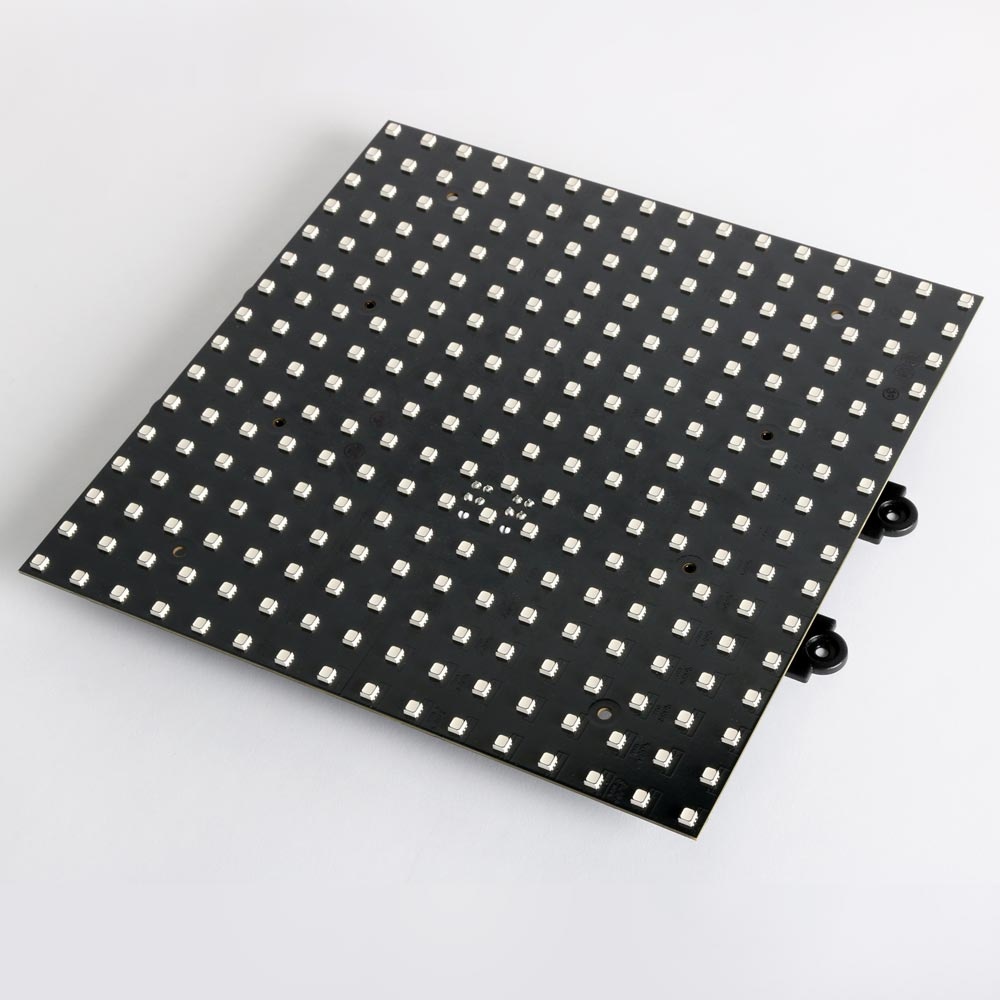

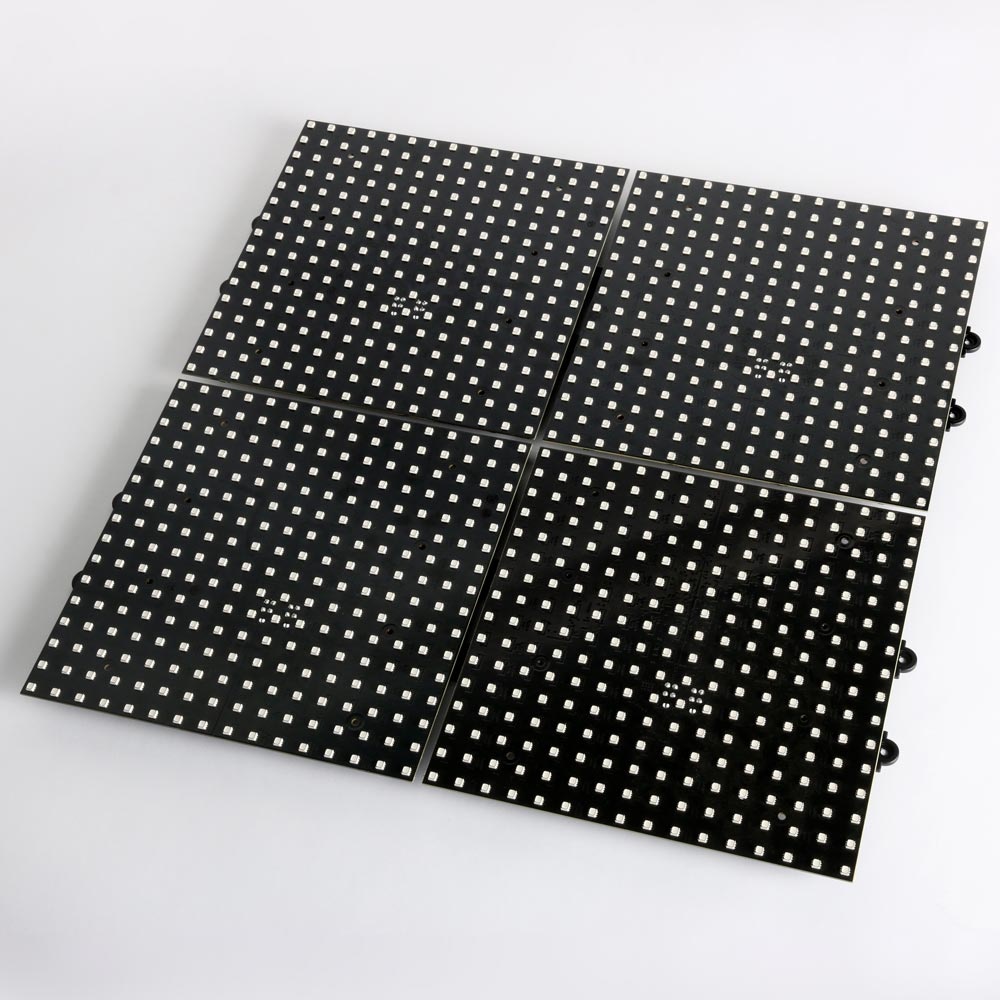

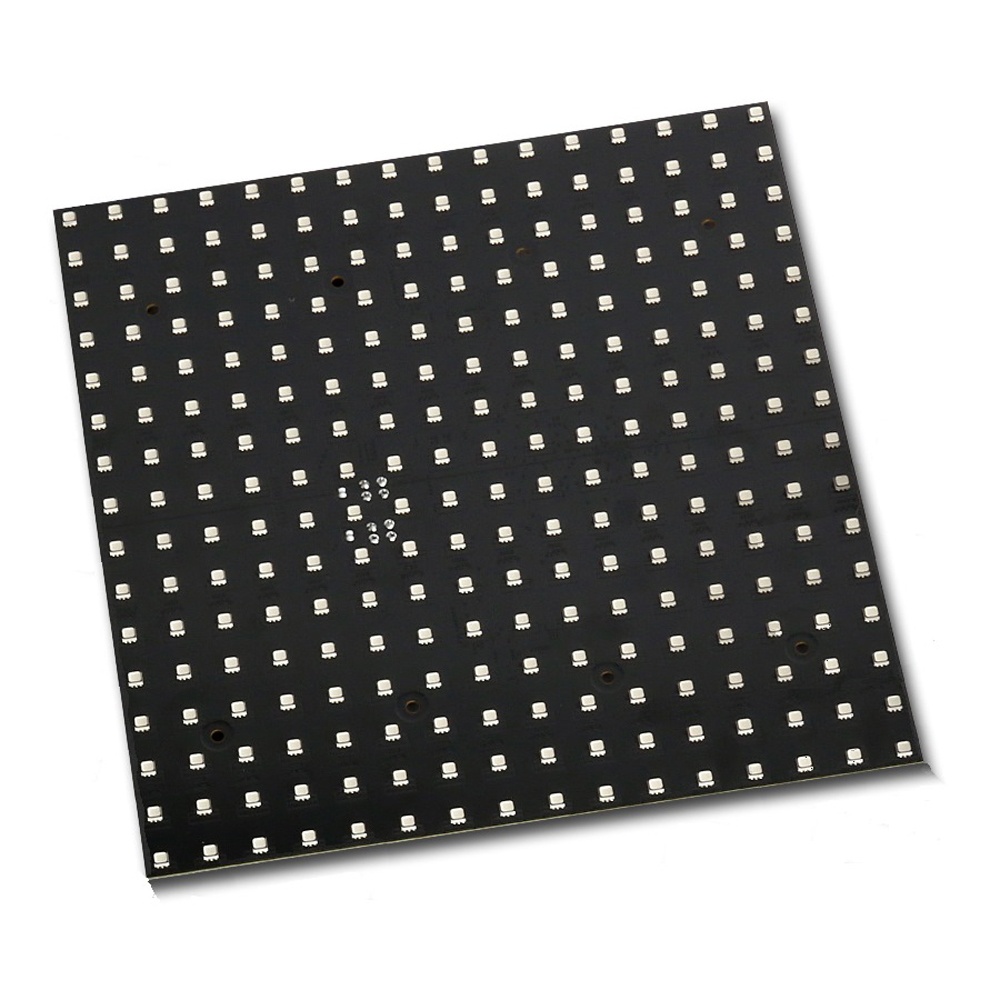

The VC-Grid 15 is a small, 240 x 240 mm LED video module with a 15 mm pixel pitch. Useful in creating customized LED video solutions with maximum artistic flexibility and a minimum of effort, the VC-Grid’s compact size makes it extremely suitable for integration into stage designs, set elements, creative ceilings, lobbies and much more. Used with or without a front diffuser, multiple VC-Grids can be combined in a countless variety of ways for ultimate design freedom. A combined power/data cable allows VC-Grids to be daisy-chained for easy setup and less cabling
Wide range of pixel pitches to suit every application
Easy cabling, mapping and configuration
Bright and fully calibrated for optimal consistency
FEATURES
15 mm pixel pitch
256 individually controllable pixels
DMX Control
P3 Control with VideoMapping
Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
5000 nits of brightness
15000 lumen per square meter
High-quality 16-bit per color image processing technology
Pixel-level brightness and color calibration for optimal image quality and matching between products
Intuitive mapping and addressing via P3 System Controller

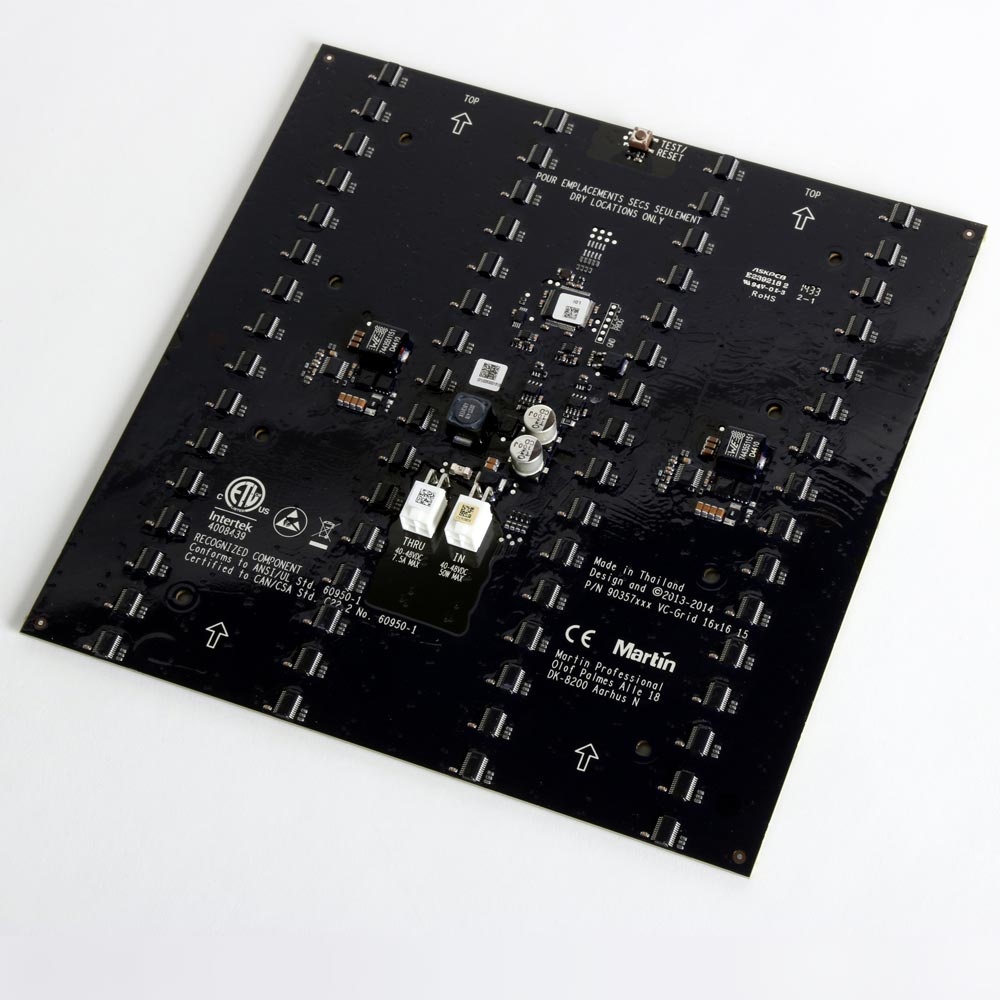

Combined power/data input (single cable for power and data input)
Combined power/data thru (to daisy-chain multiple VC-Grids)
Supported by integrated power and data processor (P3 PowerPort 1500 or DMX PowerPort 375) and simple cabling system
Custom designs available on request (pixel pitch and module dimensions)

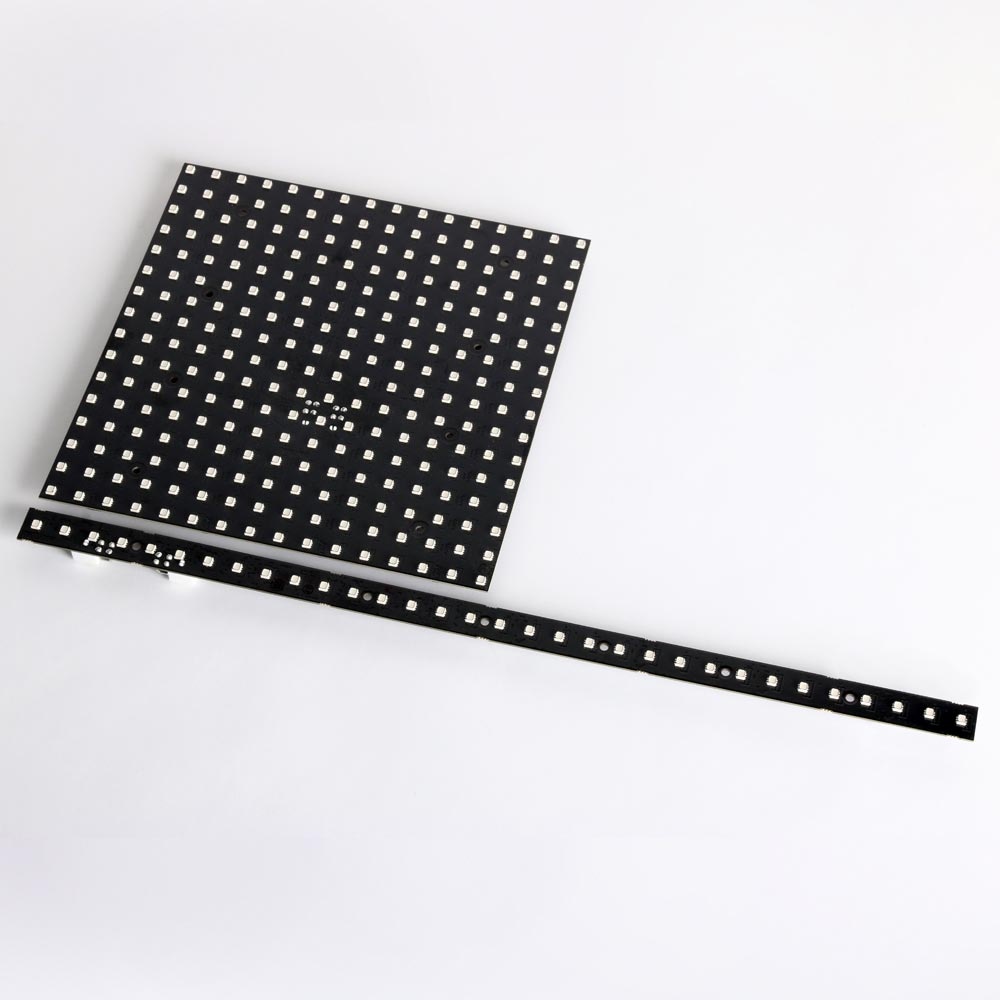

Compatible with VC-Strip 15
PHYSICAL
|
Length: | 240 mm (9.5 in.) * |
|
Width: | 240 mm (9.5 in.) * |
|
Height: | 15 mm (0.6 in.) |
|
Weight: | 311 g (0.7 lbs.) |
*Including 5 mm (0.2 in.) board-to-board gap
CONTROL AND PROGRAMMING
|
Control options: | Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX |
|
Control resolution: | 16-bit (P3) or 8-bit (DMX) control of each color |
|
Protocol detection: | Automatic |
|
Setting and addressing: | Martin P3™ System Controller or RDM-compliant controller |
|
Color and intensity calibration: | Pixel-level |
|
DMX compliance: | USITT DMX512-A |
|
RDM compliance: | ANSI/ESTA E1.20 |
|
Firmware update: | Via Martin P3™ System Controller |
|
Control modes, direct DMX control: | Module and QuadPixel |
DMX channels
| , direct DMX control: | 3/192 |
|
Control modes, DMX via P3: | P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap |
|
DMX channels, DMX via P3: | Wide range of options from 1 to 771 |
CONTROL/USER INTERFACE
|
Device status: | Multi-color visual indication |
|
Device test and reset: | Pushbutton to call up local test patterns and reset device |
OPTICS
|
Minimum LED lifetime: | 50,000 hours (to >70% luminous output)* |
|
Binning: | Tight color and flux binning |
|
Calibration: | Full Gamut Pixel Calibration |
*Figure obtained under manufacturer's test conditions.
PHOTOMETRIC DATA
|
Color resolution: | 16 bits per color (48 bits per pixel) |
|
Viewing angle: | 120° x 120° (half-peak) |
|
Pitch (pixel center-to-center): | 15.00 mm |
|
Total output, calibrated mode: | 5000 nits (fixtures placed in continuous surface) |
|
Luminous output, calibrated mode: | 15000 lumen per square meter |
|
LED Array VC-Grid 15 16x16: | 16 x 16 |
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
P3 VIDEO PROCESSING
Brightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
Synchronization
SIGNAL PROTOCOL
Martin P3 (via Martin P3™ PowerPort) or DMX (direct)
CONSTRUCTION
|
Base: | Black FR4 circuit board |
|
Transparency through module (unmasked area): | 0% |
|
Protection rating: | IP20 |
RoHS compliant
SIGNAL PROTOCOL
Martin P3 (via Martin P3™ PowerPort) or DMX (direct)
CONSTRUCTION
|
Base: | Black FR4 circuit board |
|
Transparency through module (unmasked area): | 0% |
|
Protection rating: | IP20 |
RoHS compliant
