Pixel pitch 60mm.

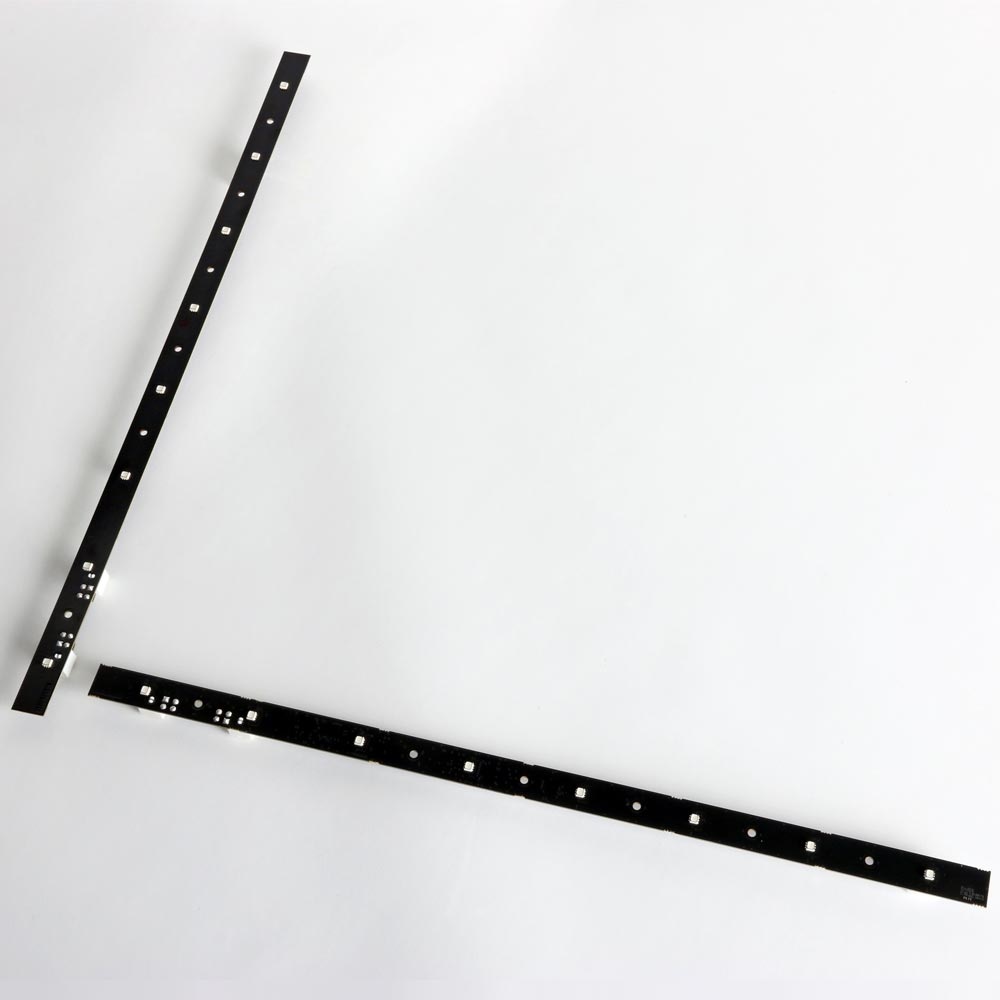

The VC-Strip family of narrow LED video strips is ideal for integration of video into stage and set designs, interiors, custom set elements and more. VC-Strips are fully pixel-level calibrated on brightness and colors for optimal uniformity and quality and are driven by Martin’s award-winning P3 System Controller family for smooth playback that outperforms any DMX-based system. VC-Strips are available in various lengths and can even be cut to required length on-site.
Wide range of pixel pitches to suit every application
Easy cabling, mapping and configuration
Bright and fully calibrated for optimal consistency
FEATURES
60 mm pixel pitch
8/4 individually controllable pixels
DMX Control
P3 Control with VideoMapping
Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
750 nits of brightness
135 lumen per meter
High-quality 16-bit per color image processing technology
Pixel-level brightness and color calibration for optimal image quality and matching between products
Intuitive mapping and addressing via P3 System Controller

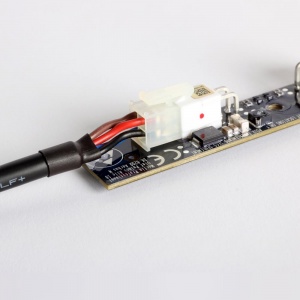

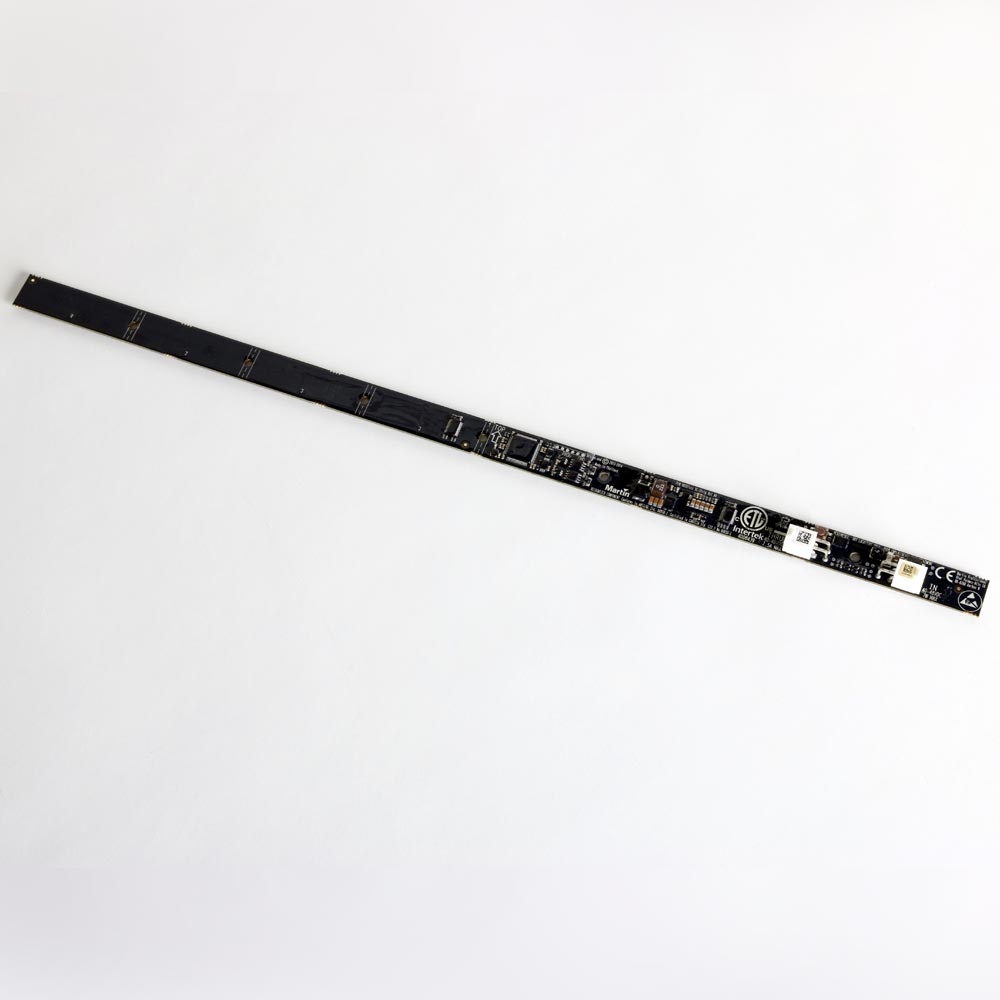

Combined power/data input (single cable for power and data input)
Combined power/data thru (to daisy-chain multiple VC-Strips)
Supported by integrated power and data processor (P3 PowerPort 1500 or DMX PowerPort 375) and simple cabling system

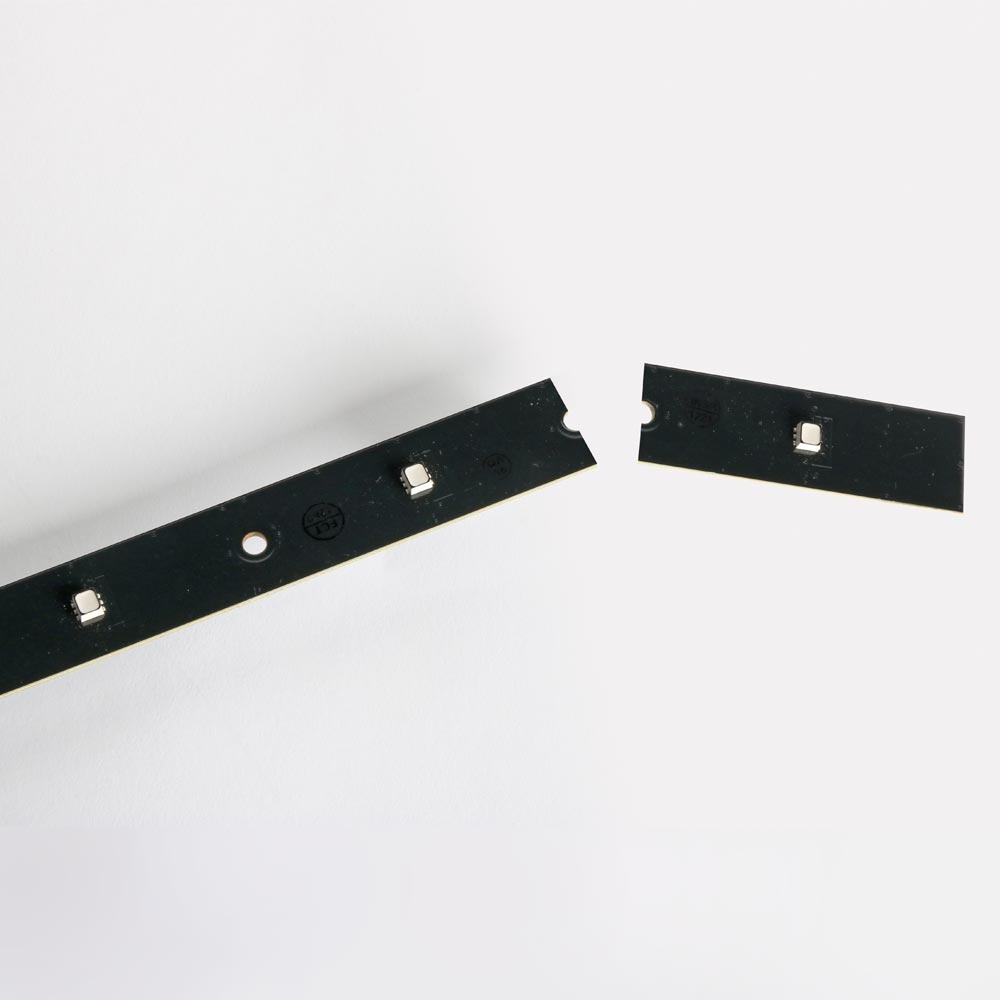

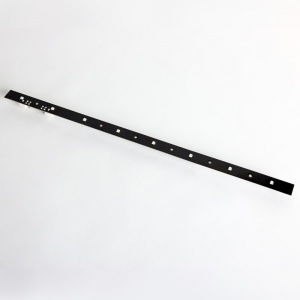

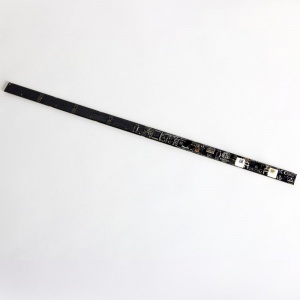

Length of VC-Strip can be customized on-site (simple cutting) to fit integration needs

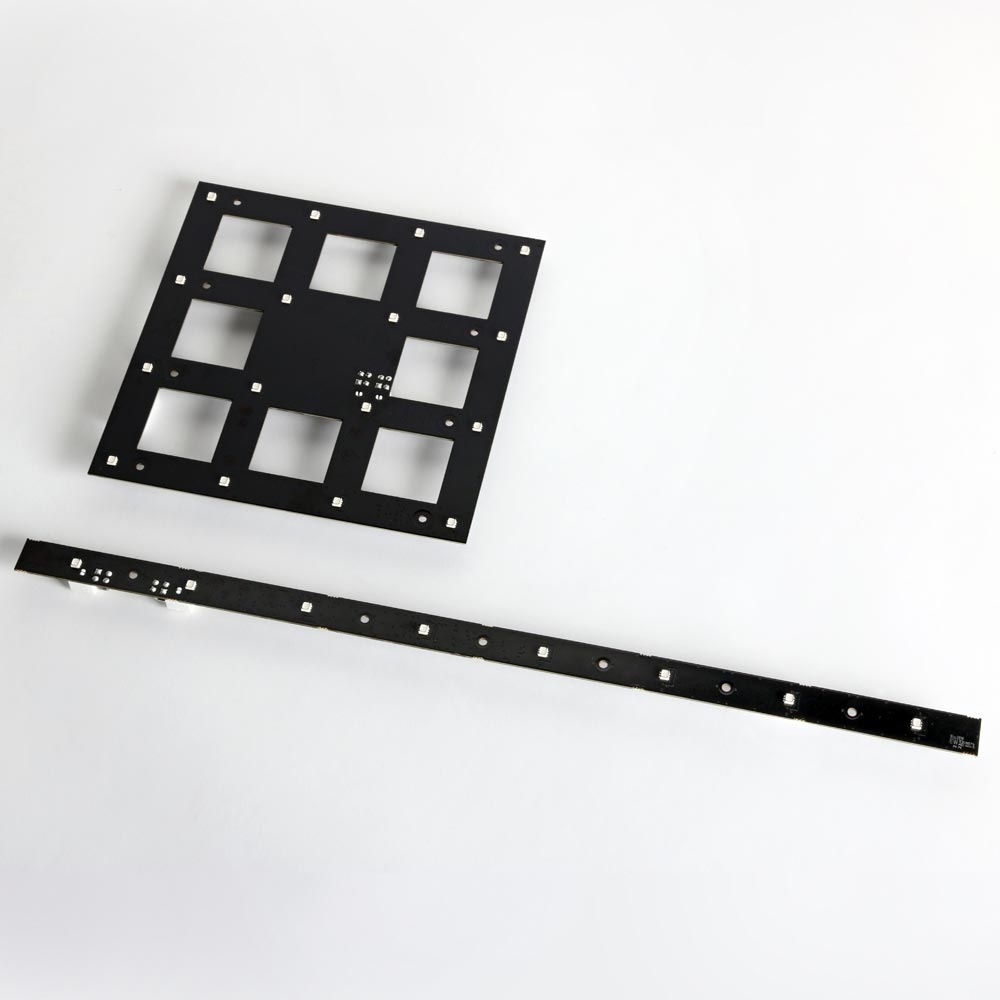

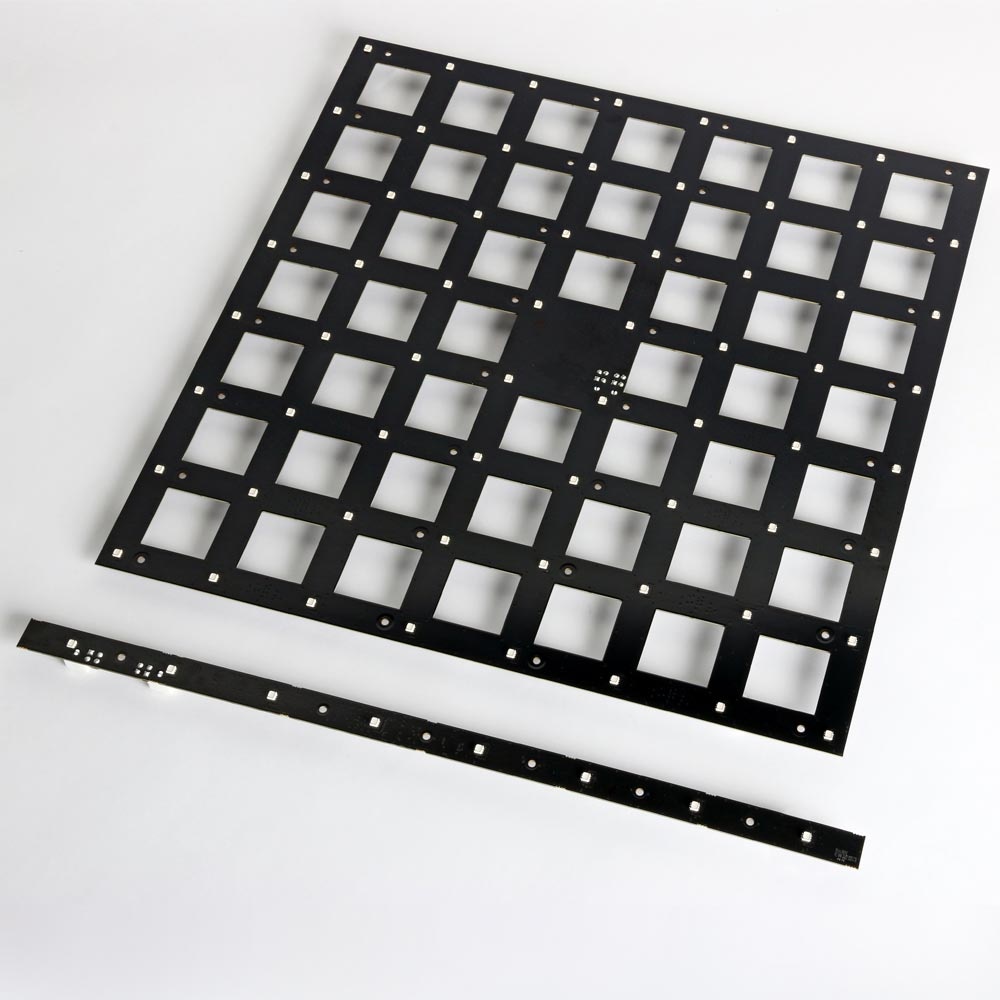

Compatible with VC-Grid 60
PHYSICAL
|
VC-Strip 8x1 60™: | |
|
Length: | 480 mm (18.9 in.) * |
|
Width: | 19 mm (0.8 in.) |
|
Height: | 15 mm (0.6 in.) |
|
Weight: | 53 g (0.12 lbs.) |
|
VC-Strip 4x1 60™: | |
|
Length: | 240 mm (9.5 in.) * |
|
Width: | 19 mm (0.8 in.) |
|
Height: | 15 mm (0.6 in.) |
|
Weight: | 32 g (0.07 lbs.) |
*Including 1 mm board-to-board gap
CONTROL AND PROGRAMMING
|
Control options: | Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX |
|
Control resolution: | 16-bit (P3) or 8-bit (DMX) control of each color |
|
Protocol detection: | Automatic |
|
Setting and addressing: | Martin P3™ System Controller or RDM-compliant controller |
|
Color and intensity calibration: | Pixel-level |
|
DMX compliance: | USITT DMX512-A |
RD
| M compliance: | ANSI/ESTA E1.20 |
|
Firmware update: | Via Martin P3™ System Controller |
|
Control modes, direct DMX control: | Module and Pixel |
|
DMX channels, direct DMX control: | 3/12/24 |
|
Control modes, DMX via P3: | P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap |
|
DMX channels, DMX via P3: | Wide range of options from 1 to 27 |
CONTROL/USER INTERFACE
|
Device status: | Multi-color visual indication |
|
Device test and reset: | Pushbutton to call up local test patterns and reset device |
OPTICS
|
Minimum LED lifetime: | 50,000 hours (to >70% luminous output)* |
|
Binning: | Tight color and flux binning |
|
Calibration: | Full Gamut Pixel Calibration |
*Figure obtained under manufacturer´s test conditions
PHOTOMETRIC DATA
|
Color resolution: | 16 bits per color (48 bits per pixel) |
|
Viewing angle: | 120° x 120° (half-peak) |
|
Pitch (pixel center-to-center): | 60.00 mm |
|
Total output, calibrated mode: | 750 nits (fixtures placed in continuous surface) |
|
Luminous output, calibrated mode: | 135 lumen per meter |
|
LED Array VC-Strip 60 8x1: | 8 x 1 |
|
LED Array VC-Strip 60 4x1: | 4 x 1 |
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
P3 VIDEO PROCESSING
Brightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
Synchronization
SIGNAL PROTOCOL
Martin P3 (via Martin P3™ PowerPort) or DMX (direct)
CONSTRUCTION
|
Base: | Black FR4 circuit board |
|
Protection rating: | IP20 |
RoHS compliant
PHYSICAL
|
VC-Strip 8x1 60™: | |
|
Length: | 480 mm (18.9 in.) * |
|
Width: | 19 mm (0.8 in.) |
|
Height: | 15 mm (0.6 in.) |
|
Weight: | 53 g (0.12 lbs.) |
|
VC-Strip 4x1 60™: | |
|
Length: | 240 mm (9.5 in.) * |
|
Width: | 19 mm (0.8 in.) |
|
Height: | 15 mm (0.6 in.) |
|
Weight: | 32 g (0.07 lbs.) |
*Including 1 mm board-to-board gap
CONTROL AND PROGRAMMING
|
Control options: | Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX |
|
Control resolution: | 16-bit (P3) or 8-bit (DMX) control of each color |
|
Protocol detection: | Automatic |
|
Setting and addressing: | Martin P3™ System Controller or RDM-compliant controller |
|
Color and intensity calibration: | Pixel-level |
|
DMX compliance: | USITT DMX512-A |
|
RDM compliance: | ANSI/ESTA E1.20 |
|
Firmware update: | Via Martin P3™ System Controller |
|
Control modes, direct DMX control: | Module and Pixel |
|
DMX channels, direct DMX control: | 3/12/24 |
|
Control modes, DMX via P3: | P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap |
|
DMX channels, DMX via P3: | Wide range of options from 1 to 27 |
CONTROL/USER INTERFACE
|
Device status: | Multi-color visual indication |
|
Device test and reset: | Pushbutton to call up local test patterns and reset device |
OPTICS
|
Minimum LED lifetime: | 50,000 hours (to >70% luminous output)* |
|
Binning: | Tight color and flux binning |
|
Calibration: | Full Gamut Pixel Calibration |
*Figure obtained under manufacturer´s test conditions
PHOTOMETRIC DATA
|
Color resolution: | 16 bits per color (48 bits per pixel) |
|
Viewing angle: | 120° x 120° (half-peak) |
|
Pitch (pixel center-to-center): | 60.00 mm |
|
Total output, calibrated mode: | 750 nits (fixtures placed in continuous surface) |
|
Luminous output, calibrated mode: | 135 lumen per meter |
|
LED Array VC-Strip 60 8x1: | 8 x 1 |
|
LED Array VC-Strip 60 4x1: | 4 x 1 |
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
P3 VIDEO PROCESSING
Brightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
Synchronization
SIGNAL PROTOCOL
Martin P3 (via Martin P3™ PowerPort) or DMX (direct)
CONSTRUCTION
|
Base: | Black FR4 circuit board |
|
Protection rating: | IP20 |
RoHS compliant
