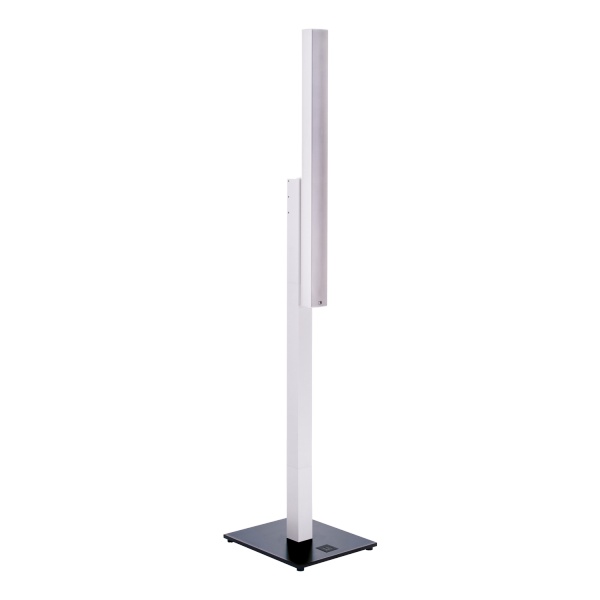

The D2 and D4 DesignStands form the basis of Excellent Line. Different heights can be built up by simply plugging together square tubes of different lengths.
The load-bearing capacity of the D Line is on a par with large truss lifts.
Supply cables are fed in one piece through the underside of the base plate into the square tube.
Video projectors, moving lights or loudspeakers, for example, can be attached using various mounts.
FIRST-CLASS, REFINED, PURISTIC

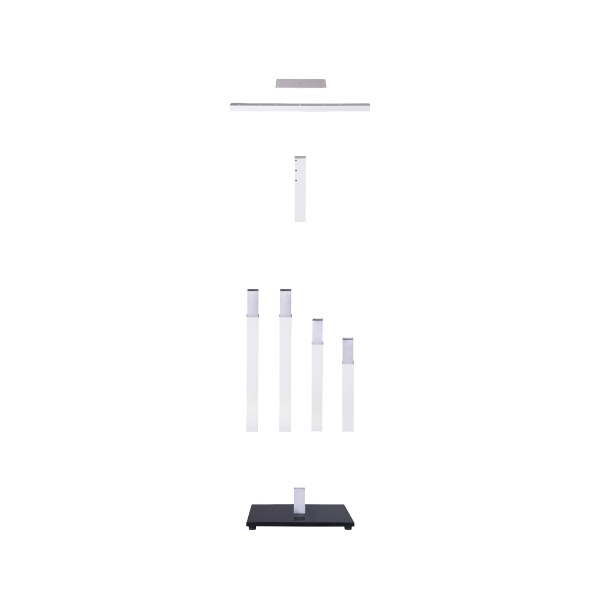

D4 SET COMPONENTS:
Baseplate
1x 4cm | 37 kg | RAL 9005
Extensions
2x 100 cm | 6,4 kg | RAL 7035
1x 80 cm | 5,2 kg | RAL 7035
1x 60 cm | 4,2 kg | RAL 7035
Universalhead
1x 56 cm | 2,8 kg | RAL 7035
Mountings
1x Universal plate | 1,8 kg | RAL 7035
1x Universal T-Bar | 3,8 kg | RAL 7035
APPLICATIONS

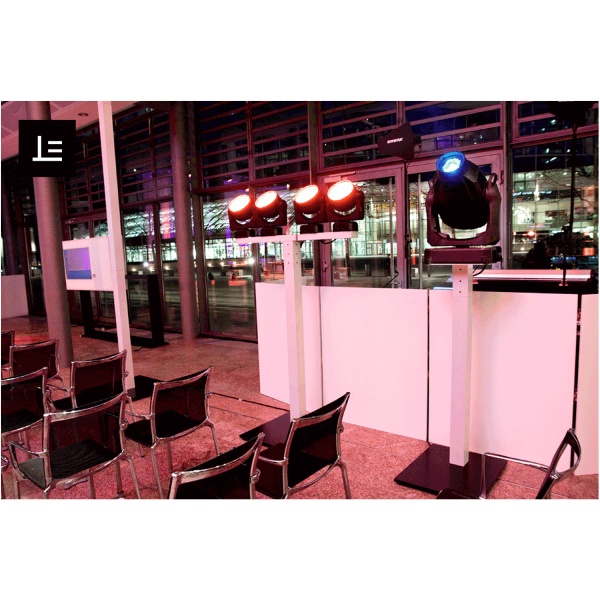

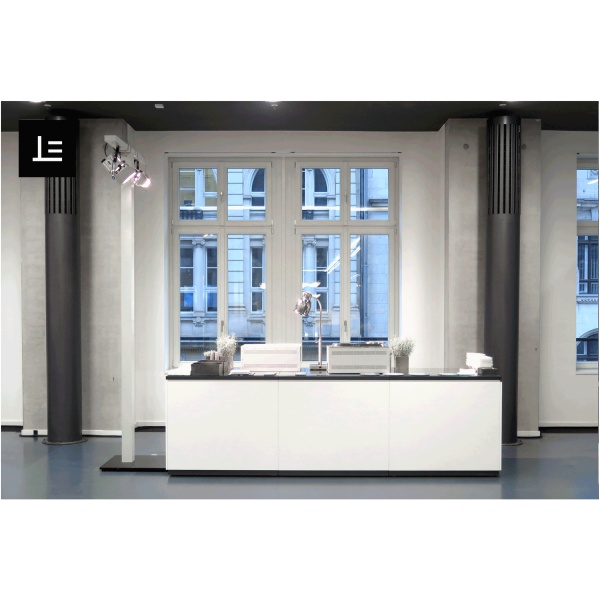

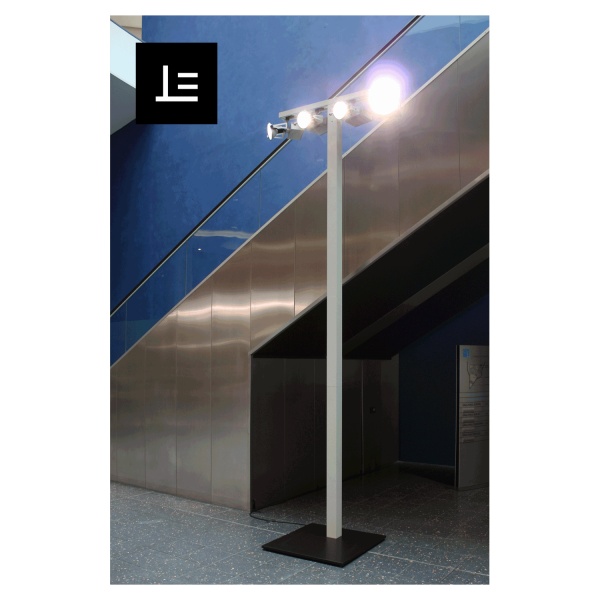

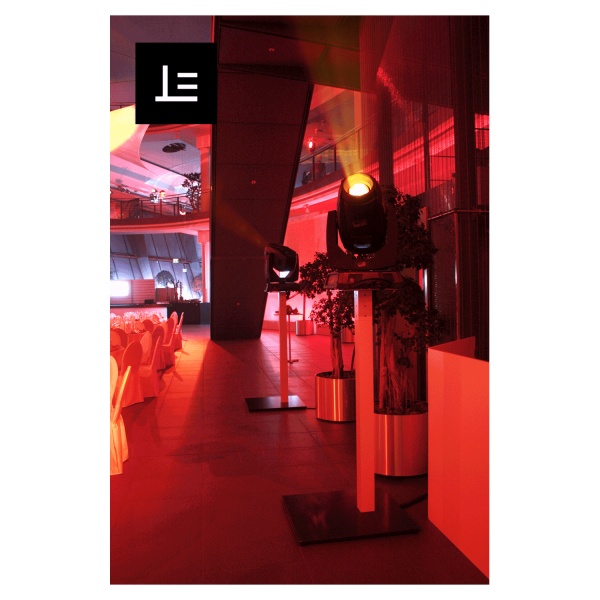

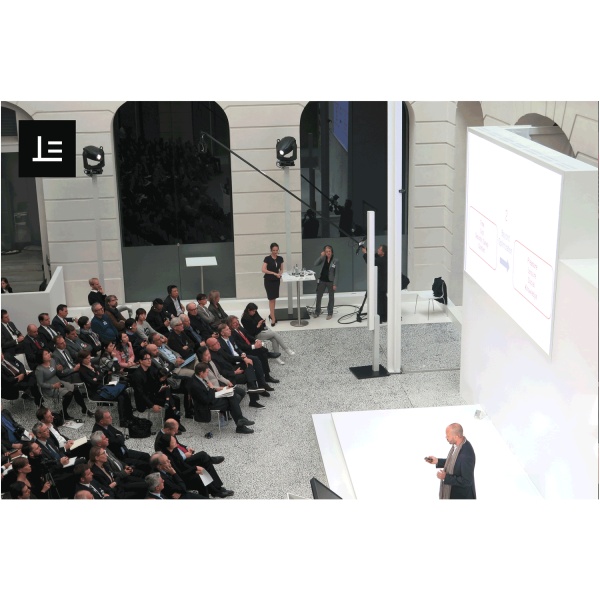

Indoor stand for light, sound and video
HEIGHT OPTIONS
120 cm | 140 cm | 160 cm | 180 cm | 200 cm | 220 cm | 240 cm | 260 cm | 300 cm | 320 cm | 240 cm | 400 cm
MOUNTINGS

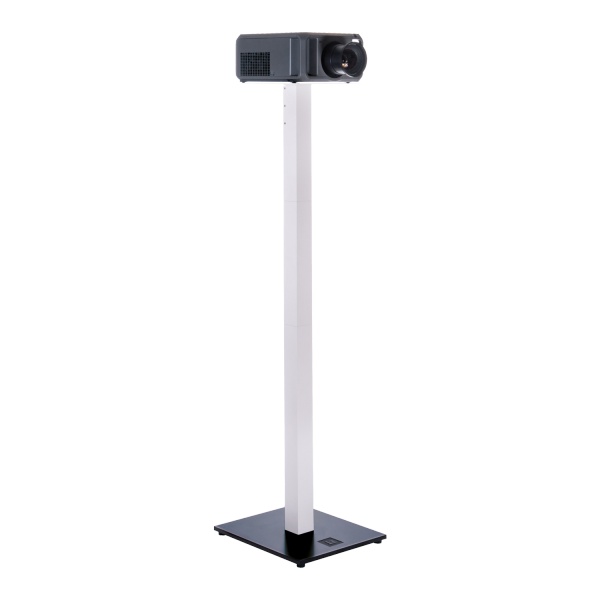

Universal plate 35 cm x 45 cm for video projectors and moving lights

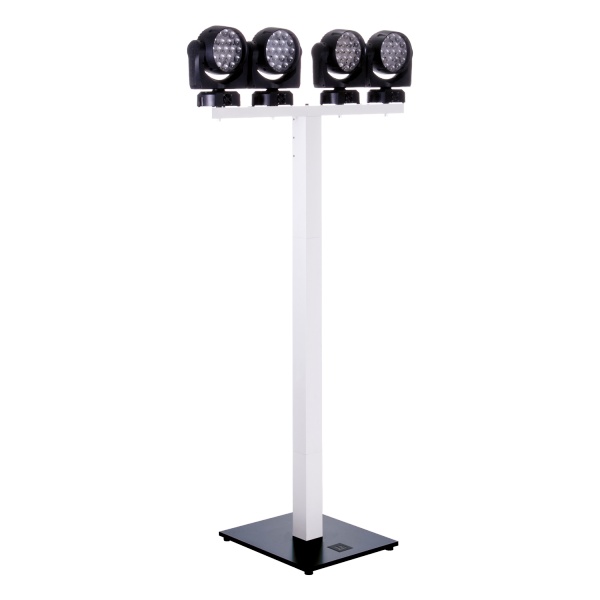

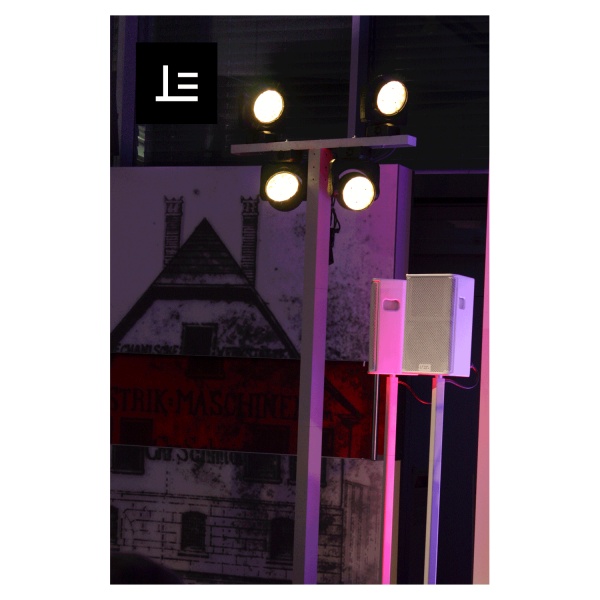

Universal T-Bar 120 cm x 5 cm for spotlight and speakers
CAPACITY
Max. recommended load 500 kg, download the datasheet from our website for more details
BASEPLATE
with central mount
