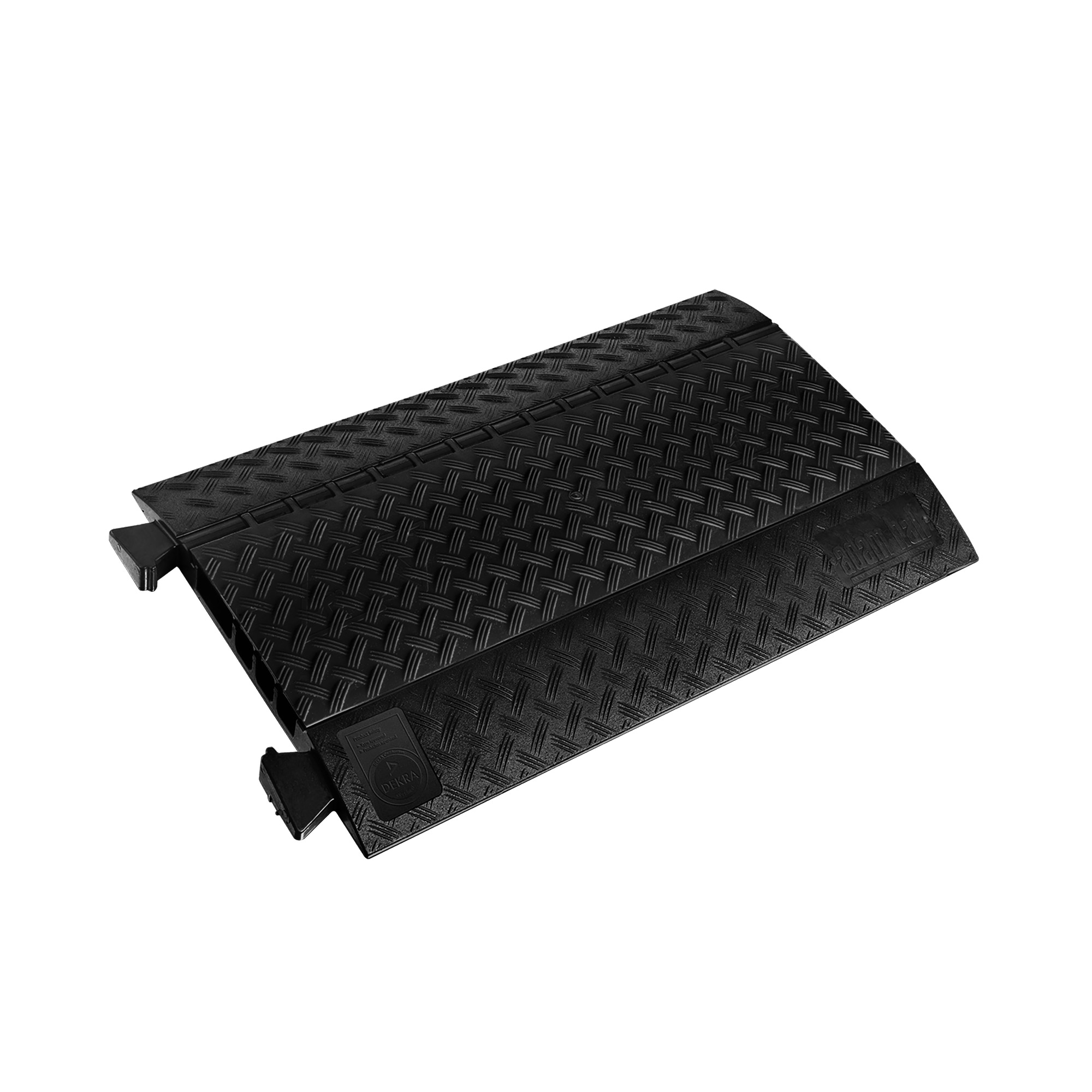

Defender MIDI 4C BLK - Káblový chránič 4-kanálový čierny (85301BLK)
• Štandard pre podujatia, priemysel a všetky verejné aplikácie
• Vysoko odolný protišmykový, všestranný káblový chránič vyrobené z čierneho recyklovateľného polyuretánu s integrovanými rukoväťami na prenášanie
• Čierny polyuretánový kryt s výstražným efektom a bezpečným zaistením

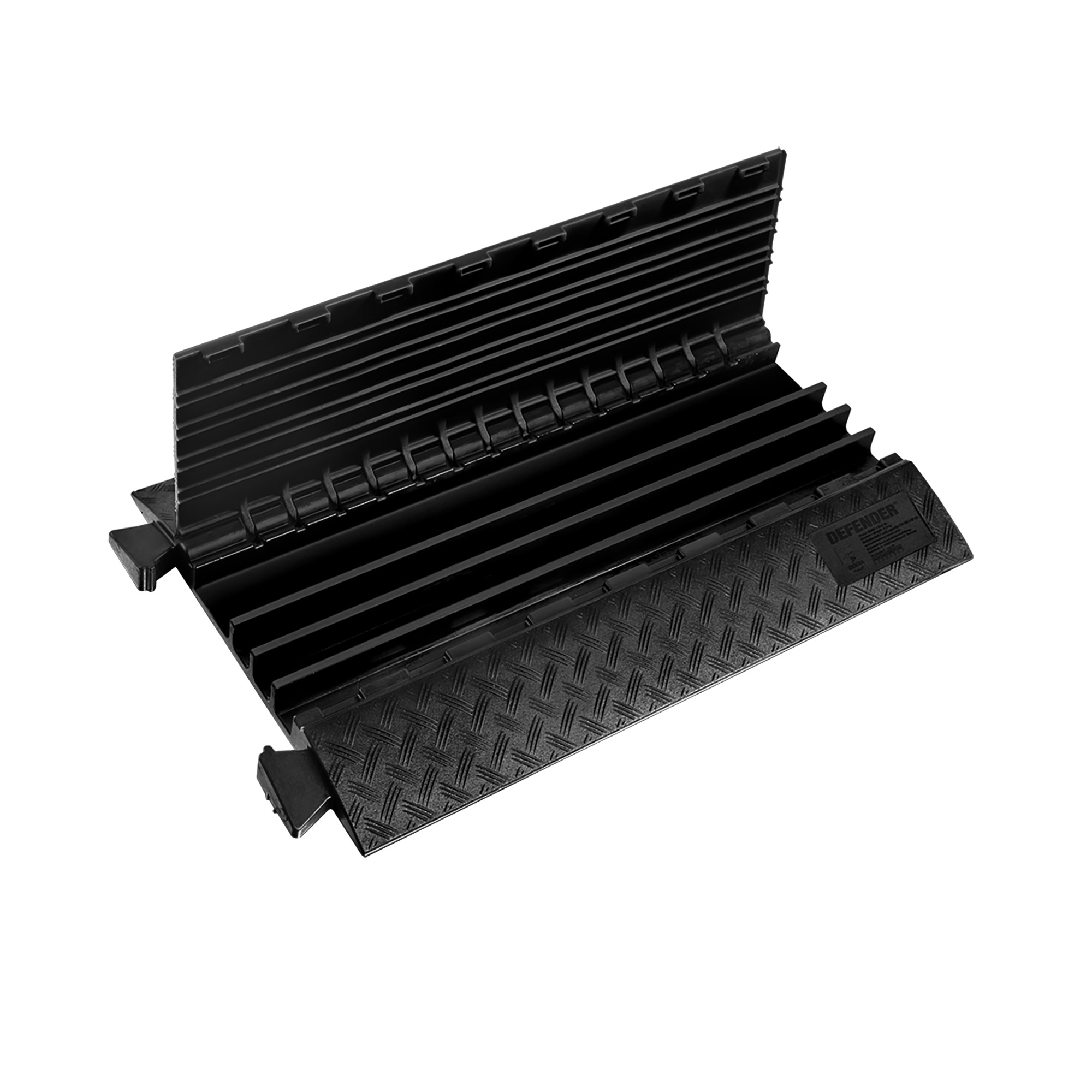

• Patentovaný samočistiaci sklopný kryt
• 4 kanály: 1 kanál 80 x 36 mm (pre tlakové hadice typ C) a 3 kanály 34 x 36 mm
• Nosnosť približne 5 t / 20 cm²
• Trieda požiarnej ochrany B2 (DIN 4102), certifikácia DEKRA (DIN 31000, EN 61537)
• Odolný voči olejom, kyselinám, benzínu a krátkodobému kontaktu s rozpúšťadlami
• Rozmery 87 x 53,8 x 5,5 cm
• Hmotnosť 13,5 kg
• Spoľahlivá ochrana káblov, hadíc atď. pre vnútorné a vonkajšie použitie
• Koncovky pre bezpečný vstup a výstup kábla sú k dispozícii ako príslušenstvo
VIAC INFORMÁCIÍ..../ MORE INFORMATION....

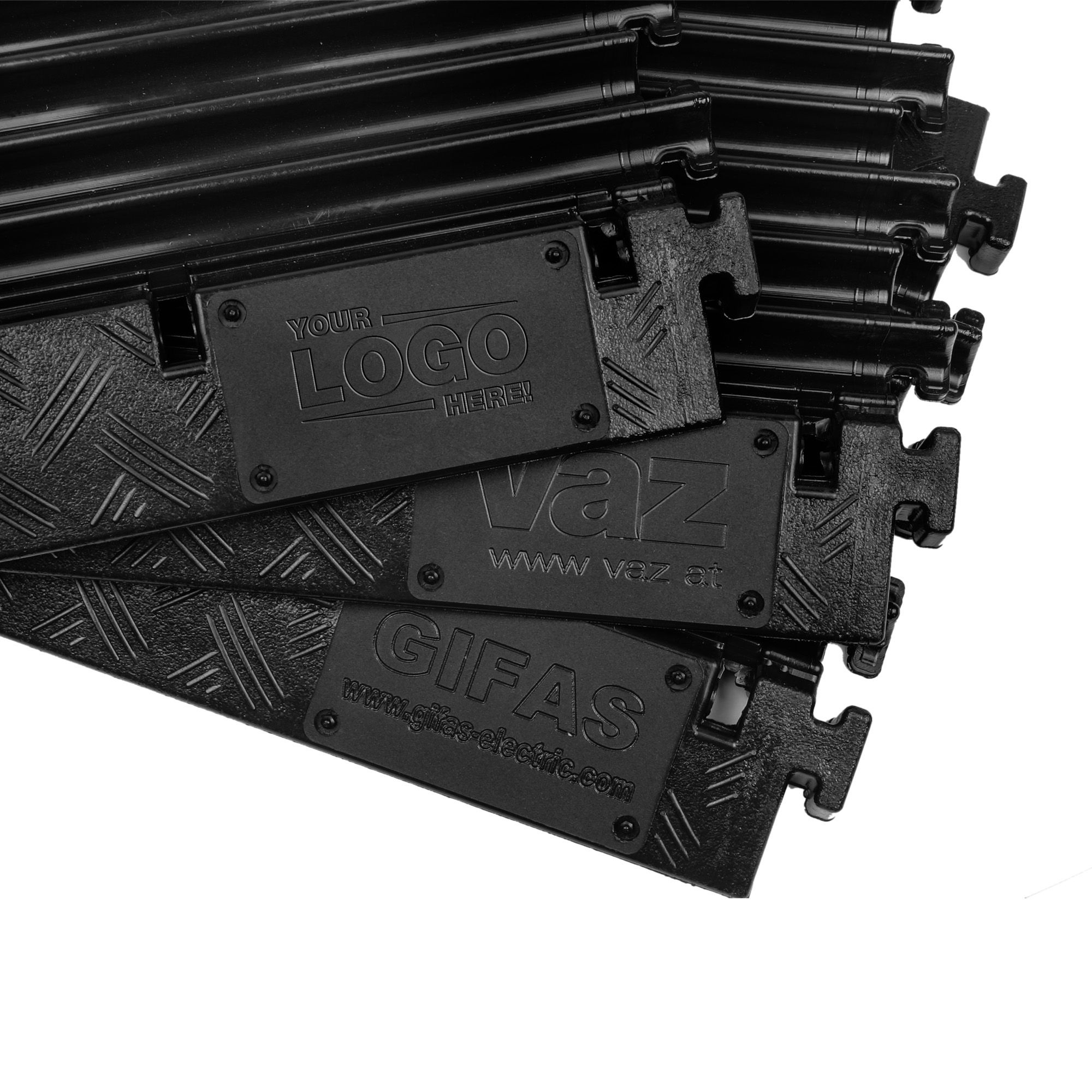

3 medium-sized cable channels – 1 large channel for fire hoses The Defender® MIDI 4C cable crossover has three cable channel...s measuring 34 x 36 mm plus a wide hose channel (80 x 36 mm), making it the ideal solution if a pressure hose has to run parallel to individual sound, light and/or network cables. With its integrated connectors, flat profile and a capacity of 5 tonnes on an area of 20 x 20 cm (like the Defender MIDI system), MIDI 4C cable crossovers are perfect for heavy traffic, construction sites, warehouses, shopping centres, trade shows and exhibitions, as well as carnival and music events. Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.
VIAC
NA STIAHNUTIE :
DEFENDER CATALOGUE
3 medium-sized cable channels – 1 large channel for fire hoses The Defender® MIDI 4C cable crossover has three cable channels measuring 34 x 36 mm plus a wide hose channel (80 x 36 mm), making it the ideal solution if a pressure hose has to run parallel to individual sound, light and/or network cables. With its integrated connectors, flat profile and a capacity of 5 tonnes on an area of 20 x 20 cm (like the Defender MIDI system), MIDI 4C cable crossovers are perfect for heavy traffic, construction sites, warehouses, shopping centres, trade shows and exhibitions, as well as carnival and music events. Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.
The standard for event technology, industry and all public applicationsHeavy duty non-slip all-round cable protectors made out of black, recyclable polyurethane with integrated carrying handlesBlack polyurethane cover with high warning effect and secure lockingPatented self-cleaning hinged cover4 channels: 1 channel 80 x 36 mm (for C-pressure hoses) and 3 channels 34 x 36 mmLoad capacity approximately 5 t/20 cm2Fire protection class B2 (DIN 4102), DEKRA-certified (DIN 31000, EN 61537)Resistant to oil, acid, petrol and short-term contact with solventsDimensions 87 x 53.8 x 5.5 cm; weight 13.5 kgReliable cable, hose and personal protection for indoor and outdoor useEnd caps for safe cable entry and exit available as accessories
Product type: Cable Protectors
Type: 4 Channels
Length: 870 mm
Width : 538 mm
Height: 55 mm
Channels: 4
Width channel 1: 34 mm
Height channel 1: 36 mm
Width channel 2: 34 mm
Height channel 2: 36 mm
Width channel 3: 34 mm
Height channel 3: 36 mm
Width channel 4: 80 mm
Height channel 4: 36 mm
Material: Polyurethane
Max load: approx. 5t on a surface area of 20 x 20 cm
Chemical resistance: Acid-resistant , Oil-resistant , Petrol-resistant , Short-term contact with solvents
Hardness range: 88 Shore ± 4 A Shore
Fire protection class: B2
Temperature range: -30°C to 60°C °C
Weight: 13,5 kg
Special feature: DEKRA-certified
