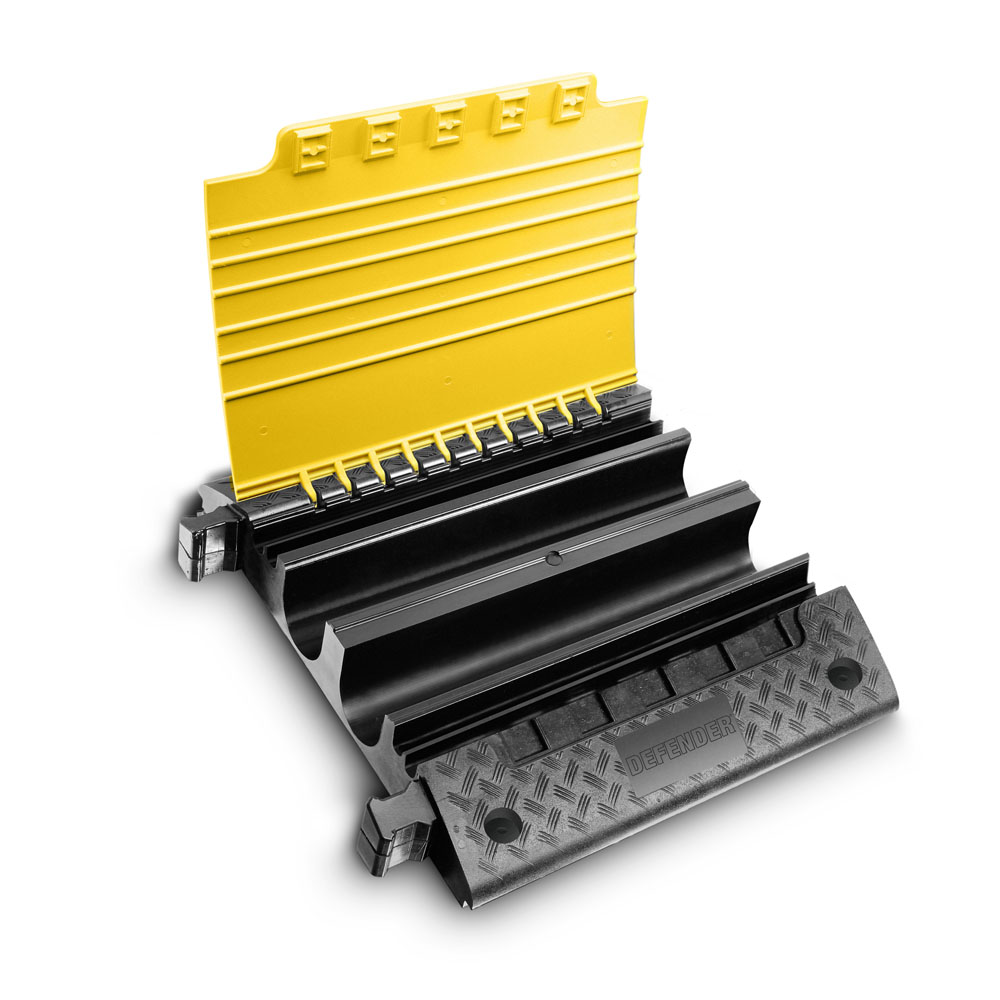

Defender ULTRA L 2 LUX - Káblový chránič 2 + 4 kanálový LUX (85601LUX)
• Vysoko odolný crossover z čierneho recyklovateľného polyuretánu pre náročné použitie

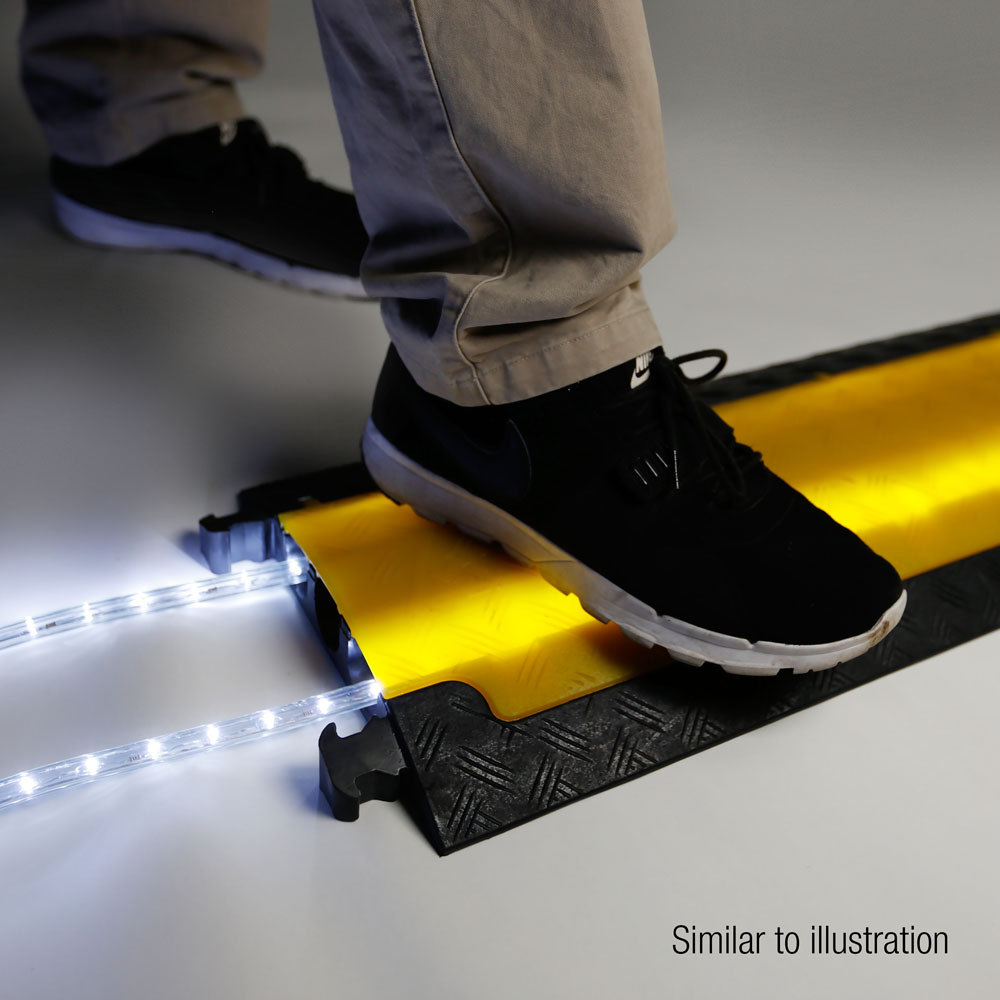

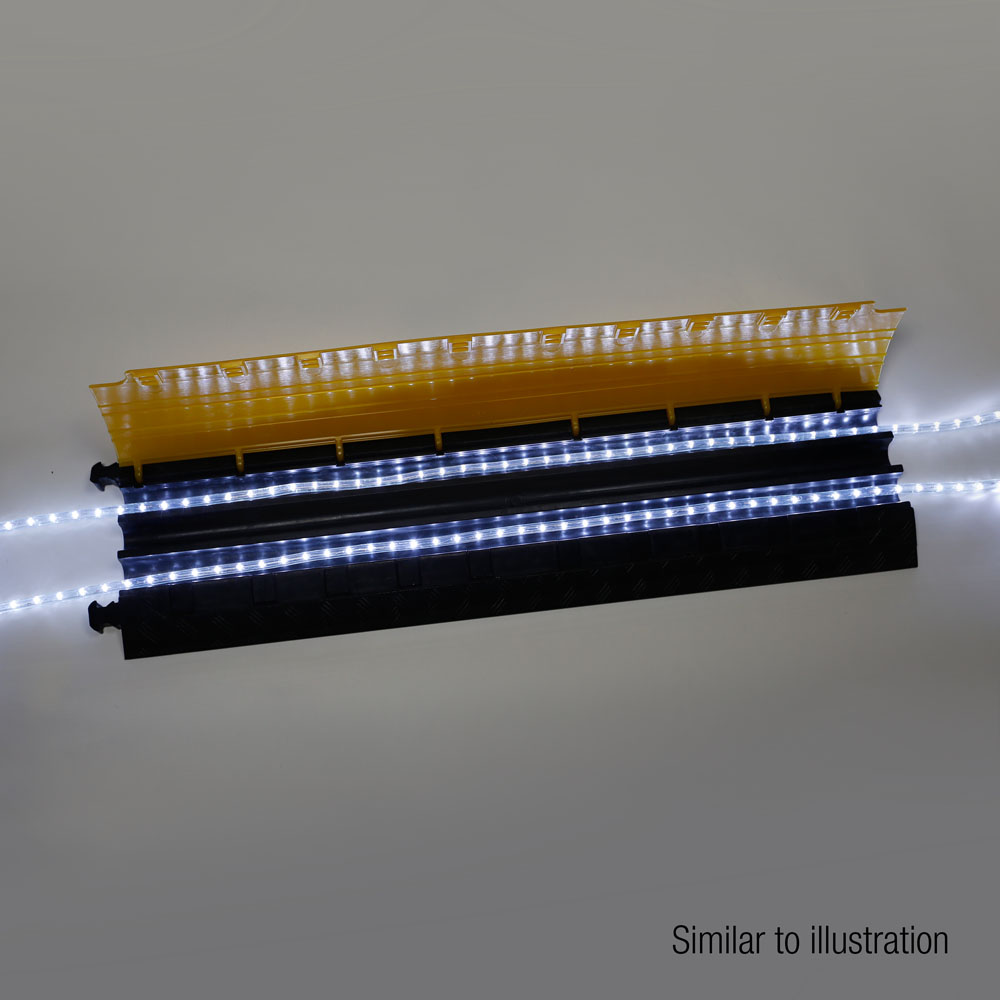

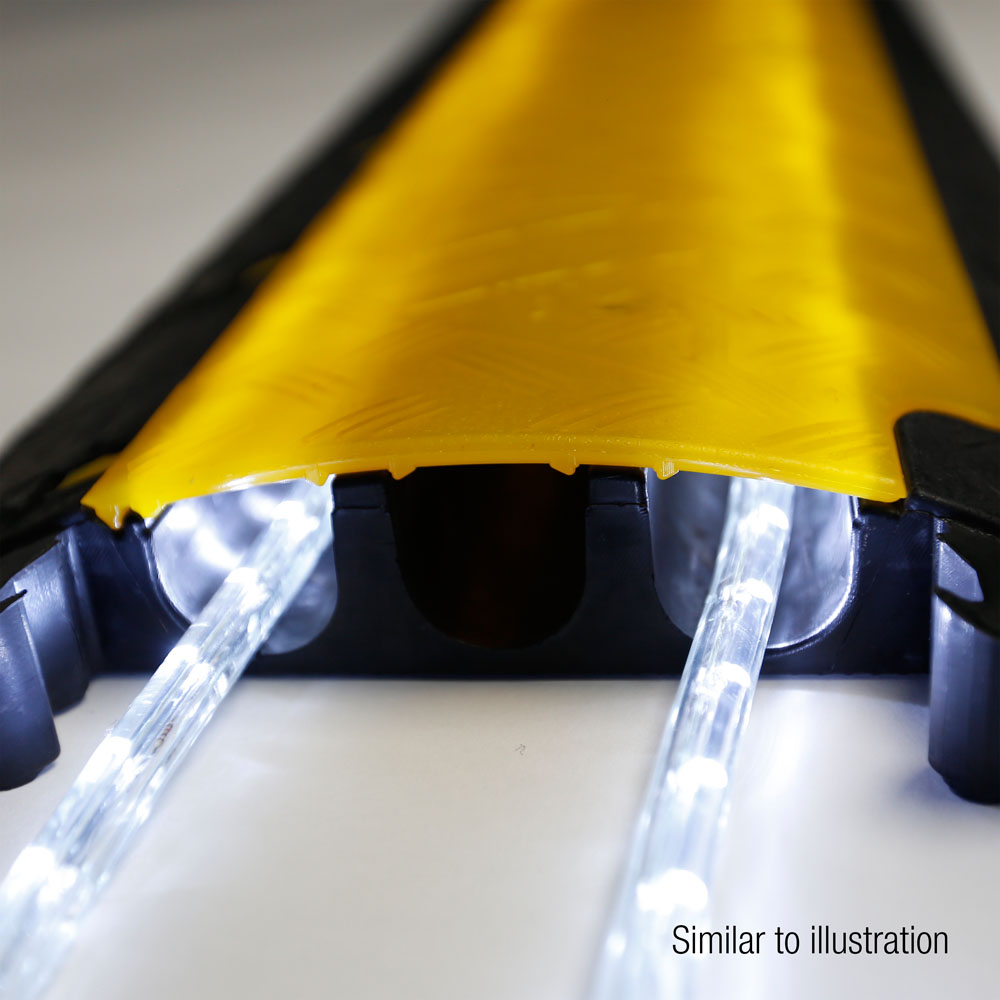

• Vysoko priehľadné žlto tónované viečko na použitie v tme so svetlými trubicami
• Protišmykové, žlté polyuretánové veko s vysokým výstražným účinkom a bezpečným zatváraním
• Patentovaný, samočistiaci pánt veka

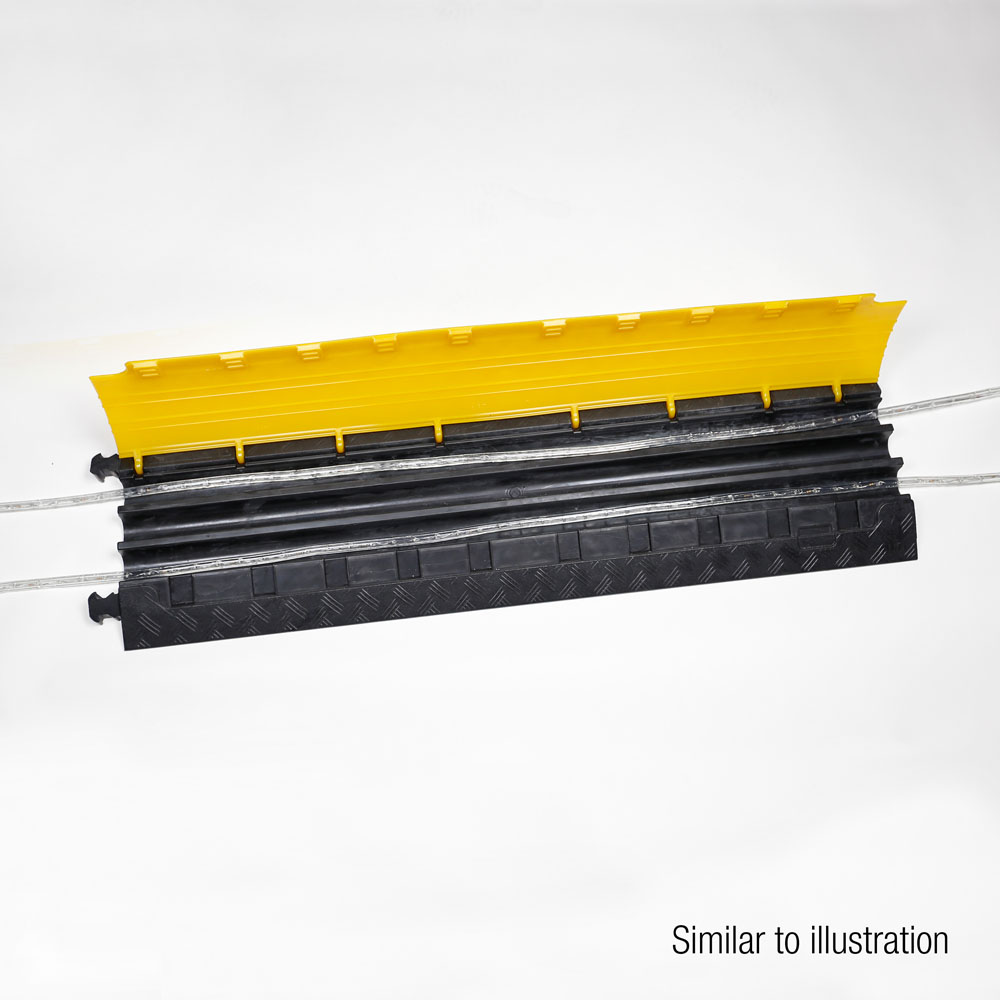

• 6 kanálov: 2 kanály 108 x 110 mm, 4 kanály 25 mm v priemere
• Dva kanály vhodné pre sacie hadice typ A a multi konektory
• Nosnosť cca. 5 t / 20 x 20 cm
• Trieda požiarnej odolnosti B2 (DIN 4102), certifikácia DEKRA (DIN 31000, EN 61537)
• Odolný voči olejom, kyselinám, benzínu a krátkodobému kontaktu s rozpúšťadlami
• Rozmery 70 x 76,6 x 12 cm
• Hmotnosť 28 295 kg
• Spoľahlivá ochrana káblov, hadíc a personálu pre vnútorné a vonkajšie použitie
• 4 upevňovacie otvory pre montáž s Ø 10 mm.
The ultimate solution for protecting your cables and for preventing people from tripping. The innovative cable crossovers in the Defender LUX Series have highly transparent, yellow-ti...nted lids in which LED light tubes can be inserted parallel to cables and other pipes. Based on state-of-the-art technology, Defender LUX cable crossovers have been developed in collaboration with event organisers and operators of large halls and festival venues and ensure the highest possible level of safety and visibility in the dark, both indoors and outdoors. LED light tubes from the Defender Series are available as separate accessories. For more information, please refer to our price list for Defender LUX cable crossovers and light tubes, or contact your Defender representative directly. Cable protector, 4-channel Defender® Ultra L heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels (two channels of 120 x 113 mm plus two channels of 33 x 50 mm) as well as integrated connector plugs for easy coupling of several elements. Defender® Ultra L heavy-duty cable crossovers are designed for the most demanding applications and feature two extra-large cable channels (two channels of 120 x 113 mm plus two channels of 33 x 50 mm) as well as integrated connector plugs for easy coupling of several elements. The load-bearing capacity is approx. 5 tons on a 20 x 20 cm surface area. This makes Ultra L cable crossovers the ideal solution for heavy traffic, construction sites, warehouses, trade shows, carnival and music events, as well as other applications involving particularly heavy use. Defender LUX cable crossovers can be used with commercially available light tubes. Light tubes with a so-called neon effect are particularly recommended since the individual LEDs are less visible and this provides particularly homogeneous lighting. For outdoor use, please take care to ensure the appropriate IP classification of the light tube. The use of LED strips and other unidirectional light-emitting products or fairy lights is not recommended. Label your cable crossovers! All Defender cable crossovers can be customised with your company logo from a minimum order of just 30 units per model. The format requirements are available in the download area. Don’t hesitate to contact us.
