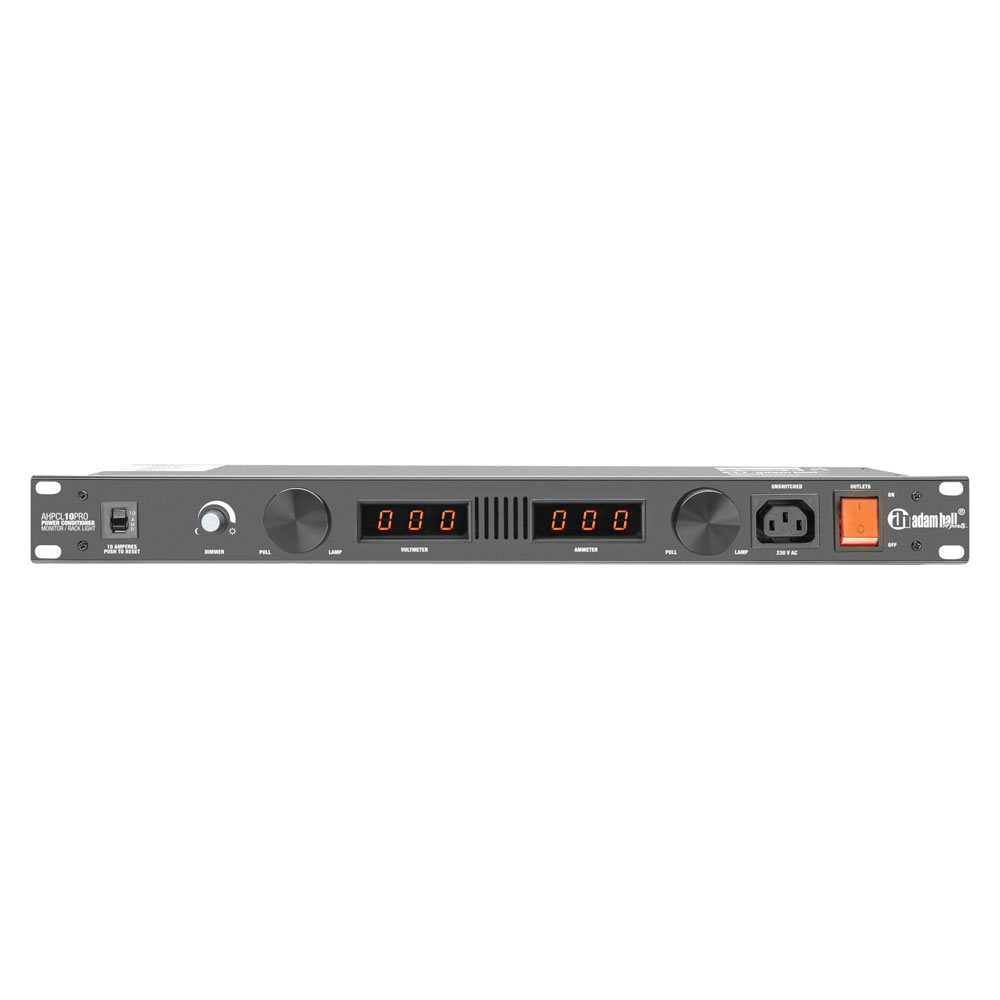

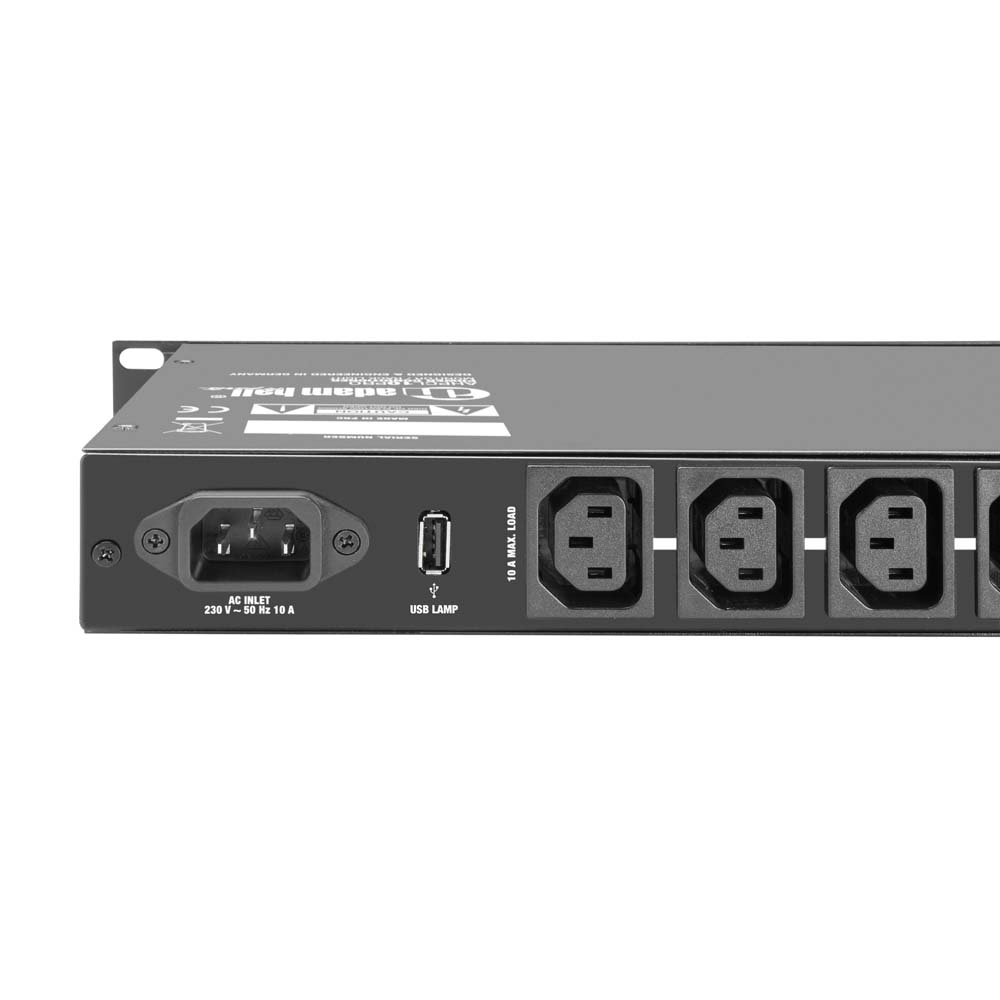

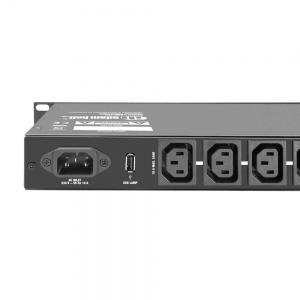

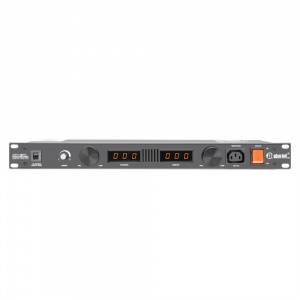

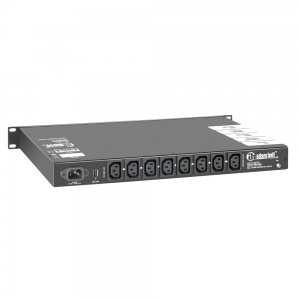

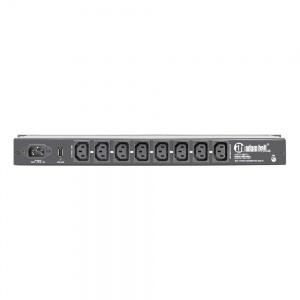

In addition to providing a central power supply to racks and installations, the 19" AH Power Conditioner with only 1 ns response time offers effective protection against power surges and spikes. High frequency filters ensure a high interference immunity and prevent interference with connected devices. The 8 female power sockets on the back panel are activated with a large rocker switch with integrated status LED; on the front panel, the AH Power Conditioner also has an unswitched power socket and an easily resettable 10 A automatic circuit breaker. The sturdy construction and the rugged 1U steel housing provide you with a reliable and long-lasting operation in mobile and stationary applications.
The AH PCL 10 PRO has two rack lights, a gooseneck lamp as well as a voltmeter and ammeter with individual, easy-to-read display for monitoring the voltage values and power consumption.

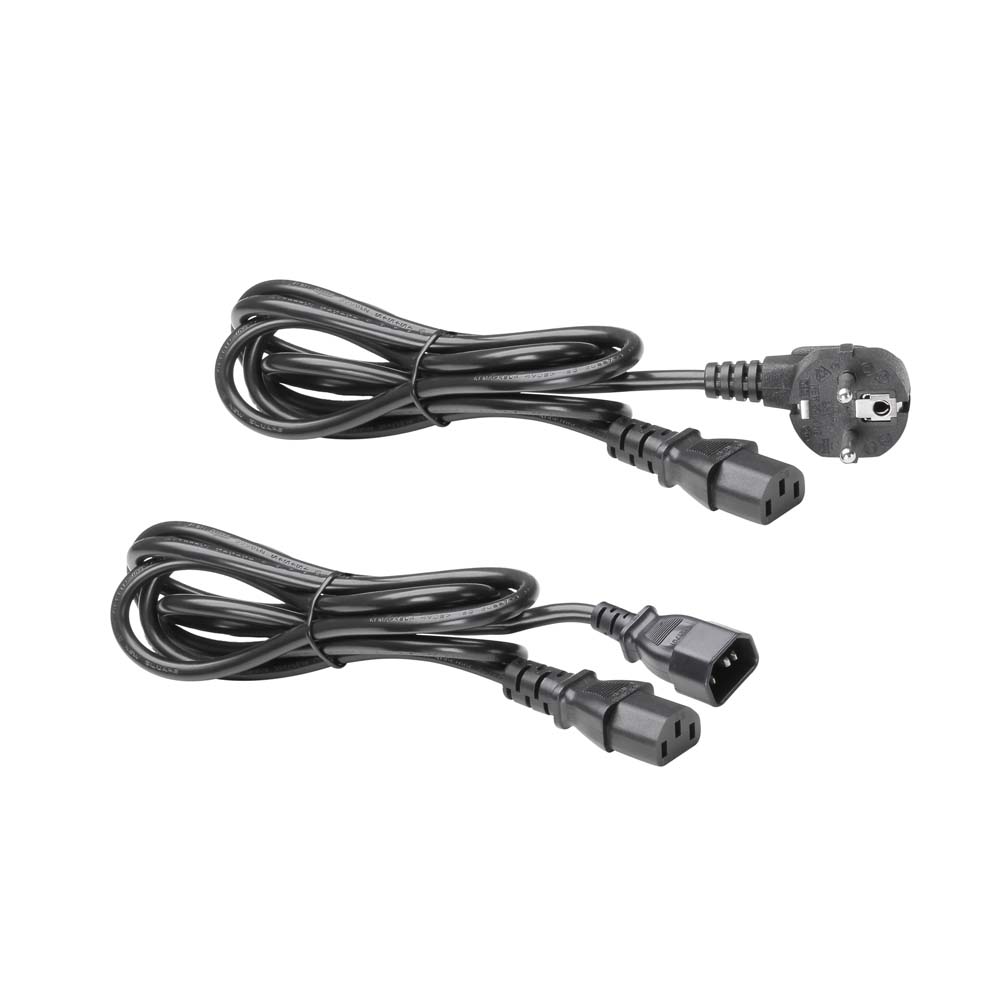

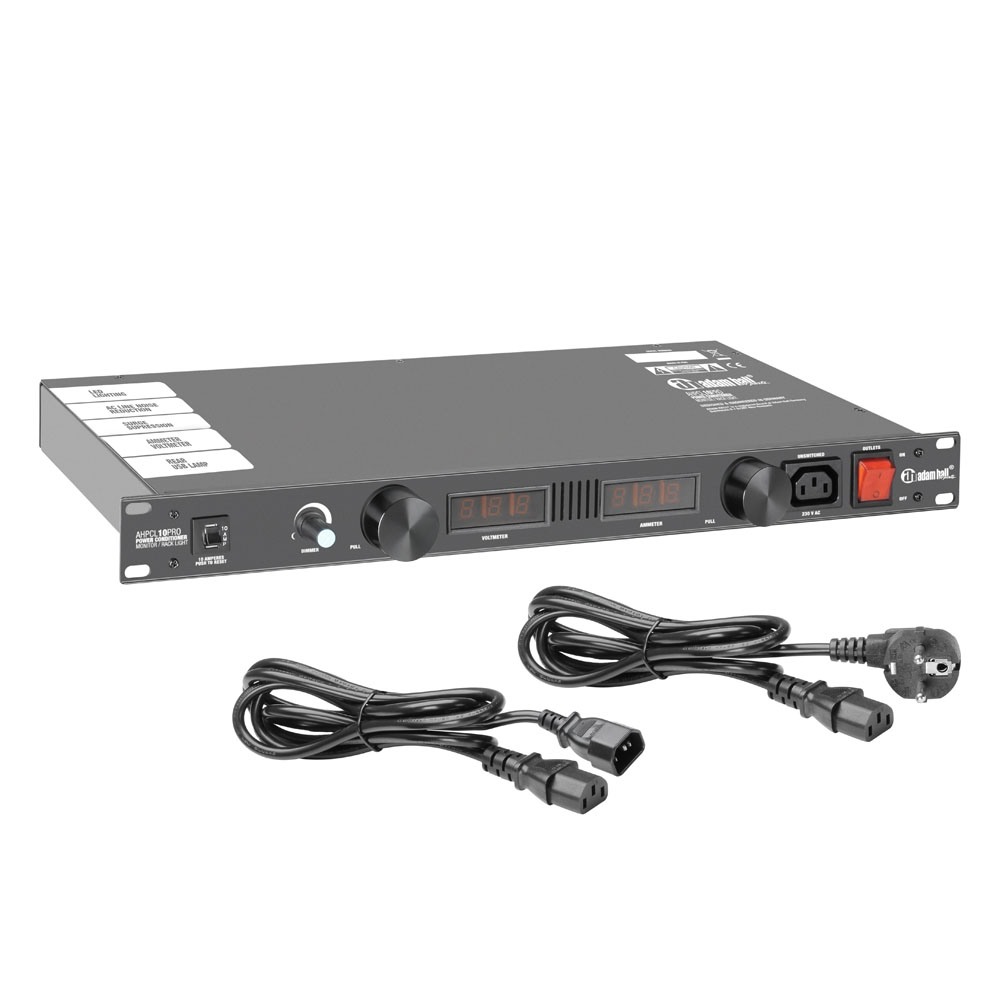

All AH power conditioners are supplied with four IEC connection cables.
-----------------------------------------------------------------------------------------------------
○ Reliable protection against over-voltage and impulse voltage
○ Effective high frequency filter against interference

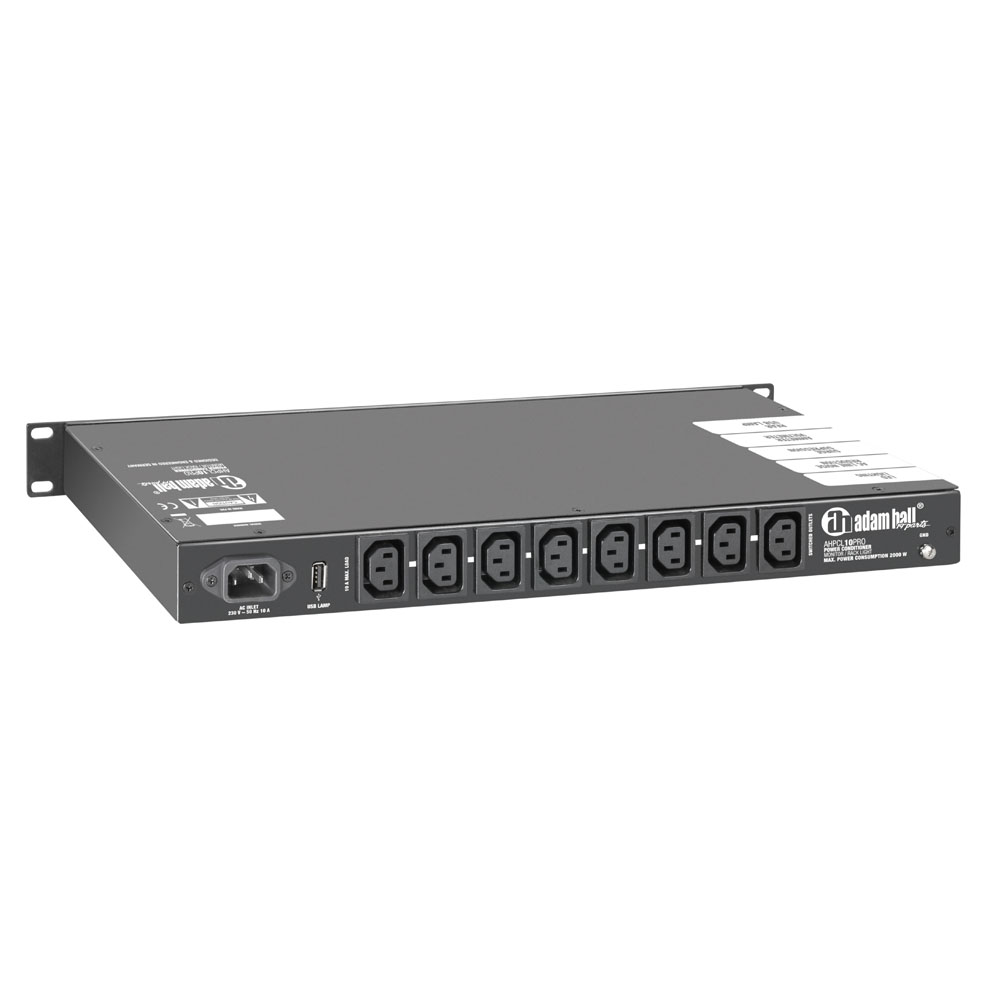

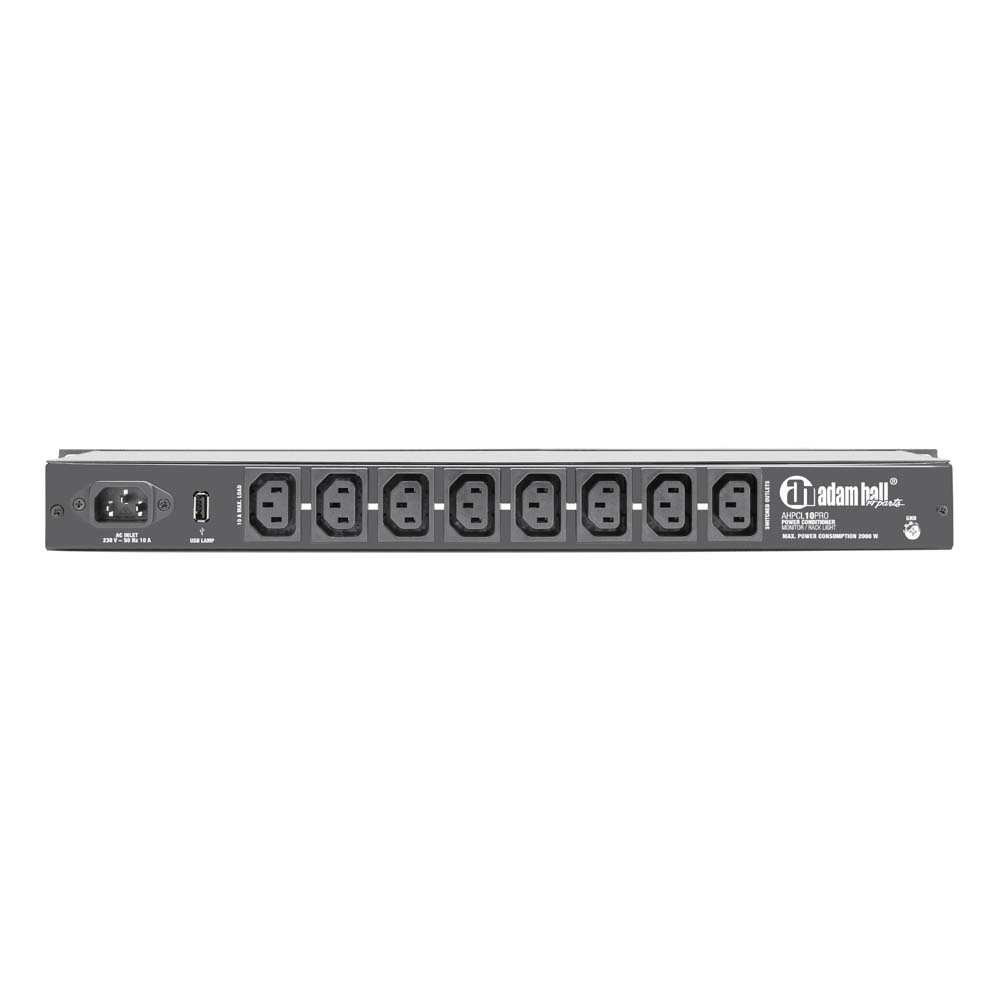

○ Central power supply with 8 switchable IEC sockets

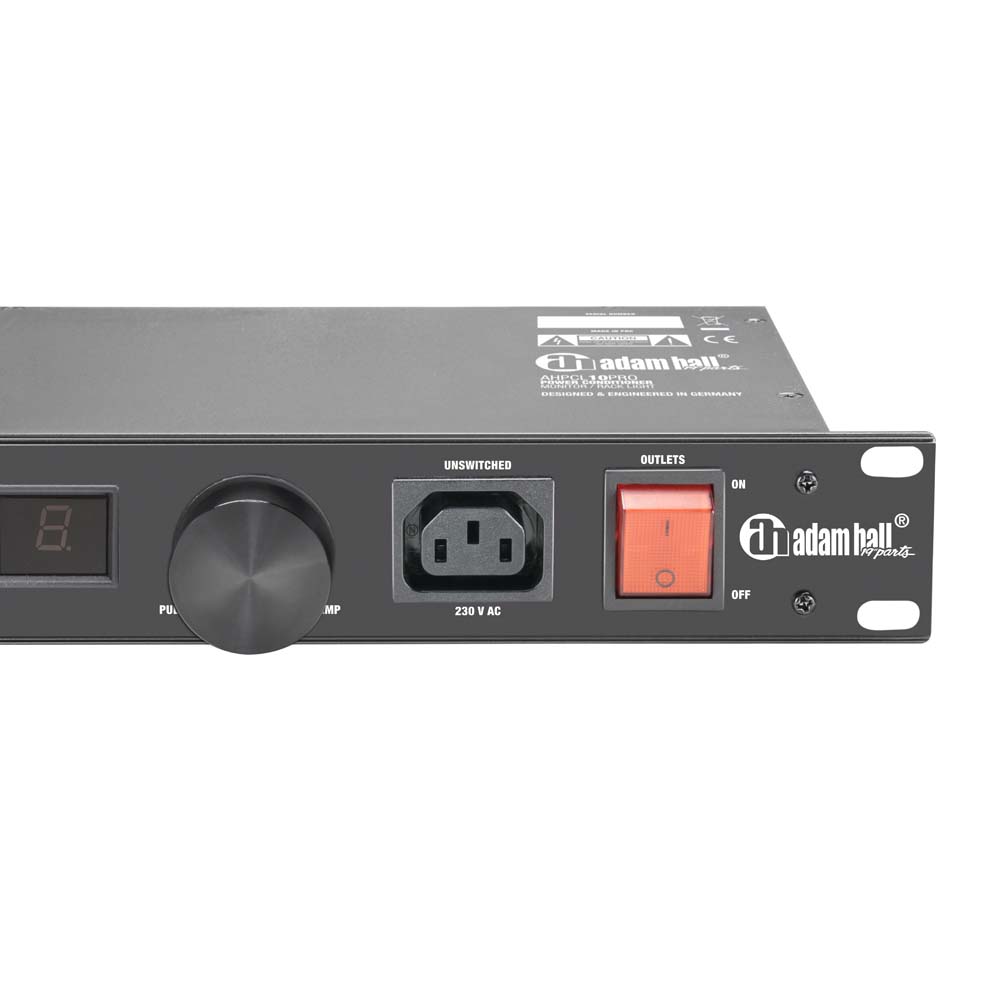

○ Unswitched convenience socket on the front

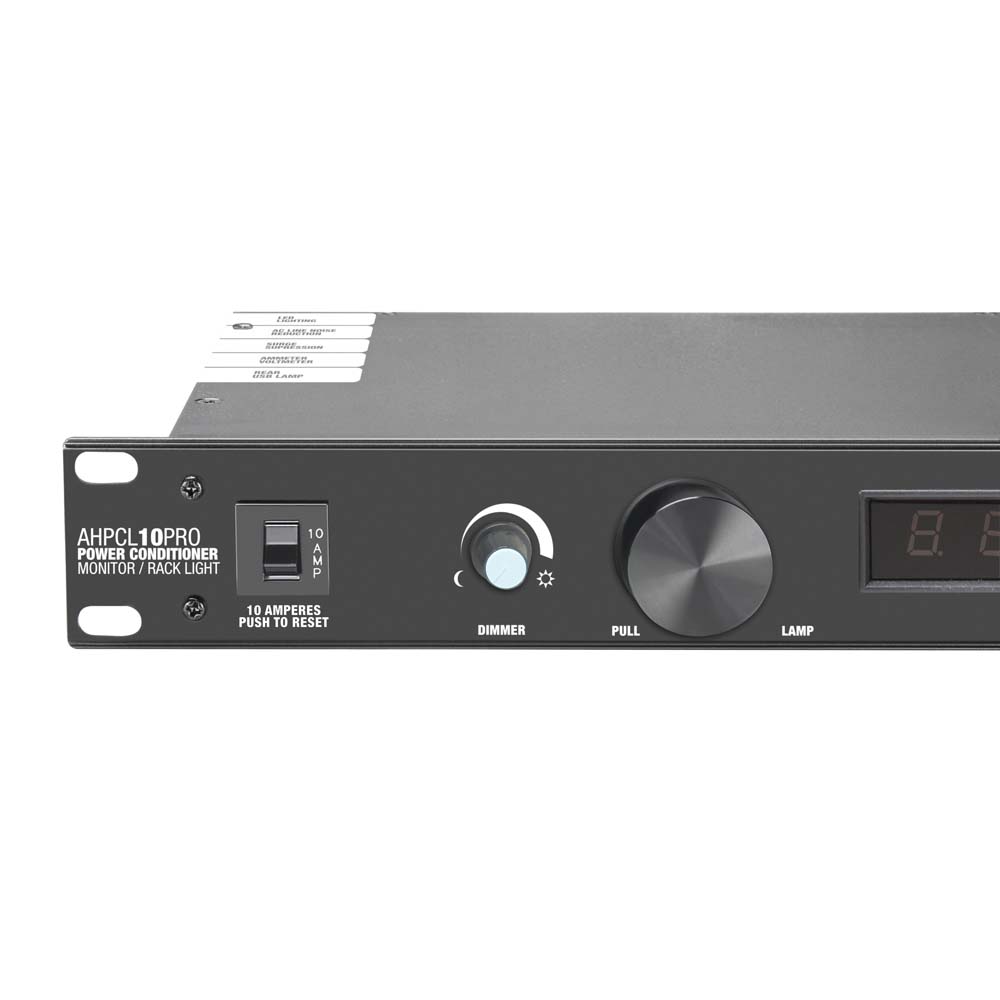

○ Resettable circuit breaker on the front panel

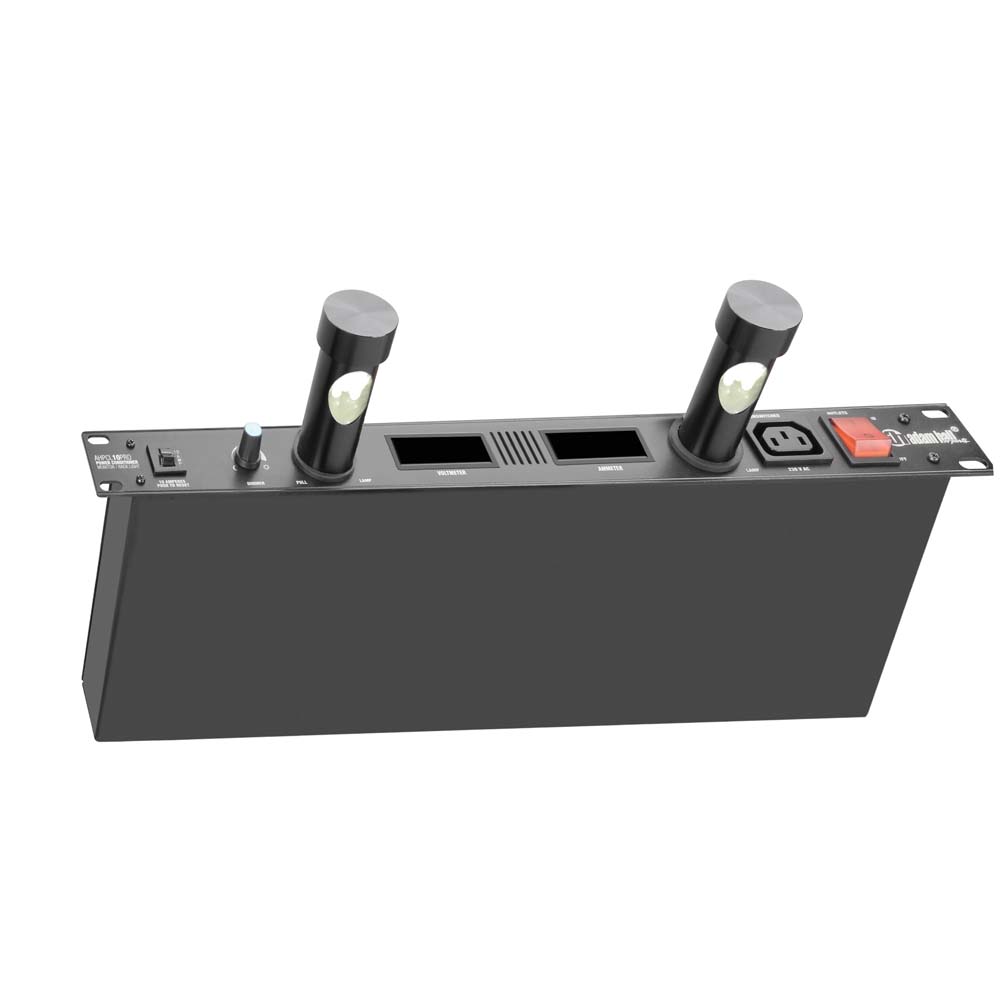

○ 2 pull-out LED rack lights with dimmer

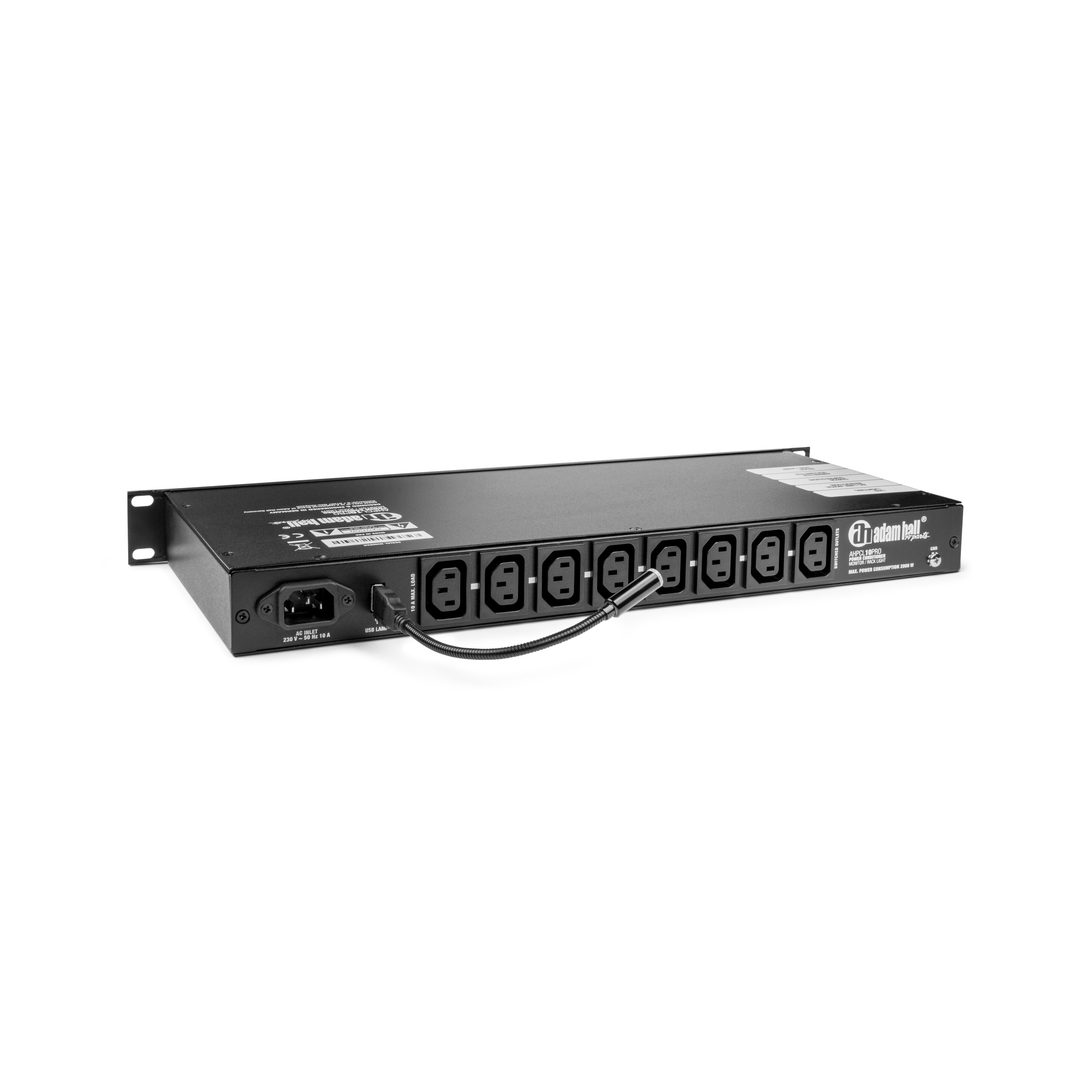

○ LED gooseneck lamp with USB connection for the lighting of the rack
○ Volt and ammeter with easy-to-read display
• Product type: 19" RACK MAINS SOCKET STRIPS
• Type: 19" / 1 U
• Number of outlets (IEC C14): 9
• Input voltage: 230 V
• Nominal Impedance: MAX 10 A
• Protection Against Impulse Voltage: NEUTRAL CONDUCTOR TO EARTH, OUTER CONDUCTOR TO NEUTRAL, OUTER CONDUCTORS TO PROTECTION LIGHTS
• Response Time: 1 NS
• Max. Surge Current: 6000A (8x20 µs PULSE)
• Max. Surge Energy: 70 JOULES PER CONTACT
• Noise Cancelling:
