MAGMATIC Prisma Wash 100

PRISMA WASH 100 ™ je exteriérové wash UV svetlo s krytím IP65, ktoré vytvára 365nm maximálny skutočný UV výkon s nulovým viditeľným svetlom. Medzi vlastnosti patrí konštrukcia reflektora LED, ktorá vytvára pôsobivý 90 stupňový širokouhlý lúč s manuálne nastaviteľným sklonom,všestranné možnosti vybavenia, užívateľsky prívetivý digitálny 2,5 palcový dotykový ovládací panel LCD, intuitívne ovládanie DMX-512 a RDM a IP menovitý výkon a dáta in / out pripojený pigtail káblami.
Voliteľné príslušenstvo obsahuje difúzny filter Black Glass na vytvorenie úplného efektu výpadku prúdu,ktorý umožňuje iba prenikanie UV lúčov,predlžovacie káble s menovitým výkonom plus dátové káble s predĺženou dĺžkou.

Code : 1237000237

Na objednávku

8,40

Hmotnosť

CENA:

na dopyt

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

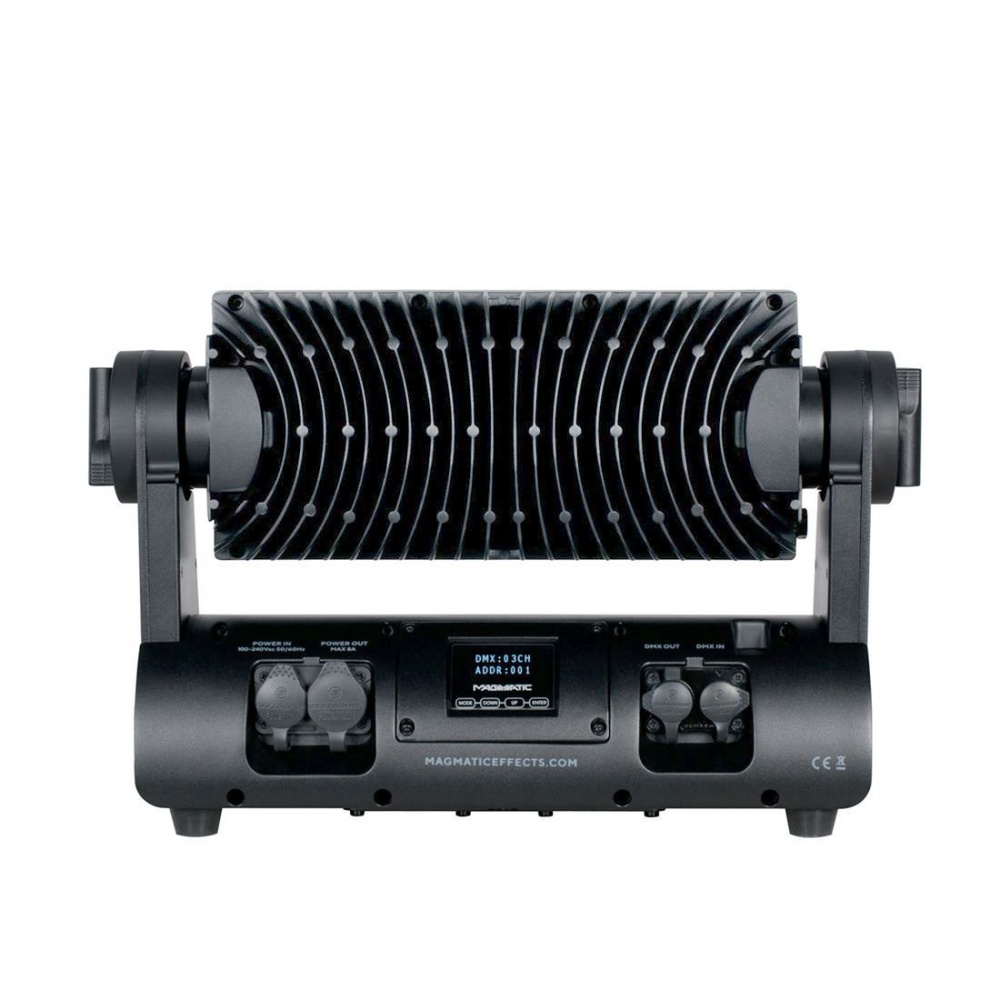

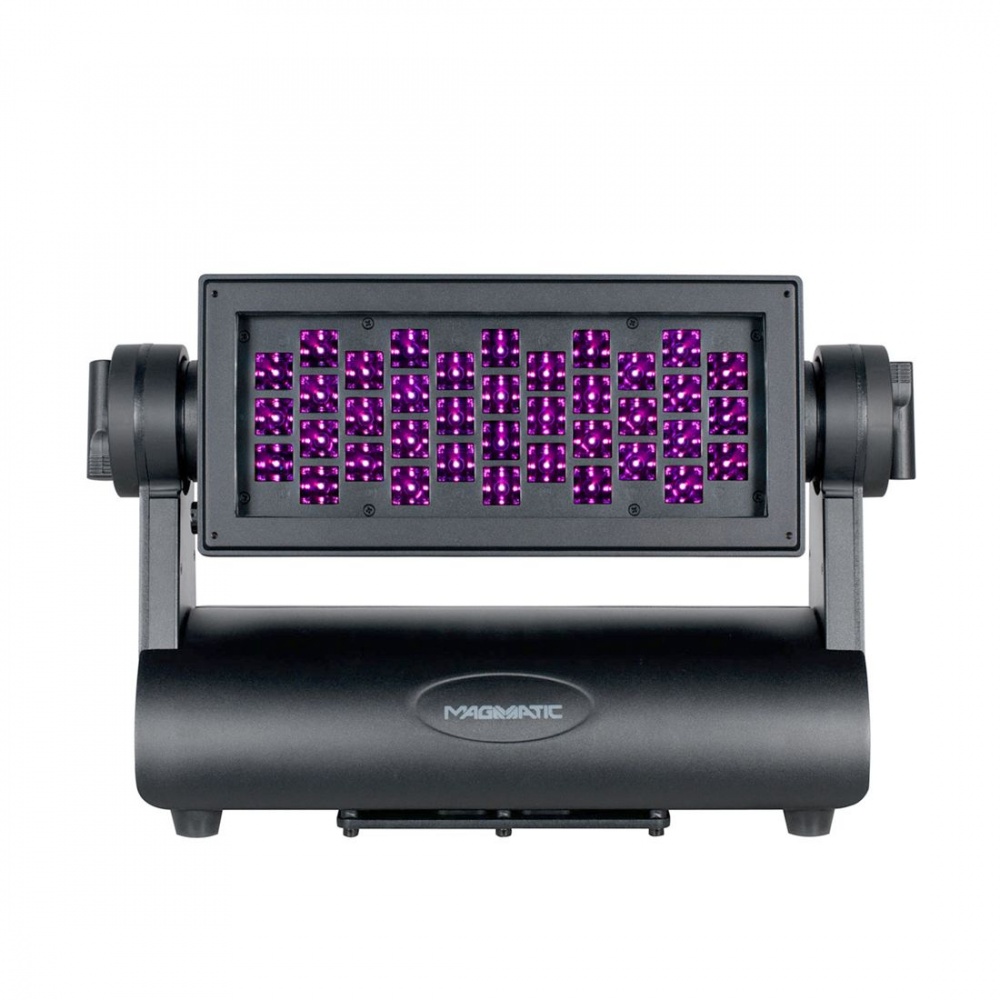

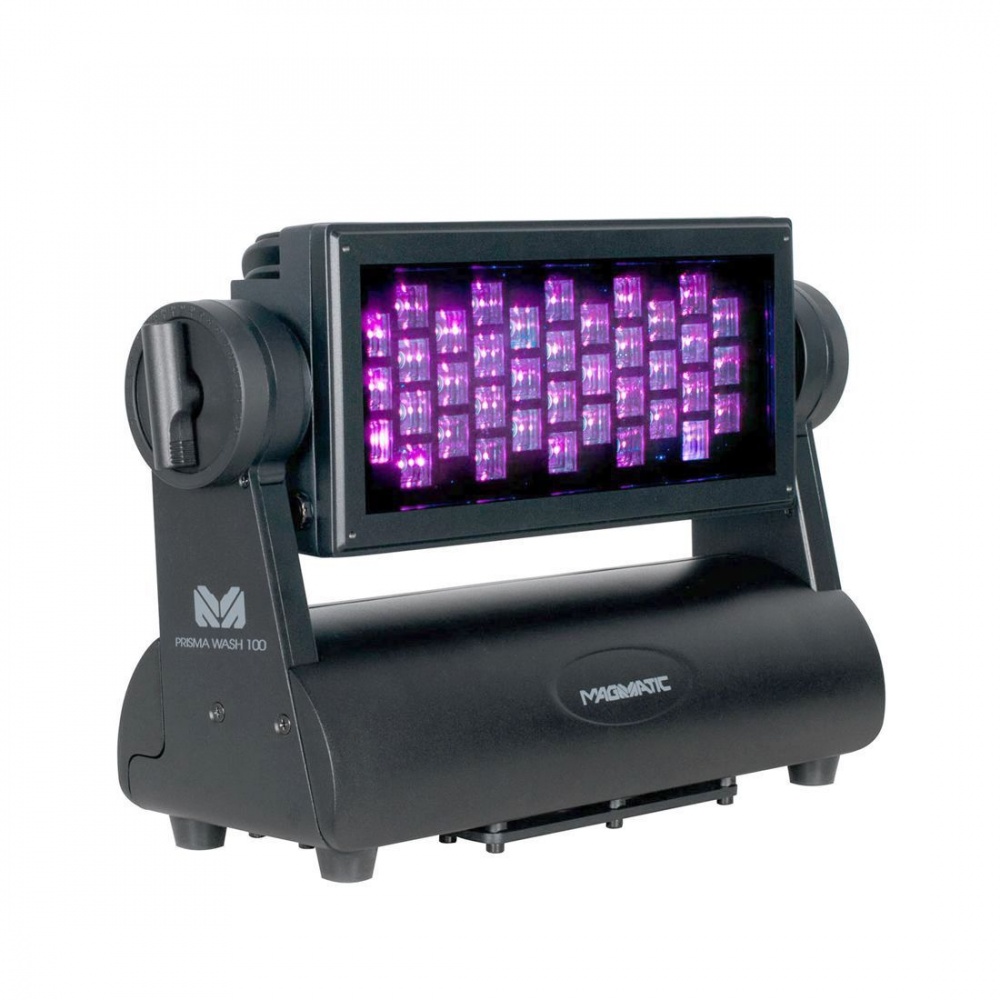

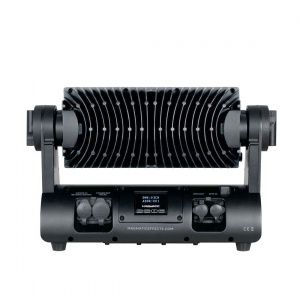

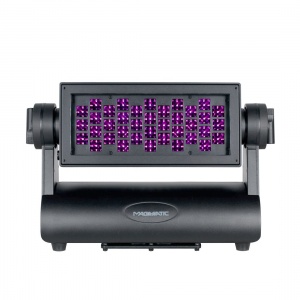

The PRISMA WASH 100™ is an exterior IP65 rated UV wash luminaire that produces 365nm peak true UV output with zero visible light. Features include a scoop LED reflector design which creates an impressive 90 degree wide beam angle, manual adjustable tilt positioning and versatile rigging options, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, and IP rated power and data in/out.

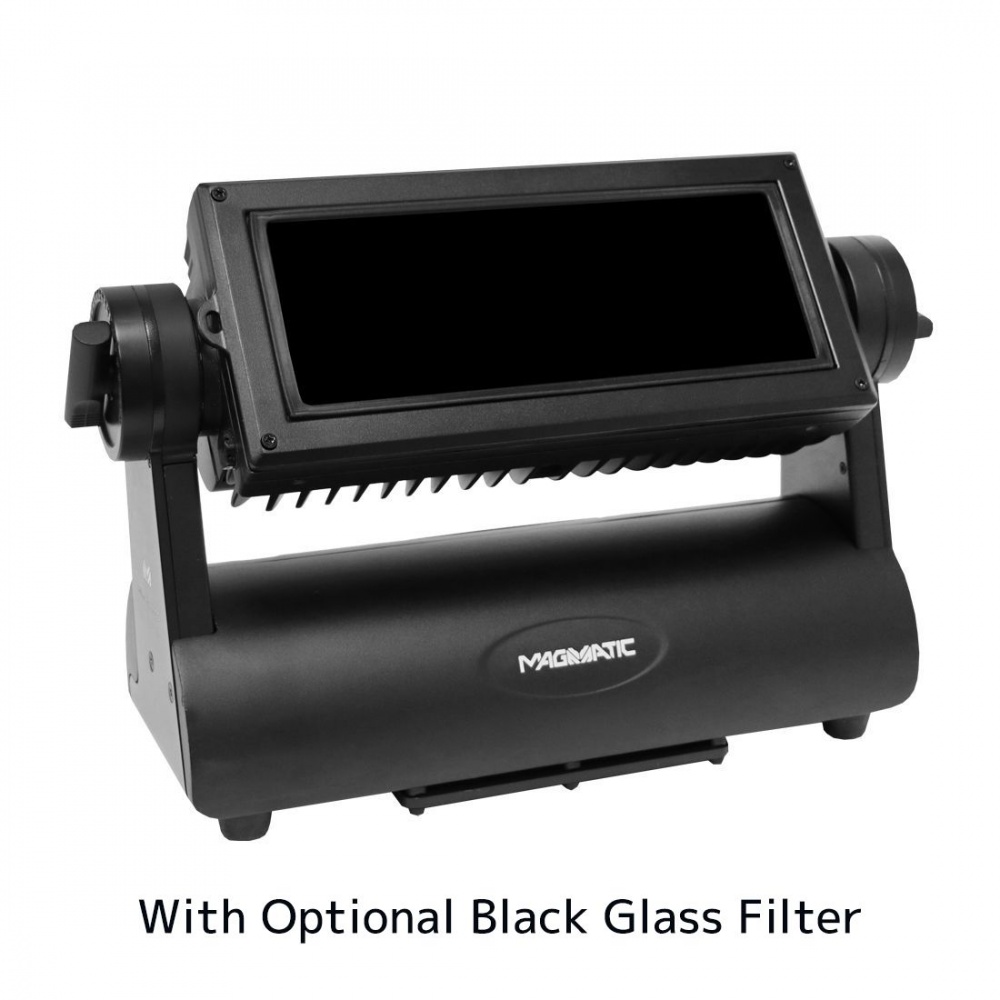

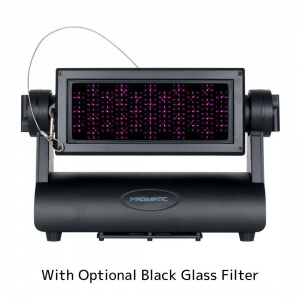

Optional accessories include a Black Glass filter to create a complete blackout effect, only allowing UV rays to penetrate, and extended length IP rated power and data linking cables.

*FEATURESIP65 Rated Exterior High-Power UV Wash LuminaireScoop LED Reflector Design90 Degree Wide Beam Angle365nm Peak True UV WavelengthZero Visible Light OutputIP Rated Power and Data In/Out Pigtail Cables AttachedOptional Black Glass Diffusion FilterOptional Extended Length IP Rated Power and Data Linking Cables AvailableSOURCE(38) 2W High Power UV Diode LEDs20,000 Hour Average LED Life**Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. PHOTOMETRIC DATA90 Degree Wide Beam Angle365nm True UV Peak Wavelength EFFECTSHigh Speed Electronic StrobeVariable Dimming Curve Modes CONSTRUCTIONRugged IP65 Rated Aluminum HousingManual Adjustable Tilt Position CONTROLMultiple DMX Channel ModesOnboard 4 Button Touch Control PanelDMX-512 and RDM Protocol Support CONNECTIONSIP Rated Power and Data In/Out Cables AttachedWith Wired Digital Communication Network SIZE / WEIGHTLength

17.2” (437.9mm)Width

5.8” (148.4mm)Vertical Height

11.5” (292.2mm)Weight

18.5 lbs. (8.4 kg) ELECTRICALAC100-240V 50-60HzT2A/250V83W Max Power Consumption THERMALAmbient Temperature (Ta max) 104°F (40°C)Air CooledPRISMA WASH 100™ is an exterior IP65 rated UV wash luminaire that produces 365nm peak true UV output with zero visible light. Features include a scoop LED reflector design which creates an impressive 90 degree wide beam angle, manual adjustable tilt positioning and versatile rigging options, a user friendly digital 2.5 inch LCD touch screen control panel, intuitive DMX-512 and RDM control, and IP rated power and data in/out attached pigtail cables.Optional accessories include a Black Glass diffusion filter to create a complete blackout effect, only allowing UV rays to penetrate, and extended length IP rated power and data linking cables.
