*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

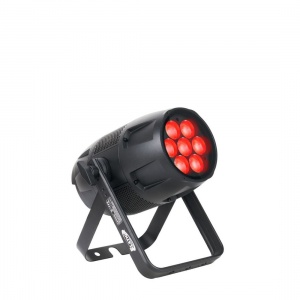

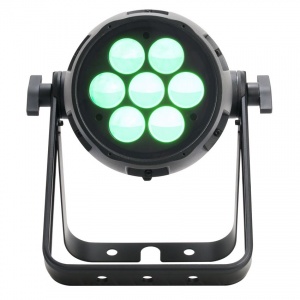

The ARENA ZOOM Q7IP™ an IP65 outdoor rated par fixture featuring (7) 30W Osram™ QUAD-Color RGBW LEDs, 7° to 40° motorized zoom, smooth color mixing, 38 color macros and variable speed macro effects, RGB white balance calibration, variable 3,200-10,000K color temperatures, selectable dimming curve effects, adjustable LED refresh rate and gamma brightness for flicker free operation for TV and FILM, DMX and RDM (remote device management) protocol support, IP65 Locking 5pin XLR Connector In/Out and IP65 Locking Power Connector In/Out, 4 Button 180° Reversible OLED Menu Control Display, integrated dual rigging yoke/floor stand, a durable die-cast housing, multiple unit power linkable, and a multi-voltage universal auto switching power supply (100-240v).
FEATURES
IP65 Rated Water and Dust Protection
High Power LED Zoom Par Luminaire
30W Osram™ Multi-Chip RGBW LEDs
7° to 40° Motorized Zoom

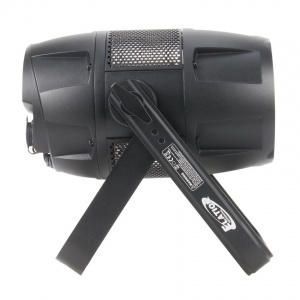

Dual Yoke / Floor Stand
Selectable Dimming Curve Effects
Adjustable LED Refresh Rate and Gamma Brightness
Silent Operation
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
SOURCE
7x 30W Osram™ Multi-Chip RGBW LEDs
3,000+ Total Lumens
30,000 Hour Average LED Life*
PHOTOMETRIC DATA
18,961 LUX 1,762 FC @ 9.8’ (3m) (Min. Zoom)
904 LUX 84 FC @ 9.8’ (3m) (Max. Zoom)
EFFECTS
High Speed Electronic Shutter and Strobe
Variable Dimming Curves
COLOR
RGBW
Variable Color Temperature (3,200K – 10,000K)
CONTROL / CONNECTIONS
(6) DMX Channel Modes (6 – 12)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Rate (600-28,800 (Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)
8 / 16 Bit Dimming Control

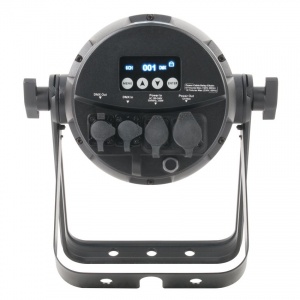

4 Button 180° Reversible OLED Menu Control Display
IP65 Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In/Out
SIZE / WEIGHT
Length: 12.4” (316mm)
Width: 9.6” (245mm)
Vertical Height: 7.8” (197mm)
Weight: 19.0 lbs. (8.6kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
250W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS
Locking IP65 Power Connector to CEE 7/7 Cable
