FEATURES
IP65 Rated

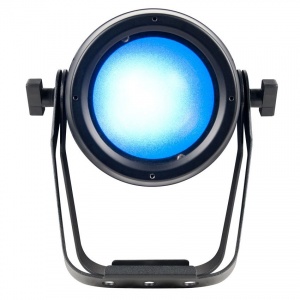

60W RGBW COB LED Par Luminaire
7° to 39° Motorized Zoom Range
Silent Operation
RGBW Color Mixing

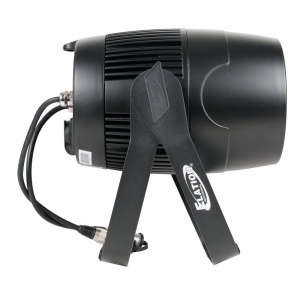

Dual Adjustable Yokes
Multiple Unit Power Linking
Flicker Free Operation for Broadcast TV and FILM
SOURCE
60W RGBW COB LED
100,000 Hour Average LED Life*
|
*May vary depending on several factors including but not limited to: | |
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
3,813 LUX 354 FC @9.8' (3m) (7° Full ON)
228 LUX 21 FC @9.8' (3m) (39° Full ON)
EFFECTS
RGBW Color Mixing
7° - 39° Beam Zoom Range
Electronic Strobe, Dimming and Variable Dimming Curves
64 Color Presets and 14 Unique Color Macros
COLOR
RGBW
CONTROL / CONNECTIONS
12 DMX Channel Modes (13 Total Channels)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)
Locking IP65 5pin XLR Connector In/Out and Locking IP65 Power Connector In/Out
With Wired Digital Communication Network
SIZE / WEIGHT|
Length: | 10.0” (253mm) |
|
Width: | 9.9” (252mm) |
|
Vertical Height: | 11.1” (282mm) |
|
Weight: | 10.0 lbs. (4.5 kg) |
ELECTRICAL / THERMAL
AC 110-240V - 50/60Hz
78W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus | IP65
INCLUDED ITEMS

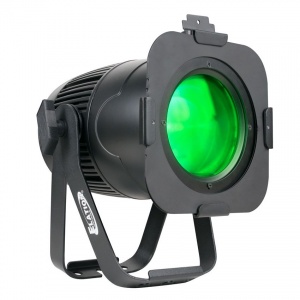

Removable Gel Frame

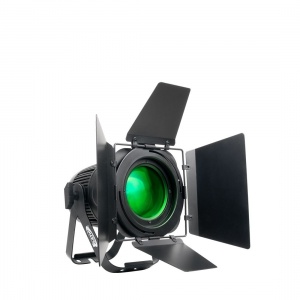

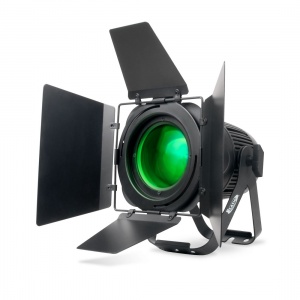

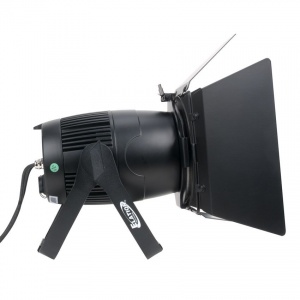

Removable Barn Doors
Locking IP65 Power Connector to CEE 7/7 Cable
OP
TIONAL ACCESSORIES
1322000060 C-Loader II
VIAC
