Martin ELP PAR IP
Statické LED svietidlo Martin ELP PAR nastavuje nový štandard v kategórii statického wash s bezprecedentným svetelným výstupom, úzkou transfokáciou s vysokou intenzitou, kalibráciou farieb v plnom rozsahu a inteligentnými funkciami ovládania. Toto svietidlo je taktiež ideálne for indoorové, alebo outdoorové aplikácie s IP65 ochranou voči prachu a vode.
LP PAR umožňuje rýchlejšiu a jednoduchšiu inštaláciu vďaka systému rýchleho zaostrovania a jasného uhla projekčných indikátorov. Medzi ďalšie vylepšenia výkonu patrí široký rozsah zoomu, ktorý umožňuje osvetlenie javiska aj efekty tesného stredového lúča, pokročilý systém kalibrácie farieb, ktorý poskytuje presnú reprodukciu farieb a presné ovládanie teploty farieb, rozšírený farebný režim a kanál CTC, ktorý dokáže modifikovať RGB kanály.
Či už vonkajšiu, alebo vnútornú divadelnú produkciu, festival, výstavu alebo firemnú akciu, vyplňte pódium farbami a vytvorte ohromujúce svetelné lúče s týmto všestranným LED svietidlom, ktoré nastavu...je nový výkonnostný štandard vo svojej triede.
VIAC
The Martin ELP PAR IP static LED fixture sets a new standard in the static wash category, with unprecedented lumen output, high-intensity narrow zoom, full-gamut color calibration and smart rigging and control features. This fixture is ideal for indoor or outdoor applications with an IP65 rating for protection against dust and water ingress.
The ELP PAR IP makes installation faster and easier, thanks to a quick-focus system and bright angle of projection indicators. Other performance enhancements include a wide zoom range that supports both stage illumination and tight mid-air beam effects, an advanced color-calibration system that delivers accurate color reproduction and precise color temperature control, an extended color mode and a CTC channel that can modify the color space.
Whether lighting an outdoor or indoor theatre production, festival, exhibition or corporate event, fill the stage with color and create stunning beam effects with this versatile LED fixture that sets a new performance benchmark in its class.
FEATURES
|
Light engine: | 7 x 40W RGBW |
Full-gamut color-calibration system
|
CTC control: | 1,800–12,850 K |
Quick Focus mode allows installation and focusing without the need for a console operator
Clear of projection indicators allow quick installation
Angled power and data connections support a clean cable run that does not impede the fixture or installation
Included truss and floor-mounting yoke with omega bracket connectivity
|
Lumen output: | 3,350 |
|
Zoom: | 5.5–50˚ |
|
Intensity: | 329,058 cd |
IP65 rating
|
Dimensions: | 315 x 285 x 498 mm (12.4 x 11.3 x 15.7 in) (inc. bracket) |
|
Weight: | 9.1 kg (20 lbs) |
SPECIFICATIONS
PHYSICAL
|
Length: | 315 mm (12.4 in.) |
|
Width: | 285 mm (11.3 in.) |
|
Height: | 398 mm (15.7 in.) with bracket |
|
Weight: | 9.1 kg (20.1 lbs.) |
DYNAMIC EFFECTS
|
Color mixing: | RGBW |
|
Color presets: | 48 color presets, virtual color wheel effects |
|
Electronic dimming: | 0 - 100%, four dimming curve options |
|
Strobe and pulse effects: | Variable speed and action, random strobe |
|
Electronic shutter effect: | Instant open and blackout |
|
Zoom: | Motorized |
|
Color temperature: | Variable 1800 – 12 850 K |
CONTROL AND PROGRAMMING
|
Control options: | DMX, RDM |
|
DMX channels: | 14 |
|
16-bit fine control: | Dimming, RGB, Zoom |
|
LED color management modes: | Raw, extended and calibrated |
|
DMX address setting: | Control panel with OLED display |
|
DMX compliance: | USITT DMX512-A |
|
RDM compliance: | ANSI/ESTA E1.20 |
OPTICS
|
Light source: | 7 x 40 W RGBW Osram LEDs |
|
Minimum LED lifetime: | 50 000 hours (to >70% luminous output)* |
|
Beam angle (half-peak): | 4.4 – 33.3° |
Field an
| gle (one-tenth peak): | 5.5 – 50.0° |
|
Binning: | Tight color and flux binning |
|
Calibration: | Full Gamut and Color Calibration |
|
Maximum output: | 3350 lumens |
*Figure obtained under manufacturer´s test conditions
PHOTOMETRIC DATA
|
Wide beam: | 3350 lumens |
|
Narrow beam: | 1626 lumens |
|
Fixture Center Intensity Narrow Beam: | 329058 cd |
|
Fixture Center Intensity Wide beam: | 10141 cd |
|
CRI (Color Rendering Index) : | >70 |
|
CQS (Color Quality Scale): | 84 |
|
TM-30 Rf (IES TM-30-15 Fidelity Index): | 79 |
|
TM-30 Rg (IES TM-30-15 Gamut Index): | 116 |
|
TLCI (Television Lighting Consistency Index): | 61 |
|
CCT: | 6500 Kelvin |
|
LED refresh rate - Standard Mode: | 3600 Hz |
|
LED refresh rate - Theatre Mode: | 19200 Hz |
*All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient
CONSTRUCTION
|
Housing: | Aluminum and composite |
|
Filter mount: | 191 x 191 mm (7.5 x 7.5 in.) |
|
Color: | Black |
|
Ingress protection rating: | IP65 |
INSTALLATION
|
Mounting points: | Adjustable bracket, surface or truss mount (fits Martin Omega Bracket) |
|
Location: | Wet locations, temporary outdoor use, not for household use |
|
Orientation: | Any |
|
Minimum distance to combustible materials: | 0.5 m (1.7 ft.) |
|
Minimum distance to illuminated surfaces: | 1 m (3.3 ft.) |
|
Minimum clearance around fan and air vents: | 0.5 m (1.7 ft.) |

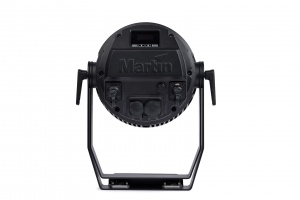

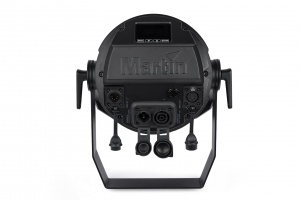

CONNECTIONS
|
AC power in, thru: | Neutrik PowerCON TRUE1 TOP |
|
DMX data in, thru: | Neutrik IP-rated 5-pin locking XLR |
ELECTRICAL
|
AC power: | 100-240 V nominal, 50/60 Hz |
|
Typical power consumption: | 300 W |
|
Power supply unit: | Auto-ranging electronic switch mode |
|
Maximum half-cycle RMS inrush current: | 11.2 A |
MAXIMUM POWER AND CURRENT
|
100-120 V, 60 Hz : | 3.7 A, 330 W, Power factor 0.99 |
|
220-240 V, 50 Hz: | 1.7 A, 330 W, Power factor 0.94 |
*Measurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%.
THERMAL
|
Maximum surface temperature: | 71° C (160° F) |
|
Cooling: | Forced air (temperature regulated, low noise) |
|
Maximum ambient temperature (Ta max.): | 40° C (104° F) |
|
Minimum ambient temperature (Ta min.): | -10°C (14° F) |
|
Total heat dissipation*: | 1126 BTU/hr. |
*Calculated, +/- 10%, at full intensity, full white
ACOUSTIC DATA
|
Sound Pressure Level (LpA) @ 1 m (default regulated fan mode, full output): | 40.9 dB(A) |
|
Sound Pressure Level (LpA) @ 1 m (constant fan mode ultra low): | 37.9 dB(A) |
ENVIRONMENTAL
|
RoHS: | Compliant |
|
REACH: | Compliant |
|
WEEE: | Compliant |
|
Proposition 65: | Compliant |
|
Efficacy (max output): | 14.3 lm/W |
|
LWR*: | 385 lm/kg (174 lm/lb) |
LWR = Lumen-to-Weight Ratio
APPROVALS
|
Global CB Certification/IECEE: | IEC 60598-2-17 (IEC 60598-1) |
|
EU safety: | EN 60598-2-17 (EN 60598-1), EN 62471, EN 62493 |
|
EU EMC: | EN 55015, EN 55032, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61547 |
|
US safety: | UL 1573 |
|
US EMC: | FCC Part 15 Class B |
|
Canadian safety: | CSA C22.2 No. 166 |
|
Canadian EMC: | ICES-003 Class B, ICES-005 Class B |
|
Australia/NZ: | RCM |
|
United Kingdom: | UKCA |
INCLUDED ITEMS
Adjustable mounting bracket
ACCESSORIES
Power input cables, 16 A
|
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.): | P/N 91611797 |
|
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1 NAC3FX-W TOP (female), 1.5 m (4.9 ft.): | P/N 91610173 |
Power relay cables, 16 A, for relaying power to fixtures in chains
|
Power Relay Cable, H07RN-F, 2.5 mm2, TRUE1 to TRUE1, 2.5 m (8.2 ft.): | P/N 91611796 |
|
Power Relay Cable, SJOOW, 12 AWG, TRUE1 to TRUE1, 2.5 m (8.2 ft.): | P/N 91610172 |
Power connectors
|
Cable Connector, Neutrik powerCON TRUE1 NAC3FX-W TOP (female): | P/N 91611789HU |
|
Cable Connector, Neutrik powerCON TRUE1 NAC3MX-W TOP (male): | P/N 91611788HU |
Installation hardware
|
Martin Omega bracket for rigging clamp attachment: | P/N 91602001 |
|
Half-coupler clamp: | P/N 91602005 |
|
G-clamp (suspension vertically downwards only): | P/N 91602003 |
|
Quick-trigger clamp (suspension vertically downwards only): | P/N 91602007 |
|
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, black: | P/N 91604006 |
|
Safety Cable, SWL 60 kg, BGV C1 / DGUV 17, silver: | P/N 91604007 |
RELATED ITEMS
|
Martin Companion Software Suite (including firmware uploader): | Free download from www.martin.com |
|
Martin Companion Cable USB/DMX hardware interface: | P/N 91616091 |
ORDERING INFORMATION
|
ELP PAR IP in cardboard box: | P/N MAR-90800010 |
|

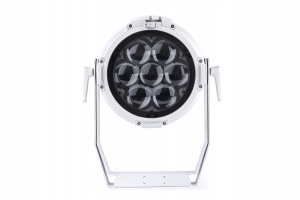

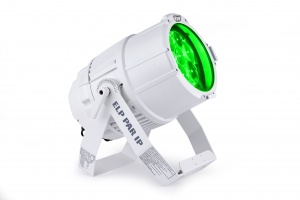

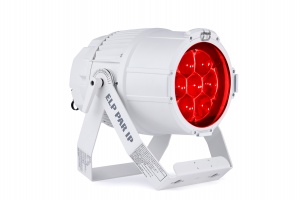

ELP PAR IP - White in cardboard box: | P/N MAR-90800015 |
