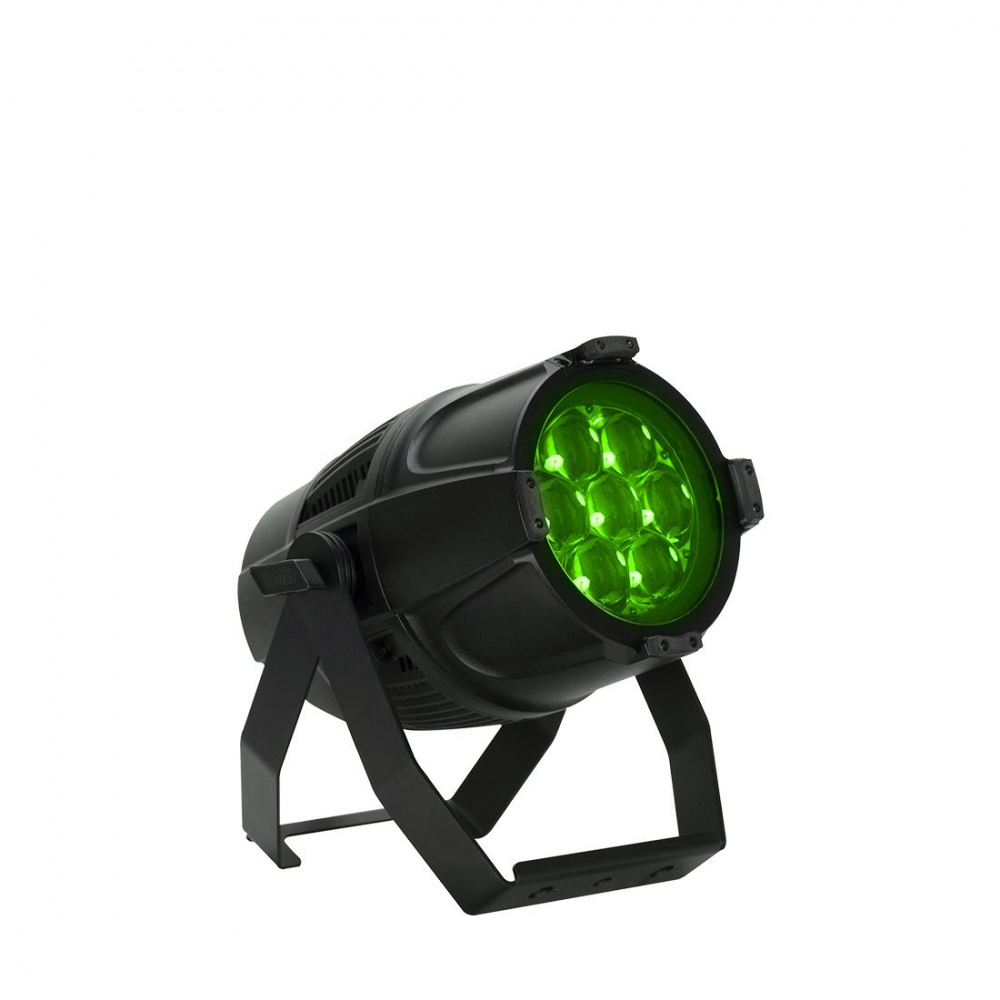

The LIMELIGHT PAR S is a compact and robust LED fixture that offers a high quality of light and high output with its RGBL engine and efficient zoom lens optic. It’s IP65 rating allows it to be used in any environment, indoors or out.
The LIMELIGHT PAR S engine features (7) 60W RGBL LED’s, capable of producing 4200 lumens, provides high output for saturated color mixing, and the wide color spectrum and high CRI needed for the quality of light that key and fill light applications require. The newly designed optical system allows for a highly homogenized output with even color and light distribution throughout the beam. The fixture also features a wide zoom range from 5° to 42°. The smooth and responsive effect provides a well-defined narrow beam for mid-air effects and long throw distances as well as a wide and even wash coverage at shorter distances. The LEDs can be controlled in two separate zones for additional eye candy effects.
To expand the control capabilities on the LIMELIGHT PAR S, precise color temperature control via a dedicated variable CCT control channel has been integrated. A CMY emulation mode has also been added for users that are more familiar with that color mixing system. Furthermore, an integrated library of calibrated color presets that match the most popular gel filters has been included.
The IP65 housing includes an integrated gel frame holder that can accommodate industry standard 7.5” accessories. The dual yoke design allows the fixture to be mounted on the floor or it can be easily rigged to hang with a c-clamp or by using the included omega bracket receiver.
The LIMELIGHT PAR S is the ideal solution for Touring Applications, Theme Parks, Live Events, Theater, Houses of Worship and Cruise ships.
FEATURES:
• 7 x 60W RGBL LED Array
• 4200 Lumens, (TBD) CRI
• 5°- 42° Beam Angle
• Smooth 16-bit Selectable Dimming Modes and Curves
• Remote LED Refresh Rate
• Flicker Free Operation for TV and Film
• 7.5” Accessory Holder
• IP65 Rated
...The LIMELIGHT PAR S is a compact and robust LED fixture that offers a high quality of light and high output with its RGBL engine and efficient zoom lens optic. It’s IP65 rating allows it to be used in any environment, indoors or out.
The LIMELIGHT PAR S engine features (7) 60W RGBL LED’s, capable of producing 4200 lumens, provides high output for saturated color mixing, and the wide color spectrum and high CRI needed for the quality of light that key and fill light applications require. The newly designed optical system allows for a highly homogenized output with even color and light distribution throughout the beam. The fixture also features a wide zoom range from 5° to 42°. The smooth and responsive effect provides a well-defined narrow beam for mid-air effects and long throw distances as well as a wide and even wash coverage at shorter distances. The LEDs can be controlled in two separate zones for additional eye candy effects.
To expand the control capabilities on the LIMELIGHT PAR S, precise color temperature control via a dedicated variable CCT control channel has been integrated. A CMY emulation mode has also been added for users that are more familiar with that color mixing system. Furthermore, an integrated library of calibrated color presets that match the most popular gel filters has been included.
The IP65 housing includes an integrated gel frame holder that can accommodate industry standard 7.5” accessories. The dual yoke design allows the fixture to be mounted on the floor or it can be easily rigged to hang with a c-clamp or by using the included omega bracket receiver.
The LIMELIGHT PAR S is the ideal solution for Touring Applications, Theme Parks, Live Events, Theater, Houses of Worship and Cruise ships.
FEATURES:
• 7 x 60W RGBL LED Array
• 4200 Lumens, (TBD) CRI
• 5°- 42° Beam Angle
• Smooth 16-bit Selectable Dimming Modes and Curves
• Remote LED Refresh Rate
• Flicker Free Operation for TV and Film
• 7.5” Accessory Holder
• IP65 RatedVIAC//◘ SOURCE
• 7 x 60W RGBL LEDs
• 30,000 Hour Average LED Life
//◘ PHOTOMETRIC DATA
• 4200 Total Lumen Output
• CRI - TBD
• TLCI - TBD
• Zoom Range 5° - 42°
• Beam Angle: 5° - 42°
• Field Angle: 8° - 60°
//◘ EFFECTS
• Dual Zone LED Control
• Electronic Dimmer and Strobe
• Variable 16-bit Dimming Modes and Curves
//◘ COLOR
• RGBL Color Array
• CMY Emulation
• Variable CCT 2700K - 8500K
• Virtual Gel Swatch Book
//◘ CONTROL / CONNECTIONS
• 7 DMX Channel Modes (4ch/13ch/16ch/14ch/18ch/18ch/26ch)
• Manual and DMX Controlled Dimmer and Color
• 4 Button Control Panel, LED Display
• Aria x2 Wireless Device Management
• RDM (Remote Device Management)
• 5pin DMX and IP65 Locking Power Cable In/Out
//◘ SIZE / WEIGHT
• Length: 317 mm
• Width: 224 mm
• Vertical Height: 418 mm
• Weight: 8.5 kg
//◘ ELECTRICAL / THERMAL
• AC 100-240V - 50/60Hz
• 332W Max Power Consumption
• Power Thru Capacity: @110V: 2 Units; @240V: 6 Units
• -15°C to 45°C (5°F to 113°F)
• BTU/hr (+/- 10%) 1943.7
//◘ INCLUDED ITEMS
• IP65 Locking Power Cable
//◘ OPTIONAL ACCESSORIES
• Gel Frame
• Black Barndoor
