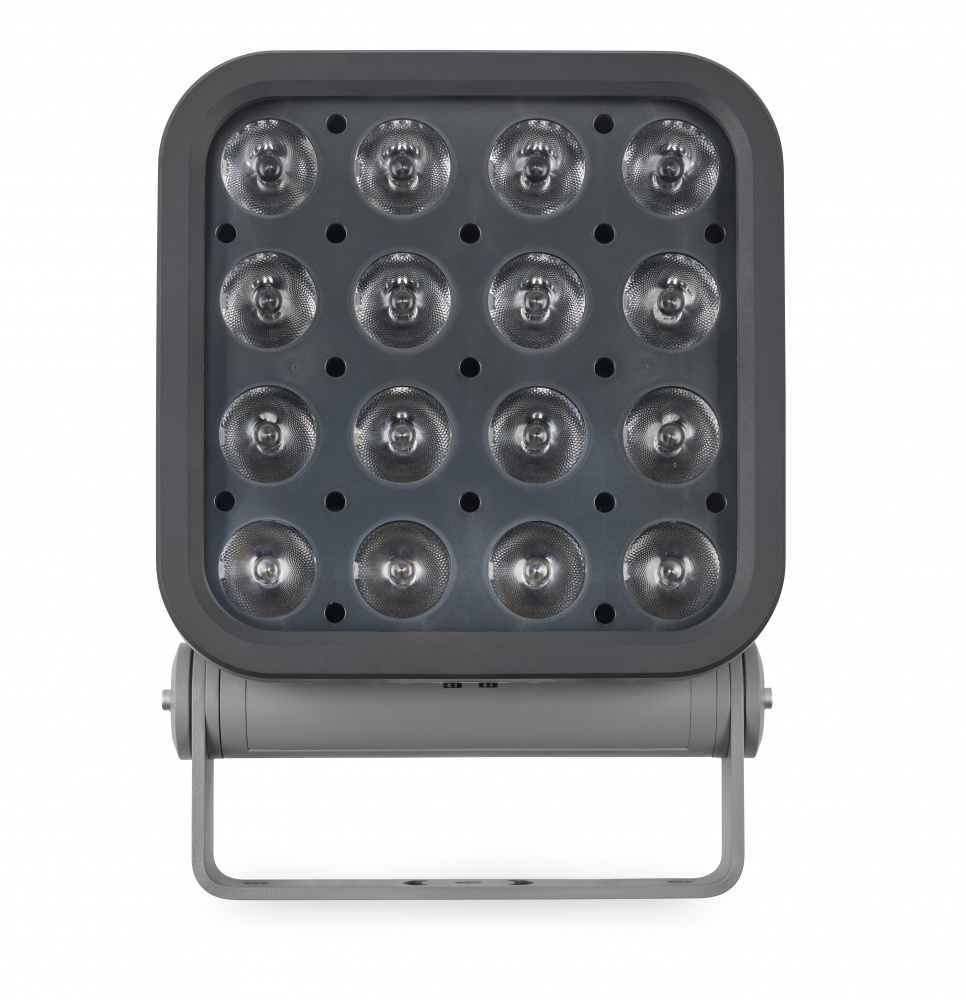

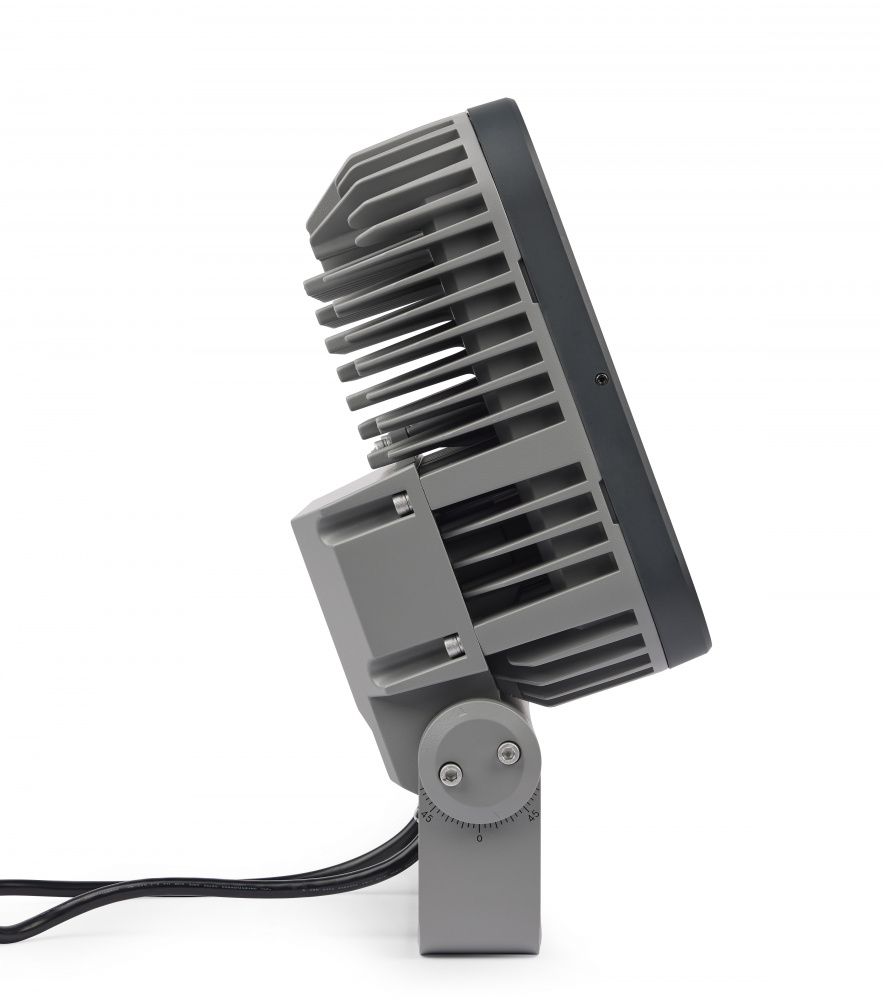

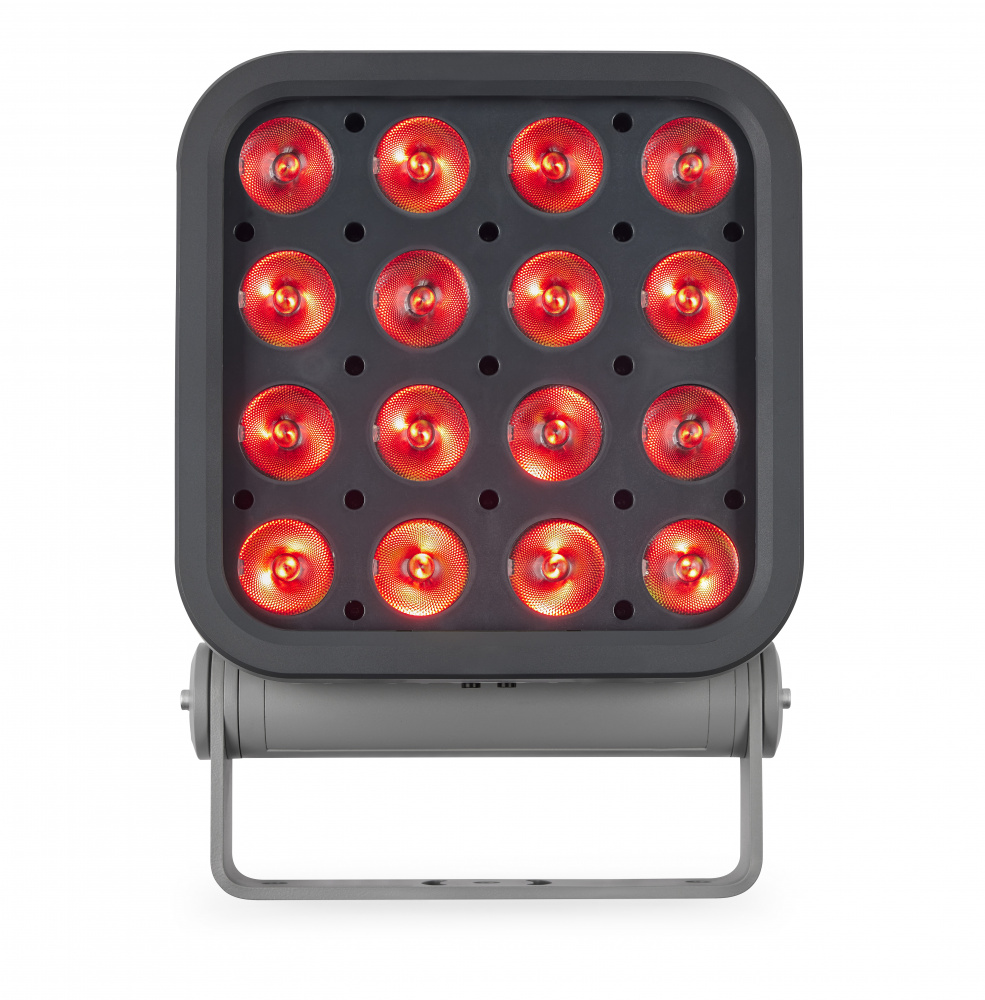

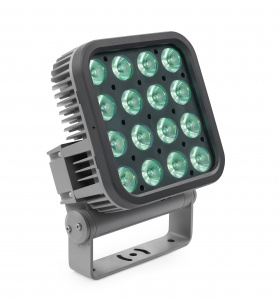

Exterior Wash Pro L QUAD provides a logical, user-friendly and versatile lighting solution designed to illuminate larger structures and building facades. Featuring external micro lenses and an optional baffle snoot, this fixture provides configurable beam control. The Exterior Wash Pro L QUAD features unparalleled color performance. The factory color calibration ensures superior color consistency and provides a dedicated color tempera¬ture control channel spanning from 1000K to 12,500K, precisely following the black-body curve. The integrated color boost technology encompassing smart ratio between LED capacity and PSU capacity results in saturated and mixed colors up to three times brighter than previous models. Designed for permanent outdoor installations and backed by a 5-year warranty, this fixture meets rigorous environmental standards.
Features:
• Compact and slim design
• Superior color consistency based on factory calibration
• Color boost for bright saturated and mixed colors
• Dedicated color temperature control channel
• Narrow beam-angle using high-power RGBW LEDs

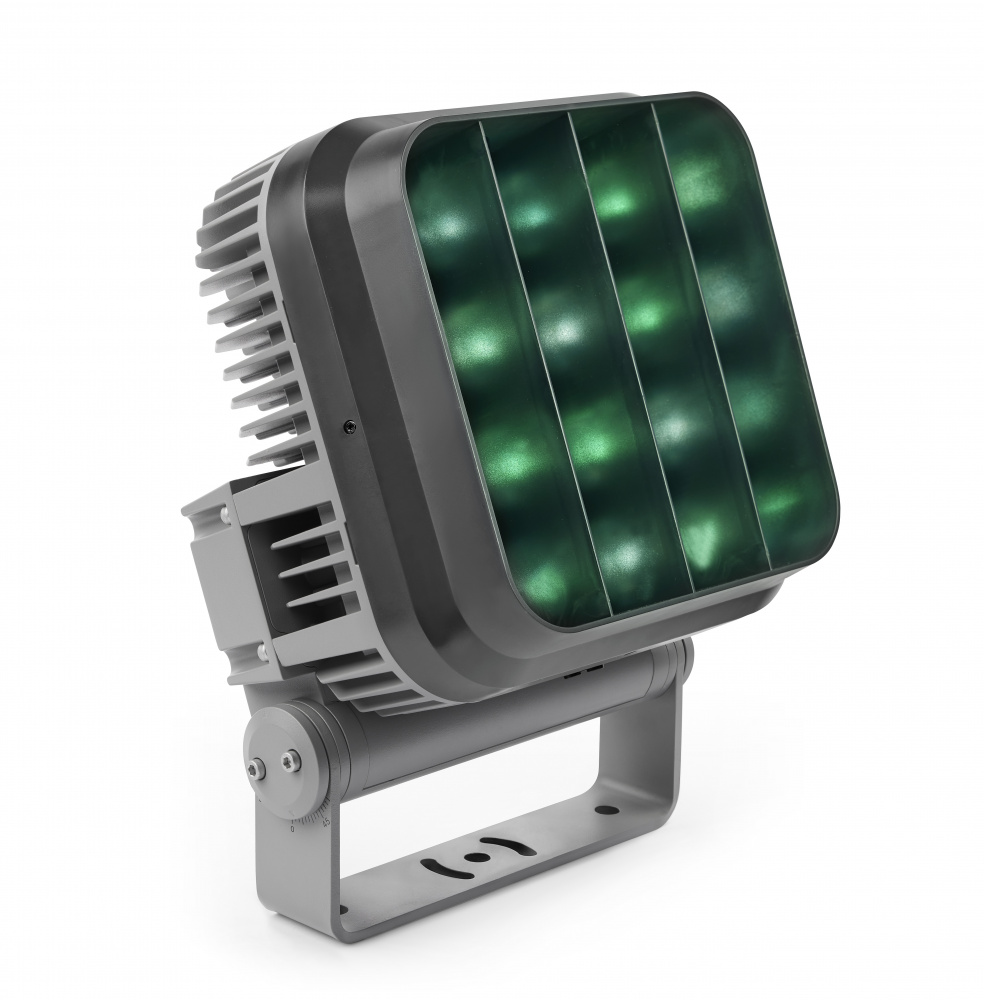

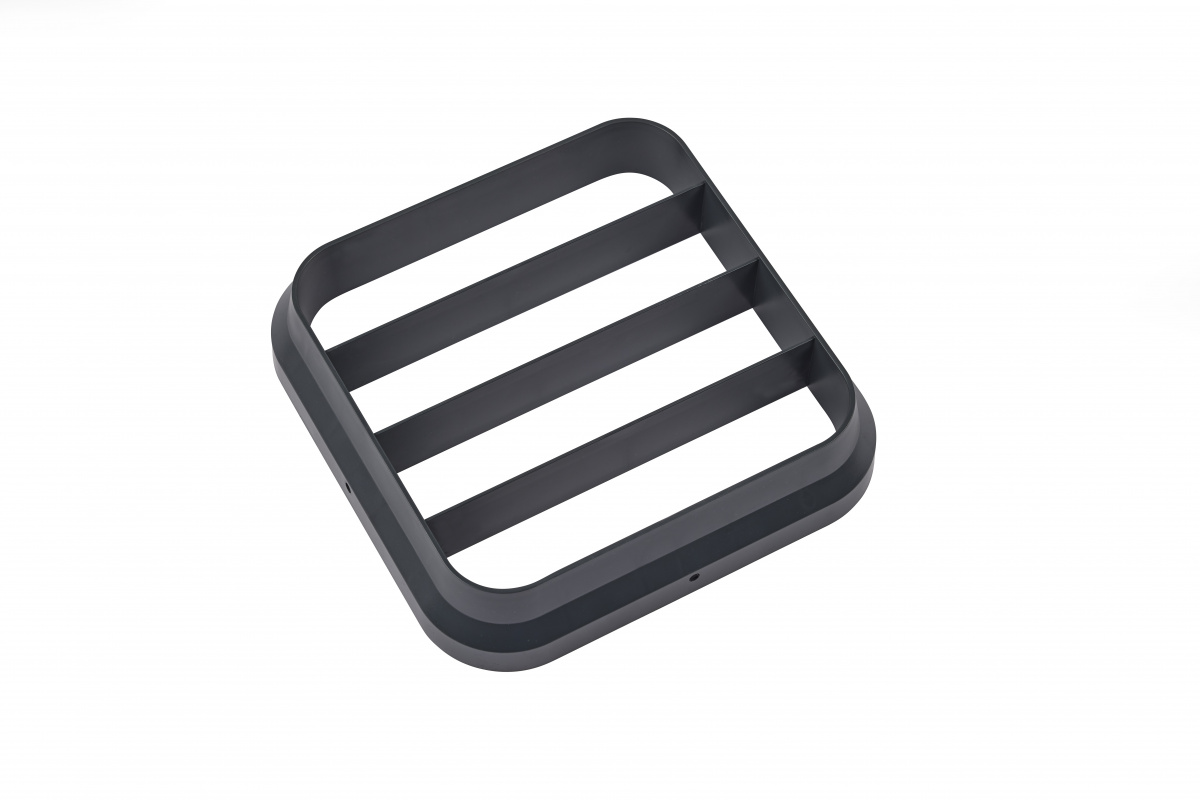

• Optional baffle snoot
• Externally mounted microlens diffusers
• RDM and DMX control

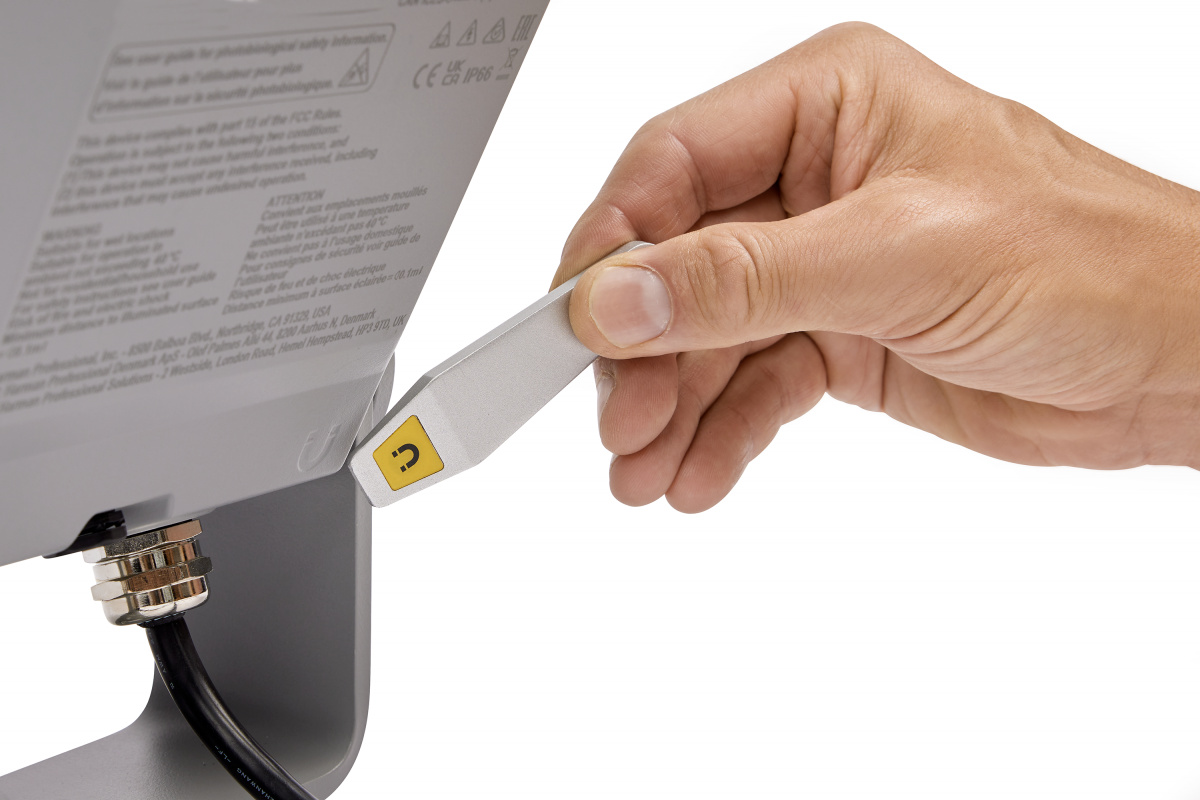

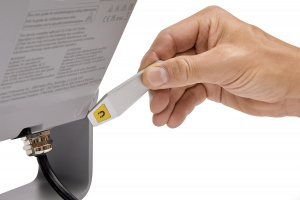

• Local diagnostics and focusing via magnetic sensor

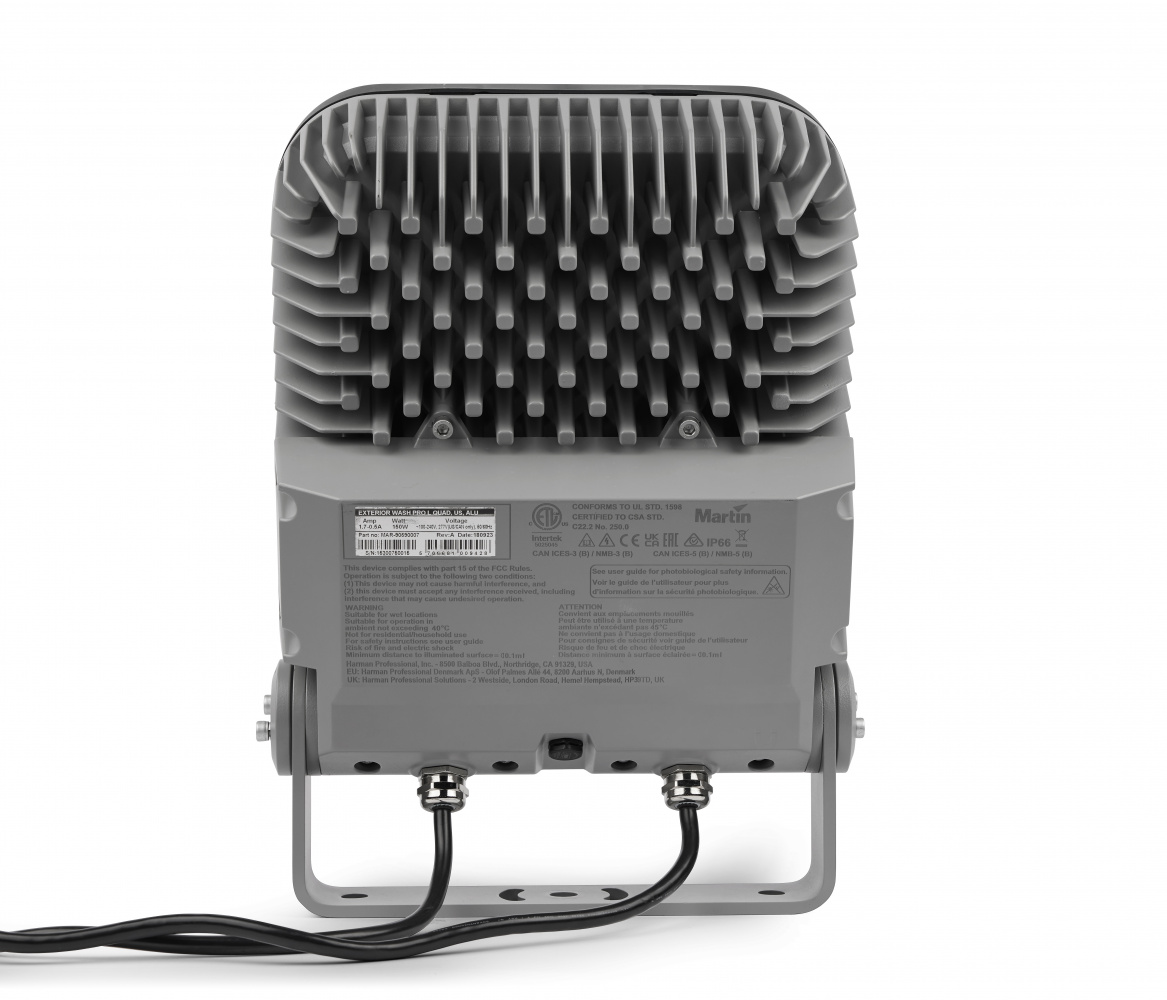

• Power and DMX IN/OUT pre-mounted cables
• Optional Hybrid IN/Out cable solution
• Fully weatherized housing (IP66, IK08 and C-5 High corrosion rating)
• Shipped in FSC certified carboard packaging
• 5-year warranty
//PHYSICAL
• LENGHT: 165 mm
• WIDTH: 275 mm
• HEIGHT: 370 mm
• WEIGHT: 12.4 kg
//DYNAMIC EFFECTS
• Effects Intensity: 0 - 100 %
• Color mixing: RGB + CTC (Color Temperature Control)
• Color temperature control: 1000 K - 12500K in 50K steps
// OPTICS
• LIGHT SOURCE:16 x high-power RGBW LEDs
• MINUMIM LED LIFETIME: 100 000 hours
//BEAM ANGLE OPTIONS
• NATIVE BEAM ANGLE: 8°
• NARROW MICRO LENS: 11°
• MEDIUM MICRO LENS: 15°
• WIDE MICRO LENS: 30°
• VERA WIDE MICRO LENS: 50°
• ASYMETRIC MICRO LENS: 8° x 50°
