ELATION PROFESSIONAL C-LOADER Software Uploader
C-Loader-II ™ môže byť tiež použitý ako DMX a RDM Tester. C loader-II ™ je vybavený LCD displejom, 6-tlačidlovým ovládacím panelom, slotom pre kartu MICRO SD, 3pinovým XLR DMX výstupom, vypínačom. Obsahom dodávky je batéria, kábel USB, adaptér karty USB na MICRO SD a prázdna MICRO SD karta.

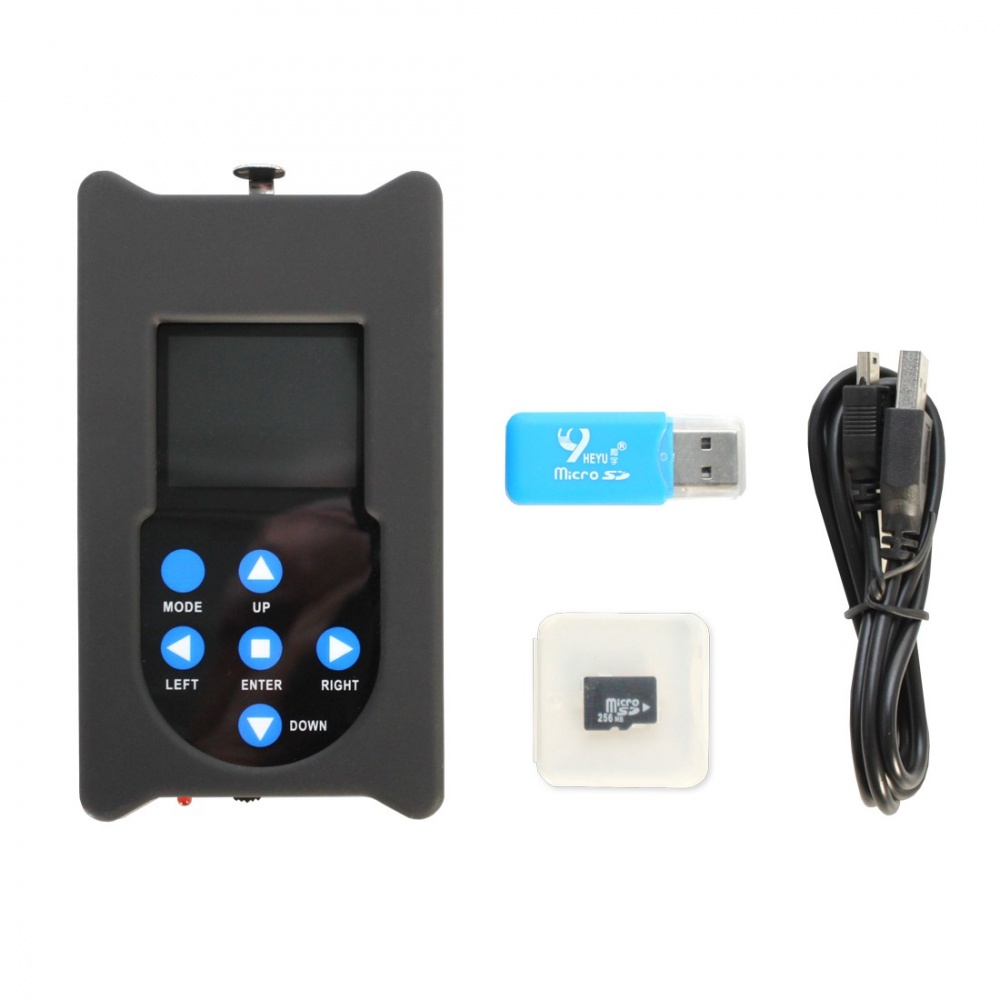

The C loader-II™ is a battery powered hand held software uploader device used to update and test Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the uploader to the fixture using a 3pin DMX cable (not included). Elation software updates (not included) are stored on a MICRO SD card (included) and inserted into the uploader. The C-Loader-II™ can also be used as a DMX and RDM Tester. The C loader-II™ features an LCD display, 6 button control panel, a MICRO SD card slot, a 3pin XLR DMX output, an On/Off switch, and includes battery, USB cable, USB to MICRO SD card adapter and blank MICRO SD card.
FEATURES
Firmware Upload Tool
DMX Tester (Send and Receive DMX Signal)
DMX Programmer for Test Programs
RDM Sender and Receiver
CONTROL / CONNECTIONS
6 Button Touch Control Panel
LCD Menu Display
3pin DMX Out
MICRO SD Card Slot
Mini USB Input
SIZE / WEIGHT
Length: 4.89” (124.15mm)
Width: 2.73” (69.46mm)
Vertical Height: 1.48” (37.5mm)
Weight: 0.4 lbs. (0.2 kg)
ELECTRICAL
USB Powered (Internal Battery)
INCLUDED ITEMS
USB Cable
MICRO SD Card
USB to MICRO SD Card Adapter
