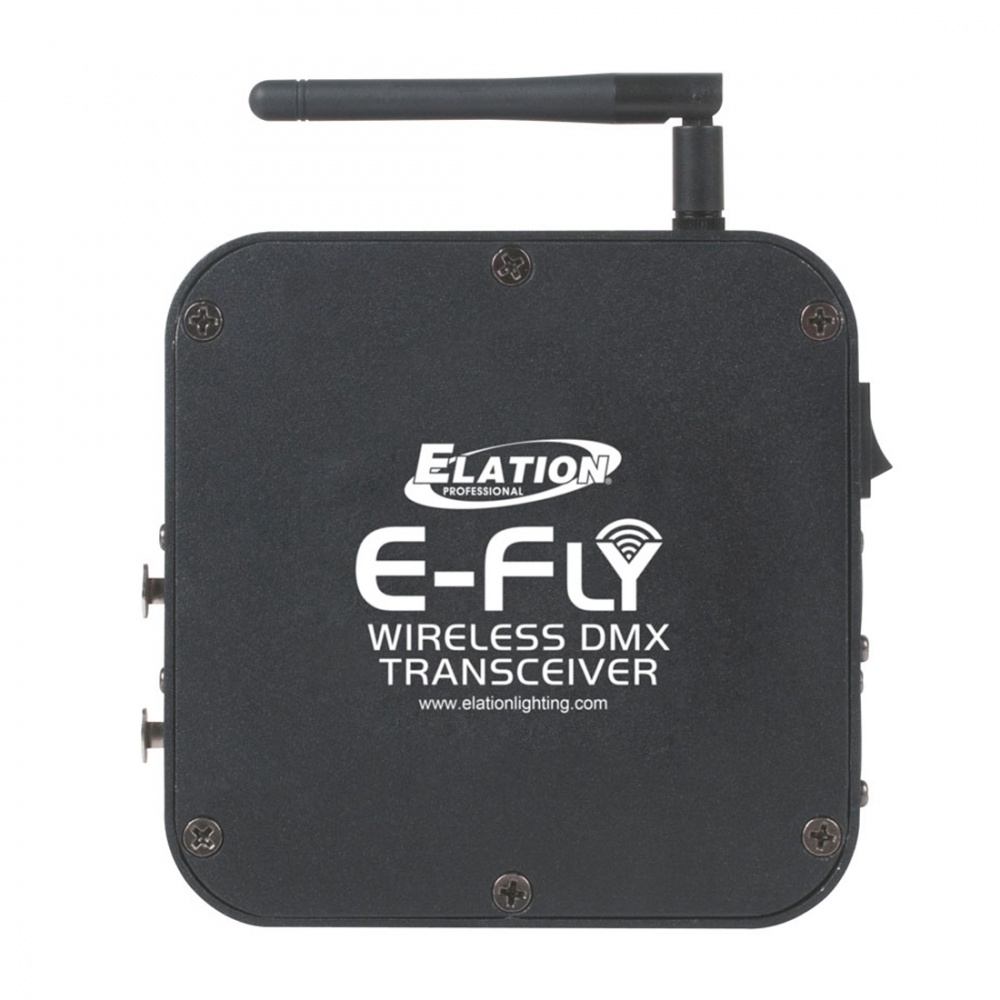

The E-FLY™ Transceiver is a long range wireless DMX Transceiver (Transmitter/Receiver in one) that is compatible with other E-FLY™ products and includes a rechargeable battery, which provides a solution for remote applications where access to power is a challenge. Connected to a DMX Controller, the E-FLY™ Transceiver will provide a constant and reliable wireless DMX signal up to 2,500 feet (762m) to other Elation E-FLY™ products. The 2.4 GHz wireless frequency will coexist in busy RF environments alongside technologies like Bluetooth and Wi-Fi.
FEATURES
Wireless DMX Transceiver (Transmitter/Receiver-in-1)
Rechargeable Battery Life - Up to 20-25 Hours from a 4 Hour Charge
Battery Life and Signal Strength Indicator Display
Wireless Range Up to 2,500 ft. (762m) Open Line of Sight
Transmit to Multiple Receivers on Same Radio Channel
Supports Up to (15) DMX-512 Universes
15 Radio Channels (1 DMX universe per channel)
Auto Paring Feature
3pin & 5pin DMX In/Out
Wireless Frequency: 2.4 GHz ISM
CONTROL / CONNECTIONS
Battery Switch
Power Save Button
3pin and 5pin DMX In/Out
12VDC Power Supply Input
SIZE / WEIGHT
Length: 6.0” (152.7mm)
Width: 5.3” (134.4mm)
Vertical Height: 1.6” (62mm)
Weight: 1.3 lbs. (0.6kg)
ELECTRICAL / THERMAL
12VDC, 1A (AC or DC powered)
INCLUDED ITEMS
Back Panel Magnet for Easy Metal Surface Mounting
Mini Omega Bracket for Clamp/Truss Mounting
12VDC Power Supply
