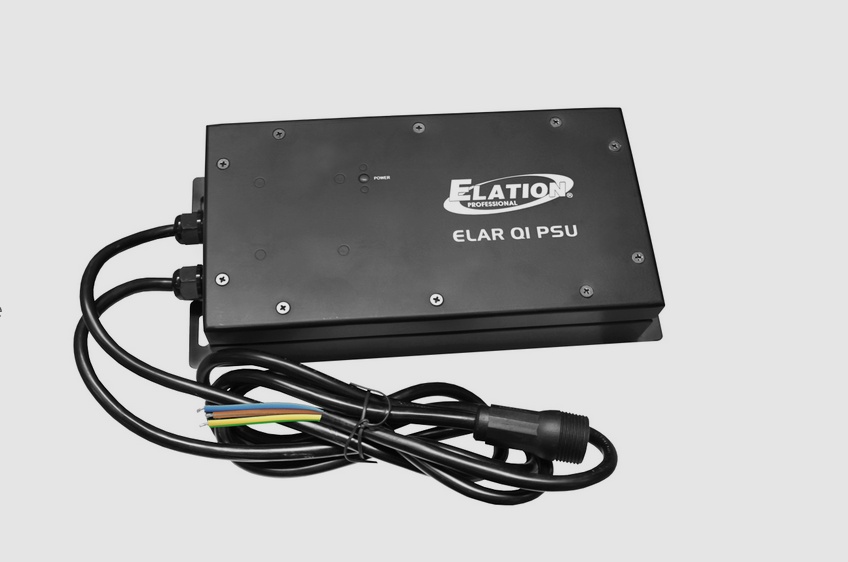

The IP65-rated ELAR Q1 PSU™ power supply unit features 24VDC output which can support (15) max linked ELAR Q1™ units each. It has 8pin power IP cable in/out, RDM (Remote Device Management), 300W max power consumption, and a multi-voltage universal power supply (100-240V 50/60Hz).
FEATURES
IP65 Rated Dust and Water Protection
24VAC Output
Max (15) Linked ELAR Q1™ Units Each
CONTROL / CONNECTIONS
DMX 512
RDM (Remote Device Management)
8pin Power IP Cables In/Out
SIZE / WEIGHT
Length: 12.4” (315mm)
Width: 5.7” (145mm)
Vertical Height: 2.6” (67mm)
Weight: 2.2 lbs. (1.0kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
300W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
OPTIONAL ACCESSORIES
1239100257 Elar Q1 Starter Y-Cable
1239100258 Elar Q1 Extension Y-Cable
1239100259 Elar Q1 1m First Power Cable
1239100260 Elar Q1 1m Power/Data Extension Cable
1239100261 Elar Q1 3m Power/Data Extension Cable
