The EZ KLING™ is an RJ45 to DMX, KlingNet™, ArtNet and sACN interface, which allows you to pixel map KlingNet™ and DMX compatible fixtures through the KlingNet™ mapper included in Media Master Express™ and Media Master Pro™ (not included). Ideal for use with Flex Pixel Tape™ and LED Pixel controllable DMX fixtures. One EZ KLING™ interface will drive up to 600 Flex Pixel RGB pixels using KlingNet™ control protocol or 170 DMX Pixels via ArtNet/ DMX control. EZ Kling™ can also be used as a 1-port Node to convert ArtNet to DMX. Includes a magnet on the back panel for easy metal surface mounting and a mini omega bracket for clamp/truss mounting.
FEATURES

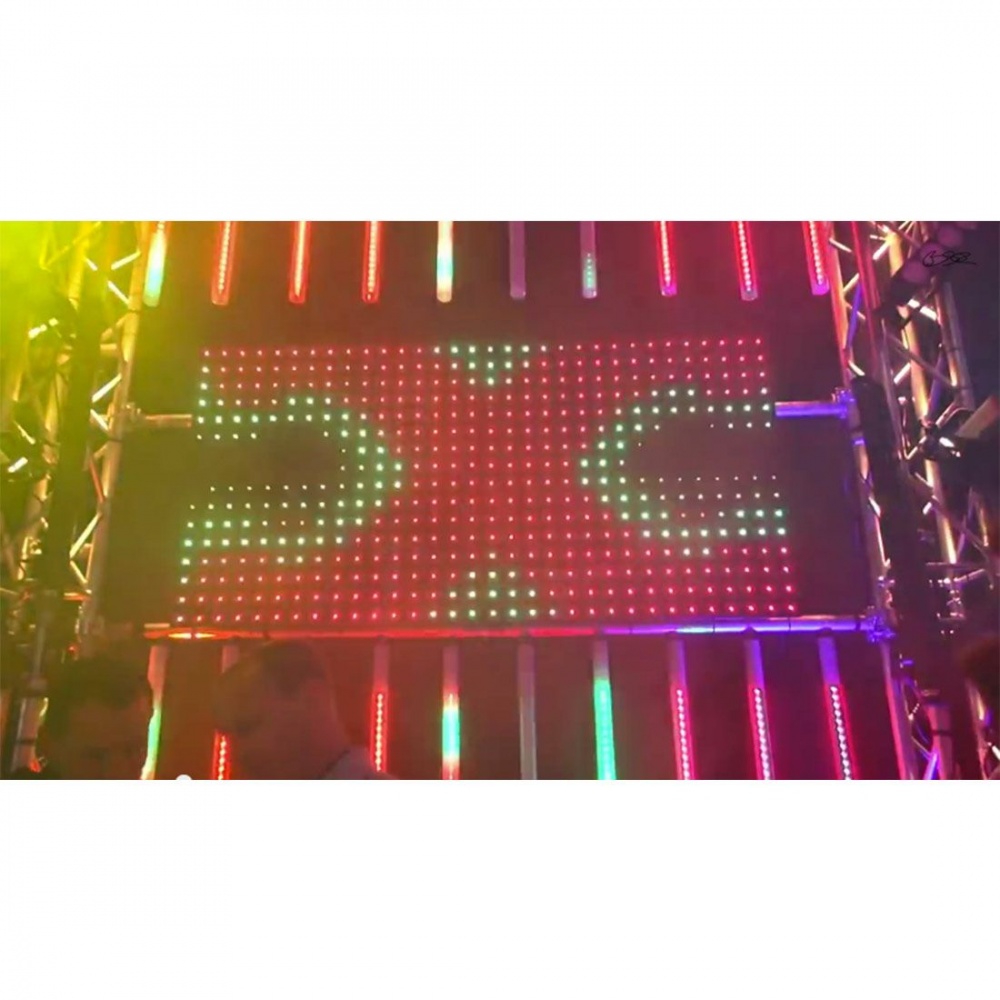

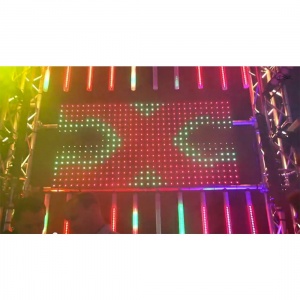

Ideal for use with Elation RGB LED Flex Pixel Tape™ and RGBW/RGBA LED Pixel controllable DMX lighting fixtures
Drive up to 600 Flex Pixel RGB pixels using KlingNet™ control protocol
Drive up to 170 RGB Pixels via Art-Net/sACN control protocol
Drive up to 128 RGBW/RGBA Pixels via Art-net/sACN control protocol
Art-Net to DMX (use as Node)
Magnet on the back panel for easy metal surface mounting

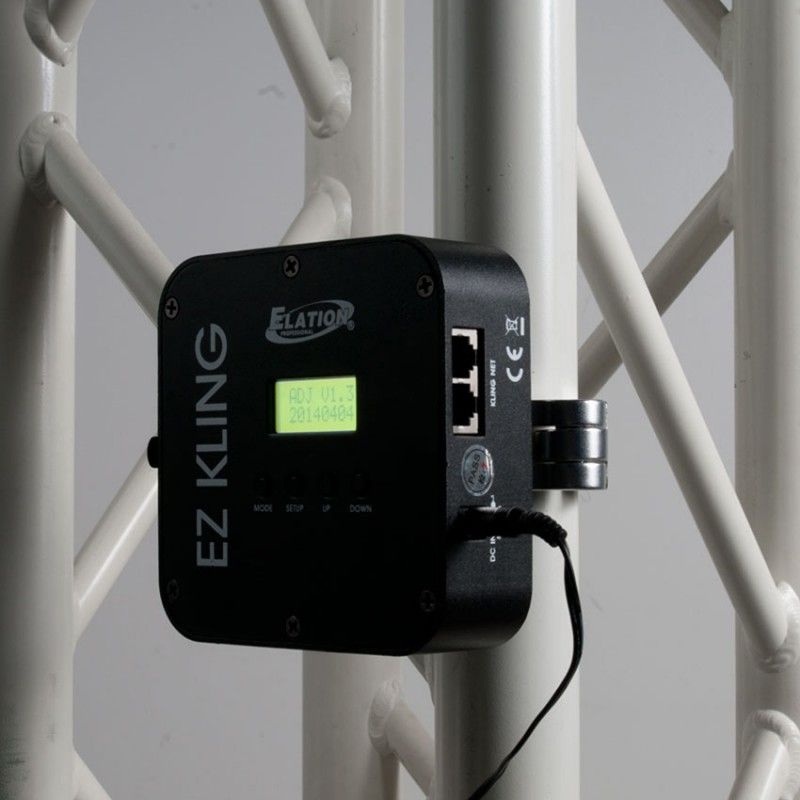

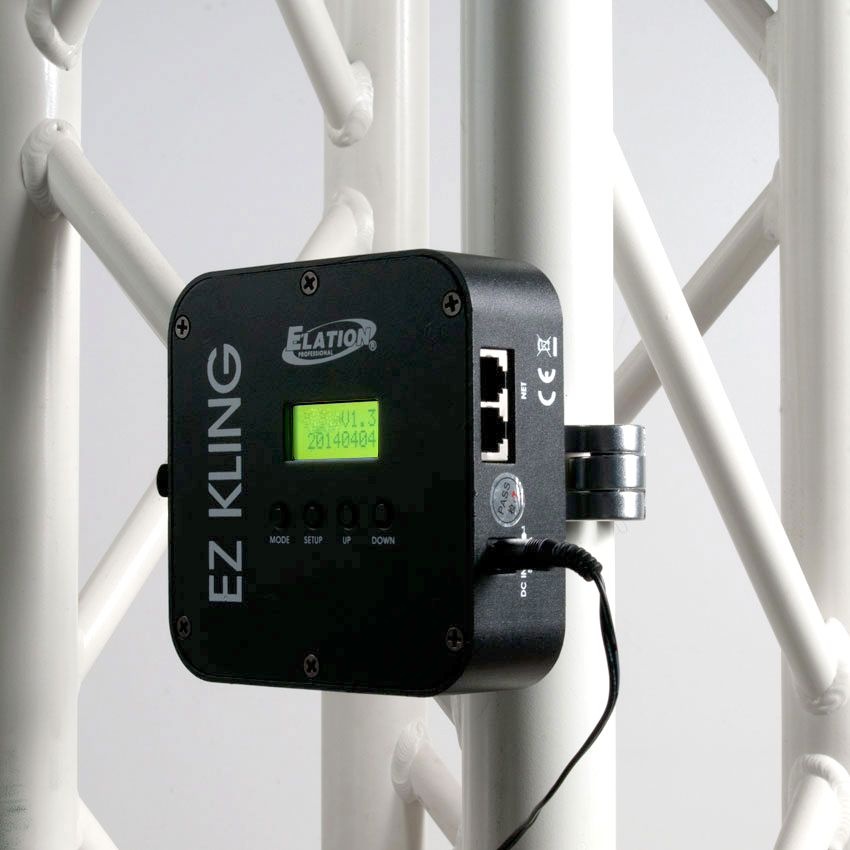

Clamp/Truss Mounting with Mini Omega Bracket
CONTROL / CONNECTIONS
DMX 512, KlingNet™, ArtNet Multicast and Unicast and sACN

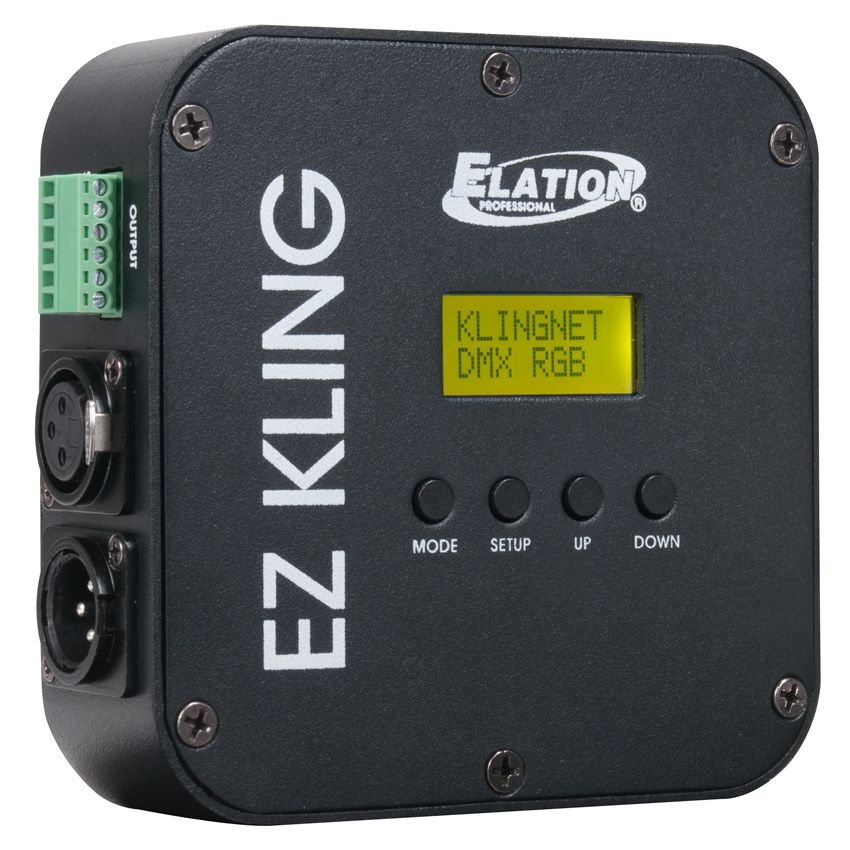

4 Button Control Panel and LCD Menu Display

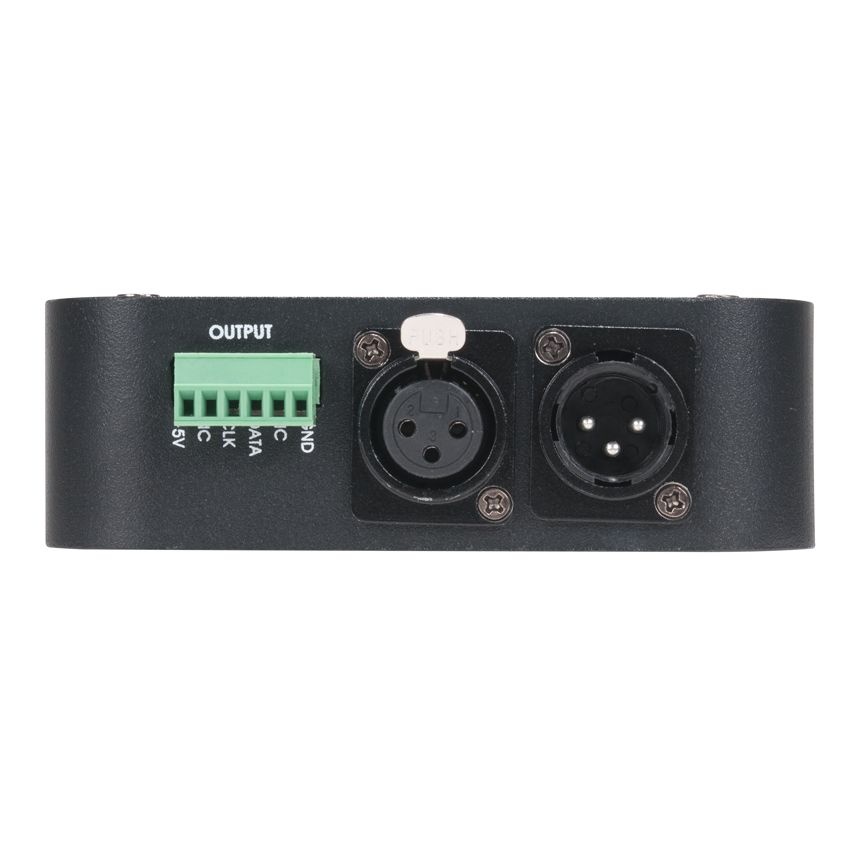

6 Bare Wire Terminal Block
1 3pin DMX Input
1 3pin DMX Output

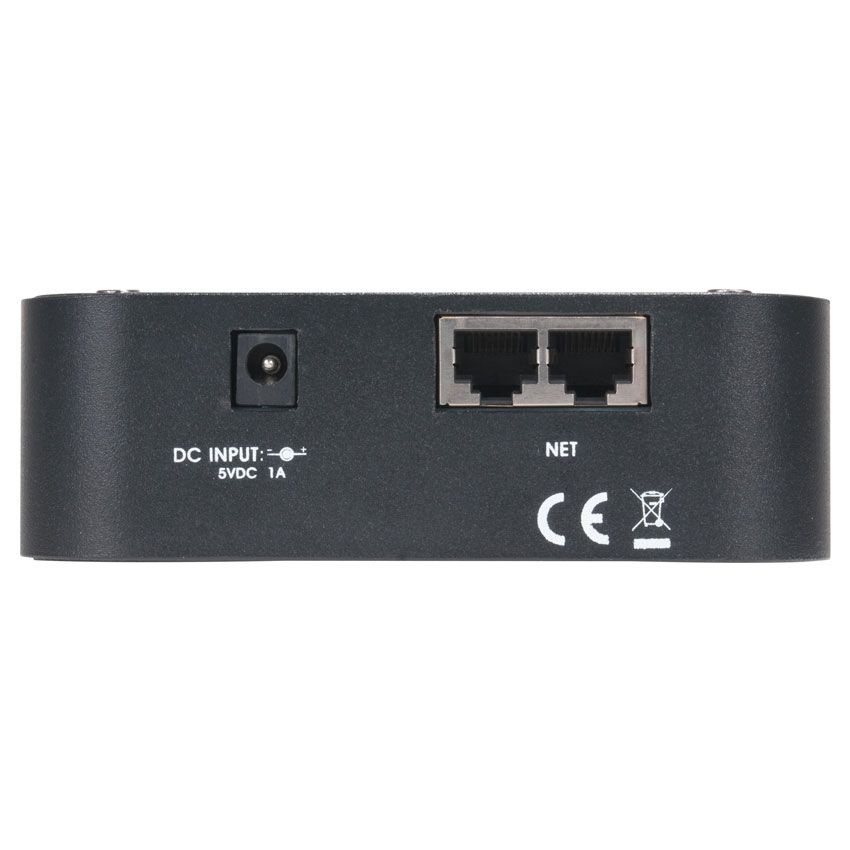

2 RJ45 Bilateral CAT5e Ports
1 5VDC Power Supply Input
SIZE / WEIGHT
Length: 5.31” (135mm)
Width: 4.92” (125mm)
Vertical Height: 1.61” (41mm)
Weight: 0.95 lbs. (0.43kg)
ELECTRICAL
5VDC
5W Max Power Consumption
INCLUDED ITEMS
5VDC Power Supply
Flex Pixel Tape Jumper First Cable
Back Panel Magnet for Easy Metal Surface Mounting
Mini Omega Bracket for Clamp/Truss Mounting
