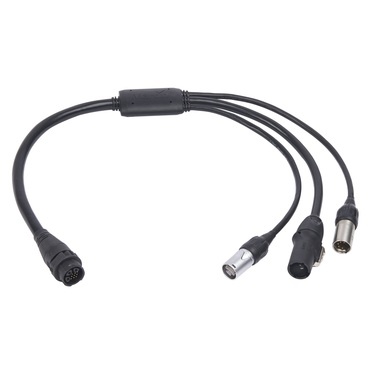

Martin PDE BreakIn Cable

Martin PDE BreakIn Cable spája prívod, DMX a Ethernet na jeden konektor a kábel používaný Martin VDO Atomic radou svetiel.

Kábel je plne IP65 hodnotený pre vonkajšie použitie a má odolné konektory.

Na objednávku

04338245

0,33

Hmotnosť

pdf2,79 MB

Manuál

CENA:

na dopyt

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

The Martin PDE BreakIn Cable merges Power, DMX & Ethernet signals into a single connector and cable system as used by the Martin VDO Atomic family of fixtures.

The cable is fully IP65 rated for outdoor use and features robust connectors.

FEATURES
powerCON TRUE1 TOP power input
XLR 5 TOP DMX input
etherCON TOP Ethernet input
Martin PDE Hybrid output
IP65 rated

PHYSICAL

Length:	500 mm (19.7 in.)
Weight:	325 g (0.52 lbs.)

CONSTRUCTION

Housing:	PVC
Color:	Black
Protection rating:	IP65
Cable Jacket:	PVC

INSTALLATION

Location:	indoor or temporary outdoor use
Orientation:	Any

CONNECTIONS

AC power input:	Neutrik powerCON TRUE1 TOP (IP65)
Ethernet Input:	Neutrik etherCON TOP (IP65)
DMX input:	Neutrik XLR 5-pin Male TOP (IP65)
AC Power, DMX and Network out:	PDE hybrid connector (IP65)

All connections hot plugging compatible

ELECTRICAL

AC power:

100-240V AC nominal, 50/60Hz

THERMAL

Maximum ambient temperature (Ta max.):	75° C
Minimum ambient temperature (Ta min.):	-15° C

ENVIRONMENTAL

RoHS:	Compliant
REACH:	Compliant

RELATED ITEMS

Active Junction Box Power-DMX-Ethernet to PDE:	P/N MAR-91700002
Passive Junction Box Power-DMX-Ethernet to PDE:	P/N 91610001
BreakOut Cable PDE to Power-DMX-Ethernet:	P/N MAR-91700001
BreakInOut Cable Power-DMX to PDE:	P/N MAR-91700003
VDO Atomic Dot CLD in cardboard:	P/N 90357701
VDO Atomic Dot WRM in cardboard:	P/N 90357702
VDO Atomic Bold in cardboard:	P/N MAR-90357703

ACCESSORIES
Pre-Assembled Hybrid PDE Cables

Power+Data Cable Rental PDE-PDE 1 m:	P/N 91616001
Power+Data Cable Rental PDE-PDE 2.5 m:	P/N 91616002
Power+Data Cable Rental PDE-PDE 5 m:	P/N 91616003
Power+Data Cable Rental PDE-PDE 10 m:	P/N 91616004

Power+Data Cable Rental PDE-PDE 25 m

:	P/N 91616005

Bulk Hybrid PDE Cable and Connectors

Power+Data Connector PDE Male:	P/N 91611701
Power+Data Connector PDE Female:	P/N 91611702
Power+Data Cable Power-DMX-Ethernet Rental 100m:	P/N 91616006

Power Cables

Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 1.5 m (4.9 ft.):	P/N 91611797
Power Input Cable, H07RN-F, 2.5 mm2, bare ends to TRUE1, 5 m (16.4 ft.):	P/N 91611786
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 1.5 m (4.9 ft.):	P/N 91610173
Power Input Cable, SJOOW, 12 AWG, bare ends to TRUE1, 5 m (16.4 ft.):	P/N 91610174
Cable Connector, Neutrik PowerCON TRUE1 Female:	P/N 91611789HU

ORDERING INFORMATION

BreakIn Cable Power-DMX-Ethernet to PDE:

P/N MAR-91700000
