Martin Companion is the fixture management, firmware upload and stand-alone programming tool compatible with all Martin fixtures for maximal ease of use. The Martin Companion application synchronizes with Martin’s firmware library over the Internet, so gone are the days of browsing the support pages to find the latest fixture firmware. Advanced RDM integration allows all fixtures to be configured and patched remotely. And ergonomic stand-alone programming allows fixtures to run synchronized shows with up to 20 scenes, without any computer or controller connected.
FEATURES
Compatible with all Martin fixture ranges including MAC, ERA, ELP, VDO, RUSH & Exterior

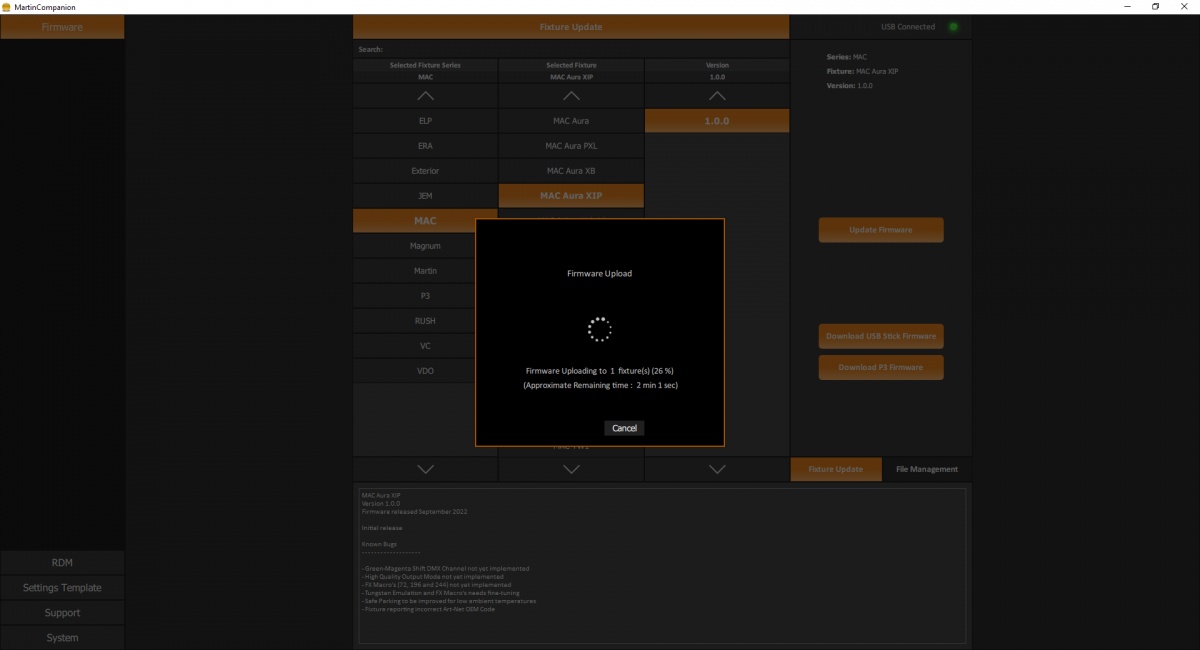

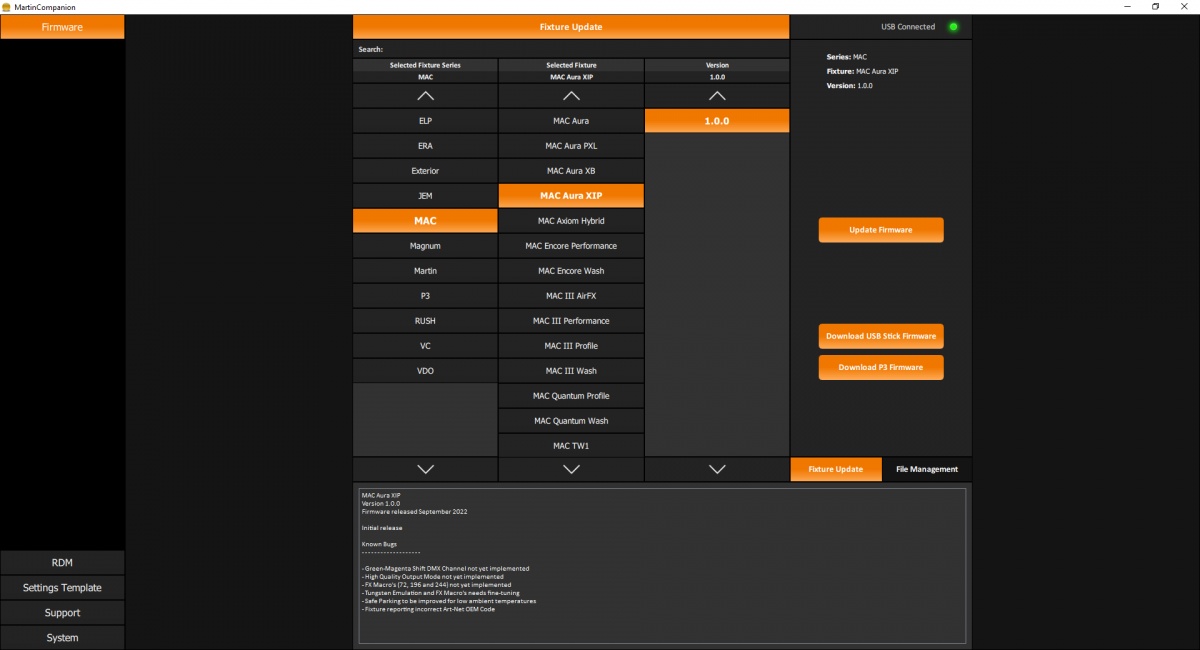

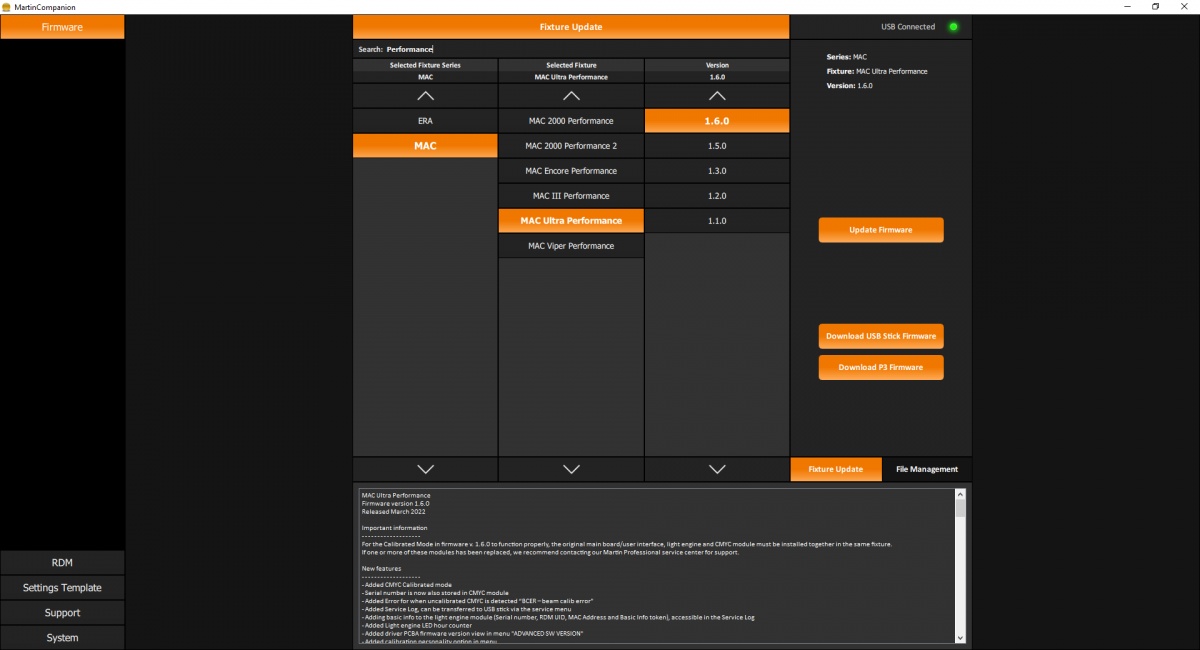

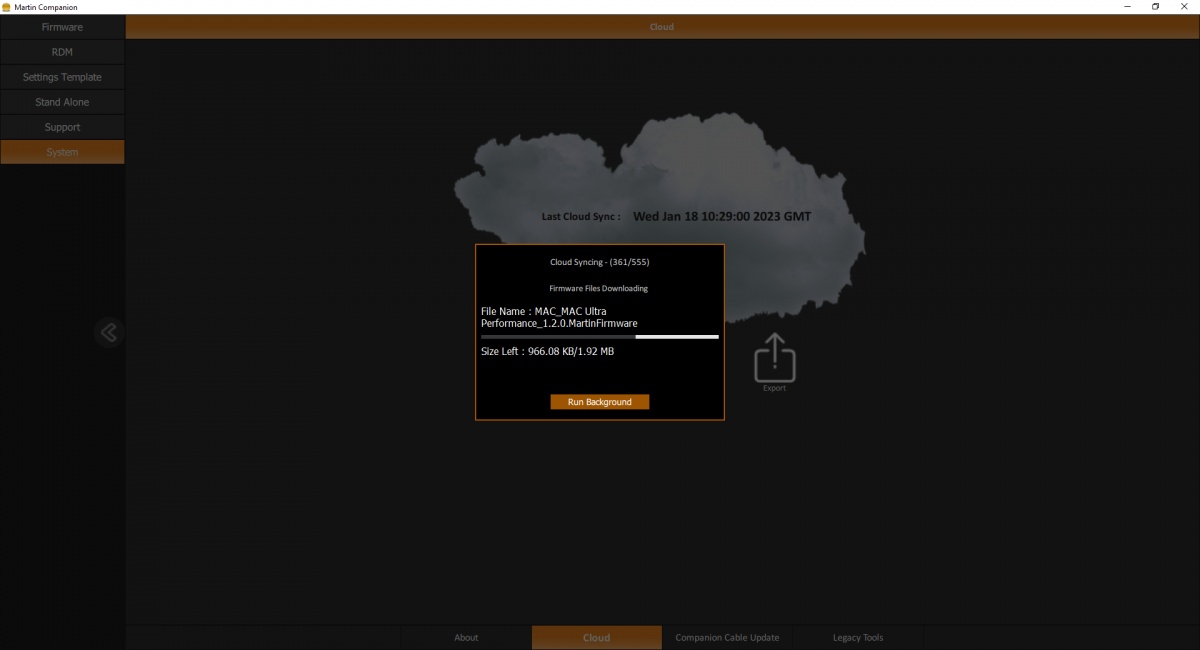

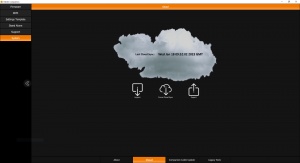

Automatic online synchronization of firmware library

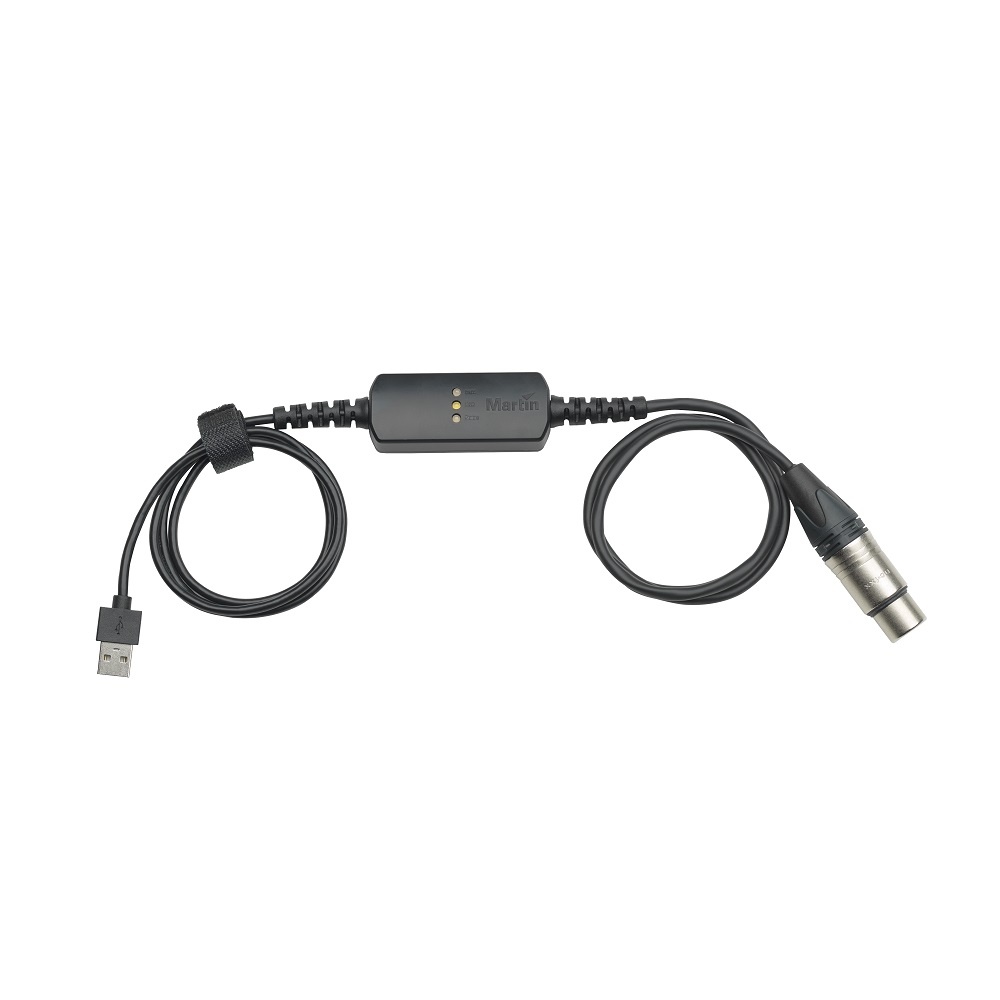

Robust Martin Companion Cable to connect fixtures with computer
Martin Companion Application downloaded free of charge from Martin website
Optional export for fixture update via USB memory device or P3 System Controller
Optional export for Atmospheric Effects machine update via Epsilon 5 AVR Programmer
RDM function allows every fixture setting to be consulted and changed remotely

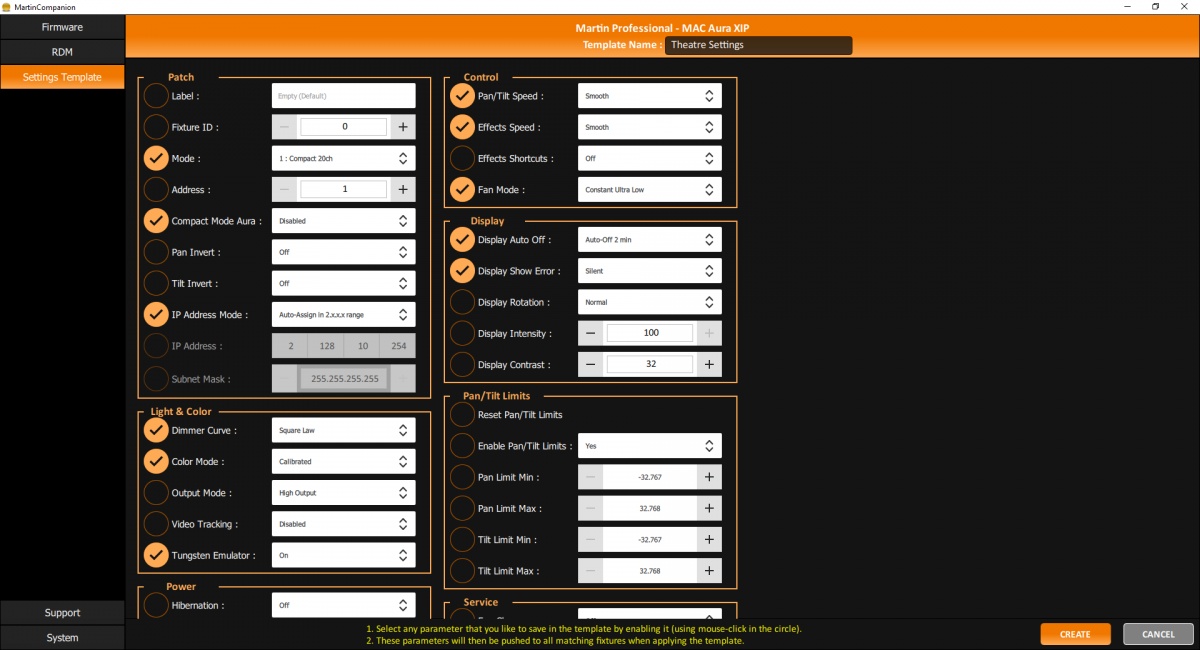

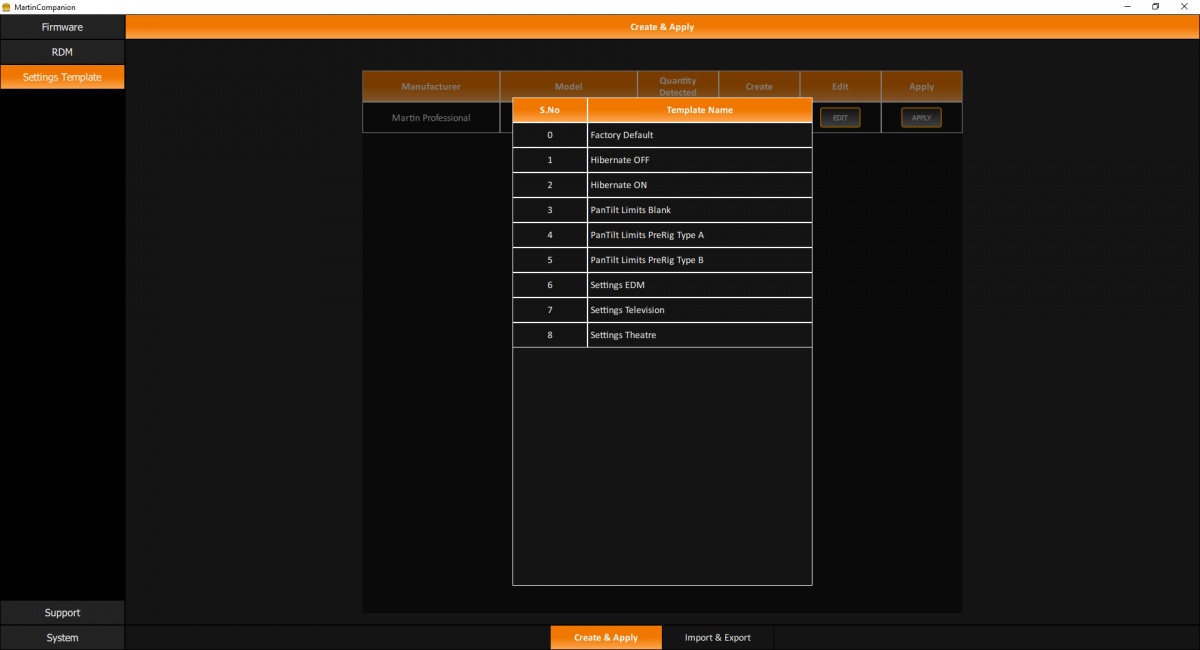

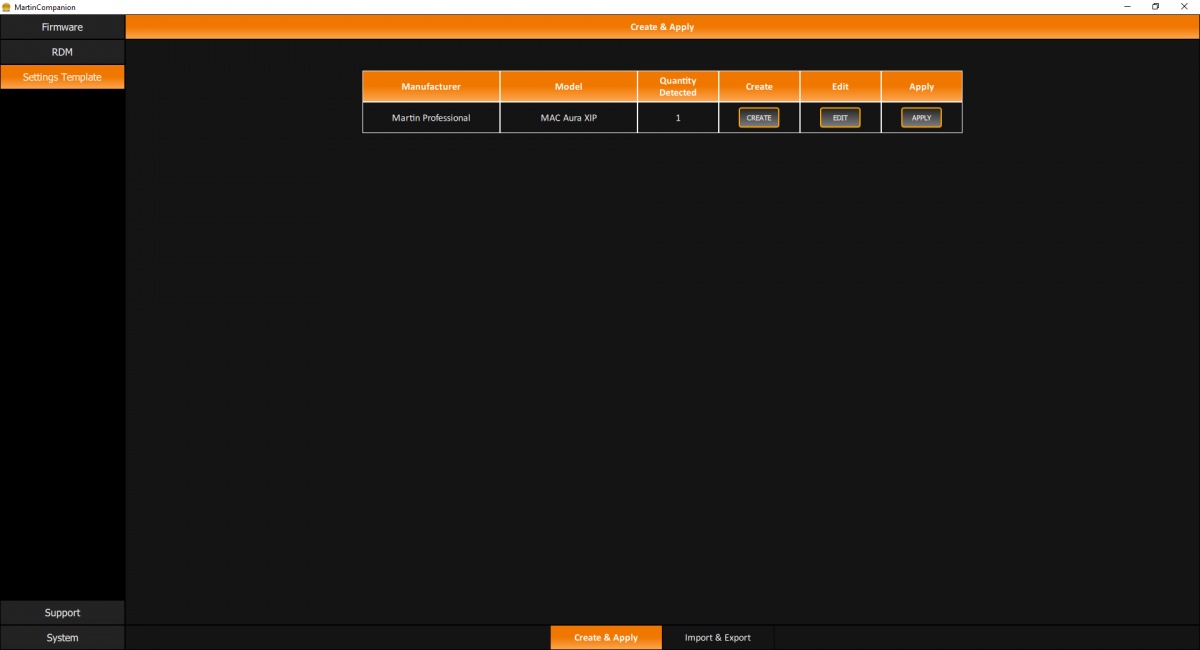

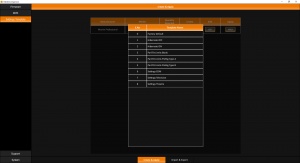

Settings Templates enable quick deployment of settings to multiple fixtures at once

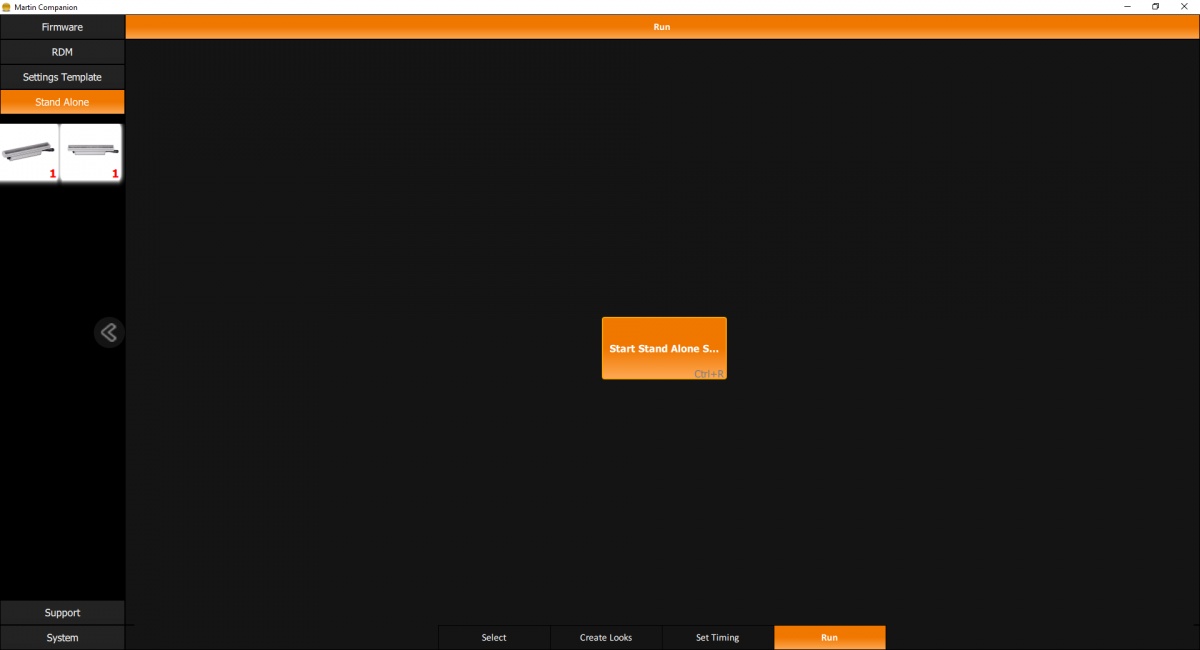

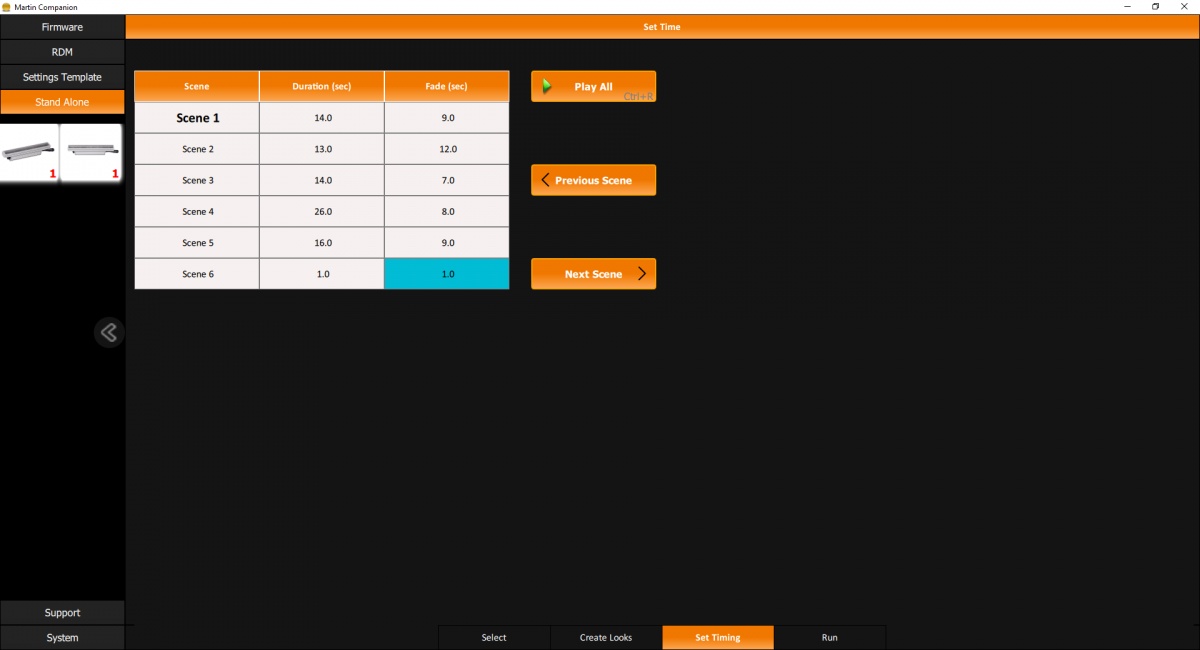

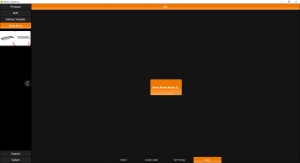

Stand-Alone Programming of select Martin fixtures.
PHYSICAL
|
Length: | 68 mm (2.7 in.) |
|
Width: | 29 mm (1.2 in.) |
|
Height: | 17 mm (0.7 in.) |
|
Weight: | 99 g (3.5 oz.) |
CONTROL/USER INTERFACE
|
Configuration and management: | Martin Companion Software |
|
Device status: | 3 x status LEDs (USB, DMX & Status) |
CONSTRUCTION
|
Housing: | Plastic |
|
Protection rating: | IP20 |
Non-domestic use in dry location only
CONNECTIONS
|
Computer Interface: | USB 2.0 |
|
DMX/RDM data: | 1 x 5-pin locking XLR |
ELECTRICAL
|
Power Rating: | 5 VDC over USB |
|
Maximum current draw: | 150 mA |
THERMAL
|
Maximum ambient temperature (Ta max.): | 50° C (122° F) |
|
Minimum ambient temperature (Ta min.): | 0° C (32° F) |
SYSTEM REQUIREMENTS
PC running Windows 7 SP1, 8.1 or 10 (32 and 64-bit)
Intel Core (or better) processor
1024 MB (or more) RAM
1 GB (or more) available hard disk space
Display with 1280 x 1024 (or higher) resolution
USB 1.1 (or higher) port for
Martin® USB-DMX hardware interface
Full administrator rights on PC
APPROVALS
|
EMC: | CAN ICES-3 U(B) / NMB-3 (B) |
SUPPORTED RDM PARAMETERS
|
General: | Manufacturer, Model, Label, Fixture ID |
|

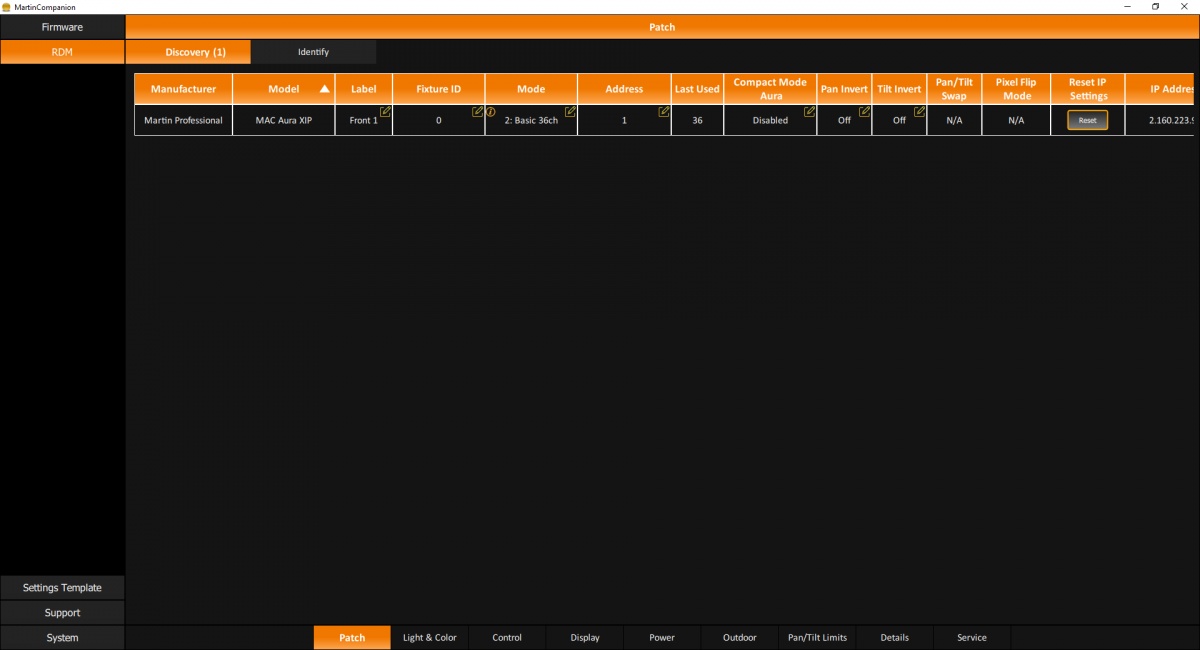

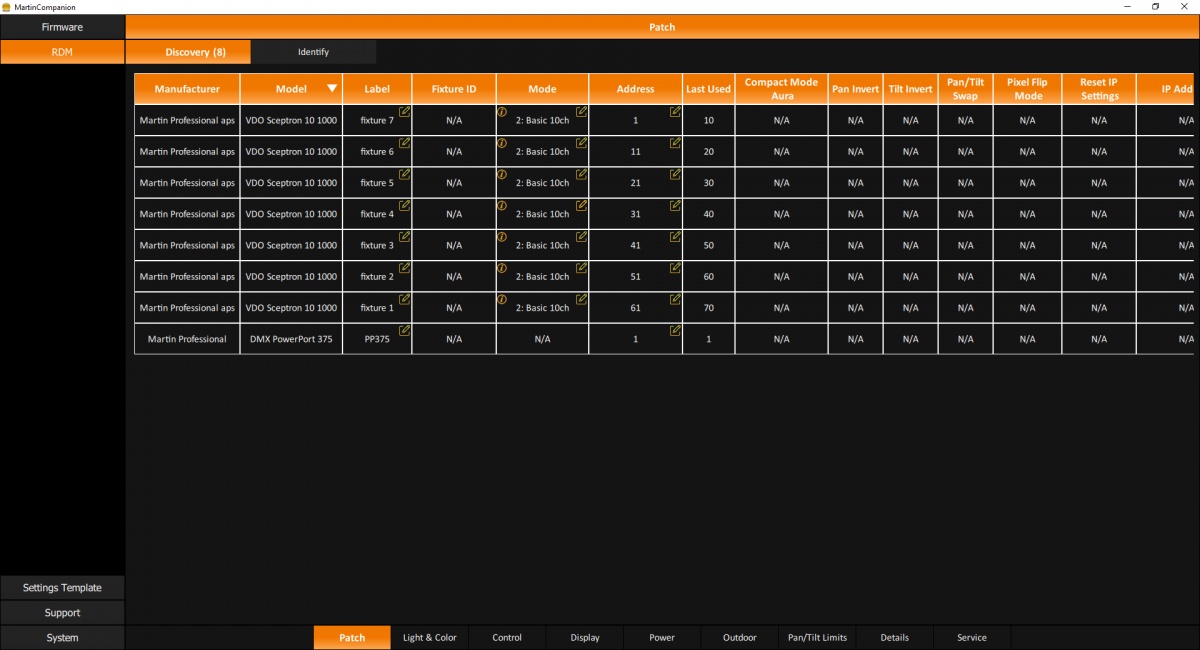

Patch: | Mode, Address, Compact Mode Aura, Pan Invert, Tilt Invert, Pan/Tilt Swap, Pixel Flip Mode, IP Settings |
|
Light & Color: | Dimmer Curve, Color Mode, Output Mode, Keylight Calibration, Gobo CT Correction, Video Tracking, Strobe Behavior, Tungsten Emulation, Low Noise LED Mode |
|
Control: | Pan/Tilt Speed, Effects Speed, Effects Shortcuts, Focus Tracking, Hyper Zoom, Fan Mode, Extra Blackout |
|
Display: | Display Auto Off, Display Show Error, Display Rotation, Display Intensity, Display Contrast |
|
Power: | Power Limit, Hibernation, DMX Lost Mode, Reset via DMX, Reset, Lamp Off via DMX, Lamp On Mode, Lamp State, Power State |
|
Outdoor: | Auto Empty Water, Outdoor Action |
|

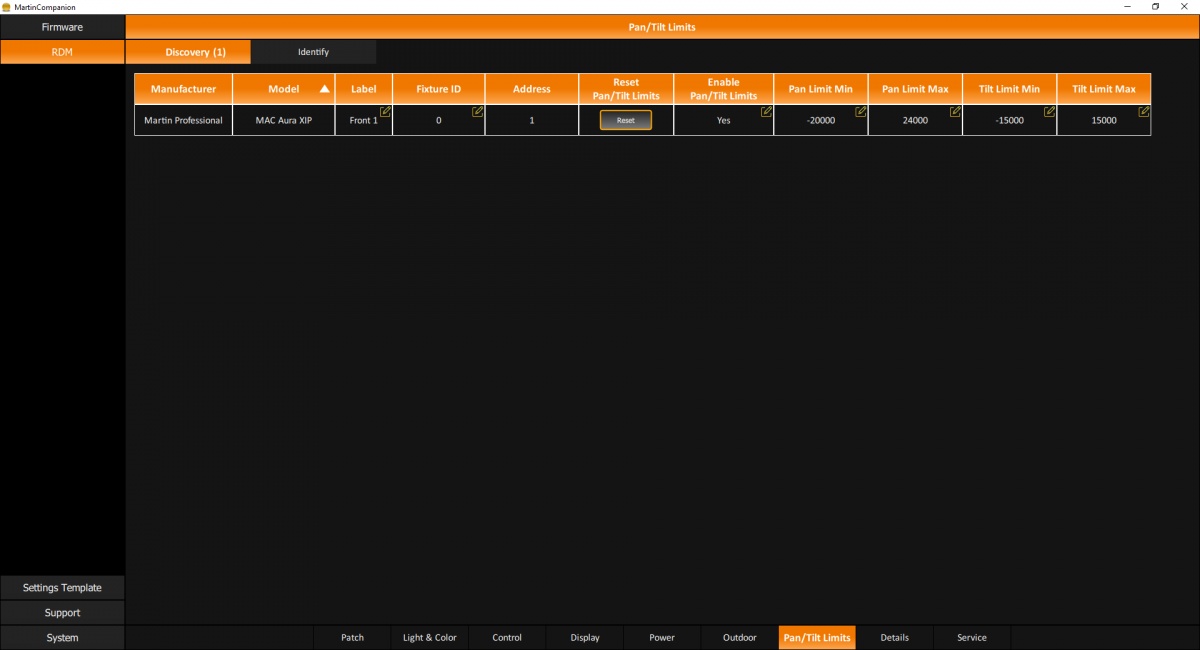

Pan/Tilt Limits: | Reset Pan/Tilt Limits, Enable Pan/Tilt Limits, Pan Limit Min, Pan Limit Max, Tilt Limit Min, Tilt Limit Max |
|

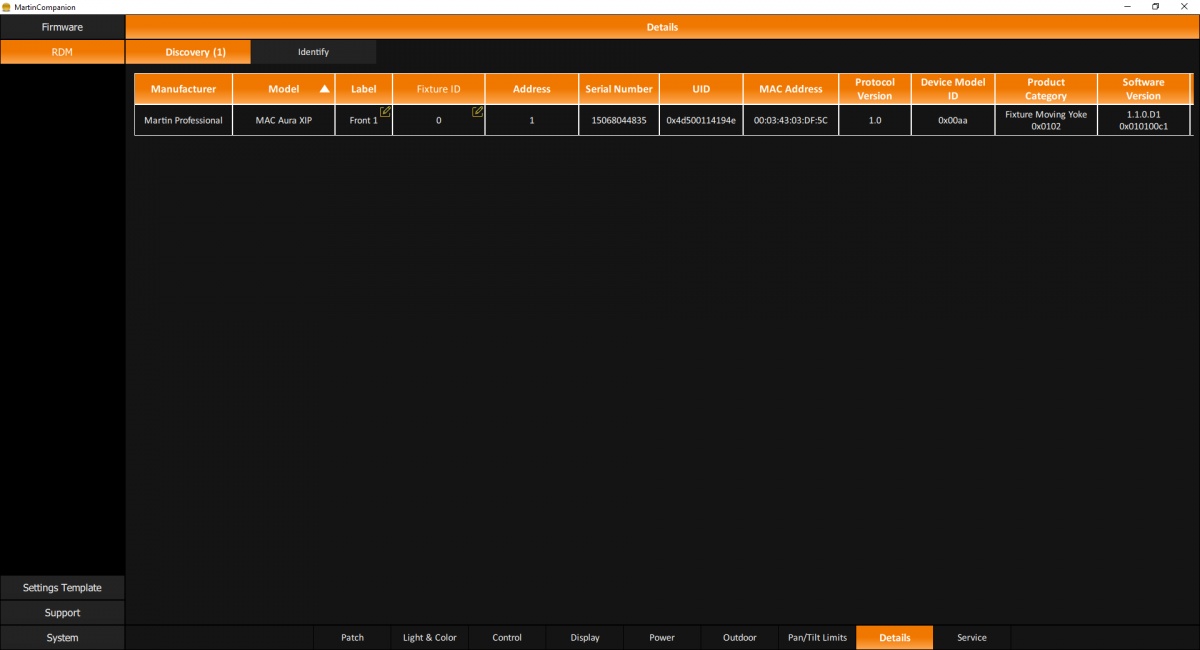

Details: | Serial Number, UID, MAC Address, Protocol Version, Device Model ID, Product Category, Software Version, Sub-Device Count |
|
Service: | Status, Sensors Readout, Device Hours, Lamp Hours, Lamp Strikes, Power Cycles, Fan Clean, Self Test, Factory Defaults |
*Martin Companion uses a combination of standard RDM commands and Martin-specific RDM commands

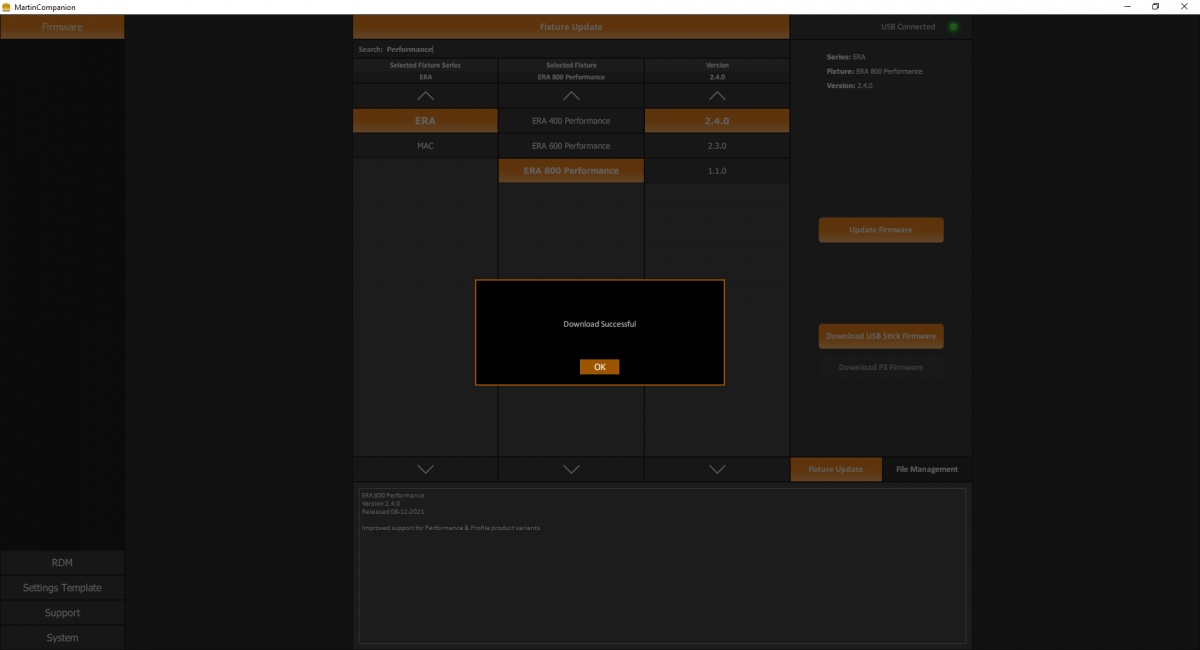

SUPPORTED FIXTURES - FIRMWARE UPLOAD*
|
Firmware Upload via DMX Cable: | |
- All products from Martin MAC, ERA, ELP, RUSH and Exterior ranges
- Select products from Martin VDO range
|
Firmware Export and Upload into Fixture via USB stick: | |
- Select products from Martin MAC and ERA ranges
|
Firmware Export and Upload into Fixture via P3 System Controller: | |
- All products from Martin VDO and VC ranges
- Select products from Martin MAC and Exterior ranges
|
Firmware Export and Upload into Fixture via Epsilon 5 AVR Programmer: | |
- Atmospheric Effects in Martin JEM, Magnum and RUSH ranges
*Detailed Overview can be found here.

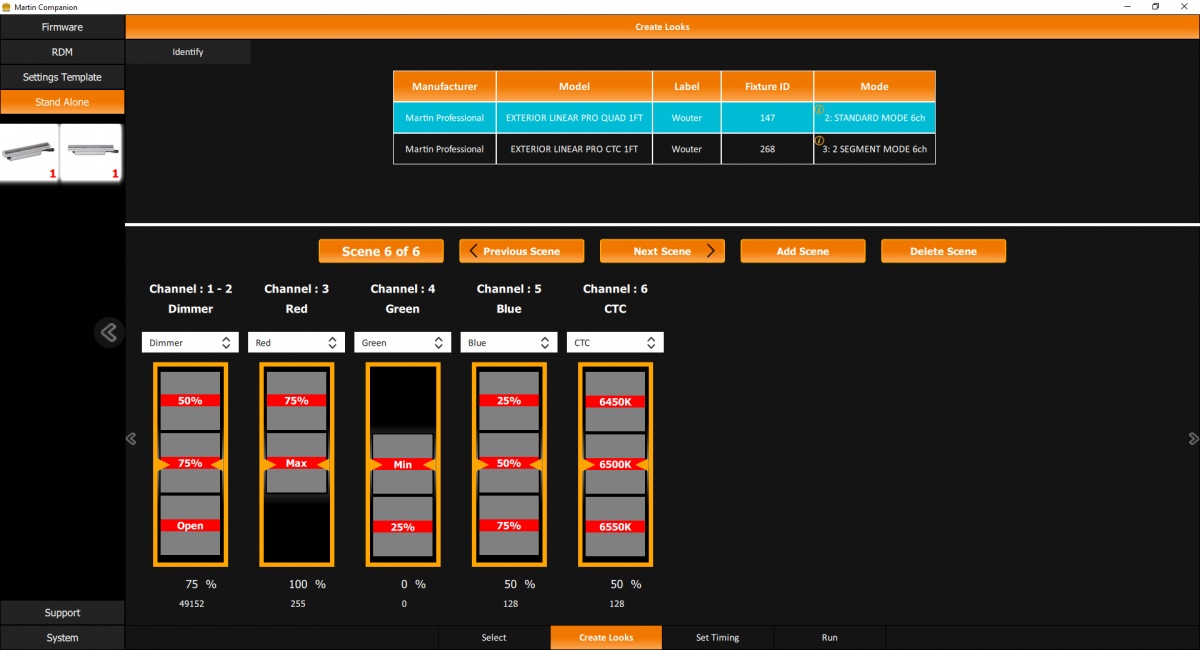

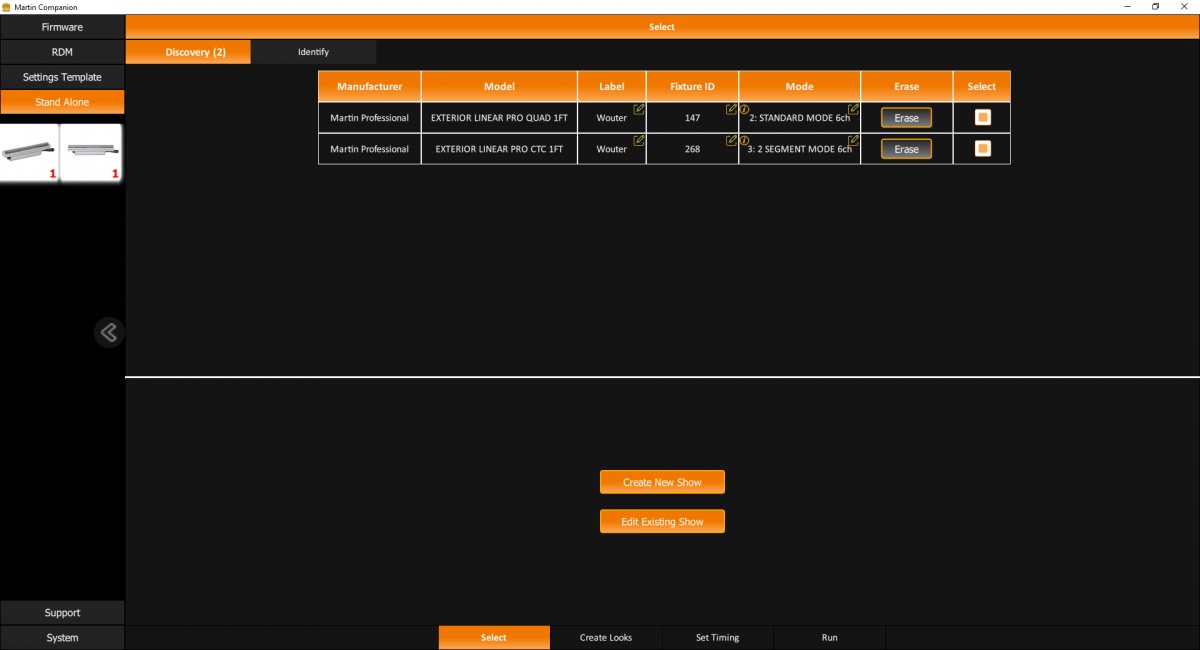

SUPPORTED FIXTURES - STAND-ALONE PROGRAMMING
Exterior Linear Pro series
ORDERING INFORMATION
|
Martin® Companion Cable: | P/N 91616091 |
|
Martin® Companion Software: | free download from martin.com |
