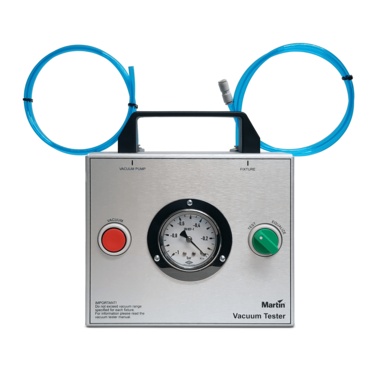

The Martin Vacuum Tester is designed as an easy-to-use service tool for qualified technicians, to verify correct sealing against any water or dust ingress of Martin outdoor rated products.
PHYSICAL
Length: 210 mm (8.2 in.)
Width: 100 mm (3.9 in.)
Height: 220 mm (8.6 in.) – including handle
Weight: 1.3 kg (2.9) lbs.
INCLUDED ITEMS
Pump adaptor M12x1, very fine: P/N 50503001
Pump adaptor M12x1.5, fine: P/N 50503002
Suction cup
Vacuum hoses for connection to pump and to Exterior fixture
ORDERING INFORMATION
Vaccum Tester: P/N 91611580
SPECIFICATIONS FOR REQUIRED VACUUM PUMP (NOT INCLUDED)
Pumping capacity: Minimum 30 liters per minute.
Vacuum capacity: Minimum 10 Pa/0.0001 bar, maximum 50 Pa/0.0005 bar
