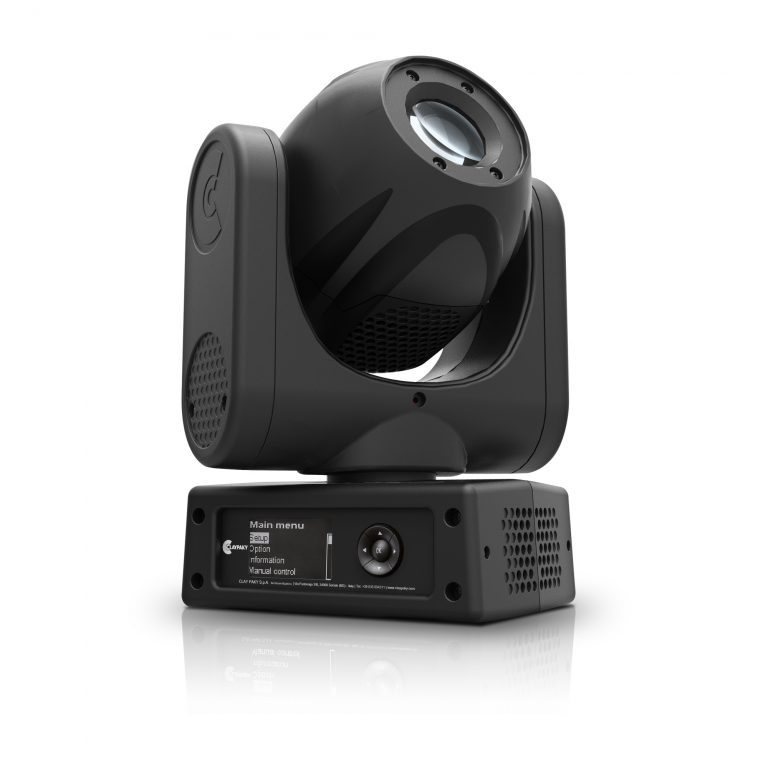

CLAYPAKY Mini Xtylos HPE
MINI XTYLOS HPE otvára príležitosti na použitie tam, kde sú potrebné menšie, energeticky úsporné, no výkonné svietidlá pre malé a veľké priestory a podujatia.
MINI XTYLOS HPE (CJ3002) je zariadenie s malým tvarovým faktorom s inovatívnym a patentovaným RGB laserovým zdrojom Claypaky s výdržou 20 000 hodín, ktoré vďaka svojmu exkluzívnemu systému TURBO COLOR produkuje sýte farby bez viditeľných hotspotov.
Zariadenie ponúka lineárne virtuálne CTO, jedno efektové koliesko s dvoma otočnými a vymeniteľnými prizmami a jedným vymeniteľným frost filtrom, 24-bitový digitálny stmievač, rýchly digitálny stop/stroboskop s rozsahom clony od 1° do 4° na dosiahnutie neuveriteľných lúčových efektov.
Okrem typických vlastností rodiny XTYLOS prináša MINI XTYLOS HPE niektoré nové a vzrušujúce funkcie: Jednotka ponúka nekonečné otáčanie panvy v oboch smeroch, ktoré možno ovládať rôznymi rýchlosťami.
MINI XTYLOS HPE je veľmi kompaktný, pracuje pri napätí 100 až 240 V AC a pri 230 V AC spotrebuje iba ...80 VA. Jednotka váži iba 9 kilogramov.
Pre aplikácie beam je MINI XTYLOS HPE najlepšou voľbou vďaka svojej vysokej intenzite, ktorú nemožno dosiahnuť žiadnymi inými svietidlami na báze LED. So spotrebou iba 20 W laserového motora poskytuje MINI XTYLOS HPE 2,5 Mcd s 1° apertúrou lúča.
Laserový svetelný zdroj XTYLOS je v súčasnosti jedinou technológiou, ktorá nám umožňuje vyrobiť také malé a kompaktné svietidlo.
VIAC
ver since the introduction of the XTYLOS fixture, Claypaky has been focused on developing new, pioneering technologies that offer new ways to motivate designers to reach further to inspire audiences. New MINI XTYLOS HPE opens opportunities to bring this unique technology where smaller, energy efficient, yet powerful fixtures are required for small and large venues and events.
MINI XTYLOS HPE (CJ3002) is a small form factor fixture with Claypaky’s innovative and proprietary RGB laser source, lasting 20,000 hours, that produces saturated, deep colors without any visible hotspots with its exclusive TURBO COLOR system.
The fixture offers linear virtual CTO, one effect wheel with two rotating and interchangeable prisms and one interchangeable frost filter, a 24-bit digital dimmer, a fast digital stop/strobe and have an aperture range of 1° to 4° to produce their incredible beam effects.
In addition to the typical features of the XTYLOS family, the MINI XTYLOS HPE delivers some new and exciting features: The unit offers endless pan rotation in both directions, that can be controlled at various speeds.
MINI XTYLOS HPE is very compact, operates on 100 to 240VAC and only consumes 80VA of power at 230VAC. The unit weighs just a mere 9 kilograms (20 pounds).
For the beam applications, the MINI XTYLOS HPE is the best option thanks to its high intensity which cannot be achieved by any other LED based beam fixtures. With only 20W laser engine power consumption, the MINI XTYLOS HPE delivers 2.5Mcd with 1° beam aperture.
The XTYLOS laser light source is currently the only technology that allows us to make such a small and compact beam fixture.
• Light source: tailor-made RGB laser engine, enclosed in a sealed module
• Long lasting light source (20,000 hours) with minimal decay
• Laser-based system with derating to preserve laser diodes
• Total output:
- MINI XTYLOS HPE: 2.5Mcd with 1° beam aperture
- MINI XTYLOS: 1.5Mcd with 1° beam aperture
• MINI XTYLOS HPE (CJ3002) can be operated also in the adjusted output version to emulate the MINI XTYLOS (CJ3003) behavior
• Solid, flat field, saturated, ultraconcentrated light beam without any visible hotspots
• Exclusive mid-air graphic effects (BLazer effects)
• Aperture: 1°-4° range
• RGB additive color mixing, with exclusive TURBO COLORS
• Linear virtual CTO 2500K – 6500K
• Unequalled color consistency both across different fixtures and during lifetime
• Endless PAN Rotation
• One wheel with 2 rotating prisms (Pyramid 16 facets, Linear 6 facet) and 1 frost filter
• Unmatched effect and color change speed
• Motorized focusing to zoom in the prism and the frost
• Ultra-precise 24-bit digital dimmer
• High speed, digital stop-strobe effect
• Extremely compact housing
• CloudIO Ready: fully compatible with CloudIO
• Laser engine power consumption: MINI XTYLOS HPE (CJ3002): 20W, MINI XTYLOS (CJ3003): 12W
• Weight: only 9 kg (20 lbs)
