***Only on Special Order***
FEATURES
IP65 Rated Dust and Water Protection
Marine Grade Coated Anti-Corrosion Housing
50,000 Lumens IP Rated Profile Wash-Beam Luminaire
4-Blade Rotating Full Black Out Framing Shutter Module
+/-50° Indexable Framing Shutter Module
Advanced Internal Cooling and Heating System for Operation in Freezing or High Temperatures
5.5° - 55° Motorized Zoom
Full 360° Bi-Directional Animation Wheel
Full CMY-Flag Color Mixing System and Linear CTO Color Correction
High CRI (>82) Filter
4-Facet and Linear, Rotating and Indexing Prisms
2 Linear Wash Frost Filters
Pan/Tilt Lock
Variable Dimming Curves, Dim Modes and Dimming Delays
SOURCE
950W Cool White LED Engine
50,000 Total Output Lumens, 6,500K, CRI70 (CRI82 with HCRI Filter)
30,000 Hour Average Lamp Life*
PHOTOMETRIC DATA
124,119 LUX 11,531 FC @ 16.4’ (5m) (Min. Zoom)
4,096 LUX 381 FC @ 16.4’ (5m) (Max. Zoom)
EFFECTS
4-Blade Rotating Full Black Out Framing Shutter Module
+/-50° Indexable Framing Shutter Module
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear, Rotating and Indexing Prisms
2 Linear Wash Frost Filters
Motorized Iris
High Speed Electronic Shutter and Strobe
Variable Dimming Curves, Dim Modes and Dimming Delays
COLOR
Full CMY-Flag Color Mixing System
Linear CTO-Flag Color Correction
High CRI (>82) Filter
6 Dichroic Colors + White (Open)
GOBOS
2 Gobo Wheels
6 Interchangeable / Ro
tating / Indexing Glass & Metal Gobos
|
Size: | OD 29.8mm / ID 25mm** |
7 Static Interchangeable / Indexing Metal Gobos

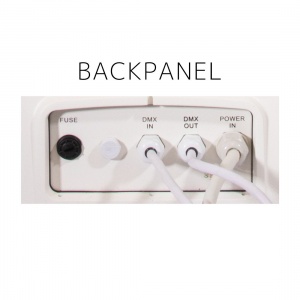

CONTROL / CONNECTIONS
2 DMX Channel Modes (37 / 61)
DMX, Art-NET and sACN Support
RDM (Remote Device Management)
8 / 16 Bit Pan, Tilt and Dimming Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Battery Powered Menu Display
Fixed DMX Cable In/Out
Fixed Power Cable
SIZE / WEIGHT
|
Length: | 18” (458mm) |
|
Width: | 23.3” (591mm) |
|
Vertical Height: | 32.5” (825mm) |
|
Weight: | 117 lbs. (53 kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1,400W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)
INCLUDED ITEMS
2 Omega Brackets
OPTIONAL ACCESSORIES
1322000061 IP Tester
1322000054 E Loader III
|
*LED Life may vary depending on several factors including but not limited to: | Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. |
**OD = Outside Diameter | ID = Image Diameter Due to varying manufacturing processes, it is highly recommended to provide a gobo and holder sample from the fixture to 3rd party custom gobo vendors for accurate sizing.
