FEATURES

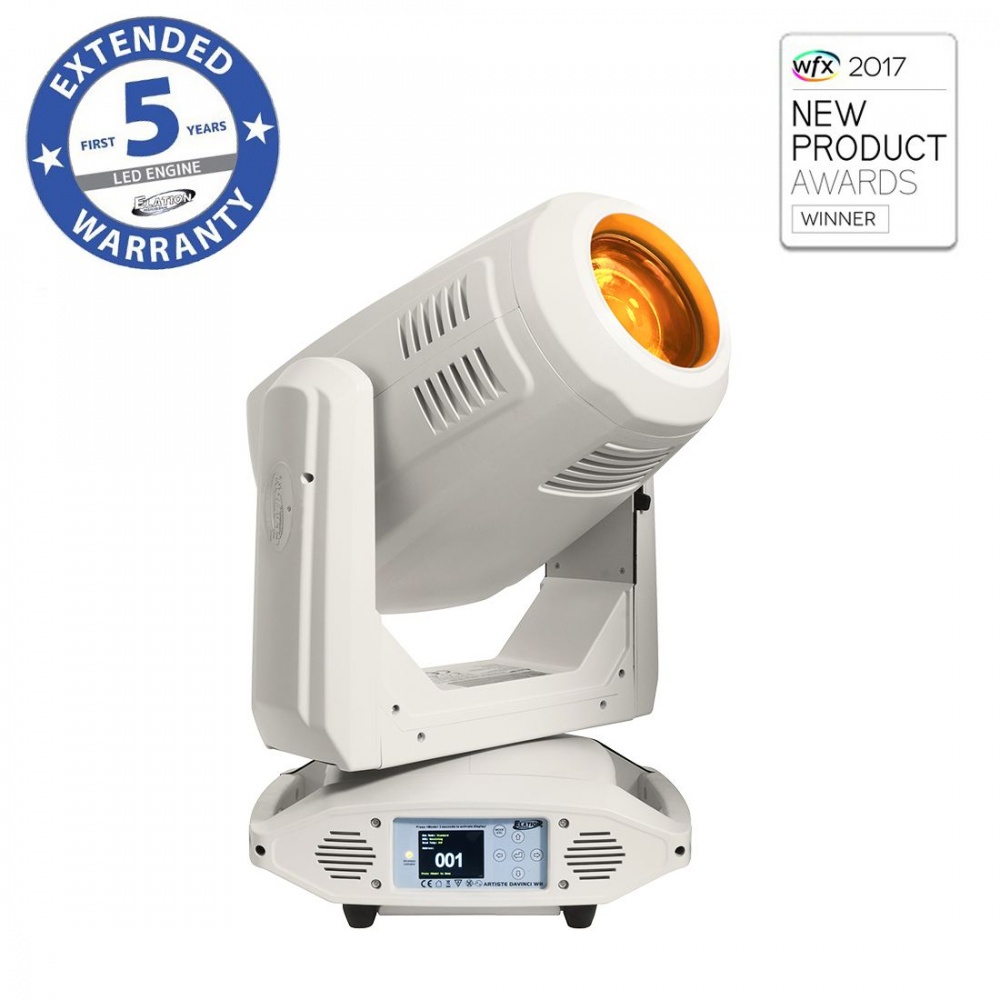

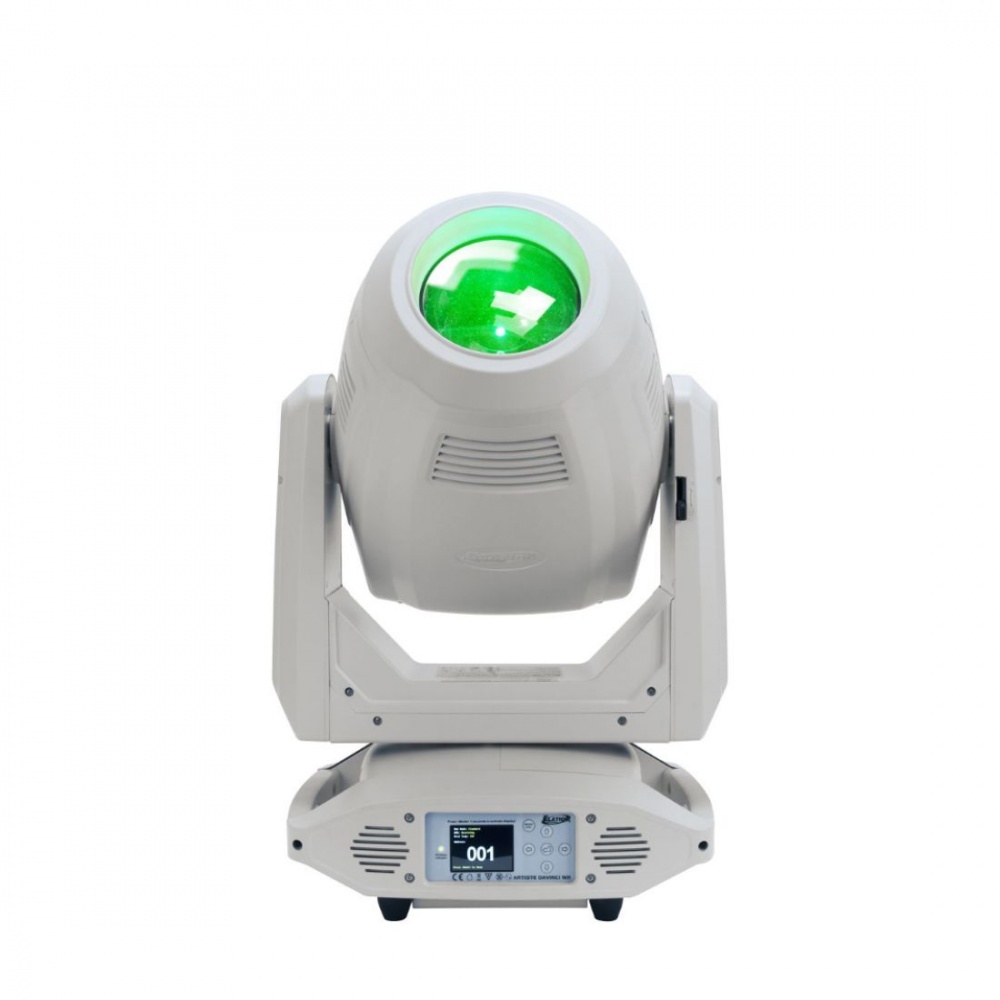

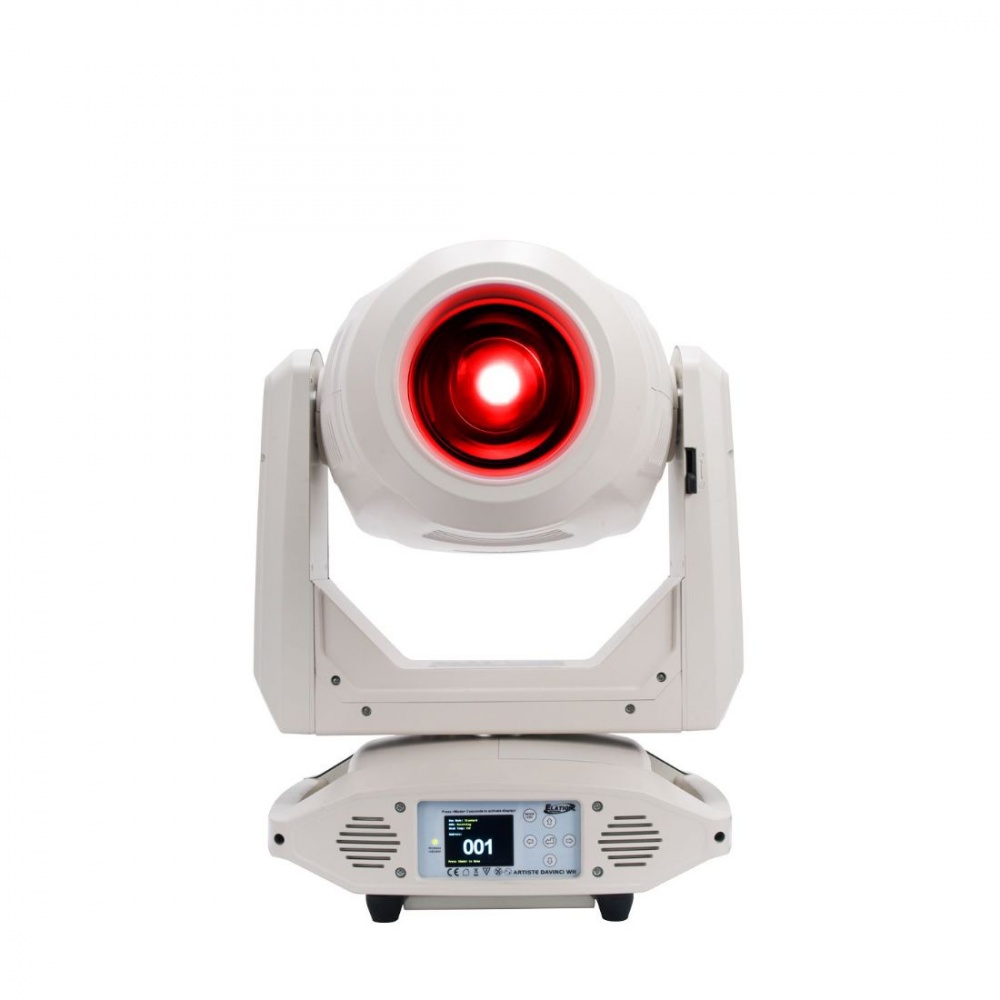

12,000 Lumens Cool White 8,000K LED Spot Luminaire
6° - 48° Motorized Zoom
Full 360° Bi-Directional Animation Wheel
Full CMY-Flag Color Mixing System and Linear CTO-Flag Color Correction
Minus Green and CTB Filters
Linear Frost Filter
Pan/Tilt Lock
Low Heat, Quiet Operation, Hibernation Mode (Power Save)
Adjustable Refresh Frequency and Gamma
Variable Dimming Curves
Flicker Free Operation for Broadcast TV and Film
Internal E-FLY™ Wireless DMX Receiver
SOURCE
270W Cool White LED Engine
50,000 Hour Average LED Life*
|
*Test lab conditions. May vary depending on several factors including but not limited to: | Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. |
PHOTOMETRIC DATA
12,000 Total Lumen Output
CRI 72+
EFFECTS
6° - 48° Motorized Zoom
3-Facet and Linear Rotating Prisms and Prism Macros
Full 360° Bi-Directional Rotating Animation Wheel
Frost Filter Hybrid Wash Effect
Motorized Zoom, Iris, Focus and Auto-Focus
High Speed Electronic Shutter and Strobe
Variable 16-Bit Dimming Curve Modes
Adjustable LED Refresh Rate Frequency and Gamma Brightness
COLOR
7 Dichroic Colors + CTB
Full CMY Color Mixing
Linear CTO Color Correction
GOBOS
2 Gobo Wheels
6 Interchangeable Rotating / Indexing Gobos
9 Interchangeable Static-Stamped Metal Gobos
CONTROL / CONNECTIONS
(3) DMX Channel Modes (40 total channels)
6 Button Touch Control Panel
Full Color
180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
DMX, RDM, Art-Net, sACN Protocol Support
Elation's E-FLY™ Internal Wireless DMX Transceiver

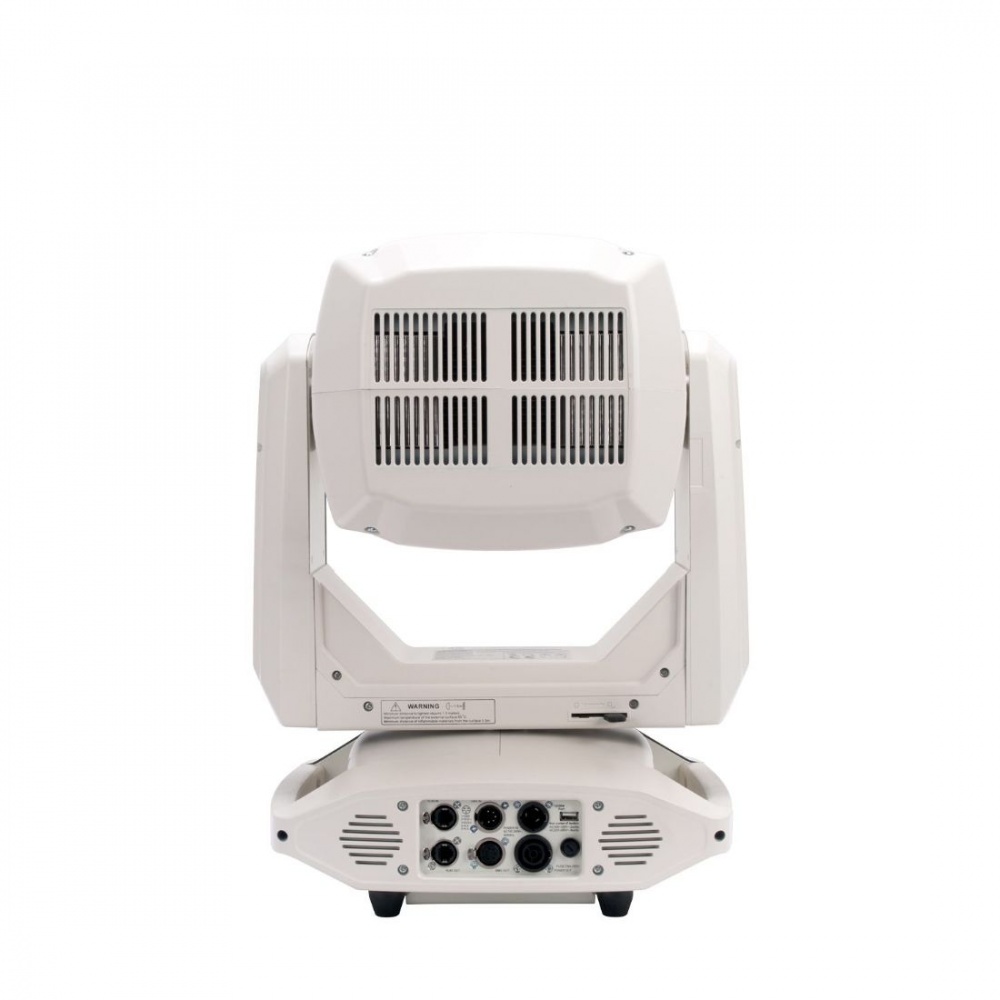

Locking 5pin XLR DMX, RJ45 Ethernet, and Power
With Wired Digital Communication Network
SIZE / WEIGHT
|
Length: | 16.4" (416mm) |
|
Width: | 11.2" (284mm) |
|
Vertical Height: | 25.4" (645mm) |
|
Weight: | 56.0 lbs. (25.4kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
470W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
