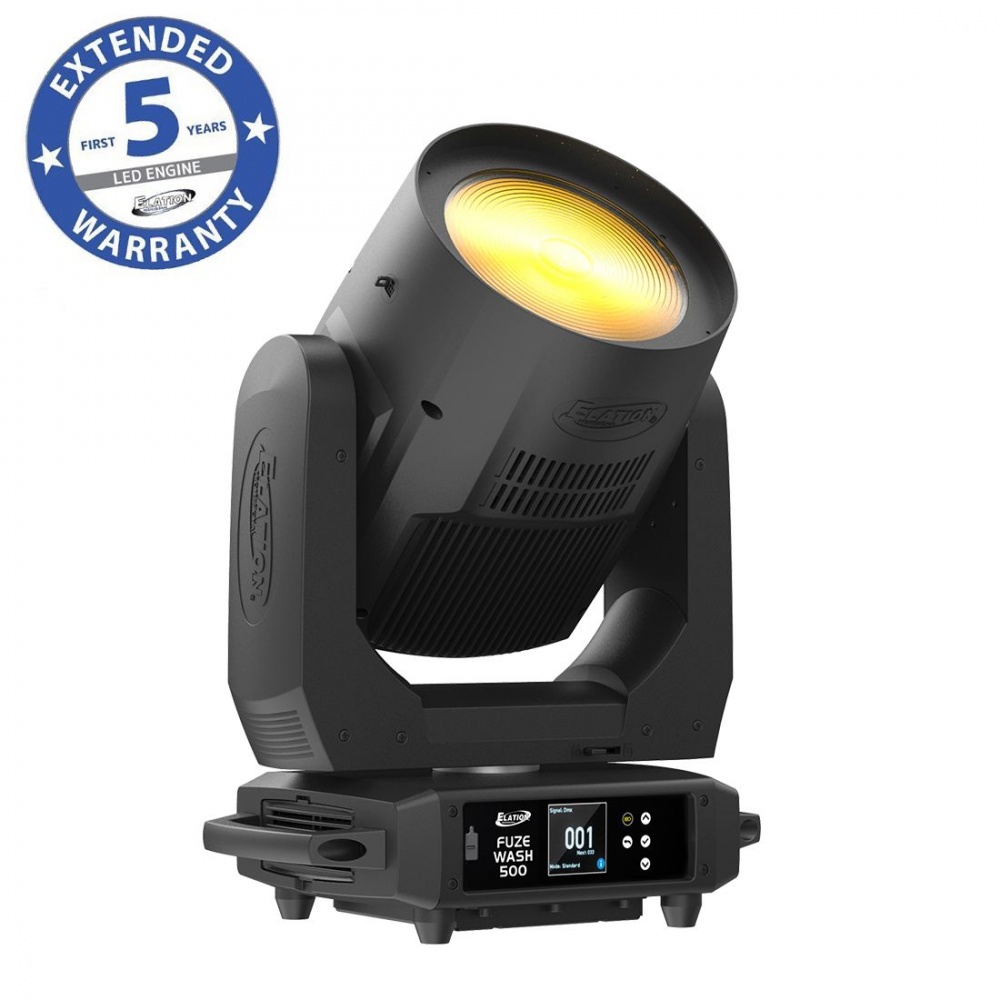

The Fuze Wash 500™ is a full-spectrum LED Fresnel moving head fixture designed for theater, television, events and a wide array of other precision lighting applications. It houses a 500W RGBMA LED engine and delivers a powerful output of up to 17,000 lumens with CRI of 92. It is designed for any application where an automated Fresnel fixture with outstanding and impactful colors, a wide zoom range and a soft field of light is required.
FEATURES :
• 500W Full Spectrum RGBMA LED Engine
• Up to 17,000 Total Lumen Fixture Output @ 6,500K
• Virtual Color Correction 2400K - 8500K
• CRI up to 92
• Wide Zoom Range from 10° to 45°
• Variable 16-bit Dimming Curve Modes
• CMY Emulation
• Virtual Color Correction
• Green/Magenta Shift
• Virtual Gel Swatch Book
SOURCE :
• 500W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
• 30,000 Hour Average LED Life
PHOTOMETRIC DATA :
• 17,000 Total Lumen Fixture Output
• CRI 92
• Zoom Range 10° - 45°
EFFECTS :
• Motorized Zoom

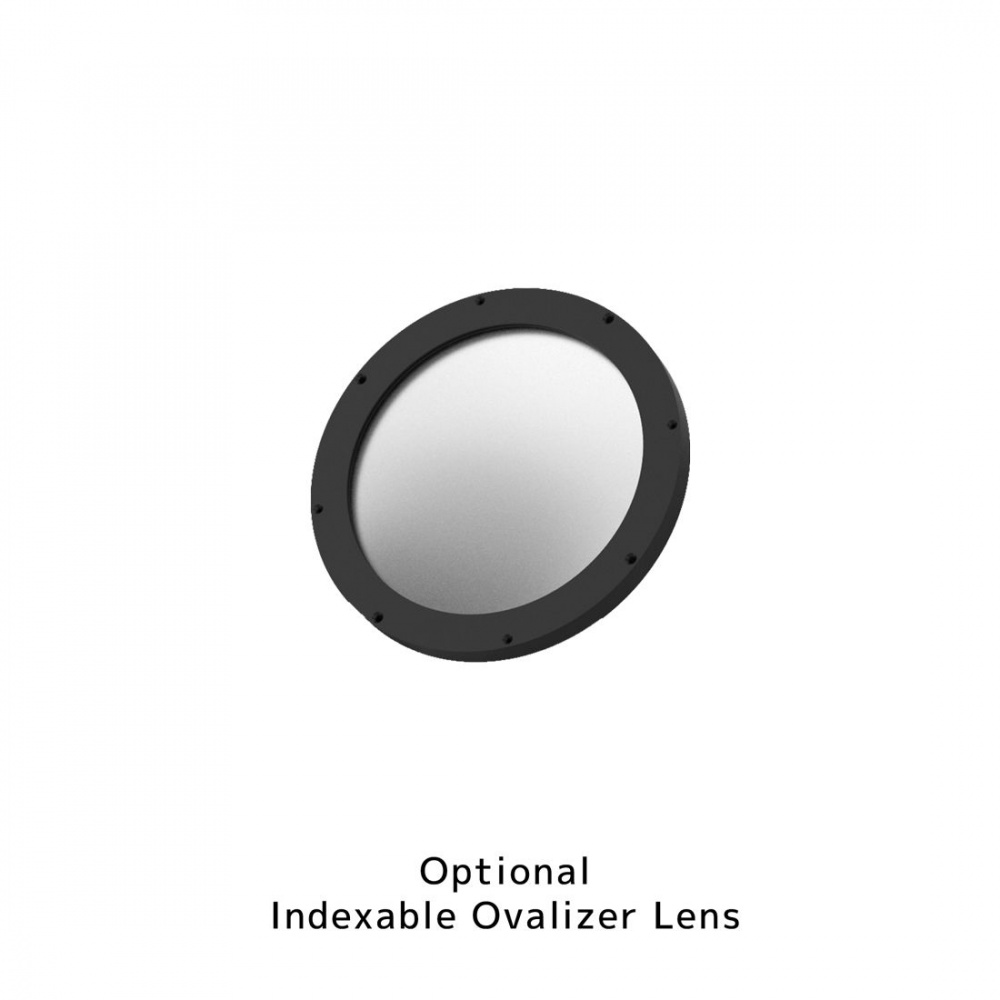

• Optional Indexable Ovalizer Lens
• Variable 16-bit Dimming Curve Modes
• High Speed Electronic Shutter and Strobe
SOURCE
500W 6,500K RGBMA (Red, Green, Blue, Mint, Amber) LED Engine
30,000 Hour Average LED Life*
|
*Test lab conditions. May vary depending on several factors including but not limited to: | |
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
17,000 Total Lumen Fixture Output
CRI 92
Zoom Range 6° - 53°
Field Angle 12.1° - 63.6°
Beam Angle 6.3° - 53.7°
EFFECTS
Motorized Zoom
Optional Indexable Ovalizer Lens

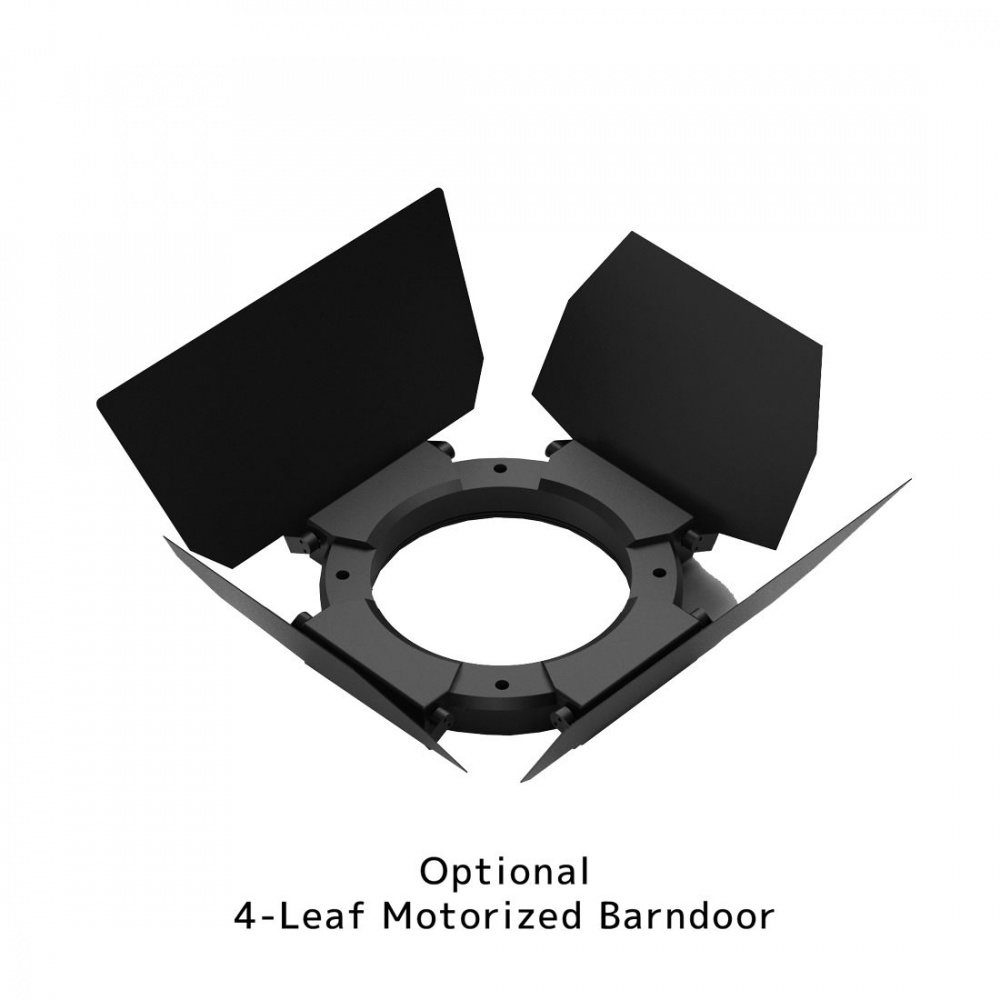

Optional Motorized Barn Doors
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
COLOR
RGBMA Color Array
CMY and RGB Emulation
Variable CCT 2400K - 8500K
Green/Magenta Shift
Virtual Gel Swatch Book
CONTROL / CONNECTIONS
DMX Channel Modes
|
With Barndoor: | 6 Channel modes - 21Ch, 30Ch, 19Ch CMY, 26Ch Ex, 19Ch RGB, 26Ch RGB Ex, |
|
Without Barndoor: | 6 Channel modes - 17Ch, 26Ch, 15Ch CMY, 22Ch CMY, 15Ch RGB, 22Ch RGB Ex |
16-bit Pan, Tilt, and Dimming Control
DMX Adjustable LED Frequency
DMX, RDM, E-FLY Wireless, Art-Net, sACN Protocol Support
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
Locking 5pin XLR Connector In/Out
Locking RJ45 Ethernet Connector In/Out
Locking IP65 Power Connector In/Out
USB Connection (Firmware Updates)
SIZE / WEIGHT
|
Without Snoot: | |
|
Length: | 13.8” (350mm) |
|
Width: | 16.1” (407.9mm) |
|
Vertical Height: | 21.7” (550.5mm) |
|
With Snoot: | |
|
Length: | 15.3” (389.5mm) |
|
Width: | 16.1” (407.9mm) |
|
Vertical Height: | |
21.7” (590mm)
|
Center Spacing: | 23.6" (600mm) |
|
Weight: | 40.89 lbs. (18.5kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
Max Power Consumption 609W
14°F to 113°F (-10°C to 45°C)
BTU/hr (+/- 10%) 2151.71
