FEATURES

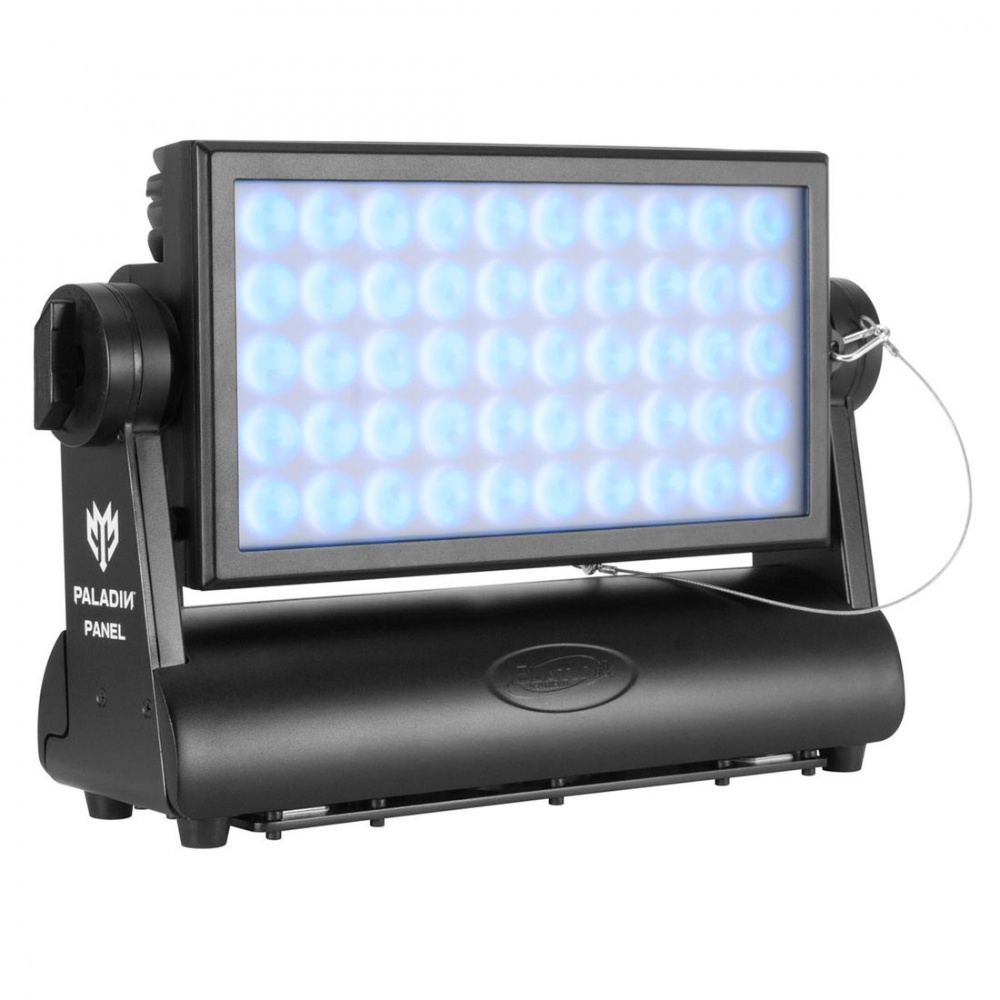

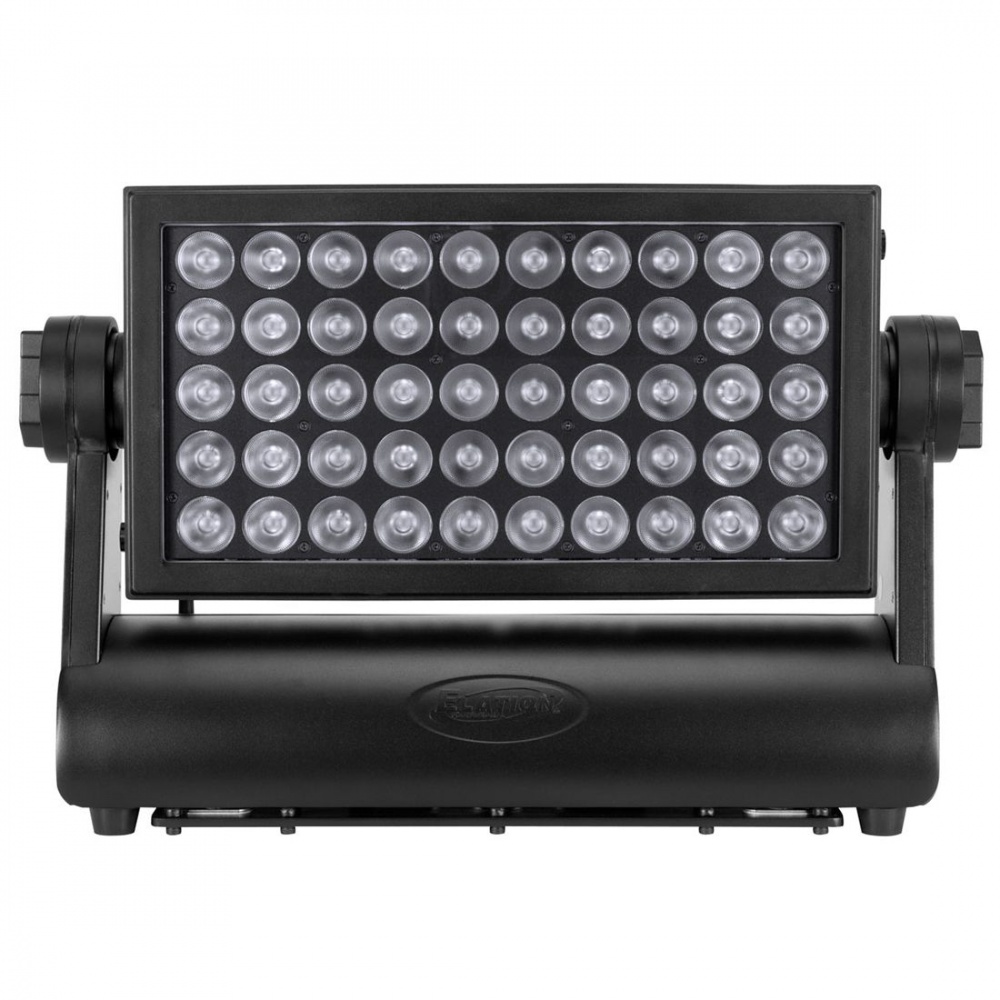

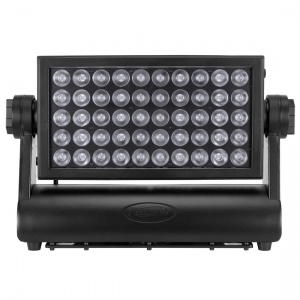

750W RGBW Flood Light
5x2 Cell Control
ControlRugged IP65 Design for Outdoor Events
Floor Standing or Mountable in any Orientation
Optional 60 and 100 degree Lens Kits Available*
Optional Barn Door Kit Available*
*Special Order Item
SOURCE
50x 15W RGBW Multi-Chip LEDs
20,000 Total Output Lumens
50,000 Hour Average LED Life*
COLOUR
RGBW
EFFECTS

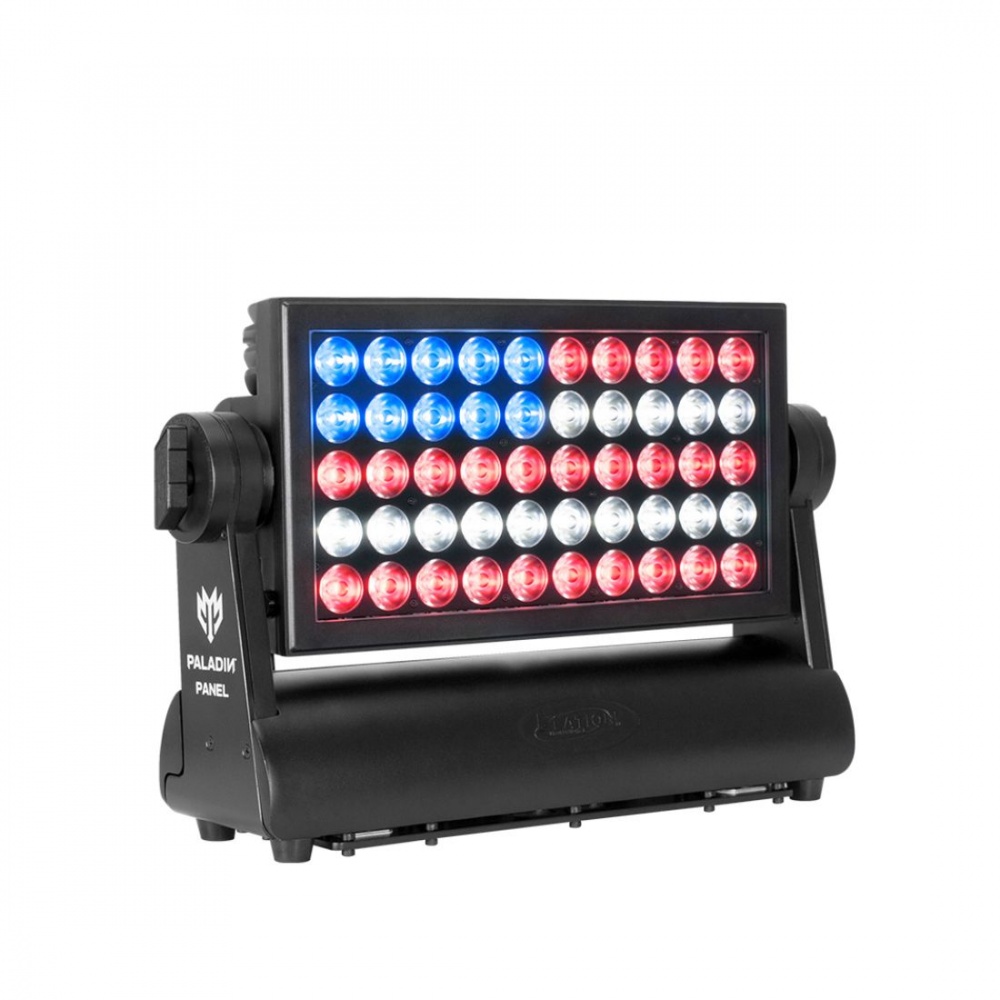

Pixel Zone Control
64 Color Presets and 15 Unique Color Macros
Electronic Strobe
16-Bit Dimming and Variable Dimming Curve Modes
PHOTOMETRIC DATA
22.840 LUX 2122 FC @ 9.8’ (3m)
CONTROL / CONNECTIONS
11 DMX Channel Modes (3 - 88)
DMX Support
RDM (Remote Device Management)
Adjustable Refresh Frequency (900 – 25,000Hz)
8 / 16 Bit Dimming Control
4 Button Control Panel

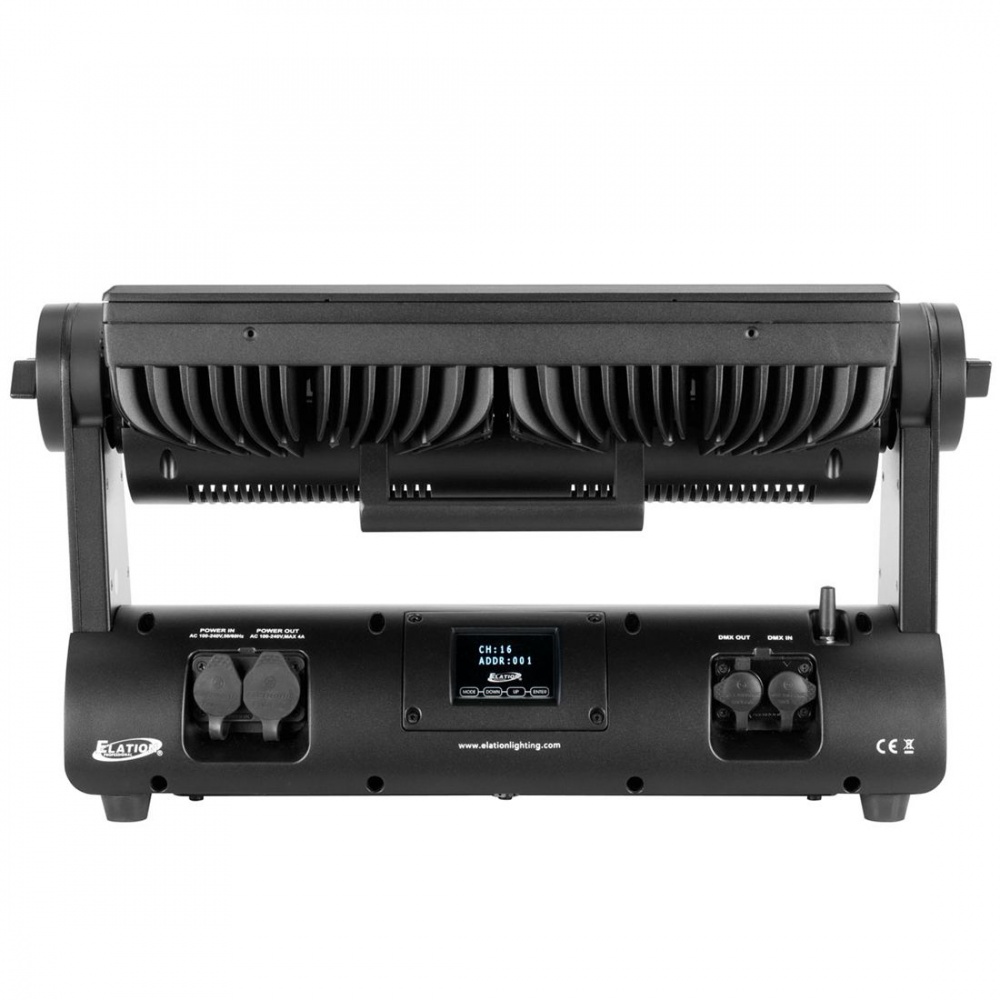

180° Reversible OLED Menu Display
Internal E-FLY™ Wireless DMX Receiver

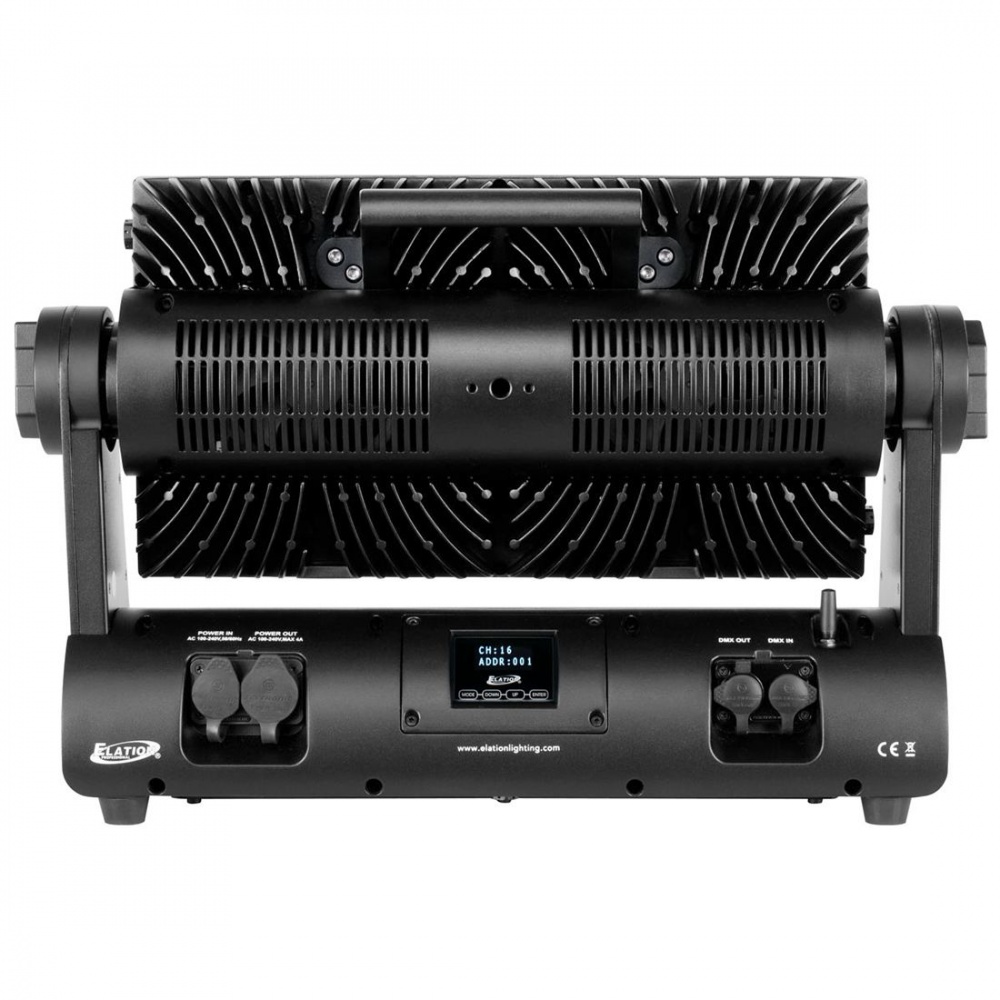

IP65 Locking 5pin XLR Connector In/Out
IP65 Locking Power Connector In/Out
SIZE / WEIGHT|
Length: | 20.9” (531mm) |
|
Width: | 5.8” (148mm) |
|
Vertical Height: | 13.7” (348mm) |
|
Weight: | 33.0 lbs. (15 kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
800W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
INCLUDED ITEMS

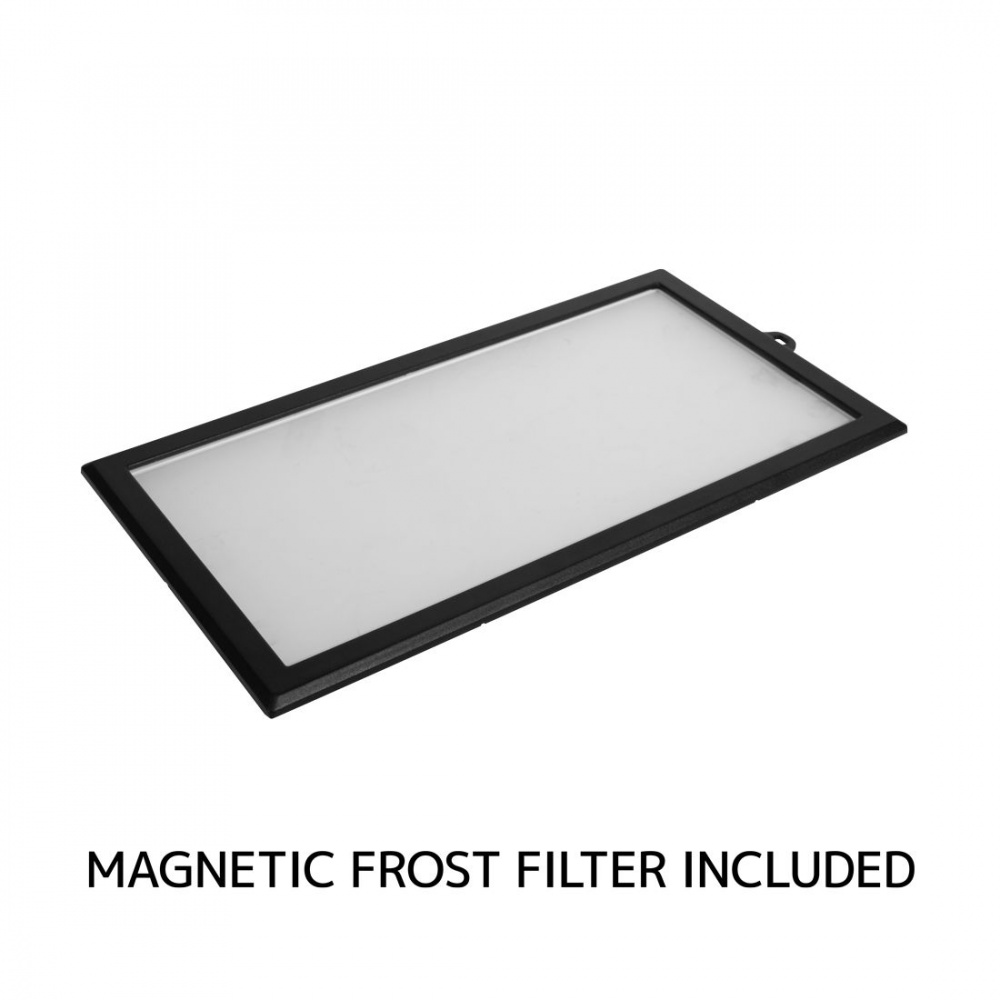

Magnetic 20° Filter
IP65 Locking Power Connector to CEE 7/7 Cable
OPTIONAL ACCESSORIES
1223200054 Barndoor for Paladin Panel

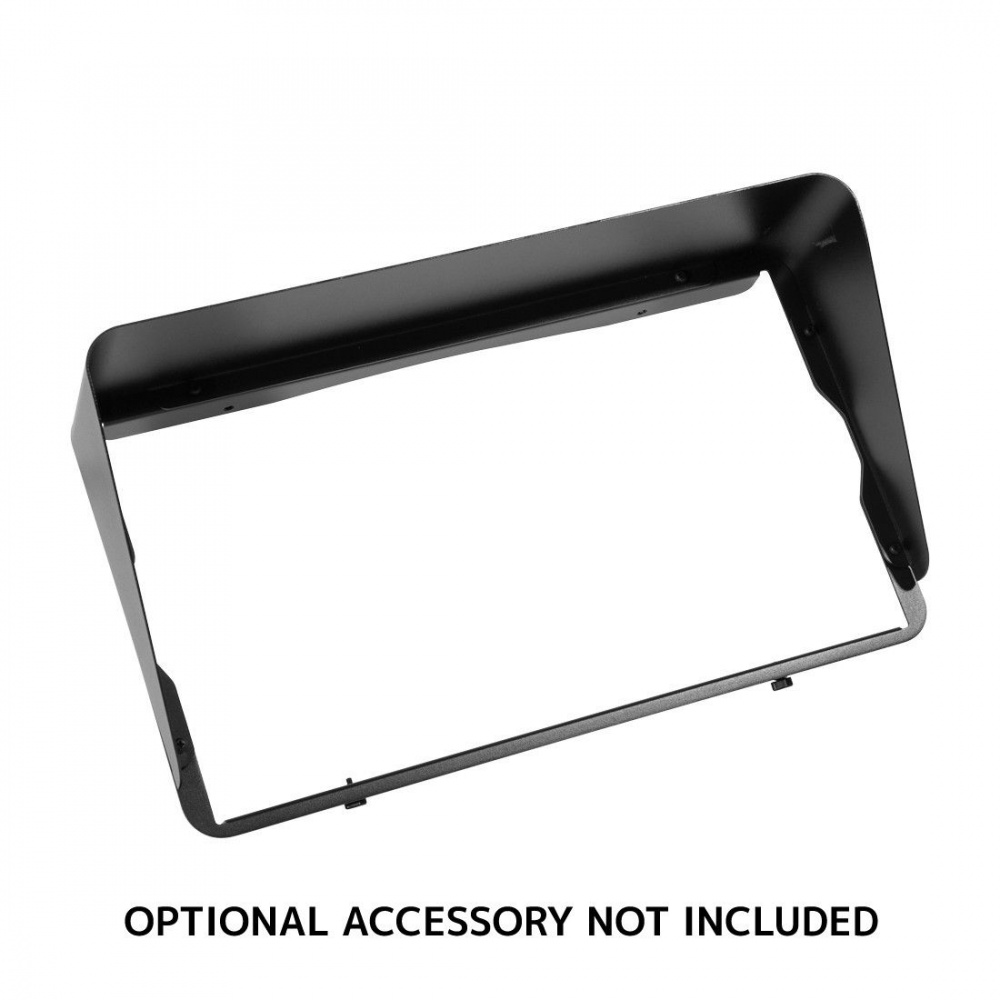

1223200057 Shader for Paladin Panel
1223200060 Paladin Panel Filter 20°
1223200061 Paladin Panel Filter 60°
1223200062 Paladin Panel Filter 100°
122
3200063 Paladin Panel Filter 60x10°
1223200064 Paladin Panel Filter 10x60°
1223200065 Paladin Panel Filter 40x1°
1223200066 Paladin Panel Filter 1x40°
1322000061 IP Tester
1322000055 E-Fly Transceiver
1322000060 C-Loader II
