FEATURES
IP65 Rated Dust and Water Protection

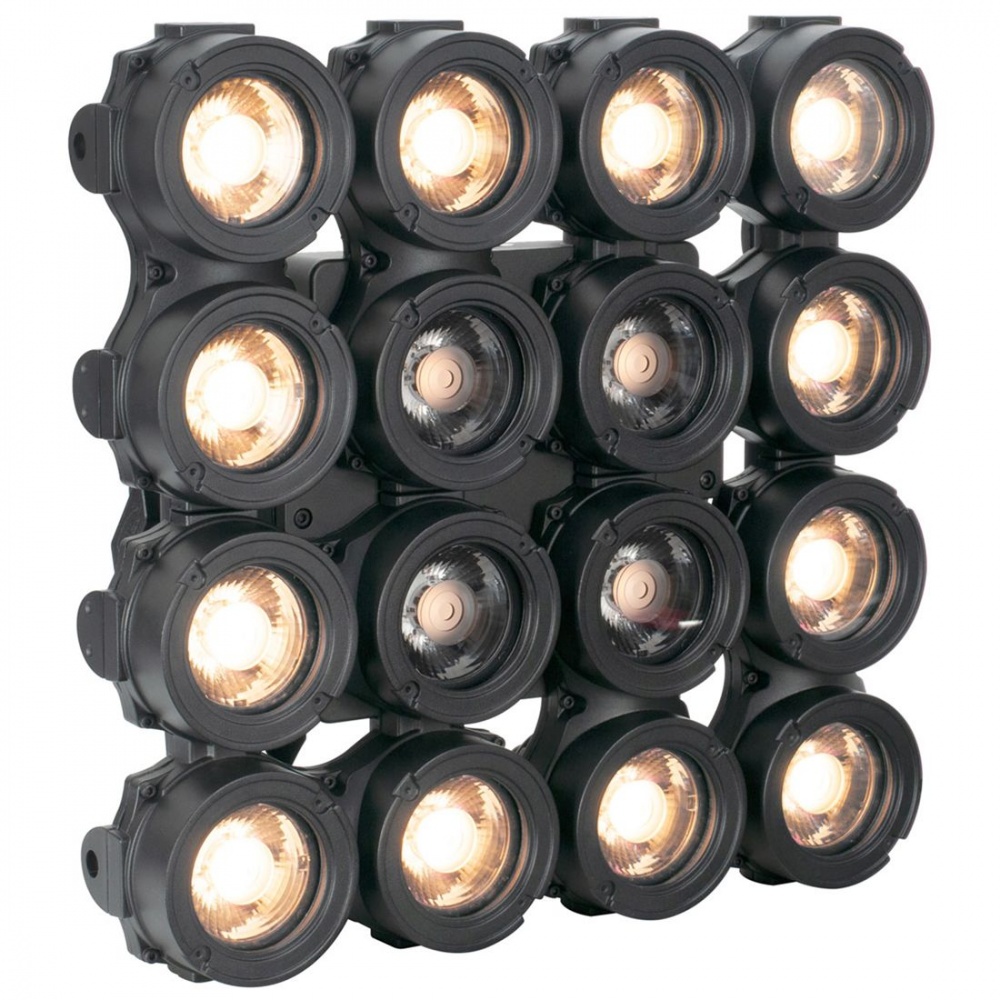

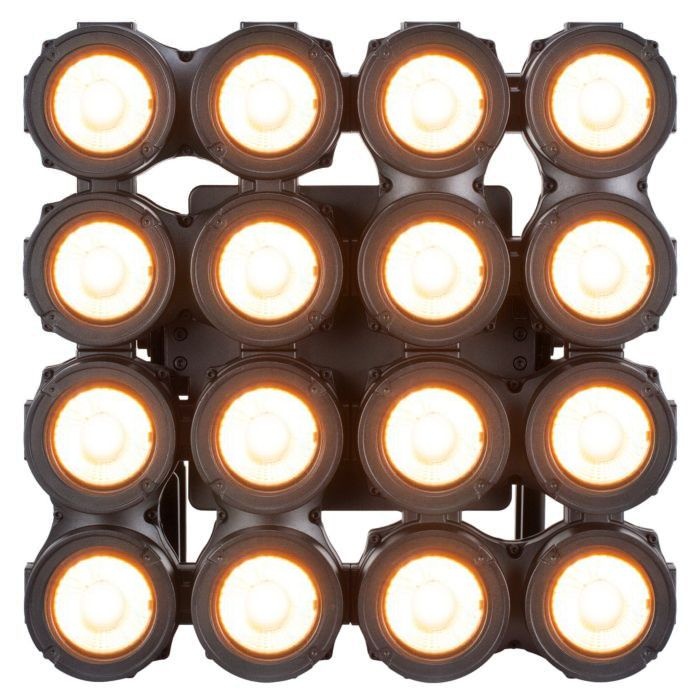

4x4 Effect Panel Luminaire
Dim To Warm Technology
16x 40W WW+A LEDs
Pixel Controlled LEDs
Integrated Quick Locks for Multiple Panel Setup

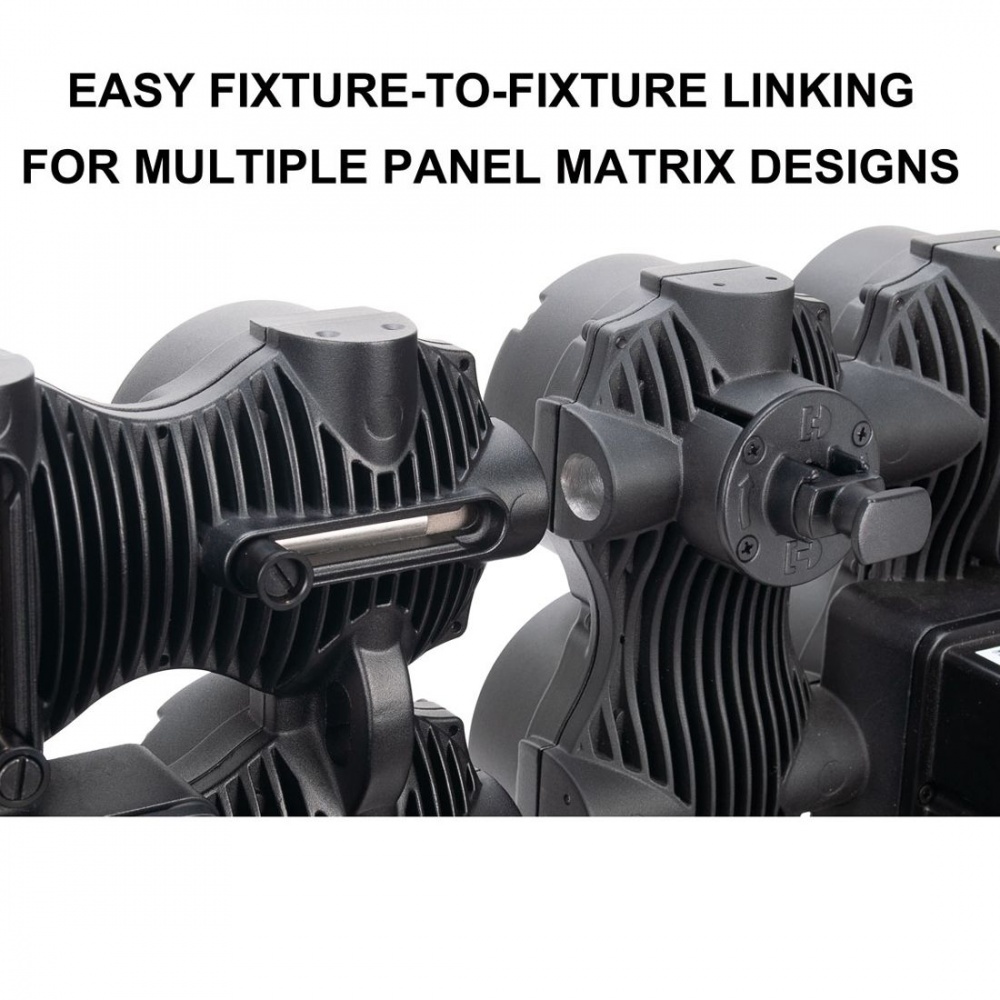

Integrated Fixture-to-Fixture Interlocking Alignment Pins/Locks

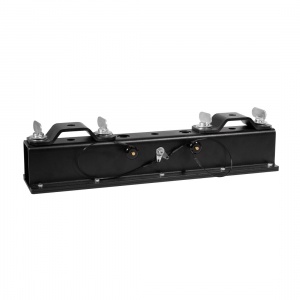

90° Adjustable and Fixed Yoke Brackets with 3-Position Holes
No Fans, Silent Operation
Adjustable Refresh Frequency
Variable Dimming Curves, Dim Modes and Dimming Delays
Flicker Free Operation for Broadcast TV and Film
SOURCE
16 40W 4-IN-1 DTW COB LEDs
50,000 Hour Average LED Life*
|
*Test lab conditions. May vary depending on several factors including but not limited to: | Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming. |
PHOTOMETRIC DATA
(pending)
EFFECTS
Full Pixel Control with Pixel Flip Modes
High Speed Electronic Shutter and Strobe
16-Bit Dimming and Variable Dimming Curve Modes
COLOR
DTW
CONTROL / CONNECTIONS
7 DMX Channel Modes (64 total channels)
Adjustable Refresh Rate (900-25,000 (Hz)
4 Button OLED Menu Control Display
DMX, RDM, and Art-Net Protocol Support

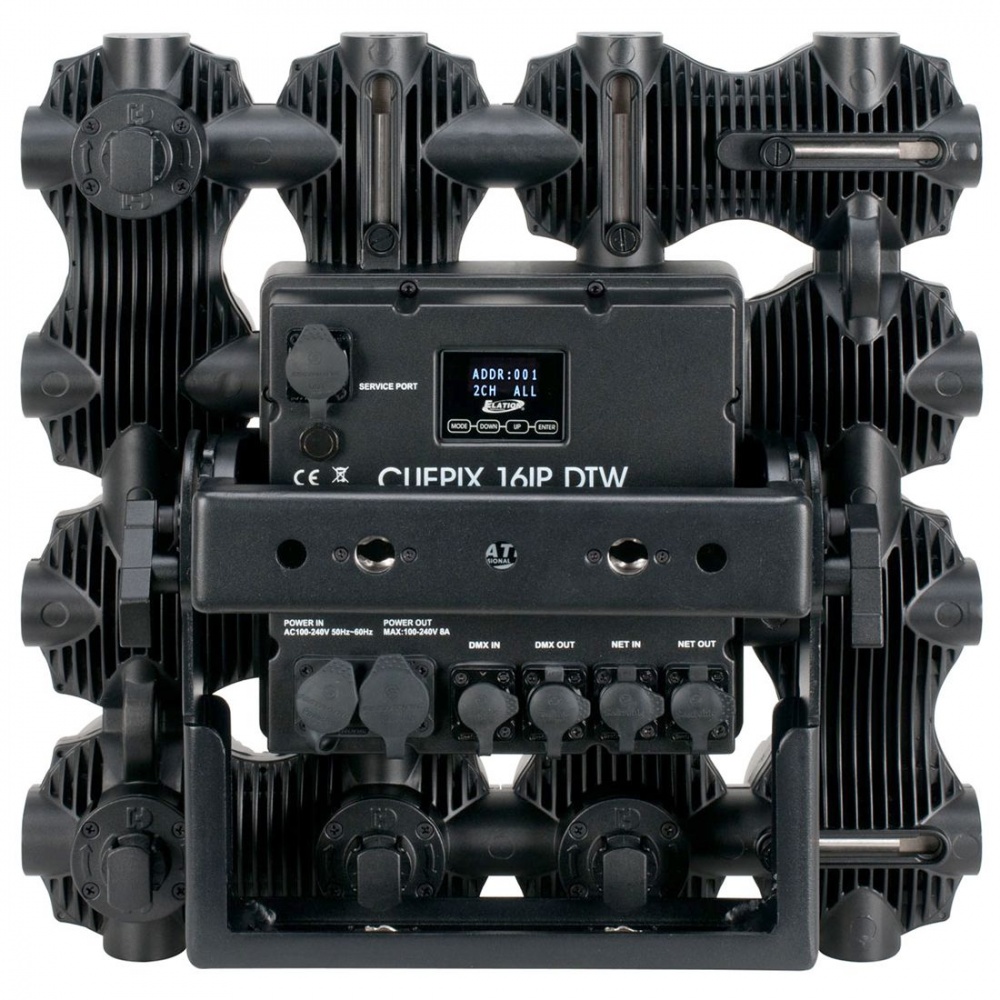

IP65 Locking 5pin XLR DMX, RJ45 Ethernet, Power In/Out
Fixture-to-Fixture Interlocking Alignment Pins/Locks
With Wired Digital Communication Network
SIZE / WEIGHT|
Length: | 17.32” (440mm) |
|
Width: | 8.1” (207mm) |
|
Vertical Height: | 17.31” (440mm) |
|
Weight: | 33.0 lbs. (15.0 kg) |
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
400W Max Power Consumption
14°F to 113°F (-10°C to 45°C)
