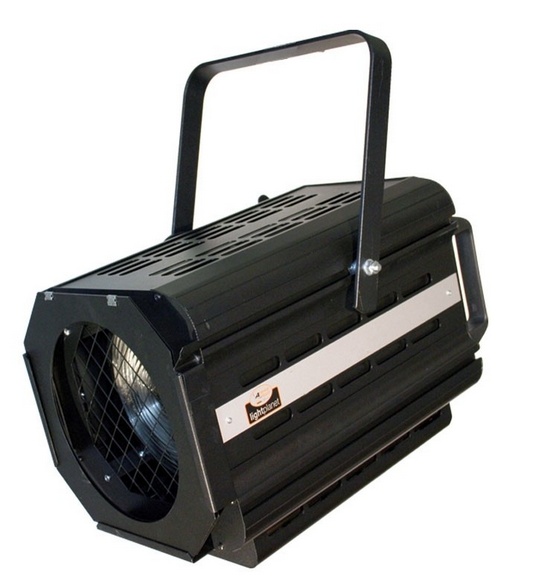

Power Supply Fixture voltage depending from
the lamp type voltage selected (230/110Vac
50/60Hz), 2000W, for Lamp 2000W CP72
GY16 socket. Manual Zoom 8°÷51°. Natural
convection cooling 0 dB. Housing in extruded
aluminium and steel plate body. Scratch
resistant black epoxy powder paint.

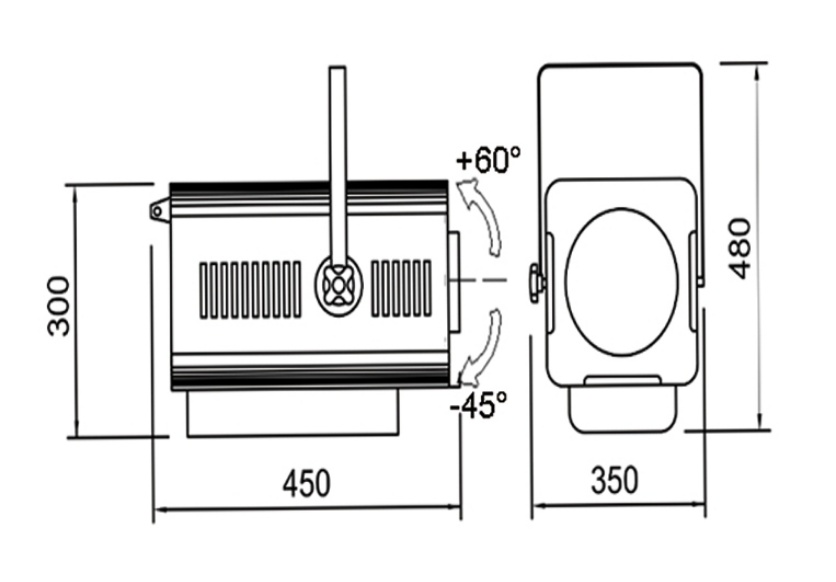

Projector can work tilted by +60°/-45°. Filter

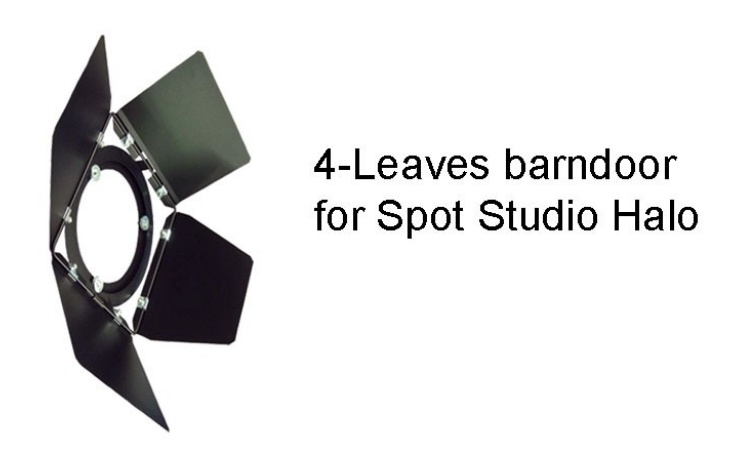

frame included. Barndoor 4 leaves optional
(AC208).
IP20 Rate
• PC Weight 10.2 Kg.
• Fresnel Weight 9.2 Kg
• Halogen Lamp CP/72 2000W-GY16,
• 230V 50Hz
• Filter frame With spring clip for easy filter change

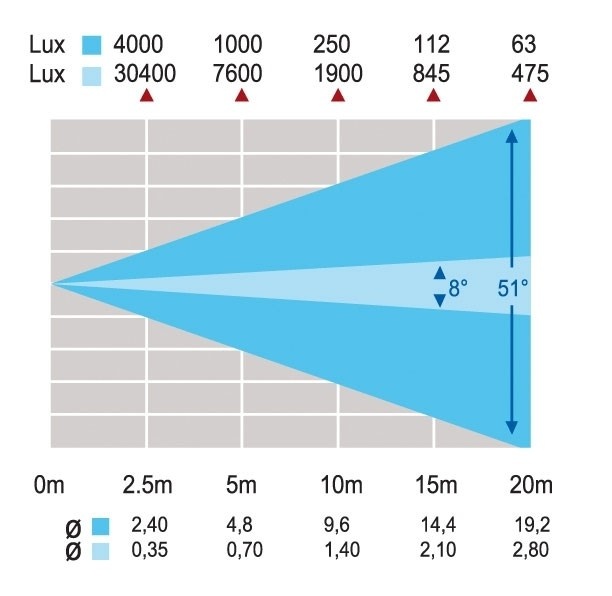

• Zoom 8° ÷ 51°
