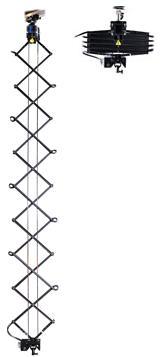

DeSisti 8140.150 JUNIOR SPIDER MOTORIZED
KOĽAJOVÉ SYSTÉMY - JUNIOR SPIDER, JUNIOR SPIDER MOTORIZED - 5m predĺženie, 1 x 16A. CEE 17 alebo SCHUKO konektor, 1,5m na každý stmievaný okruh, 1,5m kábel s 5 x 16 A. CEE 17 konektorom pre motory, BS alebo DIN záves. MAX ZAŤAŽENIE = 40 Kg.
The motorized SPIDER JUNIOR is a special version of a Pantograph, featuring a unique scissor arm assembly with a patented stabilizing system, in order to provide a steady support for the lighting fixtures and allowing also the assembling of an horizontal pipe or rail at bottom to hang more than one instrument.
The following are the common features for the different sizes of SPIDER JUNIOR offered as standard:
• 40 kg. NET LIFTING CAPACITY (S.W.L.) special versions are available on request for higher load capacity
• Motorized dynamically self sustaining gear box
• 2 independent stainless steel metal belt with compensator device
• Top and bottom limits with double extra emergency switches
• Aluminium extruded scissor arms joined by screws, self locking nuts and brass
• Spacing for accurate control of pivot
• Top & Bottom patented stabilizing geared device to reduce lateral sway and permit off centered loading of the scissor arms
• Extremely compact closed dimension
• NET extension up to 5 m. for 7 m. max supports height
• Special long drop versions available on request
• Possibility to install a rail or pipe at the bottom to hang more than one fixture
• Electrical configuration of bottom box on request
• Choice of bottom BS or DIN sockets & D Rail or 48 mm. diameter pipe max. 1,2 m. long
