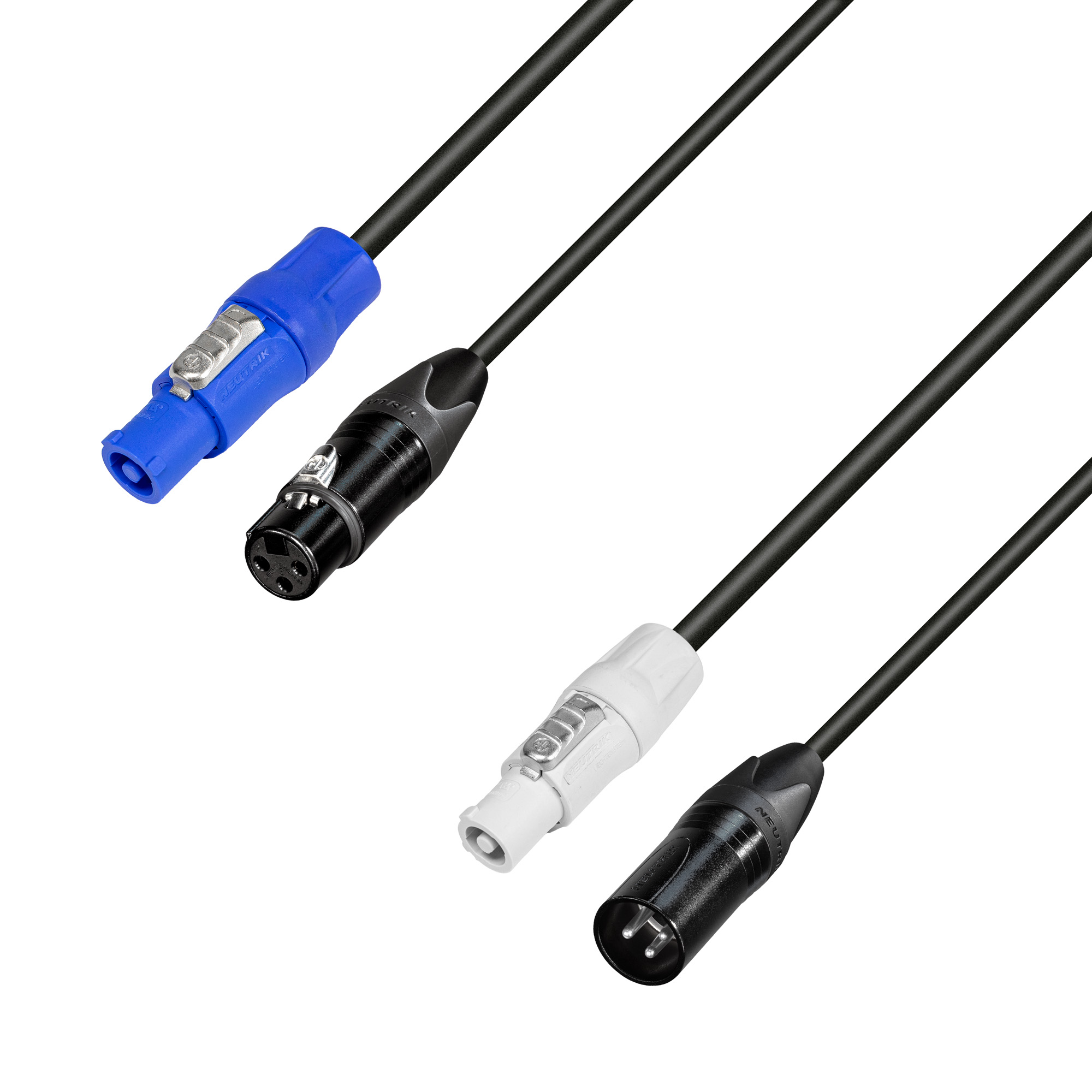

Adam Hall Cables 8101 PSDT 0500 N - Power & DMX Cable PowerCon In & XLR female to PowerCo

No more cable mess with just one cable to your equipmentFor parallel power and DMX signal transmissionEquipped with Genunine Neutrik XLR and PowerCon connectors2 x 0,22mm2 cross section for DMX3 x 1,5mm2 cross section for power

Na objednávku

4049521338717-8101PSDT0500N_1

Hmotnosť

93,40

77,83 € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typePre-assembled CablesTypePower / Signal CableLength5.0 mSplice length40 cmColorBlackOverall diameter15 mmJacket materialPVCConnector 1-ANAC3FCAConnector 1-BNC3FXX-BAGConnector 2-ANAC3FCBConnector 2-BNC3MXX-BAGAssembly mains cable3 x 1.5 mm2AWG24Cross-section0.22 mm2Assembly signal conductor2 x 0,22 mm2IsolationPE 1.7Inner conductor construction7 x 0.20 mm, bare copperNumber of internal conductors2Conductor resistance85 ohm/kmCurrent carrying capacity55 pF/mSurge Impedance120 ohm/kmOperating Temperature-20 - 70 °CShieldPE filler, tinned copper braided shielding with 96 x 0.10 mm + ALWeight0,93 kg
