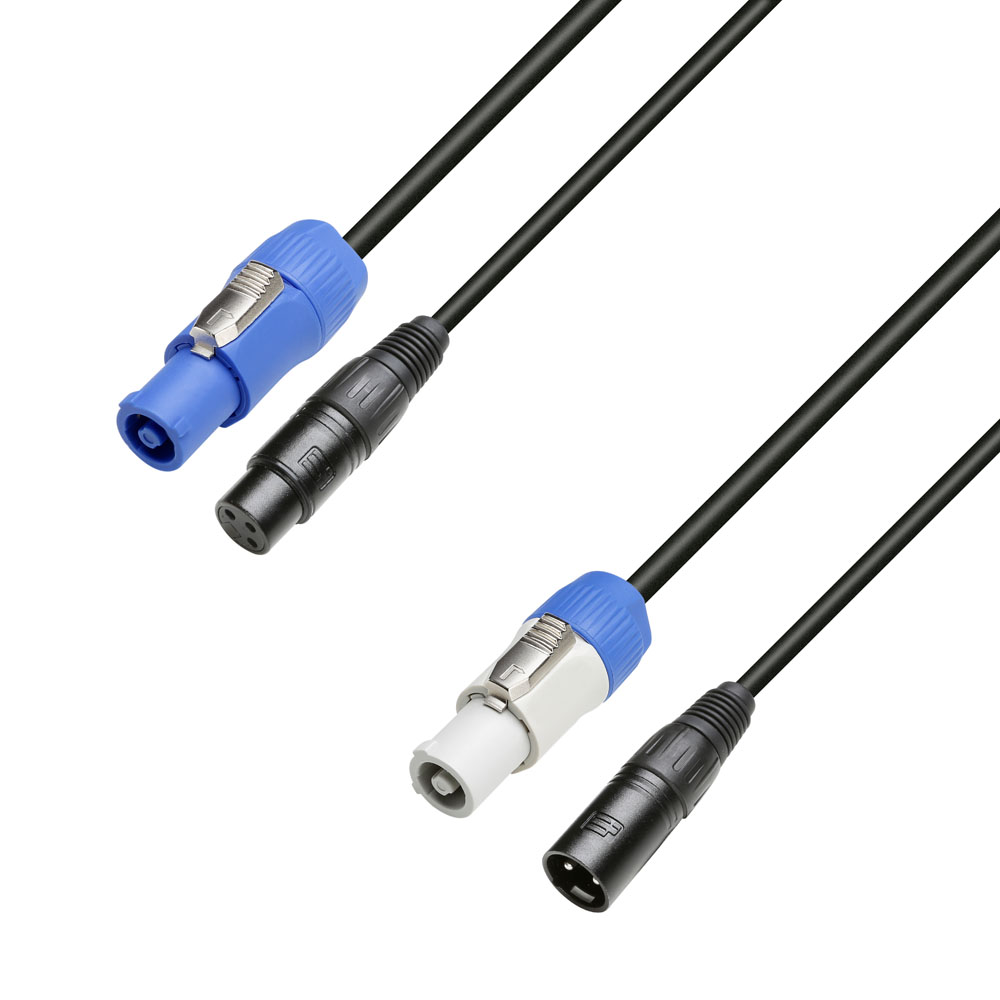

Adam Hall Cables 8101 PSDT 1000 - Power & DMX Cable Power Twist In & XLR female to Power

No more cable mess with just one cable to your equipmentFor parallel power and DMX signal transmissionEquipped with high reliable AH audio connectors3x1,5mm2 cross section for power2x 0,22mm2 cross section for DMX

Na objednávku

4049521219610-8101PSDT1000_1

Hmotnosť

98,90

82,42 € bez DPH

Pridať
do ponuky

Uvedená cena je orientačná.
Vložte tovar do košíka a odošlite pre vypracovanie aktuálnej cenovej ponuky.

Product typePre-assembled CablesTypePower / Signal CableLength10 mSplice length40 cmColorBlackOverall diameter17 mmJacket materialPVCConnector 1-APower TwistConnector 1-BPower TwistConnector 2-AXLRGender of connector 2-AfemaleConnector 2-BXLRSurge Impedance85 ohm/kmGender of connector 2-BmaleInner conductor 1 cross-section1.5 mm2Number of inner conductors 13Inner conductor 2 cross-section0.22 mm2Inner conductor 2 materialbare copperInner conductor 2 construction7 x 0.2 mmNumber of inner conductors 22ShieldBraided shieldingShield materialAluminium foil / copper tin-platedCapacitance Cond./Cond.55 pF/mMaximum Ambient Temperature-20 - 70 °CWeight2,596 kg
