Engineered For Precise Beam Sculpting
Rosco OPTI-SCULPT Filters provide precise angular beam control – enabling lighting professionals to accurately and affordably control the shape of their light with increased brightness over traditional diffusion filters. Rosco’s unique, proprietary process features engineered light distribution that has been laboratory tested for accuracy and repeatability.
• Sculpt Your Beam Into Multiple Shapes
OPTI-SCULPT is available in eleven different patterns:

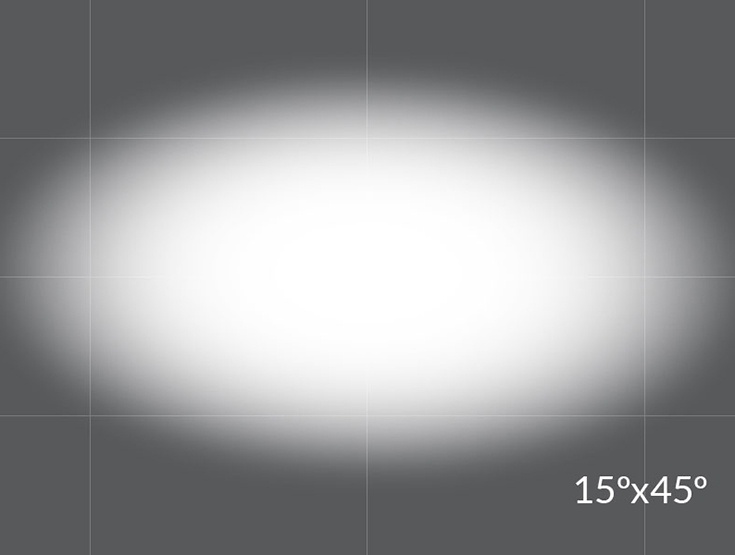

10°, 20°, 30°, 10°x20°, 10°x30°, 10°x40°, 10°x60°, 15°x35°, 15°x45°, 20°x40° and the unique 40°/60° Reversible
• Accurate, Repeatable Beam Shaping
OPTI-SCULPT light sculpting filters are scientifically engineered to provide lighting designers precise, angular beam control by passing the light through non-diffracting structures for even beam distribution without any color-shift. This uniform control of the beam angle sculpts the beam into circular or linear patterns for any project where beam shaping is required.
• High Light Transmission
OPTI-SCULPT filters are manufactured out of clear polycarbonate plastic and feature a very fine matte texture on the backside, which helps improve transmission by removing reflective light loss. The beam sculpting structures engineered inside the plastic provide a natural back scatter that helps eliminate hotspots without a significant reduction of light output.
Durable And User Friendly
Available in standard 24”x20” and larger 24”x40” seamless sheets, OPTI-SCULPT filters can easily be cut-to-size to fit any light. The performance of these durable, heat resistant, flame retardant filters is not affected by dust or the oils from hands. Thanks to their heat-resistant base, OPTI-SCULPT can be used on both LED and traditional tungsten lighting fixtures.
Thickness: 10mil (254µ)
Substrate: Clear polycarbonate
Contains flame retardant additive
Available Sizes:
• 24"x20" (60cm x 50cm) Sheet – Seamless
• 24"x40"
... (60cm x 100cm) Sheet – Seamless
Thermal Performance:-40°F – +320°F (-40°C – +160°C)
Transmission: >85%.
Flame Retardant Rating: M1, B1, C1, BS3944 PART 1 1992, NFPA 701
Product Numbers:
• 108100102420 OPTI-SCULPT™ Filter, 10° - 24" x 20" sheet
• 108100102440 OPTI-SCULPT™ Filter, 10° - 24" x 40" sheet
• 108100202420 OPTI-SCULPT™ Filter, 20° - 24" x 20" sheet
• 108100202440 OPTI-SCULPT™ Filter, 20° - 24" x 40" sheet
• 108100302420 OPTI-SCULPT™ Filter, 30° - 24" x 20" sheet
• 108100302440 OPTI-SCULPT™ Filter, 30° - 24" x 40" sheet
• 10840R602420 OPTI-SCULPT™ Filter, 40°/60° Reversible - 24" x 20" sheet
• 10840R602440 OPTI-SCULPT™ Filter, 40°/60° Reversible - 24" x 40" sheet
• 108110202420 OPTI-SCULPT™ Filter, 10°x20° - 24" x 20" sheet
• 108110202440 OPTI-SCULPT™ Filter, 10°x20° - 24" x 40" sheet
• 108110302420 OPTI-SCULPT™ Filter, 10°x30° - 24" x 20" sheet
• 108110302440 OPTI-SCULPT™ Filter, 10°x30° - 24" x 40" sheet
• 108110402420 OPTI-SCULPT™ Filter, 10°x40° - 24" x 20" sheet
• 108110402440 OPTI-SCULPT™ Filter, 10°x40° - 24" x 40" sheet
• 108110602420 OPTI-SCULPT™ Filter, 10°x60° - 24" x 20" sheet
• 108110602440 OPTI-SCULPT™ Filter, 10°x60° - 24" x 40" sheet
• 108115352420 OPTI-SCULPT™ Filter, 15°x35° - 24" x 20" sheet
• 108115352440 OPTI-SCULPT™ Filter, 15°x35° - 24" x 40" sheet
• 108115452420 OPTI-SCULPT™ Filter, 15°x45° - 24" x 20" sheet
• 108115452440 OPTI-SCULPT™ Filter, 15°x45° - 24" x 40" sheet
• 108120402420 OPTI-SCULPT™ Filter, 20°x40° - 24" x 20" sheet
• 108120402440 OPTI-SCULPT™ Filter, 20°x40° - 24" x 40" sheetVIAC
