The Netron RDM6XL is a rugged and compact DMX/RDM Splitter. Designed for live production and installations, it features six opto-isolated 5pin XLR outputs and flexible mounting options to cover any situation.
FEATURES

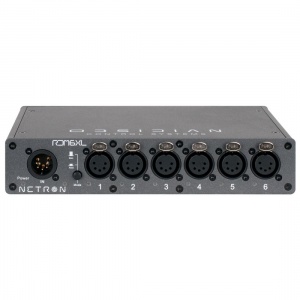

(6) Locking XLR 5pin outputs
DMX and RDM compliant
Optically isolated ports
Power / DMX Through connectors
Powder-coated aluminum ½ rack housing

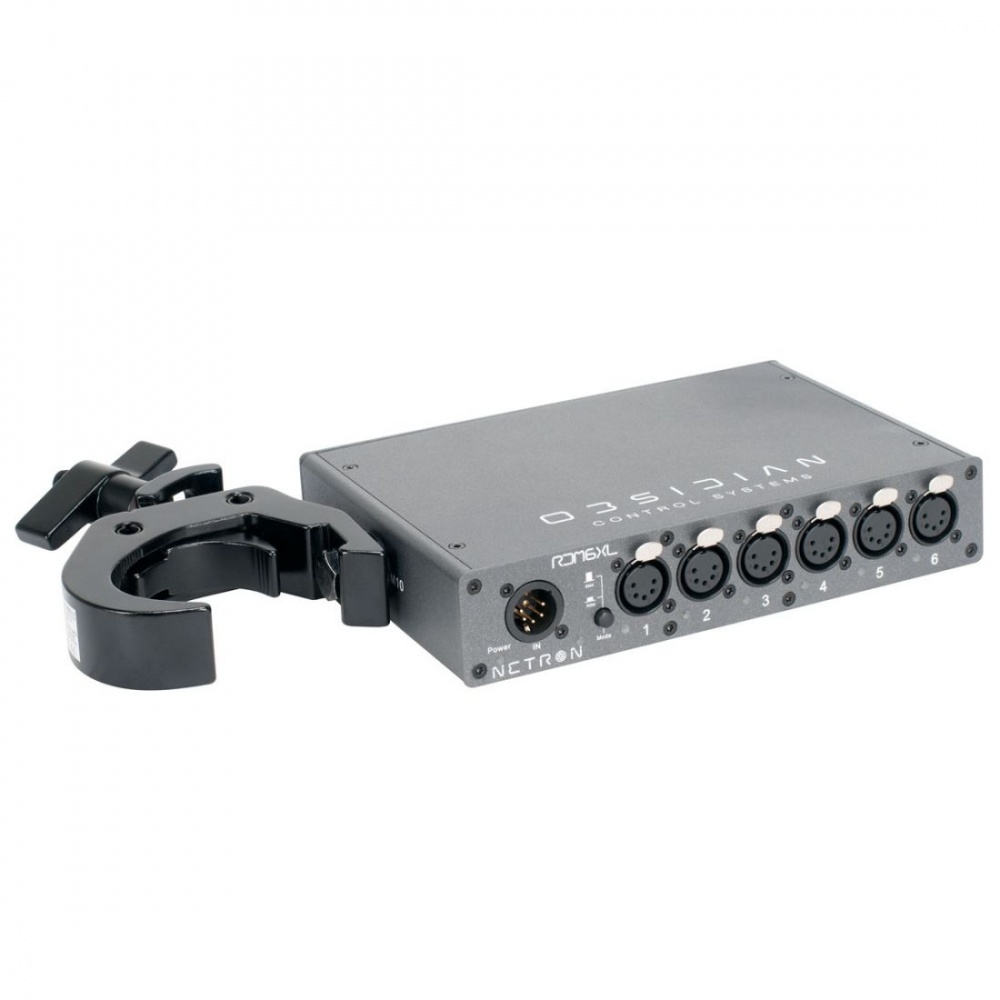

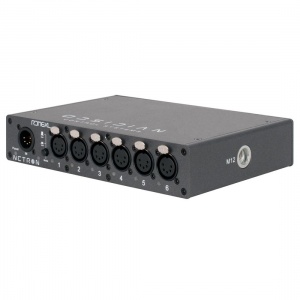

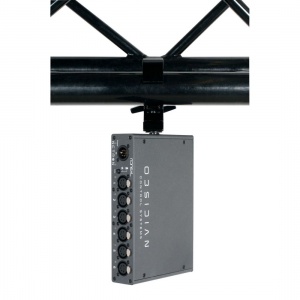

Truss-mount (M10 or M12 mounting hole)

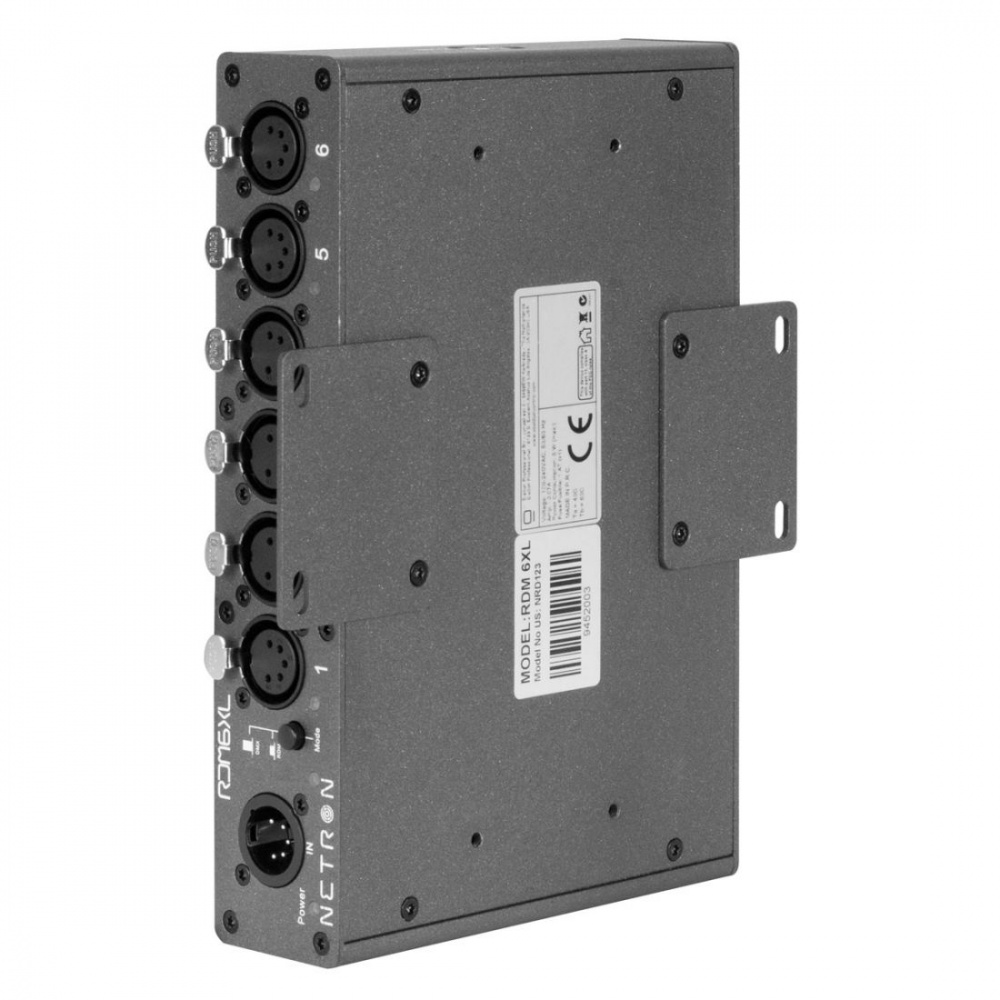

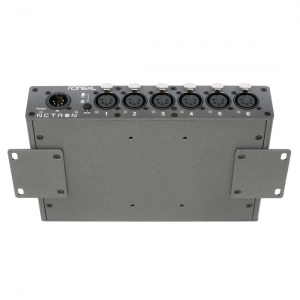

Wall-mount horizontal or vertical (included)

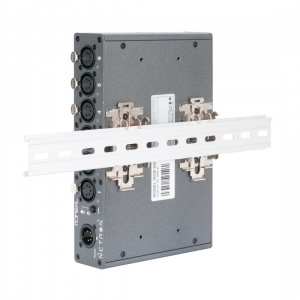

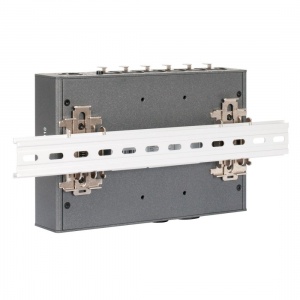

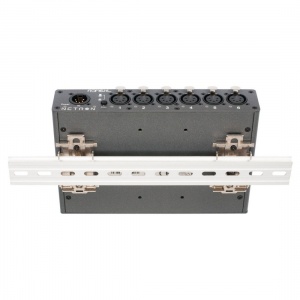

DIN Rail horizontal or vertical (included)
Rack-mount option (requires NET Shelf)
CONNECTIONS
Locking 5pin DMX Input
(6) Locking 5pin Opto-Isolated DMX Outputs
RDM Enable
Terminate

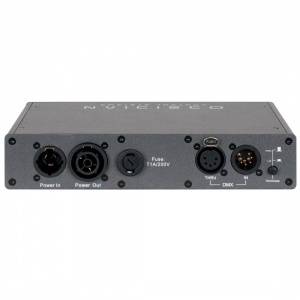

5pin DMX Input (parallel with front)
5pin DMX Through
Locking IP65 Power Connector In/Out
SIZE / WEIGHT
Length: 8.5” (215mm)
Width: 5.5” (139mm)
Vertical Height: 1.7” (44mm)
Weight: 2.2 lbs. (1kg)
ELECTRICAL
AC 100-240V - 50/60Hz
10W Max Power Consumption
INCLUDED ITEMS
(2) Wallmount plates
(2) DIN-Rail clamps
Locking IP65 Power Connector to CEE 7/7 Cable
