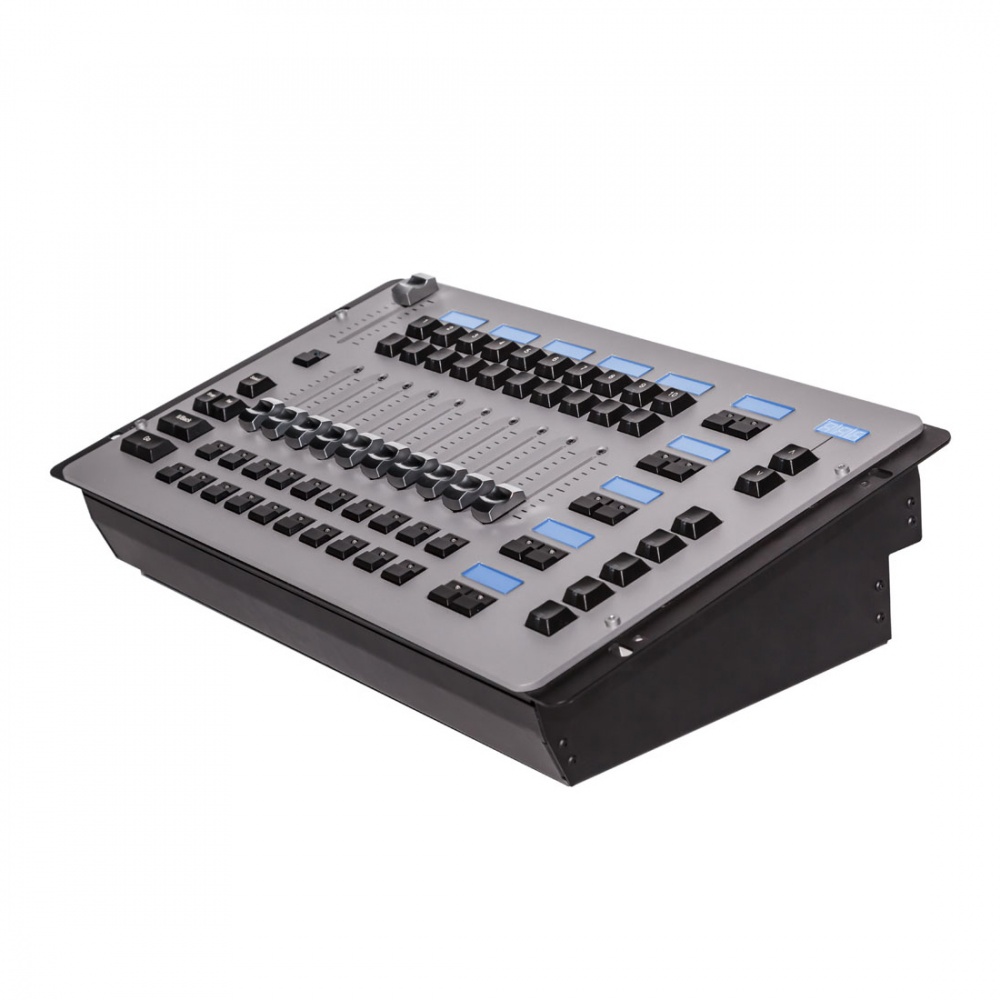

The M-Series Playback ll Module extends the playback capabilities of any M-Series console by adding 10 motorized faders and 10 PlayPaired buttons. Cuelist information is displayed on 10 LCD displays, 5 Fast Keys for quick access to banks and other functionality, a Master Go section and a Grand Master fader with flash. Multiple Playback Modules can be added to the M-Series console.
Support and Downloads
FEATURES
10 x Motorized Playback Faders
10 x Pause/Back Buttons
10 x Go Buttons
10 x Flash Buttons
10 x PlayPaired Buttons
10 x LCD Displays
Three-Digit display for actual bank number
5 x Fast Keys for quick access to banks or other functions
Master Go section
Grand Master fader with flash button
Tabletop and 19” rack mount format
PHYSICAL|
Length: | 275 mm (10.9 in.) |
|
Width: | 483 mm (19.1 in.) |
|
Height: | 128 mm (5.1 in.) |
|
Weight: | 4.6 kg (10.2 lbs.) |
CONTROL/USER INTERFACE
10 x motorized playback faders
10 x pause/back buttons
10 x go buttons
10 x flash buttons
10 x PlayPaired buttons
10 x LCD displays
Three-digit display for actual bank number
5 x Fast Keys for quick access to banks or other functions
Master Go section
Grand Master fader with flash button
CONNECTIONS|
M-Series™ Module link USB: | Locking RJ45 Ethernet Connector sockets |
|
USB input: | USB device socket |
|
USB devices: | USB host socket |
|
Desk lamp: | 2.5 mm DC bayonet |
|
AC power input: | 3-pin IEC male socket |
|
AC power throughput: | 3-pin IEC female socket |
ELECTRICAL|
AC power: | 100-240 V nominal, 50/60 Hz |
|
Power supply unit: | Auto-ranging electronic switch-mode |
|
Main fuse: | 2 AT (slow blow) |
|
Desk lamp output: | 12 V |
|
AC power output: | Unswitched, unfused, max. 6 A |
APPROVALS|
EU safety: | EN 60950 |
|
EU EMC: | EN 55022, EN 55024, EN 61000-3-2, EN 61000-3-3 |
|
US safety (pending): | ANSI/UL 60950-1 |
|
Canadian safety (pending): | CSA C |
22.2 No. 60950-1
CE
INCLUDED ITEMS
1.5 m power cable, 3-pin IEC
Locking RJ45 Ethernet Connector patch cable
USB cableThe M-Series Playback ll Module extends the playback capabilities of any M-Series console by adding 10 motorized faders and 10 PlayPaired buttons. Cuelist information is displayed on 10 LCD displays, 5 Fast Keys for quick access to banks and other functionality, a Master Go section and a Grand Master fader with flash.
Multiple Playback Modules can be added to the M-Series console.
