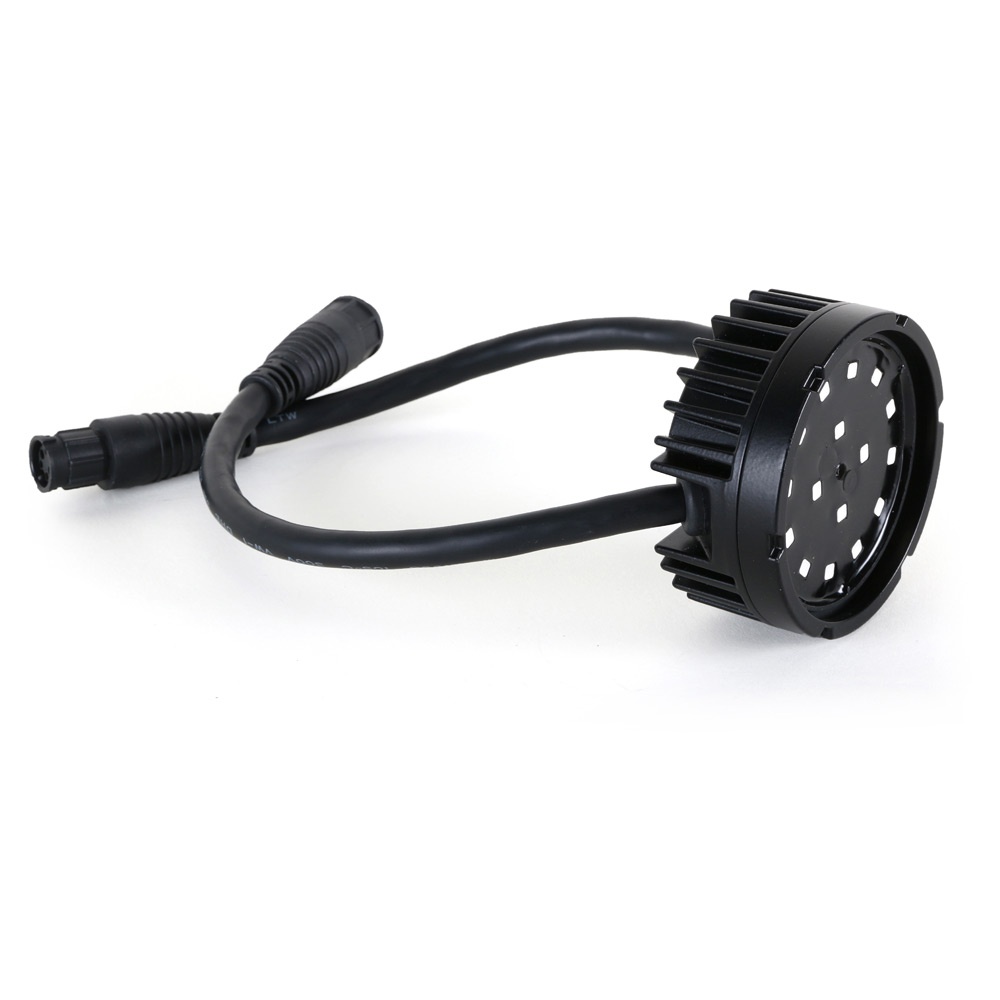

VDO Dotron is a compact and powerful outdoor-rated video pixel with many faces that truly sparks creativity for 3D stage setups. A wide variety of lenses and diffusers offers a wealth of different looks - or go with no front for a raw look. Easy video-mapping and creative mix ‘n’ match with other Martin LED video products via the P3 System Controller. It uses the same integrated power and data cabling as VDO Sceptron and VDO Fatron, making installation a breeze. Be creative.
The perfect expansion of your creative VDO toolbox for exciting 3D stage setups
Extensive range of field-exchangeable diffusers and lenses for a great variety of looks
Easy setup, mapping and configuration via P3 System Controller
Complete range of rigging accessories available
FEATURES
Supported by integrated power and data processor (P3 PowerPort 1500, P3 PowerPort 1000 IP or DMX PowerPort 375) and a simple cabling system

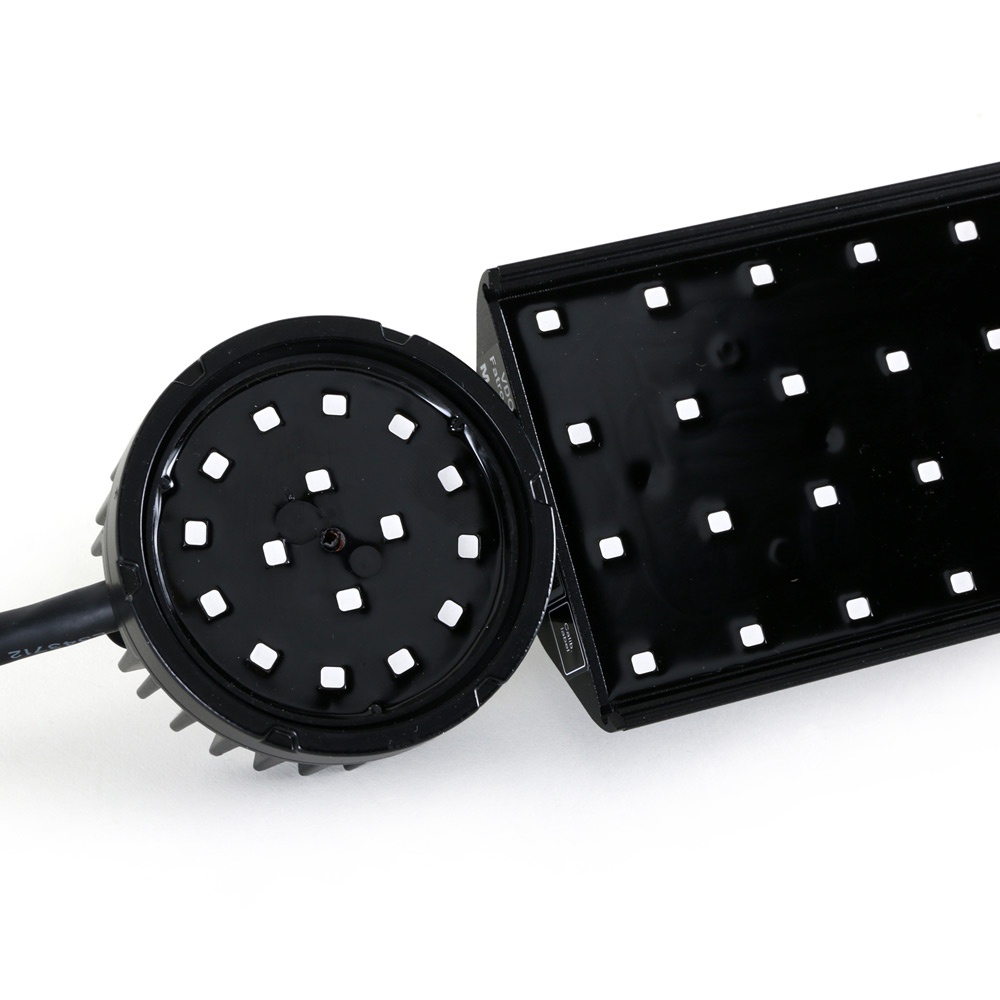

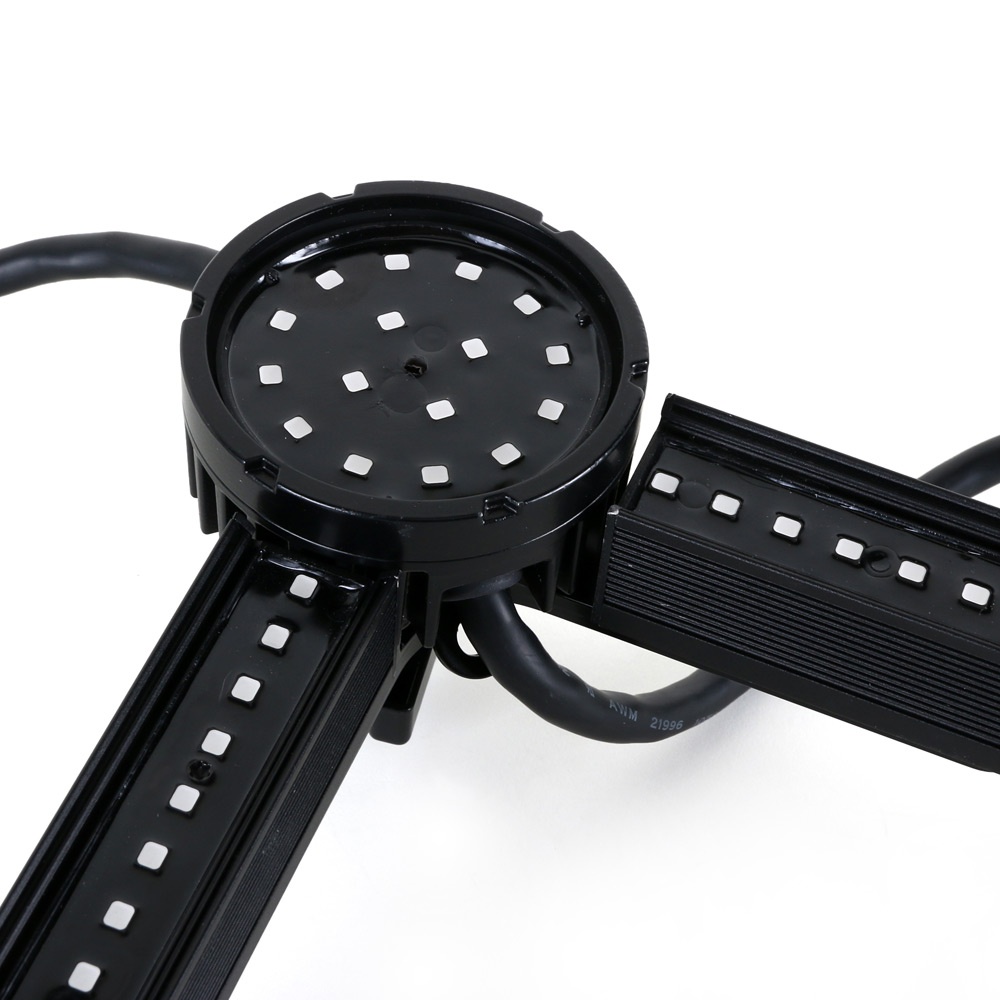

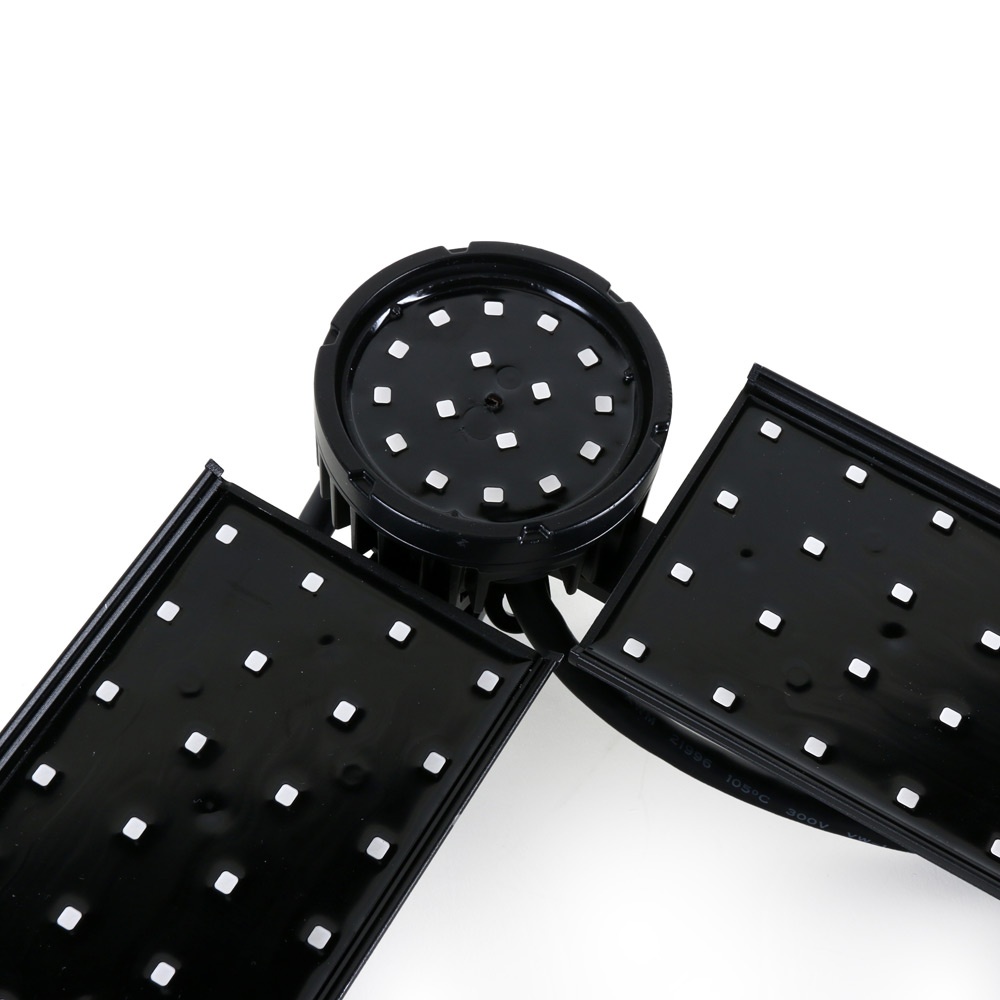

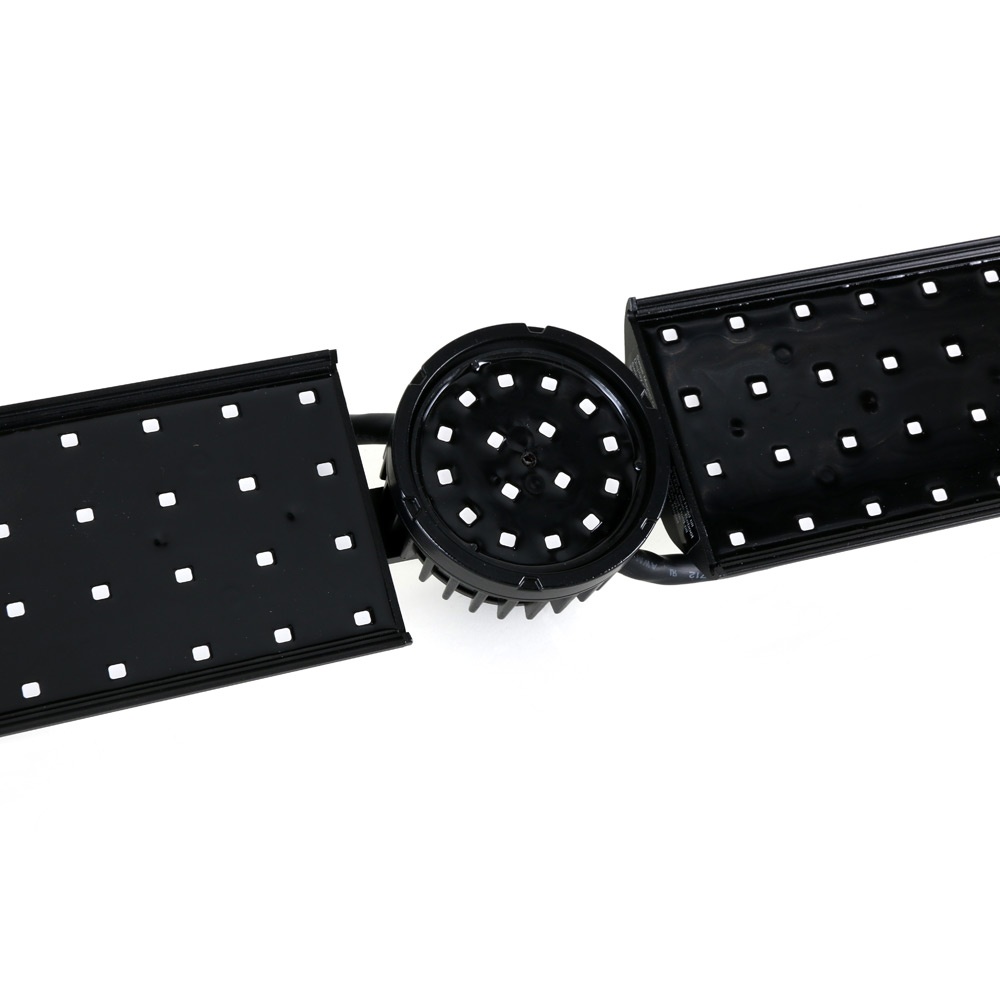

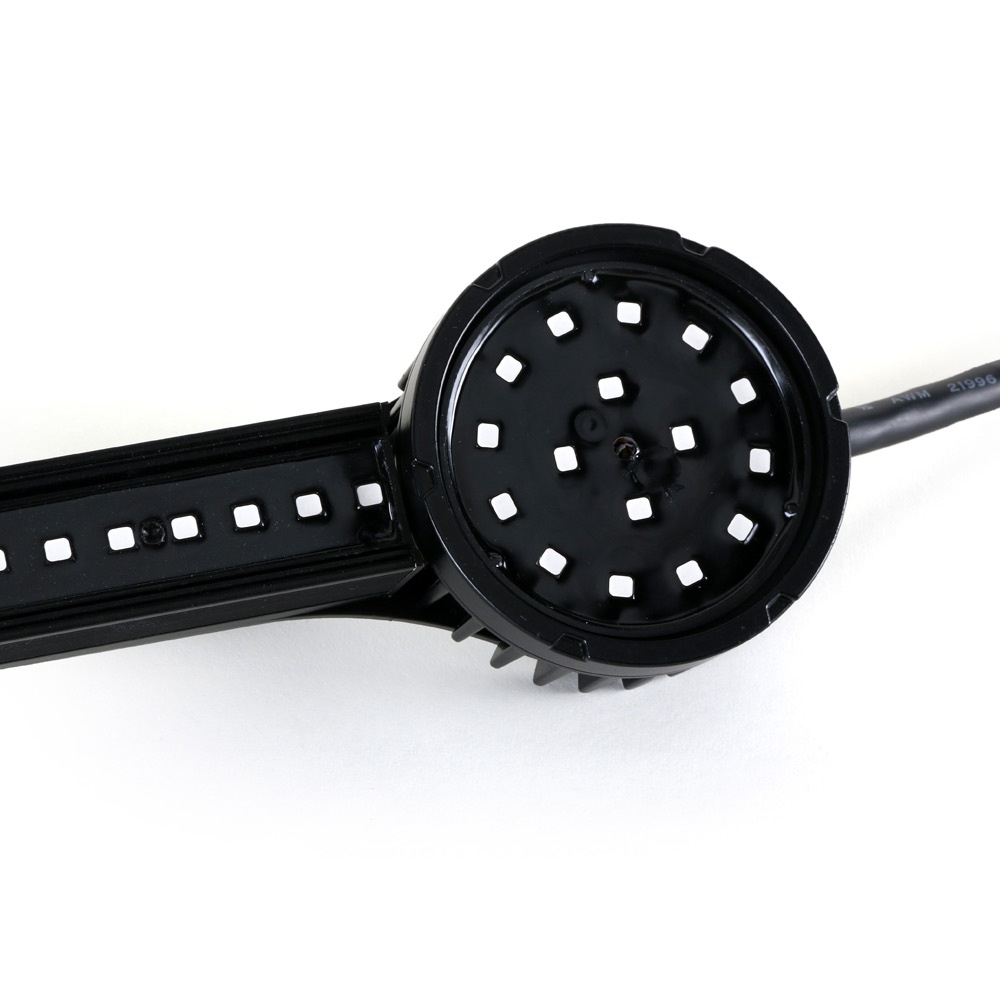

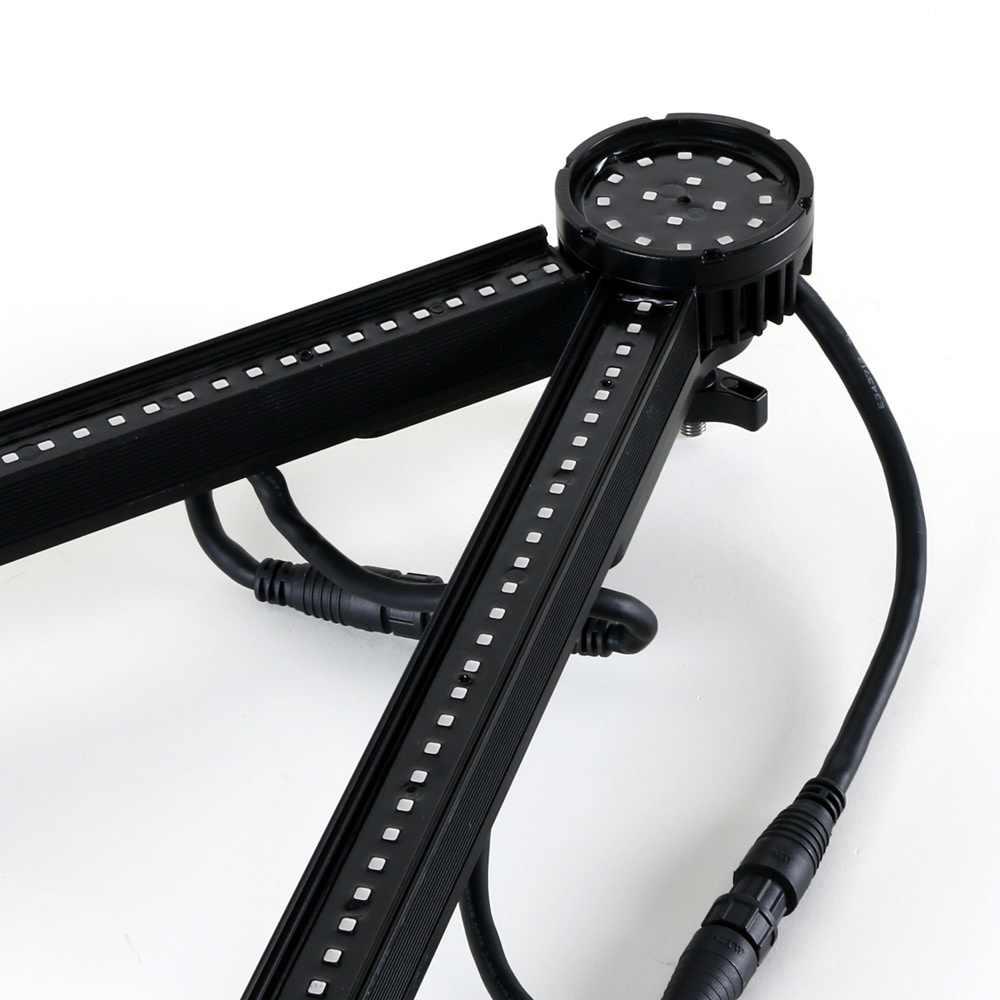

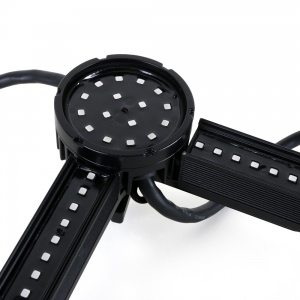

Combined power and data cabling (compatible with other products such as VDO Sceptron and VDO Fatron)
DMX Control
P3 Control with VideoMapping
Hybrid DMX + P3 Control (toggle in real-time between DMX, PixelMapping and VideoMapping using P3 Switch channel)
Extensive range of built-in pixelated effects
Intuitive mapping and addressing via P3 System Controller
Fully color and brightness calibrated for optimal cross-product consistency (colors match with VDO Sceptron and VDO Fatron)
High-quality 16-bit per color image processing technology
100 lumen per dot calibrated

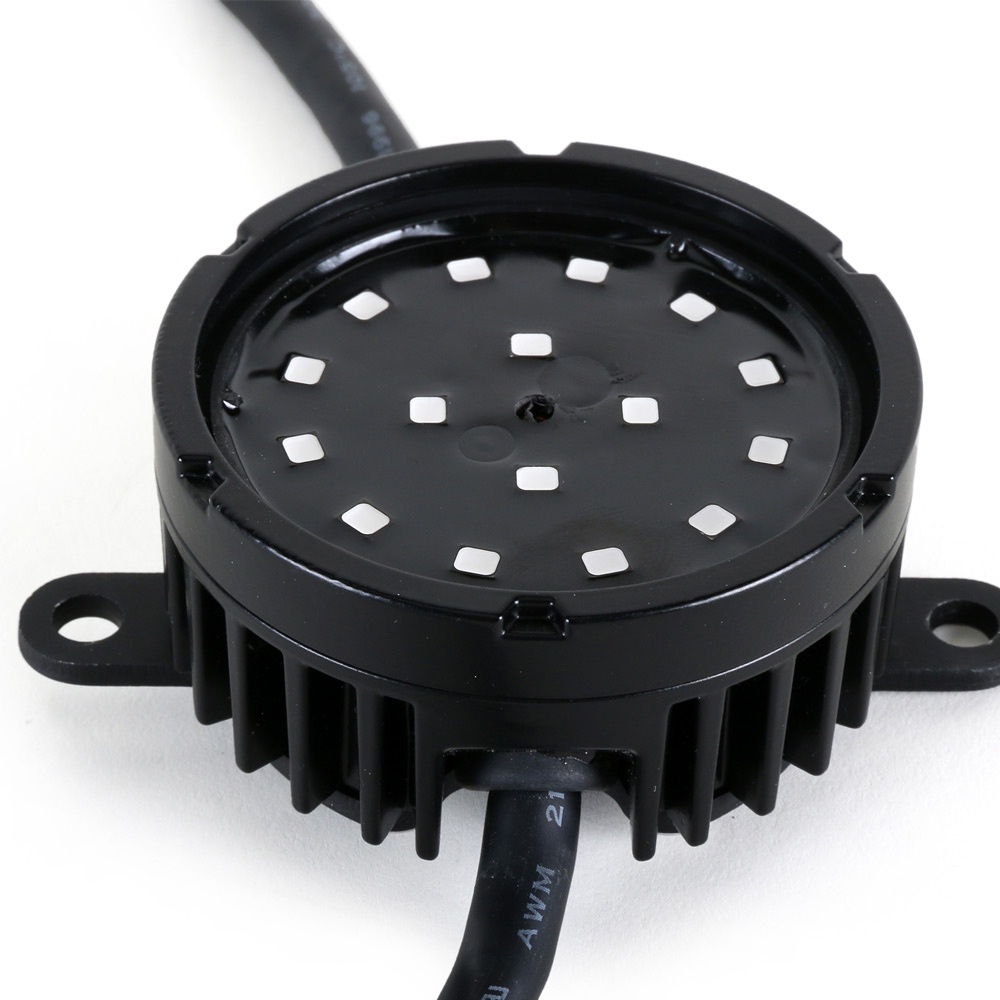

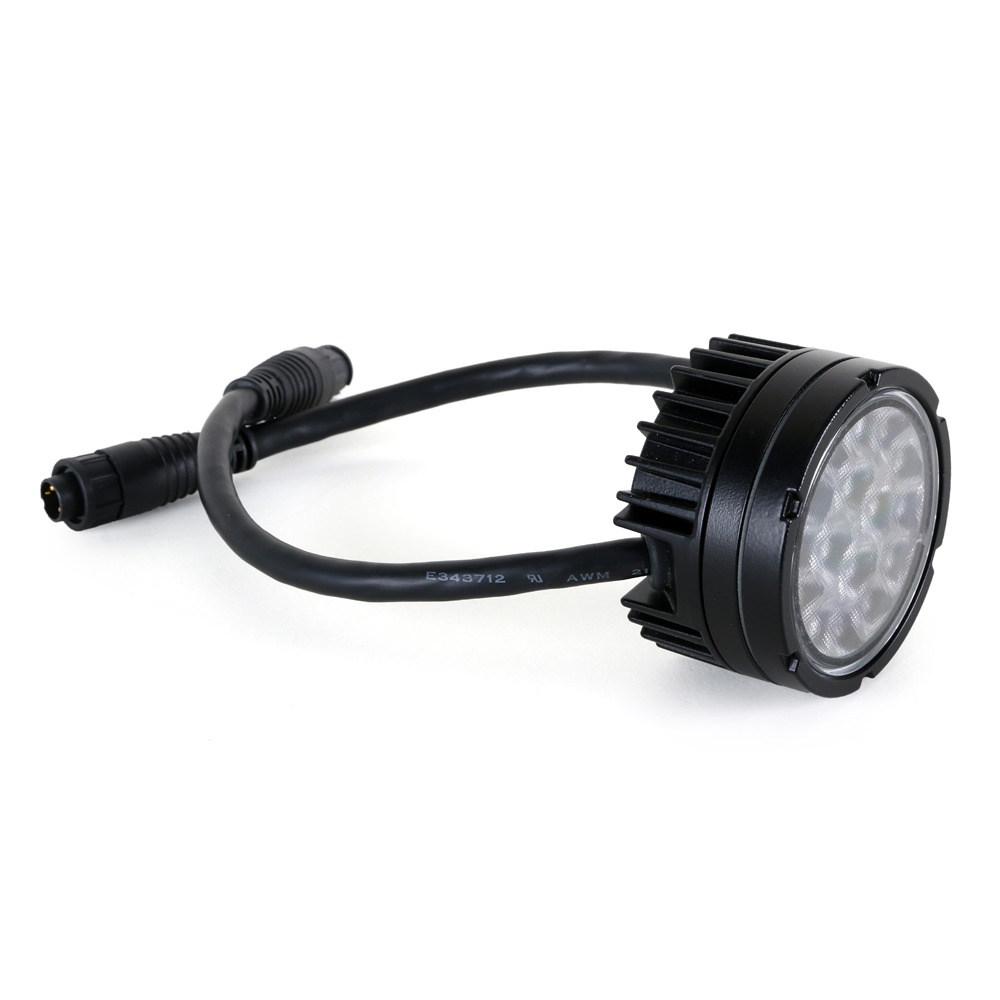

4 different diffuser options plus 1 narrow lens array (all field-exchangeable)
IP65 rated for outdoor use

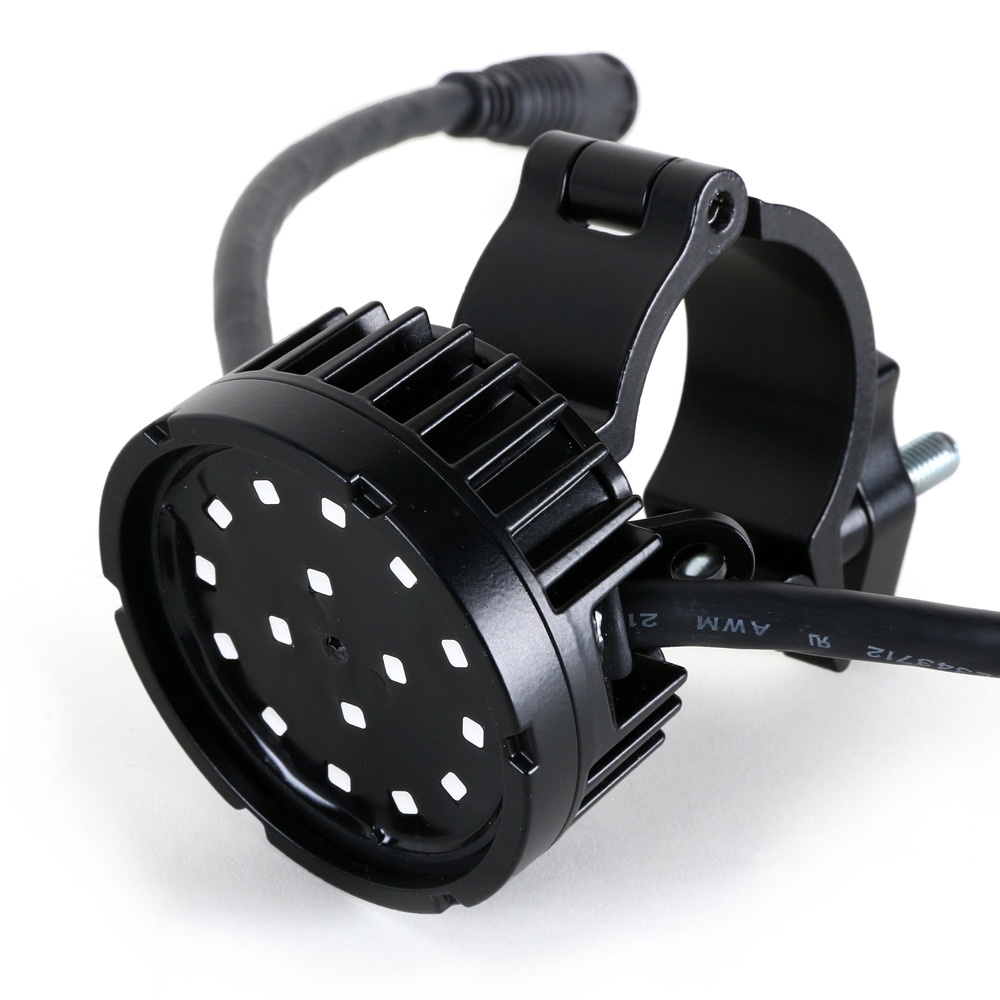

Versatile rigging accessories
PHYSICAL
|
Diameter: | 72 mm (2.9 in.) |
|
Height: | 34 mm (1.4 in.), without diffuser/lens installed |
|
Weight: | 0.3 kg (0.7 lbs.), without diffuser/lens installed |
CONTROL AND PROGRAMMING
|
Control options: | Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX |
|
Control resolution: | 16-bit (P3) or 8-bit (DMX) control of each color |
|
Protocol detection: | Automatic |
|
Setting and addressing: | Martin P3™ System Controller or RDM-compliant controller |
|
Calibration: | Color and intensity of entire dot |
|
DMX compliance: | USITT DMX512-A |
|
RDM compliance: | ANSI/ESTA E1.20 |
|
Firmware update: | Via Martin P3™ System Controller |
Control modes, direct DMX c
| ontrol: | RGB and Basic |
|
DMX channels, direct DMX control: | 3/10 |
|
Control modes, DMX via P3: | P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap |
|
DMX channels, DMX via P3: | 1/3/5/6/3 |
CONTROL/USER INTERFACE
|
Device status: | Multi-color visual indication |
|
Device test and reset: | Magnetic pushbutton to call up local test patterns and reset device |
OPTICS
|
Minimum LED lifetime: | 50,000 hours (to >70% luminous output)* |
*Figure obtained under manufacturer’s test conditions
|
Binning: | Tight color and flux binning |
|
Calibration: | Full Gamut Color Calibration |
|
Diffuser/Lens Options: | |

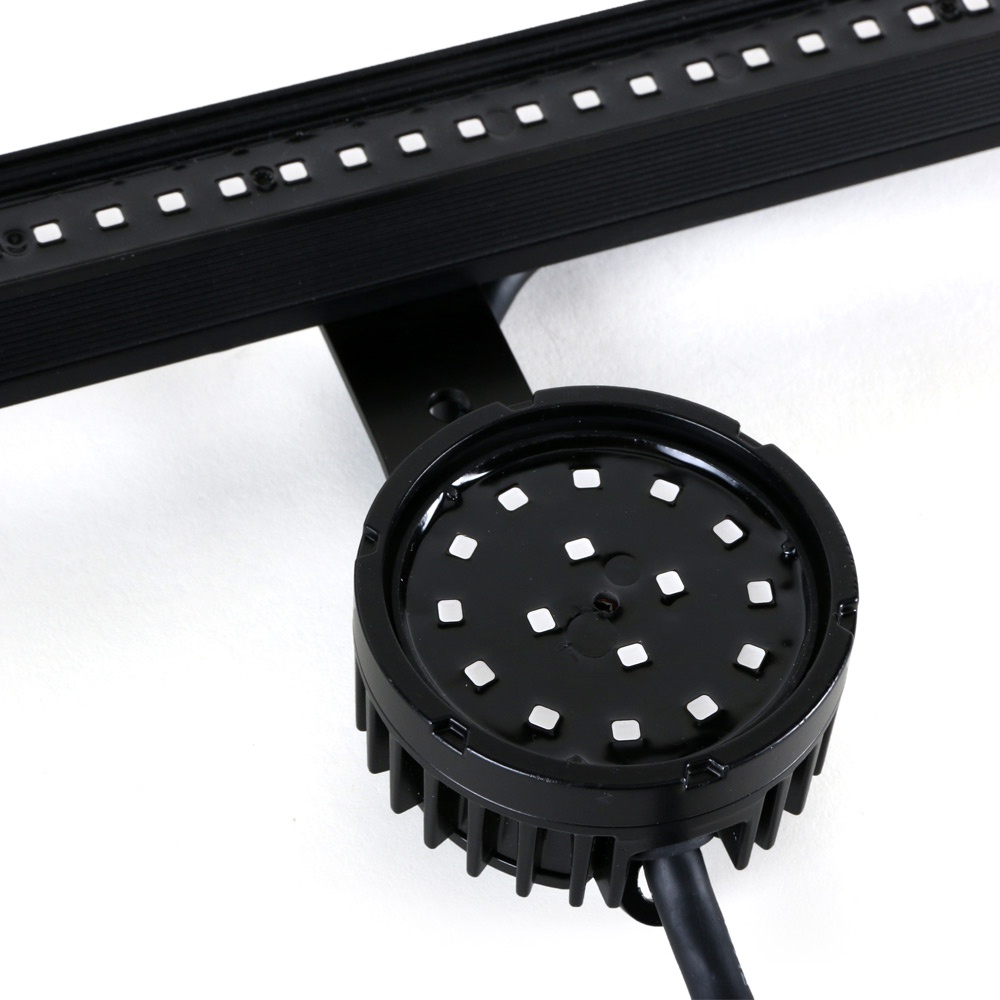

Open Front

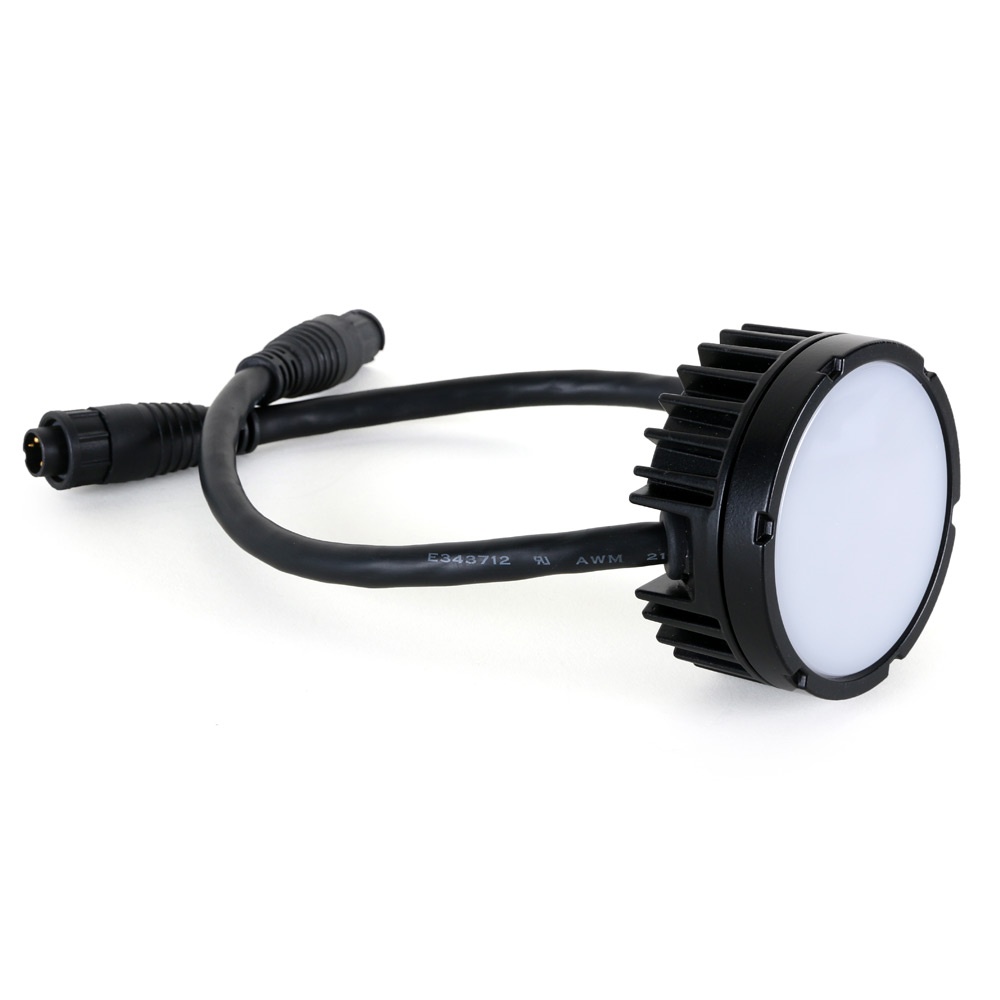

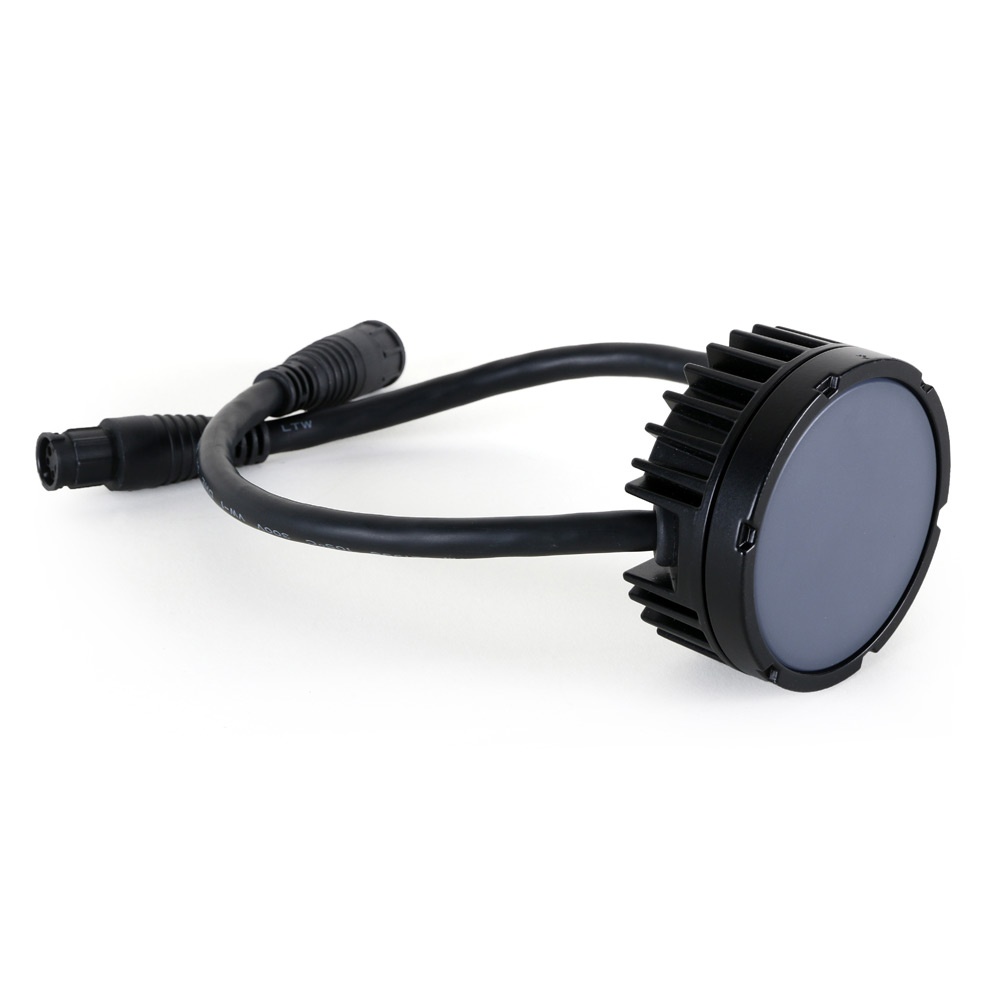

Flat Diffuser
Flat Smoked Diffuser

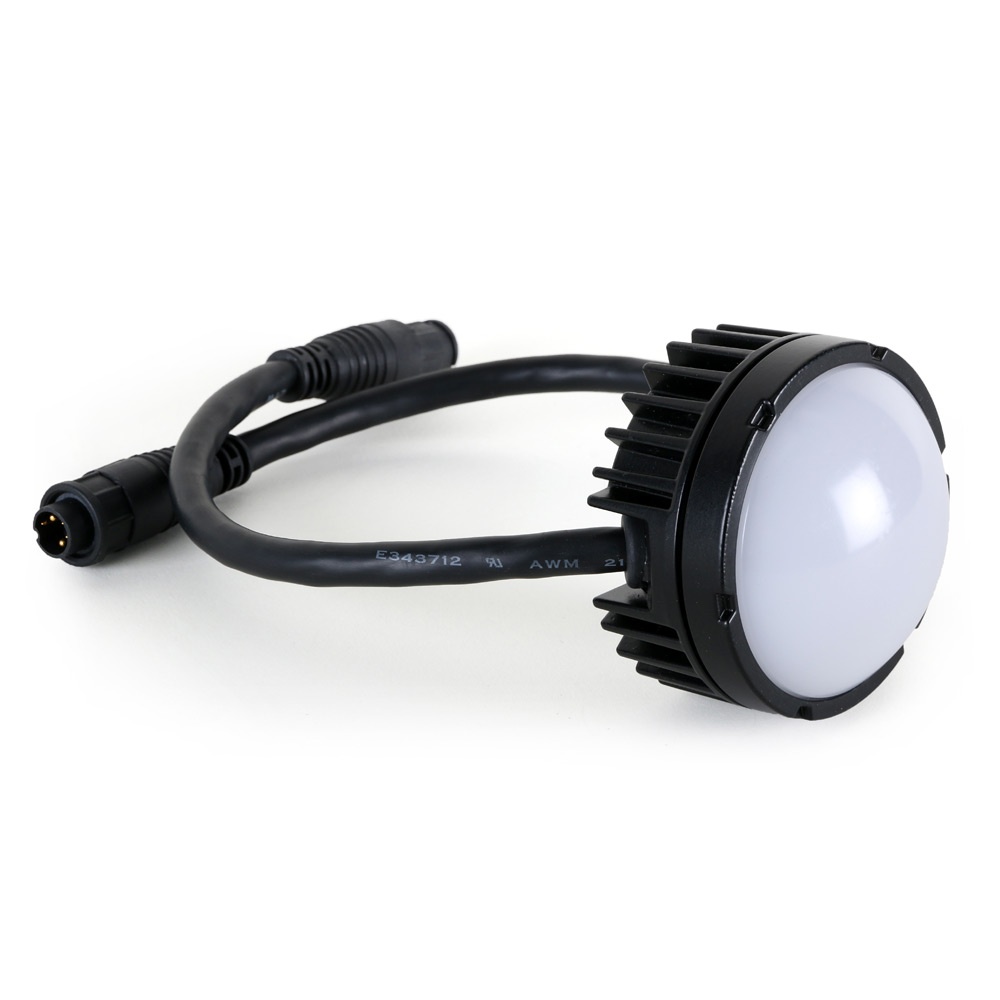

Dome Diffuser (supplied standard with fixture)

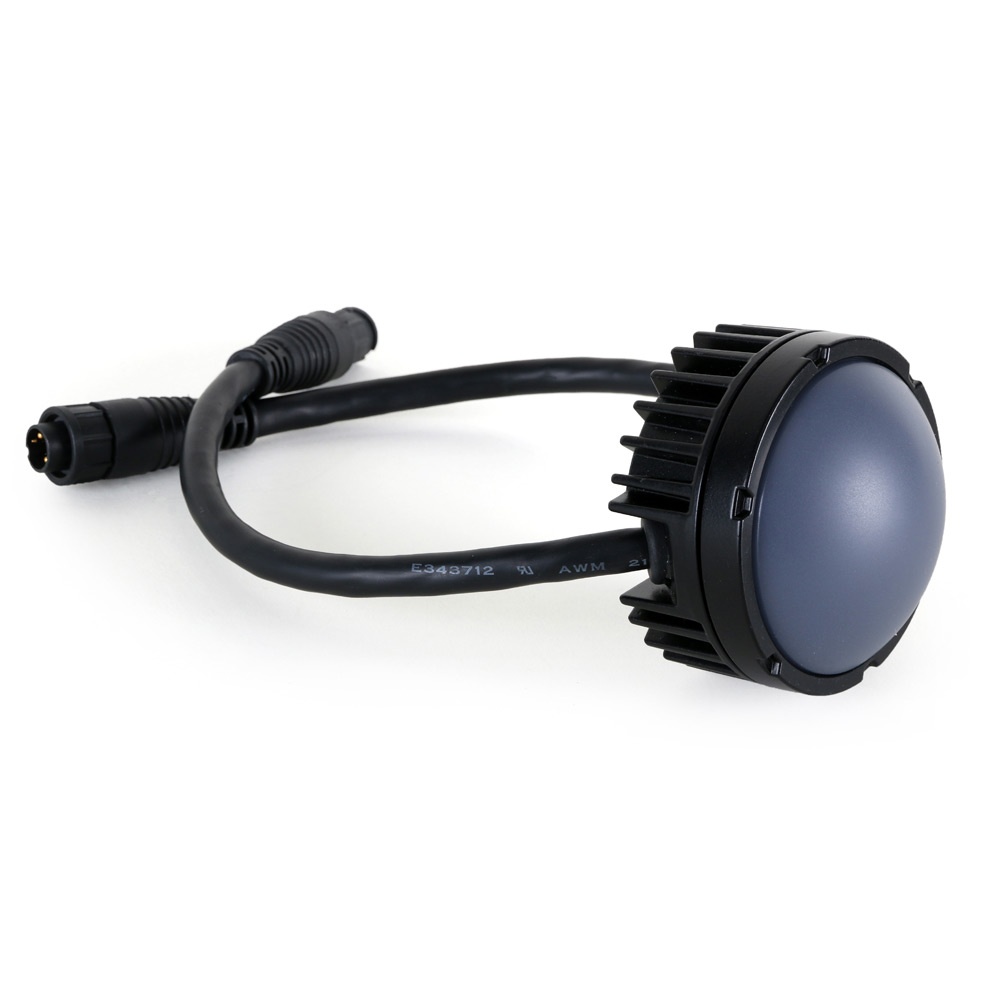

Dome Smoked Diffuser

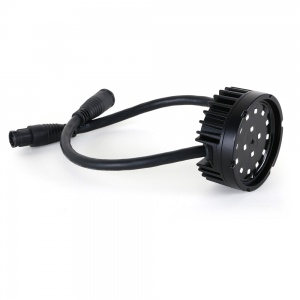

Lens Array Narrow
All optical accessories are interchangeable and screw onto fixtures
PHOTOMETRIC DATA
|
Color resolution: | 16 bits per color (48 bits per pixel) |
|
Viewing angle: | Open Front | 103° x 103° (half-peak) |
|
Dome Diffuser: | 125° x 125° (half-peak) |
|
Lens Array: | 22° x 22° (half-peak) |
|
Luminous intensity, calibrated mode: | 40 cd per dot |
|
Luminous output, calibrated mode: | 120 lumen per dot |
|
Total output, calibrated mode: | 4000 nits (fixtures placed in array at 100 mm center-to-center) |
|
CCT: | 6500 Kelvin |
|
LED refresh rate - Standard Mode: | 1001 Hz |
|
LED refresh rate - High Refresh Mode: | 4004 Hz |
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
VIDEO PROCESSING
Brightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
Synchronization
SIGNAL PROTOCOL
Martin P3 (via Martin P3™ PowerPort) or DMX/RDM (direct)
CONSTRUCTION
|
Housing: | Cast aluminum |
|
Color: | Matte black |
|
Protection rating: | IP65 |
RoHS compliant
PHYSICAL
|
Diameter: | 72 mm (2.9 in.) |
|
Height: | 34 mm (1.4 in.), without diffuser/lens installed |
|
Weight: | 0.3 kg (0.7 lbs.), without diffuser/lens installed |
CONTROL AND PROGRAMMING
|
Control options: | Martin P3™ System Controller (via Martin P3 PowerPort™) or DMX |
|
Control resolution: | 16-bit (P3) or 8-bit (DMX) control of each color |
|
Protocol detection: | Automatic |
|
Setting and addressing: | Martin P3™ System Controller or RDM-compliant controller |
|
Calibration: | Color and intensity of entire dot |
|
DMX compliance: | USITT DMX512-A |
|
RDM compliance: | ANSI/ESTA E1.20 |
|
Firmware update: | Via Martin P3™ System Controller |
|
Control modes, direct DMX control: | RGB and Basic |
|
DMX channels, direct DMX control: | 3/10 |
|
Control modes, DMX via P3: | P3 Intensity, P3 RGB, P3 Basic, P3 Hybrid and P3 PixelMap |
|
DMX channels, DMX via P3: | 1/3/5/6/3 |
CONTROL/USER INTERFACE
|
Device status: | Multi-color visual indication |
|
Device test and reset: | Magnetic pushbutton to call up local test patterns and reset device |
OPTICS
|
Minimum LED lifetime: | 50,000 hours (to >70% luminous output)* |
*Figure obtained under manufacturer’s test conditions
|
Binning: | Tight color and flux binning |
|
Calibration: | Full Gamut Color Calibration |
|
Diffuser/Lens Options: | |
Open Front
Flat Diffuser
Flat Smoked Diffuser
Dome Diffuser (supplied standard with fixture)
Dome Smoked Diffuser
Lens Array Narrow
All optical accessories are interchangeable and screw onto fixtures
PHOTOMETRIC DATA
|
Color resolution: | 16 bits per color (48 bits per pixel) |
|
Viewing angle: | Open Front | 103° x 103° (half-peak) |
|
Dome Diffuser: | 125° x 125° (half-peak) |
|
Lens Array: | 22° x 22° (half-peak) |
|
Luminous intensity, calibrated mode: | 40 cd per dot |
|
Luminous output, calibrated mode: | 120 lumen per dot |
|
Total output, calibrated mode: | 4000 nits (fixtures placed in array at 100 mm center-to-center) |
|
CCT: | 6500 Kelvin |
|
LED refresh rate - Standard Mode: | 1001 Hz |
|
LED refresh rate - High Refresh Mode: | 4004 Hz |
* All Photometric Data measured in steady state (30 minutes warm-up time) at 25°C ambient.
VIDEO PROCESSING
Brightness control
Gamma correction and control
Color temperature control
Color space control
Calibration processing
Synchronization
SIGNAL PROTOCOL
Martin P3 (via Martin P3™ PowerPort) or DMX/RDM (direct)
CONSTRUCTION
|
Housing: | Cast aluminum |
|
Color: | Matte black |
|
Protection rating: | IP65 |
RoHS compliant
