Martin Exterior Linear Pro Graze CTC
Martin Exterior Linear Pro Graze CTC sú flexibilné, kompaktné, LEDkové architektonicke svetlá. Doručujúc rovnomernú distribúciu svetla pri 9 stupňovom uhle lúča, sú ideálne pre zvýrazňovanie textúr povrchov, stien, fasád, stropov a iných povrchov na štadiónoch a v arénach, výletných lodiach, zábavných parkoch, hoteloch, kasínach, mostoch, tuneloch a iných permanentných vnútorných aj vonkajších lokáciách.
Majú vysoko efektívnu controlu teploty farby, vysoký CRI a 12 LEDs/ft, Graze CTC modely dodávajú robustný výkon 800 lm/ft. Napchané inteligentnými funkciami, Graze CTC svetlá majú viacero výkonových módov, RDM, ľahko nastavitelný výstup lúmenov pre nízke energetické nároky, DMX ovládanie, a jednoduchú inštaláciu skrz zabudovaný univerzálny zdroj.
So silným zameraním na udržatelnosť, svetlá sa dajú reťaziť pomocou kombinovaného energetického a dátového konektora, povolujúc dlhé svetlá pre jednoduchšie infraštruktúry. Jednoduchá nastavitelnosť uhla lúča robí zmeny dizajnu a úpravy na miest...e hračkou a inteligentný dizajn montážneho panelu pasuje pre rozsah štandardných i na mieru vyrobených úchytov.
Úzky dizajn týhto svetiel ich robí ľahšími pre integráciu do architektonických prvkov s nižšími nárokmi. Všetky modely sú dostupné v dĺžkach 1 a 4 stôp.
VIAC

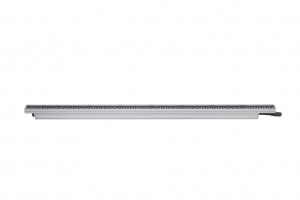

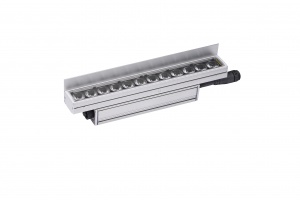

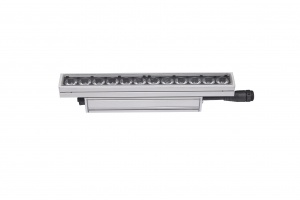

Martin Exterior Linear Pro Graze CTC lights are flexible, compact, LED-based architectural fixtures. Delivering uniform light distribution at a 9 degree beam angle, they are ideal for highlighting textured surfaces, walls, facades, ceilings and other surfaces in stadiums and arenas, cruise ships, theme parks, hotels, casinos, bridges, tunnels or other permanent indoor or outdoor locations.
Featuring highly efficient color temperature control (2700K, 4000K, 6500K), a high color rendering index (CRI) and 12 LEDs/ft, Graze CTC models deliver robust output of 800 lm/ft. Packed with intelligent features, Graze CTC lights include multiple power modes, Remote Device Management (RDM), simple-to-adjust total lumen output for low power requirements, DMX-controllability, and easy installation via the integrated universal power supply.
With a high focus on sustainability, these fixtures can be daisy-chained using a combined power and data connector, enabling long fixture runs for simpler infrastructures. Simple beam angle changeability makes late design changes and on-site adjustments easy and a smart mounting plate design allows for a range of standard or custom bracket solutions.
The slim design of these lights makes them easier to integrate into architectural elements with less structural requirements. All models are available in either 1ft or 4ft linear lengths and are shipped in FSC certified packaging.
FEATURES

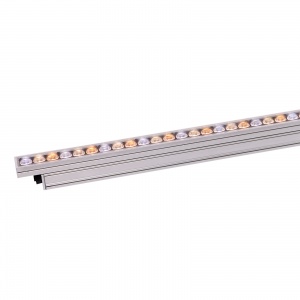

Warm, neutral and cold white LEDs (2700K, 4000K, 6500K) (12 LEDs/ft)
Narrow 9° beam angle

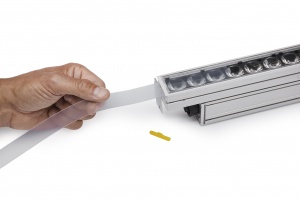

Interchangeable micro lens film for alternative beam angles
Selectable segment modes (1, 4 or 8 segments)
Selectable power consumption (12W/10W/5W) per foot
Integrated multi-range power supply unit (PSU) 100-277V for long fixture runs
Hybrid power and data connector for easy daisy-chained configurations
DMX and RDM control
Integrated magnetic switch for local diagnostics

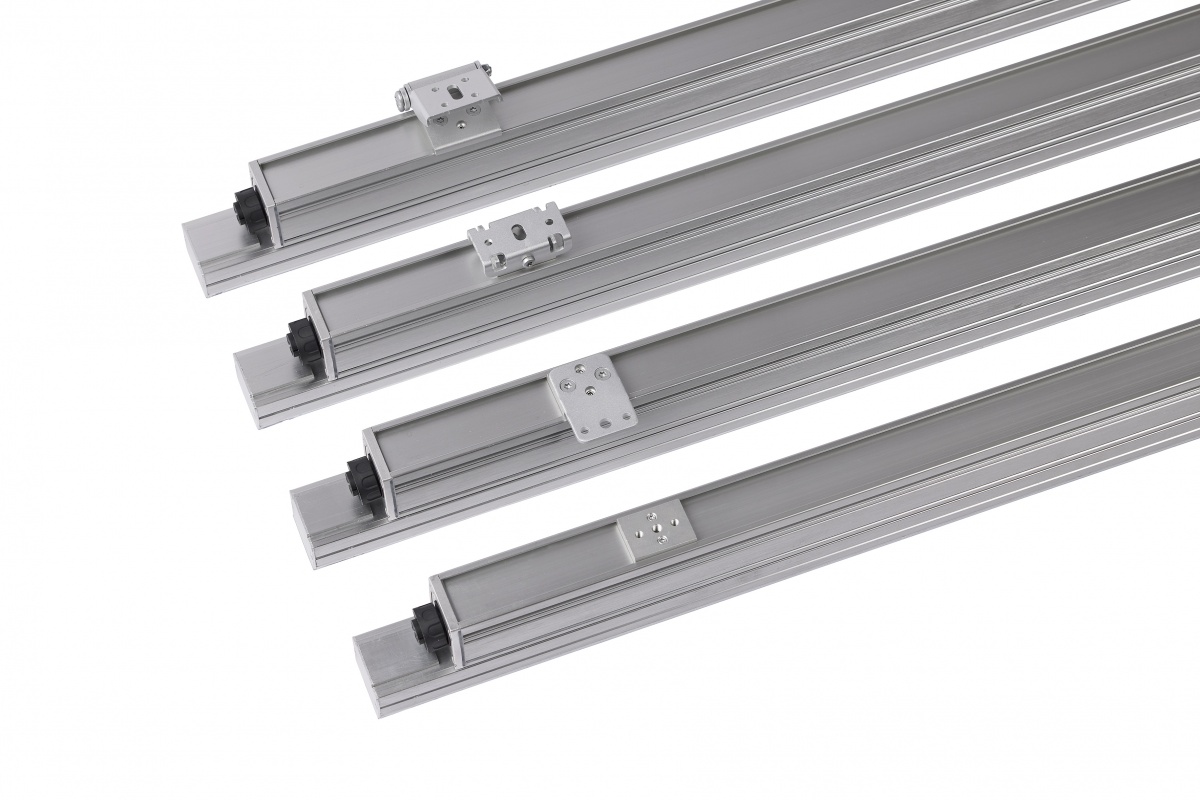

Rugged IP66 housing designed for permanent outdoor installations
Low weight 0.8 kg/ft (1.9 lbs/ft)
Compact design - 40mm (1.57 inch) width
PHYSICAL
|
Width: | 40 mm (1.57 inch.) |
|
Height: | 68 mm (2.67 inch) |
|

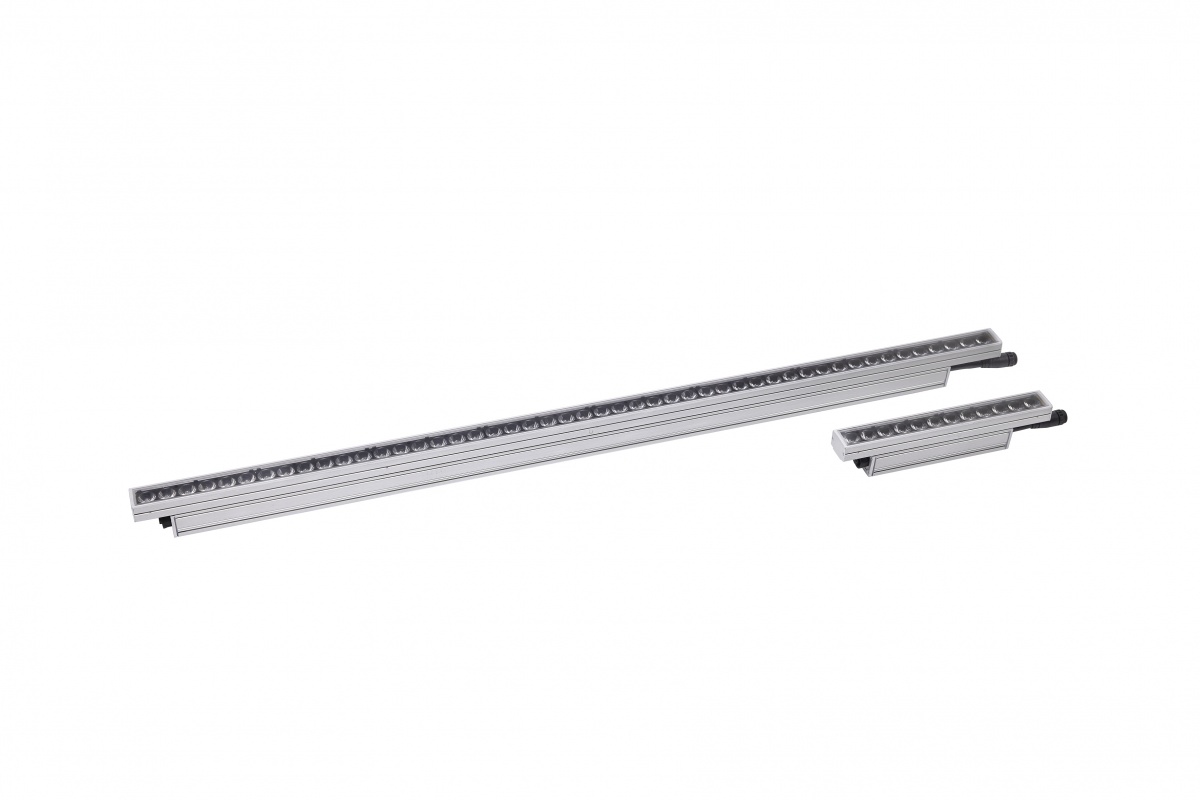

Length - 1 ft Version: | 312mm (1.02 ft) |
|
Length - 4 ft Version: | 1227mm (4.02 ft) |
|
Weight - 1 ft Version: | 0.85 kg (1.9 lbs) |
|
Weight - 4 ft Version: | 2.8 kg (6.2 lbs) |
DYNAMIC EFFECTS
|
Color temperature control: | 2700 K – 6500 K |
|
Intensity: | 0 - 100% |
|
Segment Control: | 0.5ft, 1 ft or full 4 ft fixture control |
CONTROL AND PROGRAMMING
|
Control systems: | DMX, RDM |
|
Control resolution: | 8-bit DMX individual color control |
|
User interface: | Magnetic button to call up fixture status and test fixture |
|
Stand-alone control: | Up to 20 scenes with individual fade/hold times |
|
DMX compliance: | USITT DMX512/1990 |
|
RDM compliance: | ANSI/ESTA E1.20 |
|
Dimmer Resolution: | 16-bit DMX control of intensity |
|
DMX channels 4ft: | 3/3/12/24 (standard/1 seg/4 seg/8 seg) |
|
DMX channels 1ft: | 3/6/3 (standard/1 seg/2 seg) |
OPTICS
000 hours (to >70% luminous output)*
|
Binning: | Tight color and flux binning |
|
Calibration: | Full Gamut Color Calibration (1 step MacAdam ellipse) |
|
Beam angle**: | 9°, 9°x 30° , 9°x 60° |
*Figure obtained under manufacturer's test conditions
** Asymmetric beam angles available as accessory micro-lens films
PHOTOMETRIC DATA
|
CRI (Color Rendering Index) : | >70 (higher CRI available on request) |
|
CCT: | 2700K - 6500K |
|
Luminous output: | |
1 ft at 12W 4 ft at 12W
|
2700K: | 790 lumens 3390 lumens |
|
4000K: | 900 lumens 3730 lumens |
|
6500K: | 850 lumens 3600 lumens |
CONSTRUCTION
|
Housing: | Aluminum |
|
Finish: | Clear anodized (standard) or white (optional) |
|
Front: | Clear polycarbonate |
|
Protection rating: | IP66 |
|
IK rating: | IK08 |
|
Effective Projected Area (EPA): | 0.04 m2 per ft |
|
Corrosion resistance: | C5 - very high corrosivity / Durability Range | High (ISO 12944-6) |
|
Vibration resistance: | 1.0g, Sinusoidal (IEC 60068-2-6), 0.7g RMS Random (IEC 60068-2-64), 3.0g (ANSI C136-31) |
INSTALLATION
|
Orientation: | Any |
|
Minimum distance to illuminated surfaces: | 0.1 m / 0.3 ft. |
ELECTRICAL
|
AC power: | 100-277 V nominal, 50/60 Hz |
|
Typical half-cycle RMS inrush current: | 0.35 A |
|
Power supply unit: | Auto-ranging electronic switch-mode |
|
Surge protection: | 4KV |
|

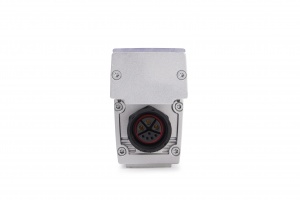

Power/data in/thru: | 8-pin custom connectors |
|
Idle power consumption: | 1ft length | 1.54 W, 4ft length | 2.30W (steady state, all LEDs at zero intensity) |
|
Max earth leakage: | 1ft length | 0.15 mA, 4ft length | 0.21 mA |
|
Maximum connected 4ft fixtures*: | 42 pcs (52 m /169 ft) @ 230V-277V |
|
Maximum total string length (cable + fixtures)*: | 150 m / 328 ft |
* Refer to system diagram for details on fixture run limitations
TYPICAL POWER AND CURRENT
|
12W mode: | |
|
100-240 V, 50/60 Hz: | 12 W per foot +/- 1 W, PF 0.95 +/- 0.05 |
|
277 V, 50/60 Hz: | 12 W per foot +/- 1 W, PF 0.90 +/- 0.05 |
|
10W mode: | |
|
100-240 V, 50/60 Hz: | 10 W per foot +/- 1 W, PF 0.95 +/- 0.05 |
|
277 V, 50/60 Hz: | 10 W per foot +/- 1 W, PF 0.90 +/- 0.05 |
|
5W mode: | |
|
100-240 V, 50/60 Hz: | 5 W per foot +/- 0.5W, PF 0.90 +/- 0.05 |
|
277 V, 50/60 Hz: | 5 W per foot +/- 0.5W, PF 0.70 +/- 0.05 |
Power figures are typical, not maximum. Measurements made at nominal voltage. Allow for +/- 10% deviation. PF = Power factor.
THERMAL
|
Cooling: | Convection |
|
Maximum total heat dissipation, calculated, +/- 10%: | 41 BTU/hr. per foot |
|
Maximum ambient temperature: | 45° C (113° F)* |
|
Minimum ambient temperature: | -30° C (-22° F) |
*Above this temperature, the fixture regulates output to protect from overheating
ENVIRONMENTAL
|
RoHS: | Compliant |
|
REACH: | Compliant |
|
WEEE: | Compliant |
|
Proposition 65: | Compliant |
|
FSC: | Certified cardboard inlay and outer packaging |
|
Efficacy (max output): | 75 lm/W |
|
LWR*: | 1059 lm/kg (474 lm/lb) |
*LWR = Lumen-to-Weight Ratio
APPROVALS
|
Global CB Certification/IECEE: | IEC 60598-2-5 (IEC 60598-1) |
|
EU safety: | EN 60598-2-5 (EN 60598-1), EN 62471, EN 62493 |
|
EU EMC: | EN 55015, EN 55032, EN55035, EN 61547, EN 61000-3-2, EN 61000-3-3 |
|
US safety: | ANSI/UL 1598 |
|
US EMC: | 47 CFR Part 15 Class B |
|
Canadian safety: | CSA C22.2 No. 250.0 |
|
Australia/NZ: | RCM |
|
India: | BIS IS 10322(Part5/section5) |
RELATED ITEMS
|
Martin Companion Cable: | P/N MAR-91616091 |
|
Martin Companion Cable (for firmware update over DMX): | Free download from www.martin.com |
ACCESSORIES
|
Glare shield, EL Pro 1ft set of 4: | P/N MAR-90570022 |
|
Glare shield, EL Pro, 4ft set of 4: | P/N MAR-90570023 |
|

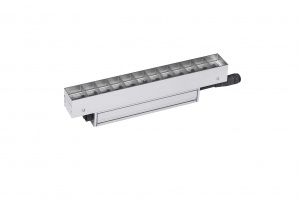

Louvre, EL Pro CTC, 1ft set of 4: | P/N MAR-90570028 |
|
Adjustable bracket EL Pro 10 pcs: | P/N MAR-90570025 |
|
Flange bracket EL Pro 10 pcs: | P/N MAR-90570026 |
|
Quick mount bracket EL Pro 10 pcs: | P/N MAR-90570026 |
|
Junction Box Power DMX to PD: | P/N MAR-91700019 |
|
Power DMX Cable PD PD 0.2M EU: | P/N MAR-91700004 |
|
Power DMX Cable PD PD 1M EU: | P/N MAR-91700005 |
|
Power DMX Cable PD PD 2.5M EU: | P/N MAR-91700006 |
|
Power DMX Cable PD PD 5M EU: | P/N MAR-91700007 |
|
Power DMX Cable PD PD 10M EU: | P/N MAR-91700008 |
|
Power DMX Cable 100M Roll EU: | P/N MAR-91700009 |
|
Power DMX Cable PD PD 0.2M US: | P/N MAR-91700010 |
|
Power DMX Cable PD PD 1M US: | P/N MAR-91700011 |
|
Power DMX Cable PD PD 2.5M US: | P/N MAR-91700012 |
|
Power DMX Cable PD PD 5M US: | P/N MAR-91700013 |
|
Power DMX Cable PD PD 10M US: | P/N MAR-91700014 |
|
End termination cap PD: | P/N MAR-91700015 |
|
Power DMX Cable 100M Roll US: | P/N MAR-91700016 |
|
Bulk connector PD female: | P/N MAR-91700017 |
|
Bulk connector PD male: | P/N MAR-91700018 |
ORDERING INFORMATION
|
Exterior Linear Pro graze CTC 1ft: | P/N MAR-90570006 |
|
Exterior Linear Pro graze CTC 4ft: | P/N MAR-90570008 |
OTHER SPECIFICATIONS
|
Asymm diffuser Wide EL Pro 4ft, 6 pcs: | P/N MAR-90570020 |
|
Asymm diffuser Narrow EL Pro 4ft, 6 pcs: | P/N MAR-9057002 |
