LD Systems U508 CS 4 - 4-kanálový bezdrôtový konferenčný systém
• Skutočne diverzitný UHF bezdrôtový konferenčný systém
• Automatické vyhľadávanie kanálov
• Automatické vyhľadávanie frekvencií
• Infračervená frekvenčná synchronizácia prijímača a mikrofónu
• Pilotný tón
• Prioritné prepínanie
• Automatický a manuálny
• Bezpečnostný zámok
• Rozhranie RS-232 pre externé ovládanie

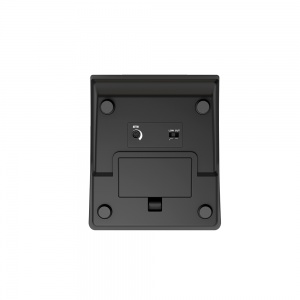

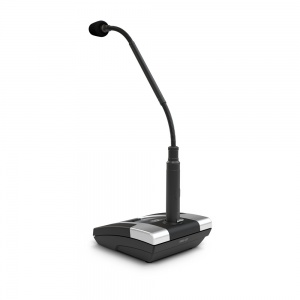

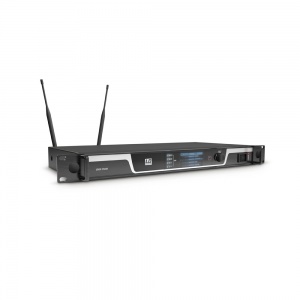

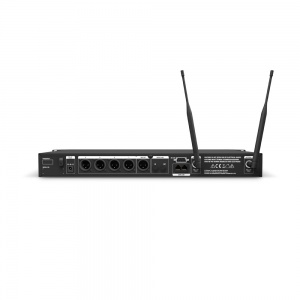

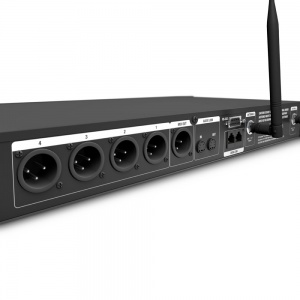

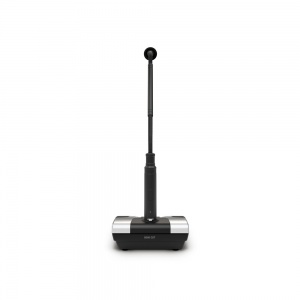

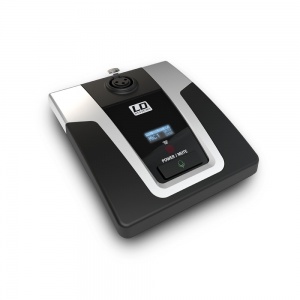

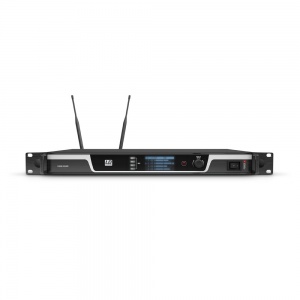

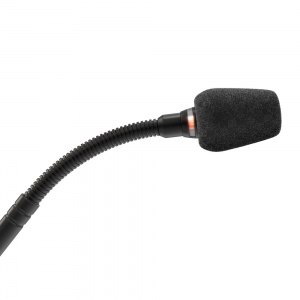

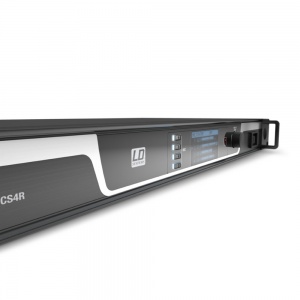

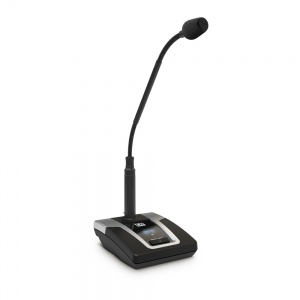

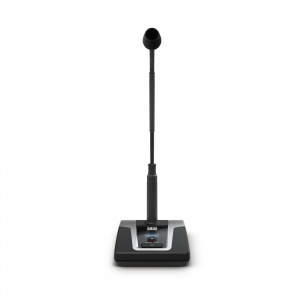

We have developed the U500® in Germany to meet all of your requirements of a wireless conference system. It offers a professionally equipped solution for effective communication and interaction with advanced technology, excellent speech intelligibility and an elegant appearance. The user-friendly True Diversity UHF system with 60 channels in 6 groups facilitates easier installations and turns conferences, meetings and round tables into successful events. The U500® terminals feature a gooseneck condenser microphone with hyper-cardioid characteristic and a light ring to display status. The heavy table stand features an XLR microphone input, 28 V phantom power, an o...n-off-mute switch, as well as a gain control and a selectable 130 Hz high-pass filter to effectively reduce proximity effect and structure-borne sound. A high-contrast OLED display shows radio frequency, battery status, terminal number, group and channel. The audio transmission range is 60 Hz - 16 kHz. For simple, fast configuration, the 4-channel U500® conference system receiver features automatic frequency and channel scanning, infrared synchronisation, a digital encoder and 4 buttons to directly access the individual channels. The high-contrast OLED display provides a comprehensive overview of all functions and settings such as audio and radio signal strength, and priority and battery status of the terminals. The number of simultaneously-live microphones can be configured in order to eliminate crosstalk, feedback and comb filter effects. Selectable automatic or manual gate settings and a pilot tone ensure that the U500® conference system delivers superb sound quality with excellent noise immunity. In addition to its individual channel outputs, the receiver also has a master output, an access lock to prevent unauthorised adjustment of settings, and the RS-232 interface to facilitate integration into external control systems. For system expansion, up to five U500® receivers can be cascaded and used in master-slave mode, making a maximum of 20 terminals possible. The U500® conference system is available in three versions which work in the following frequency areas: 554 - 586 MHz, 662 - 694 MHz or 823 - 832 MHz + 863 - 865 MHz
