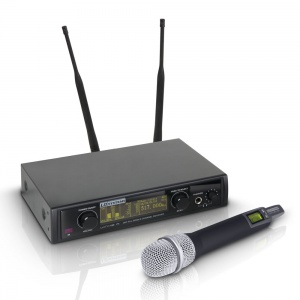

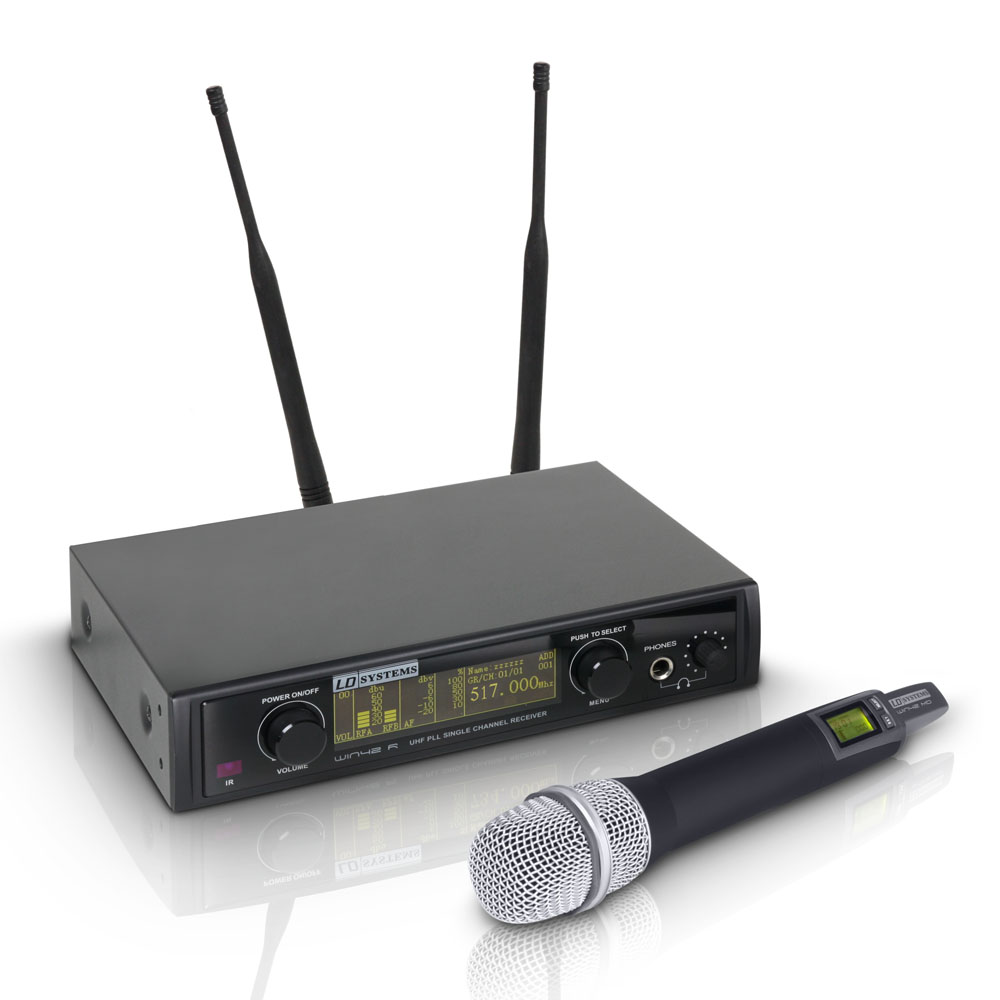

LD Systems WIN 42 HHD B 5 - Duálny - bezdrôtový mikrofónový systém s dynamickým ručným mikrofónom

Pracovný frekvenčný rozsah UHF je 516 MHz to 558 MHz. Verzia ručného mikrofónu a vysielača na opasku poskytujú optimálny prenos výkonu s najväčšou možnou voľnosťou pohybu. Pomocou závitového spojenia je možné rýchlo a ľahko vymeniť hlavu mikrofónu ručného vysielača (dynamické a kondenzátorové kapsuly). Systém má viac ako 1680 voľne voliteľných frekvencií a umožňuje tak pracovať až s 20 systémami súčasne. Funkcia „skenovania kanálov“ pomôže nájsť a naladiť vysielaciu frekvenciu bez rušenia. Táto frekvencia sa potom prenáša jednoducho a pohodlne z prijímača do vysielača cez infračervené spojenie. Vysielací výkon je nastaviteľný v 3 stupňoch (10, 30, 50 mW) priamo na mikrofóne, čo umožňuje adaptáciu na akékoľvek prostredie. Prijímač True Diversity s polovičným stojanom obsahuje množstvo systémových funkcií, napríklad indikátor stavu batérie vysielača na displeji prijímača, indikátor funkcie (vysielača) „Mute On / Off“ na displeji prijímača, 4 prepínateľné predvoľby EQ na prijímači a oveľa via...c.

Sada sa skladá:

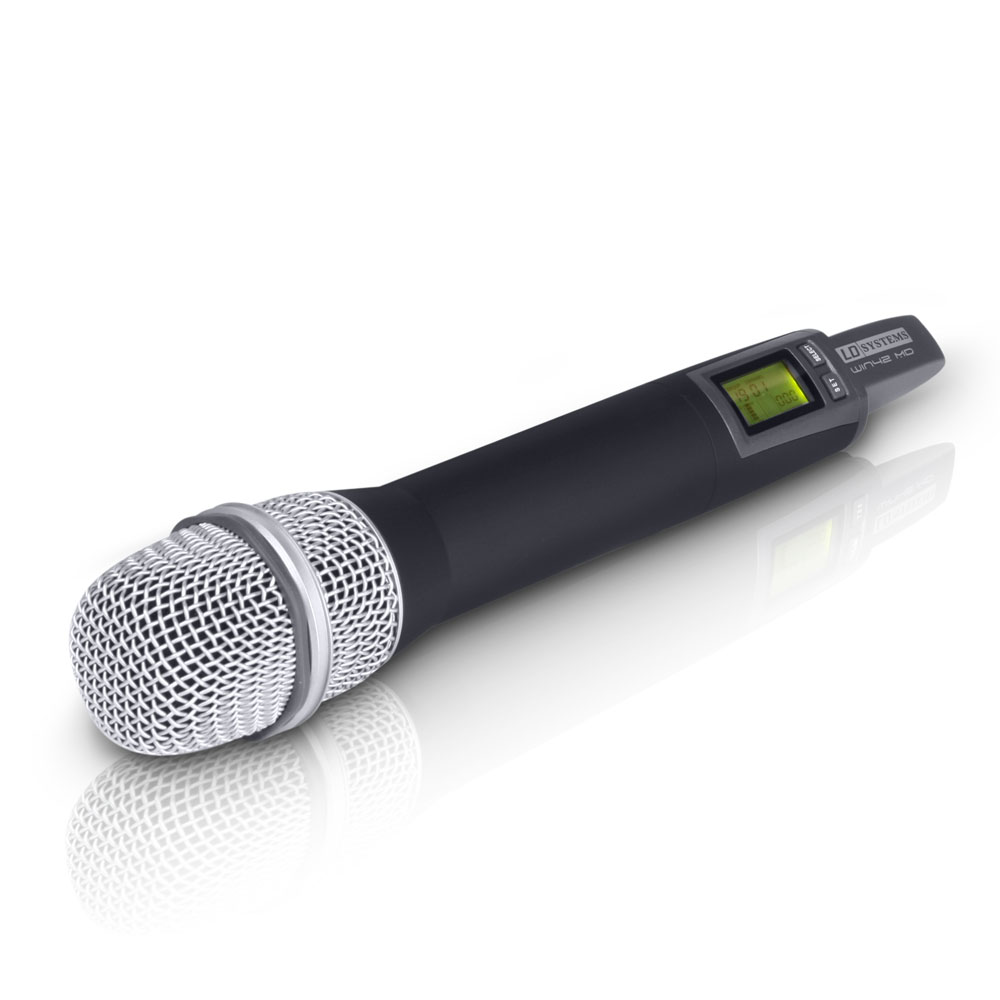

• LD Systems WIN 42 MD B 5 Dynamic handheld microphone

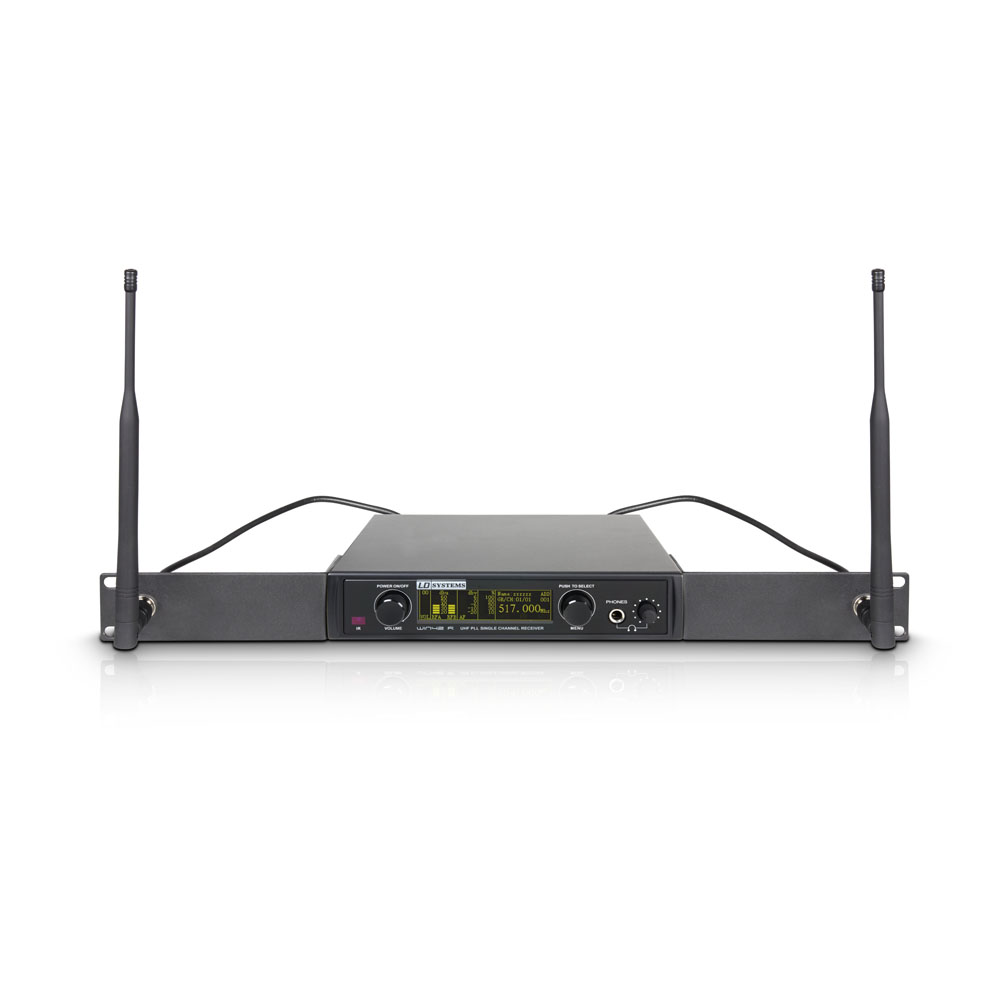

• LD Systems WS 100 RK 19" Rack Kit

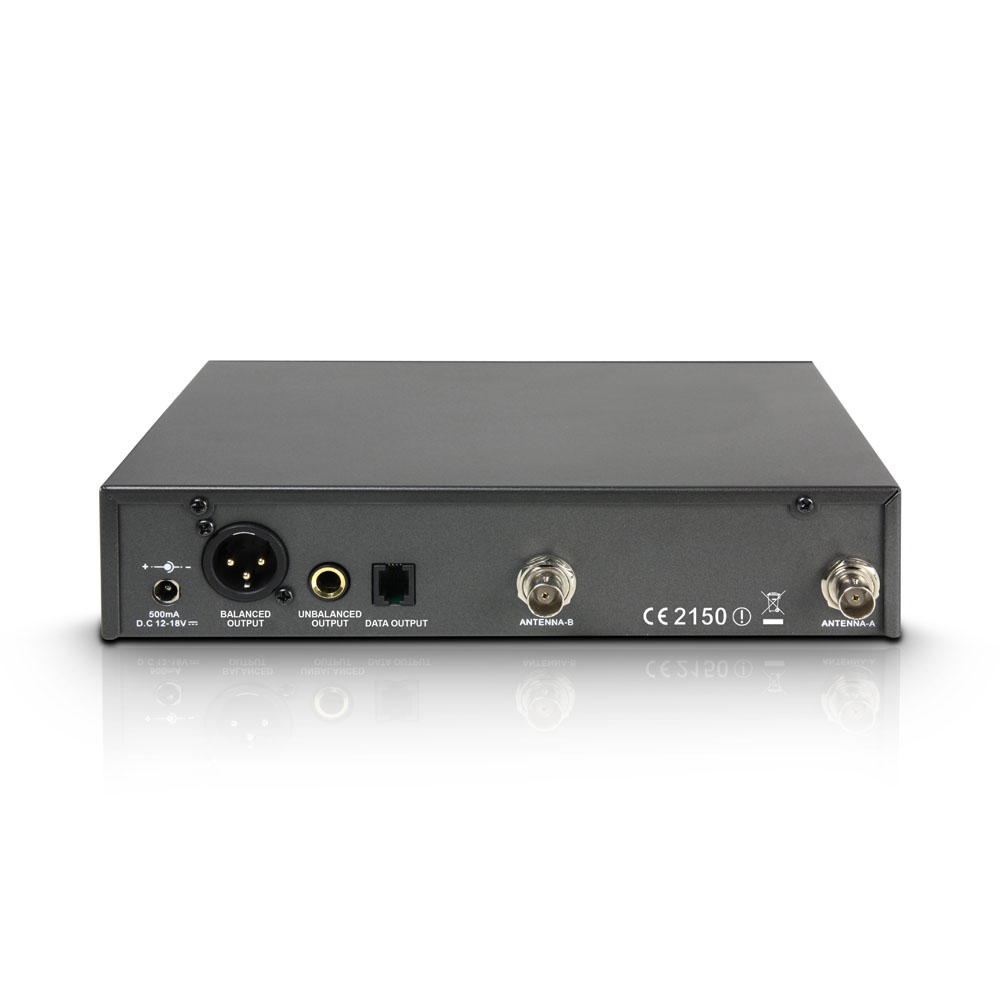

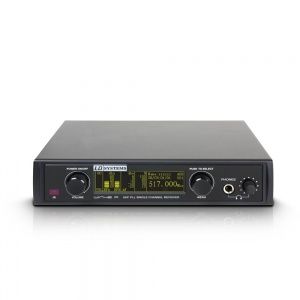

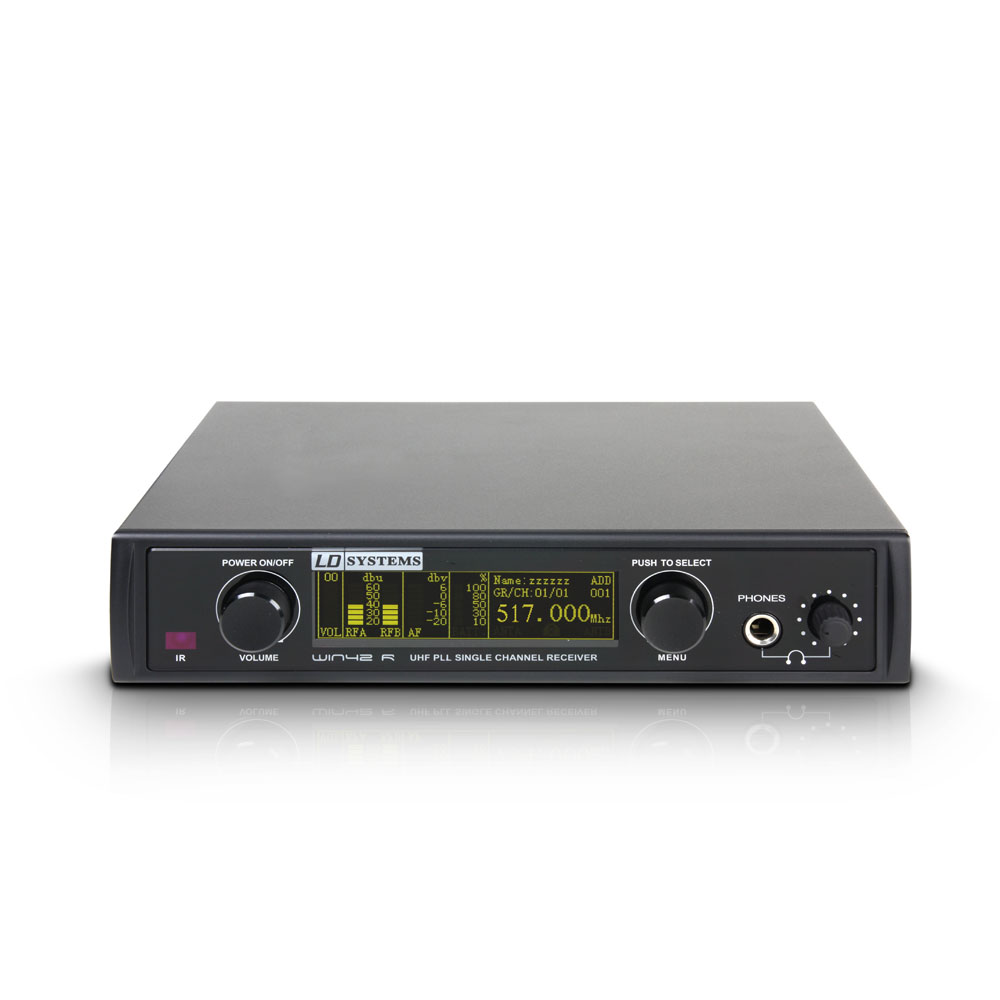

• LD Systems WIN 42 R B 5 Receiver for LD WIN 42 wireless microphone system

ONLINE KATALÓG PRODUKTOV LD SYSTEMS :
LD SYSTEMS CATALOGUE

With its outstanding audio quality, the LD Systems WIN 42 UHF Wireless System offers numerous potential applications for live performances and permanent installations. The working UHF frequency range is 516 MHz to 558 MHz. Both the handheld microphone and belt pack transmitter versions ensures any vocalist, speaker or instrumentalist optimal transmission of his or her performance whilst providing the greatest possible freedom of movement. By means of a threaded connection, the microphone head of the handheld transmitter can be swapped quickly and easily (dynamic and condenser capsules). The system has more than 1680 freely selectable frequencies and thus makes it possible to operate up to 20 systems simultaneously. The "Channel Scan" function assists you in finding and tuning to a transmission frequency without interference. This frequency is then transmitted simply and conveniently from receiver to transmitter via an infrared link. The transmitting power is adjustable in 3 stages (10, 30, 50 mW) directly on the microphone, making it fully adaptable to any environment. The half-rack True Diversity receiver houses numerous system features: for example, a transmitter battery status indicator on the receiver display; an indicator for the (transmitter) "Mute On/Off" function on the receiver display; 4 EQ presets that are switchable at the receiver, and much more. A highly professional system embodying the outstanding value-for-money that is so typical for LD Systems. UHF frequency range 516 to 558 MHz1680 frequencies 20 groups with 577 fixed frequencies User bank with 1680 freely selectable frequencies in 25 KHz increments 255 selectable addresses Channel scan True diversity receiver Replaceable microphone capsule (dynamic /condenser) Receiver Display Volume Level Radio signal level A/B Audio Level Battery status of the transmitter Infrared Synchronization Receiver to Transmitter Squelch in the menu Equalizer in the menu Naming in the menu 10 Sets can be saved Lockable Menu Output XLR balanced and unbalanced 6.3 mm jack Adjustable Output Adjustable Headphone Output Transmitter Display (hand-held transmitter/belt-pack) Battery status indicator Transmission power adjustable in 3 stages Audio sensitivity adjustable in the menu More system information
