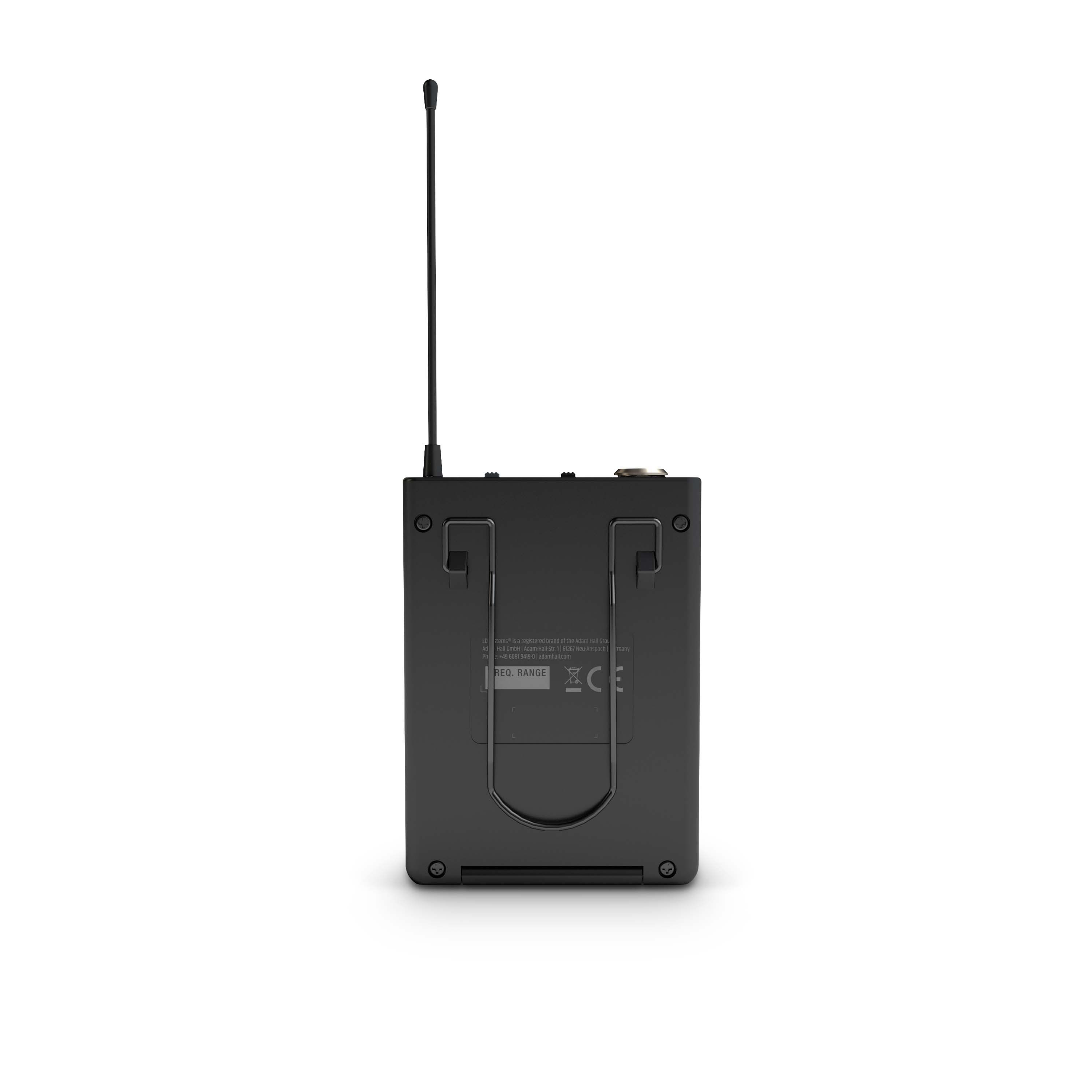

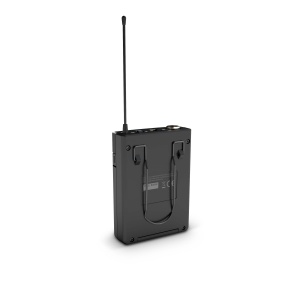

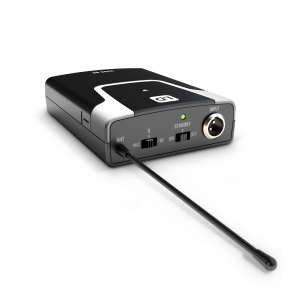

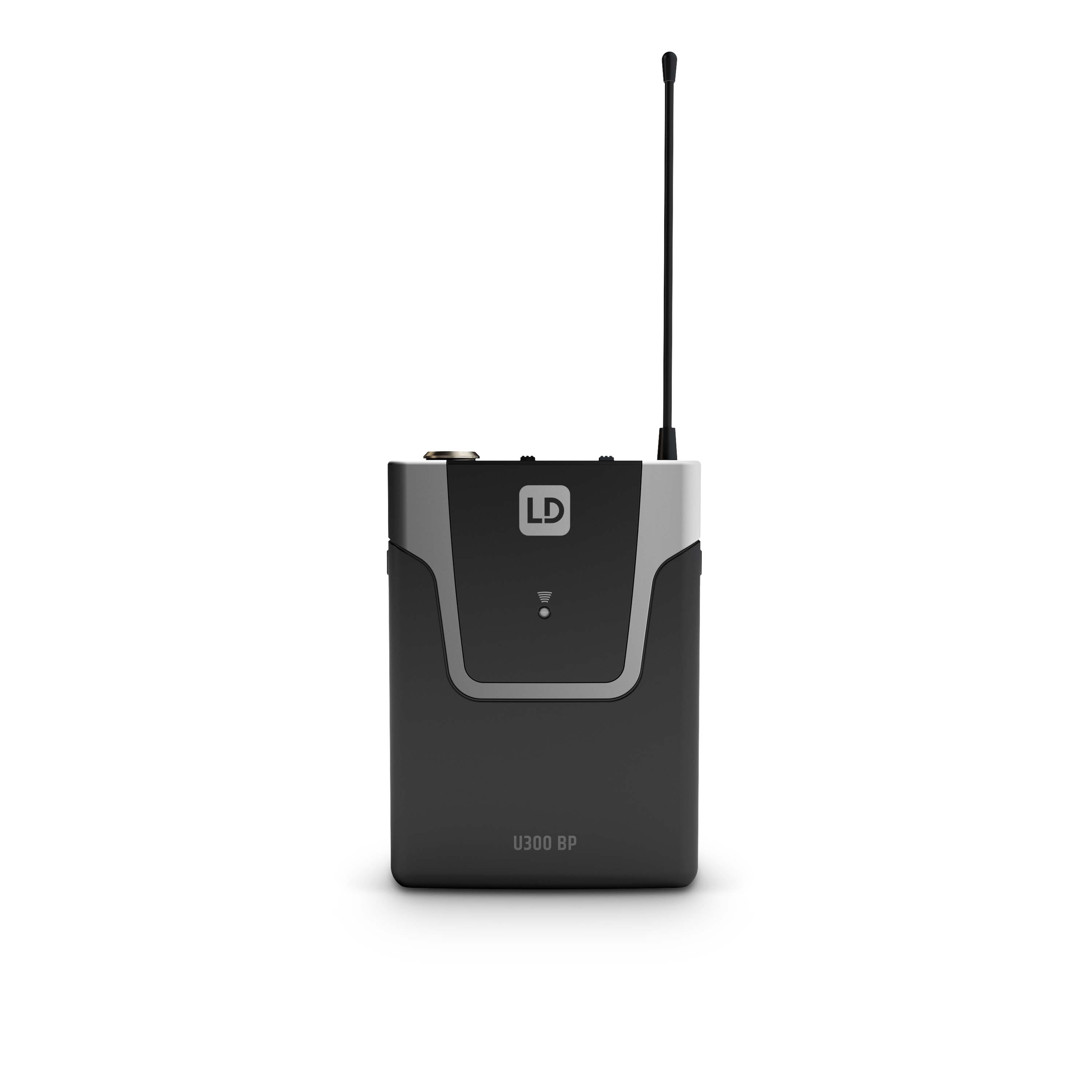

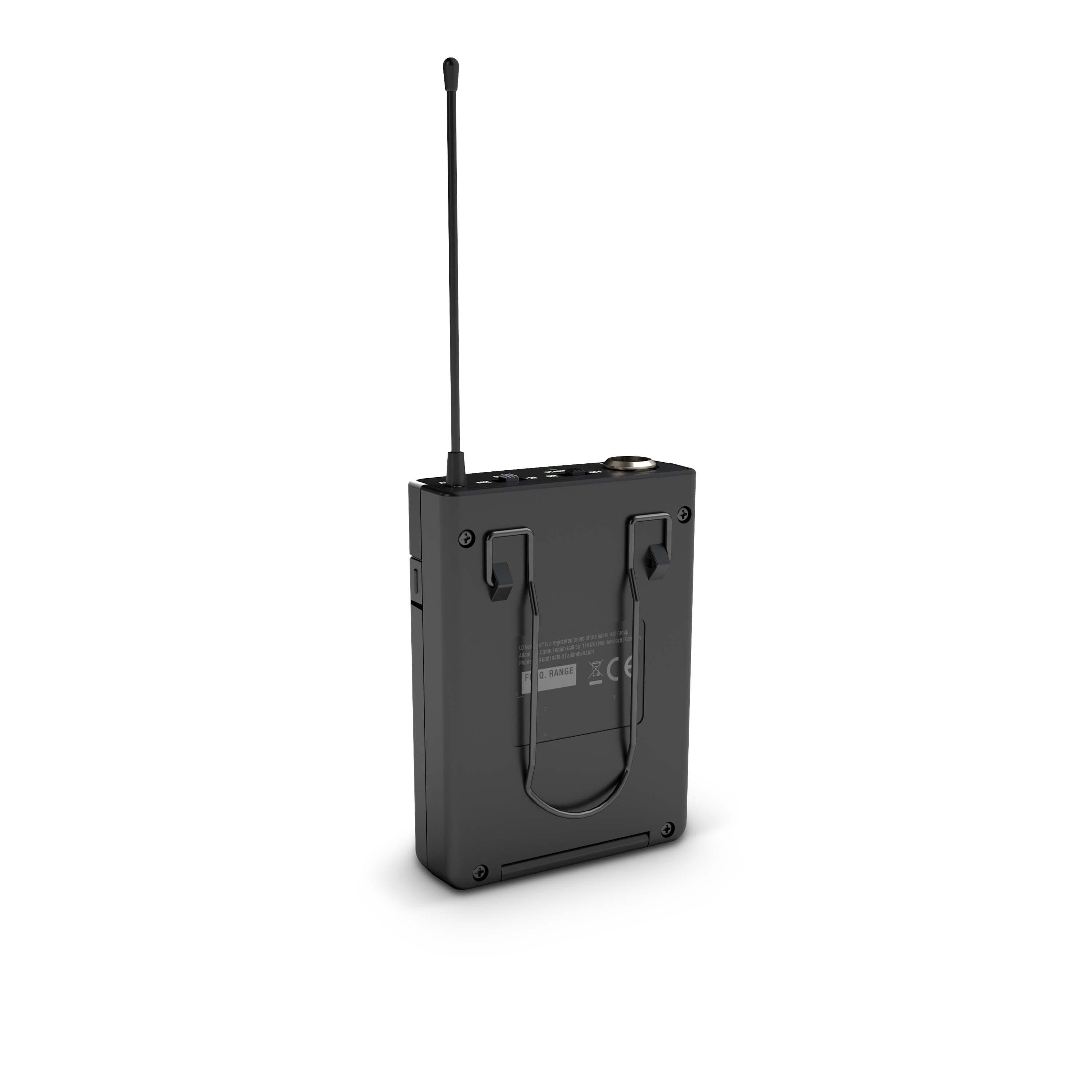

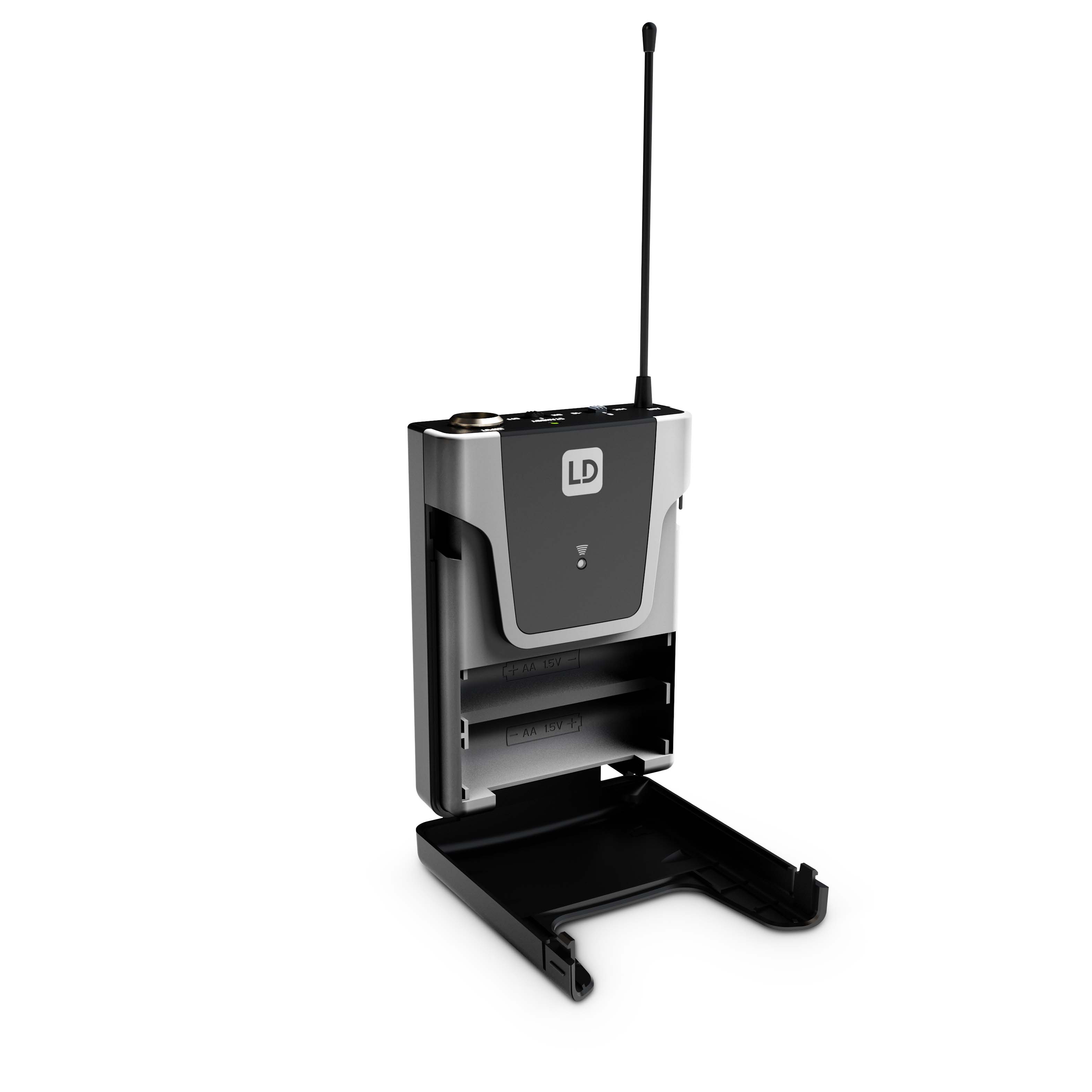

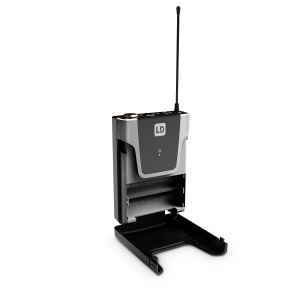

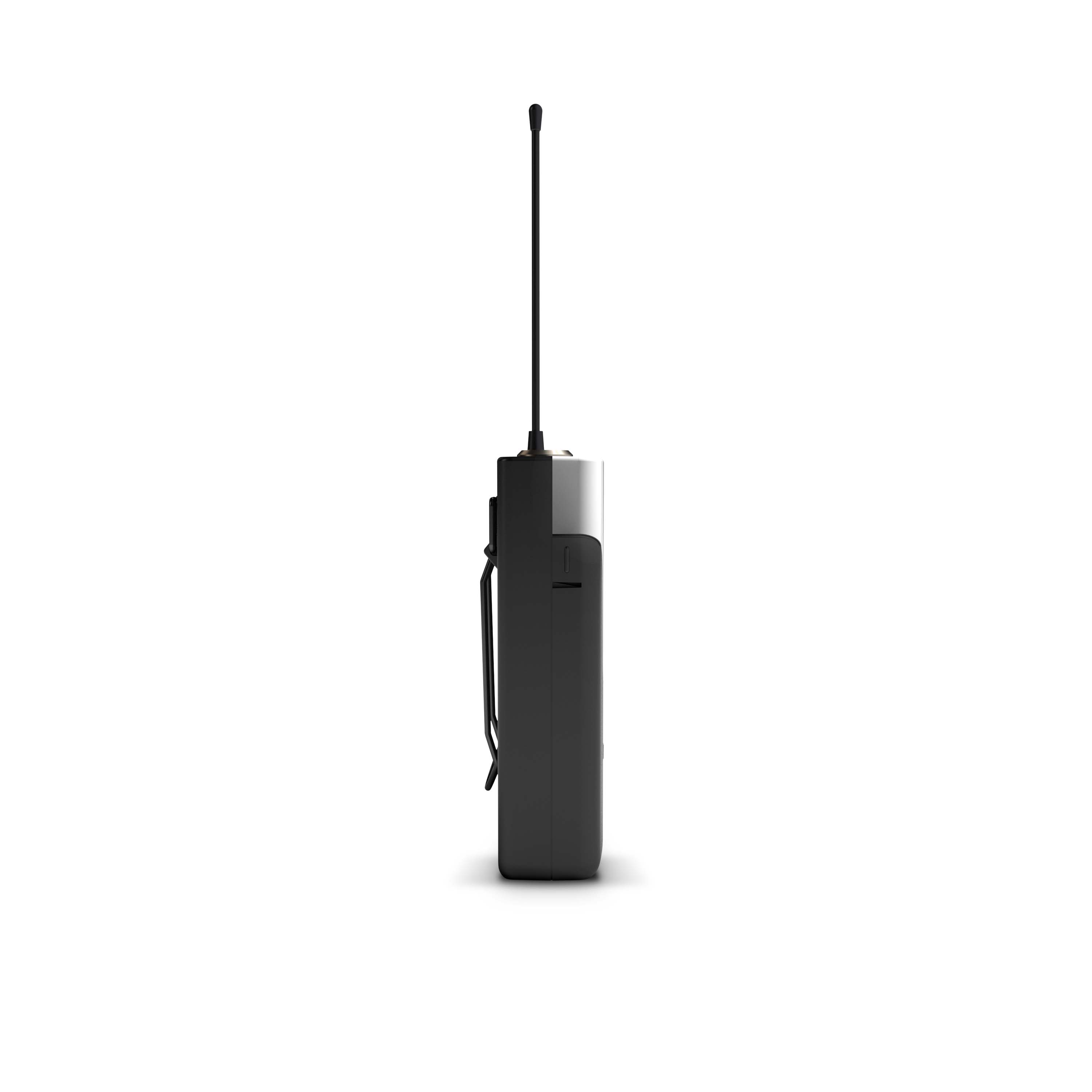

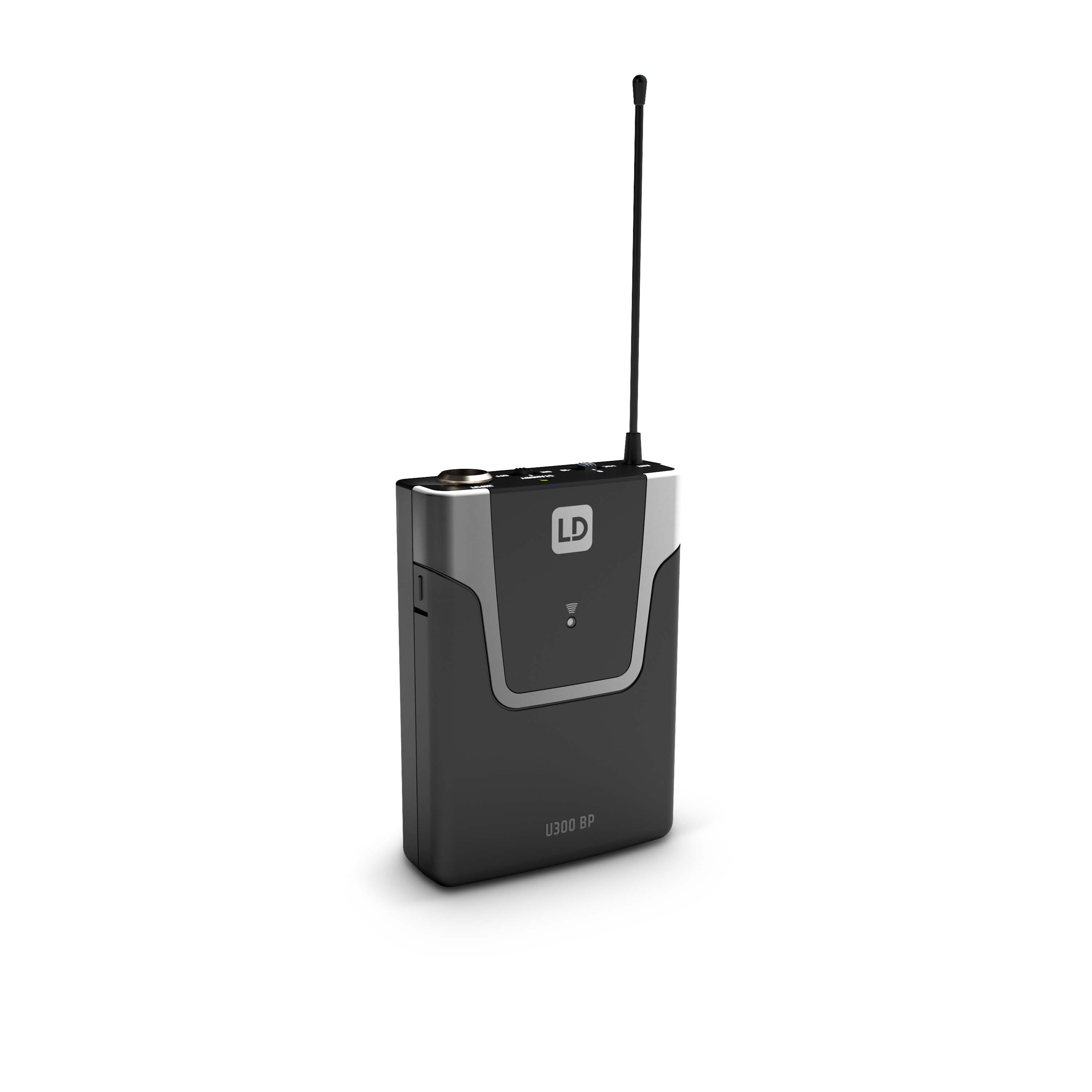

LD Systems U305 BP - Vysielač na opasok

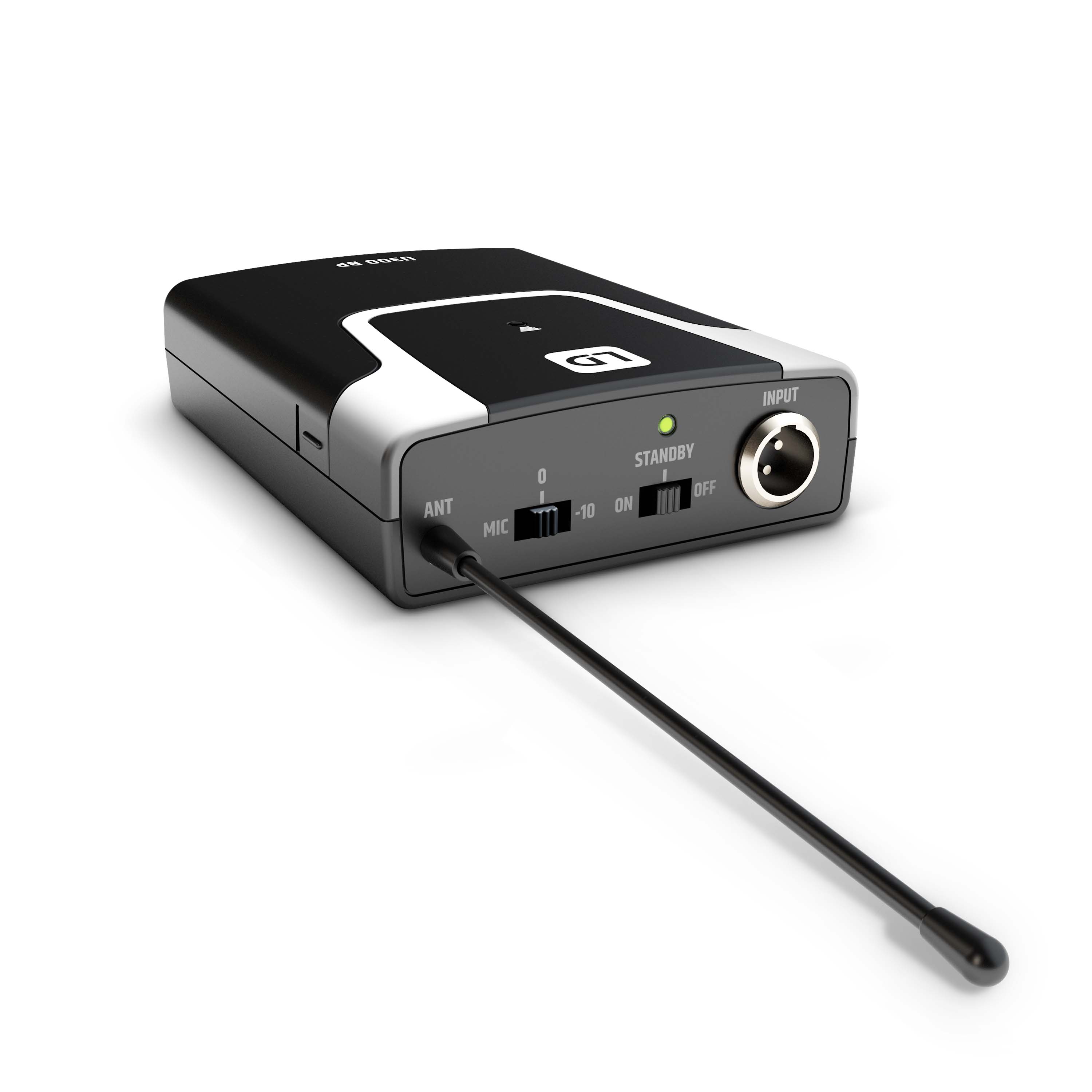

Tento vysielač na opasok série U300® pracuje v pásme 584 - 608 MHZ. Ponúka miniatúrny XLR vstup s 3-polohovým voličom na uloženie mikrofónov, ako aj aktívnych a pasívnych nástrojov. Má výstupný výkon 10 MW, frekvenčnú odozvu 25 Hz - 16 kHz, U305 BP poskytuje viac ako 10 hodín nepretržitej prevádzky s dvomi batériámi AA, jednoduchú IR synchronizáciu s prijímačom U3051 a prenosom pilotného tónu na odstránenie RF interferencie. Okrem spínača ON / OFF ponúka aj pohotovostnú polohu pre dočasné stlmenie.
ONLINE KATALÓG PRODUKTOV LD SYSTEMS :
LD SYSTEMS CATALOGUE
Operating in the 584 - 608 MHz band, this U300 Series bodypack transmitter features a miniature XLR input with 3-position level selector to accommodate microphones as well as active and passive instrument pickups. It has an output power of 10 mW and 25 Hz - 16 kHz frequency response to handle 5-string bass guitars with a low B string. The U305 BP provides over 10 hours of continuous operation on two AA batteries, easy IR sync...ing with the U305 receiver and pilot tone transmission to eliminate RF interference. The bodypack's on/off switch includes a convenient standby position for temporary muting.
VIAC
Product typeWireless Microphone System AccessoriesTypeBodypackTransmission frequency range584 - 608 MHzChannels12Groups1InputsMini-XLR (Phantom Powered Low-Z / High-Z Instrument)Frequency response25 - 16,000 HzSignal-to-noise ratio104 dBRated HF output power10 mWControlsGain (3-way switch), Power On/OffIndicatorsASC IR Sync (Green/Amber Blinking LED), Battery (low battery: red), Power LED (Power ON: green)Operating voltage2 x AA batteryOperating time>10 hWidth65 mmHeight91 mmDepth25 mmWeight0,085 kgOther featuresBelt clip, IR frequency synchronisation, Pilot tone
