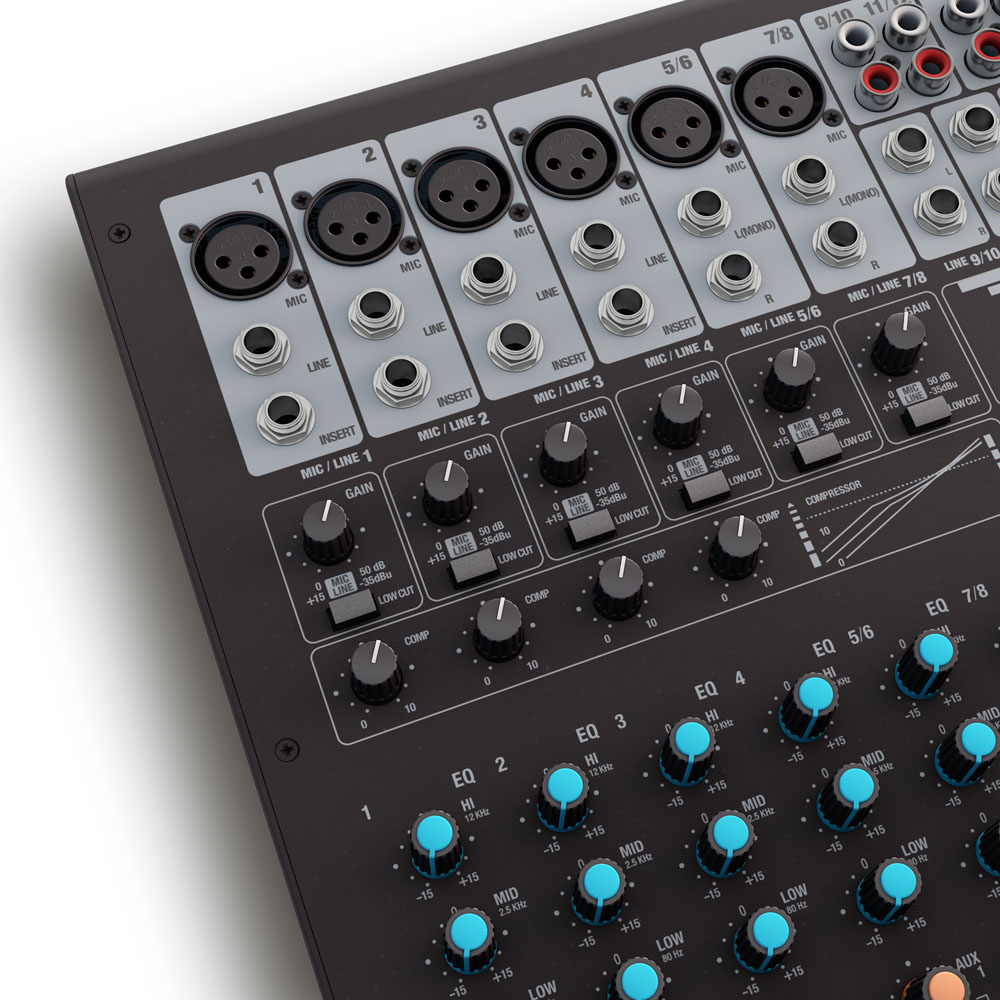

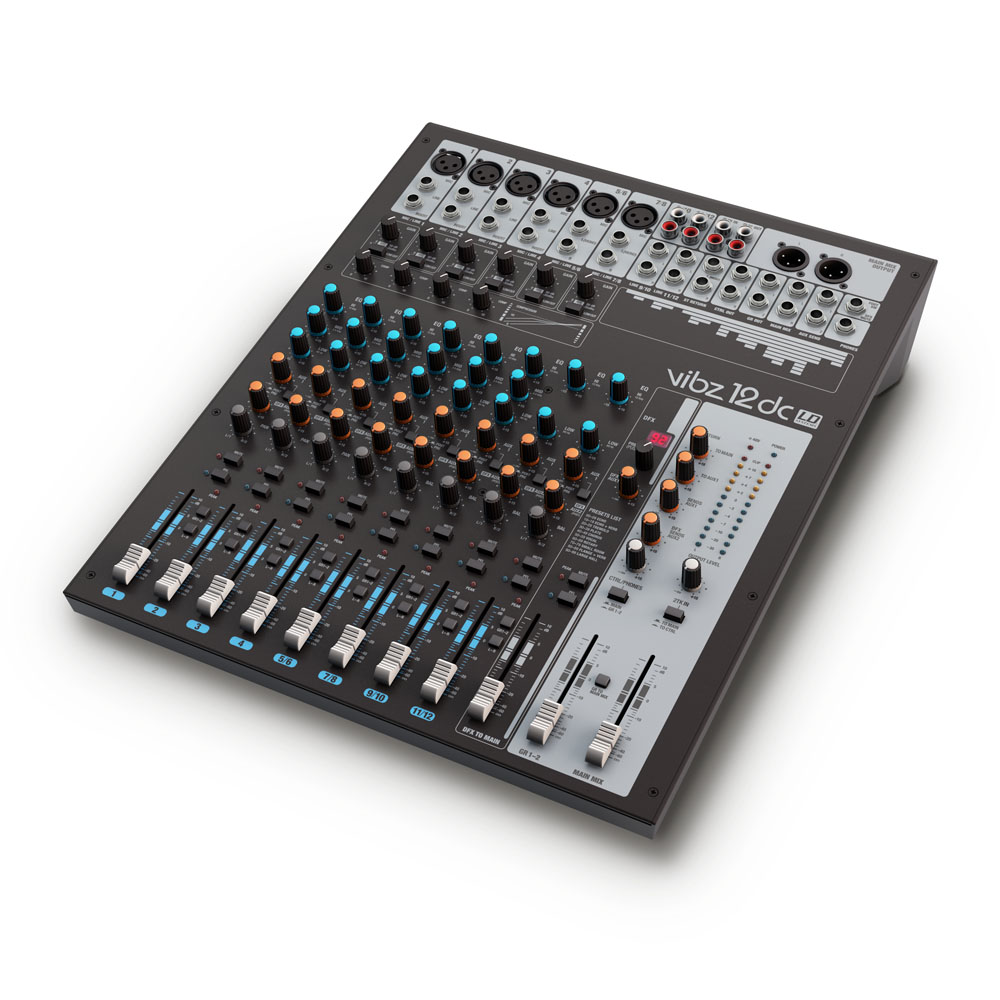

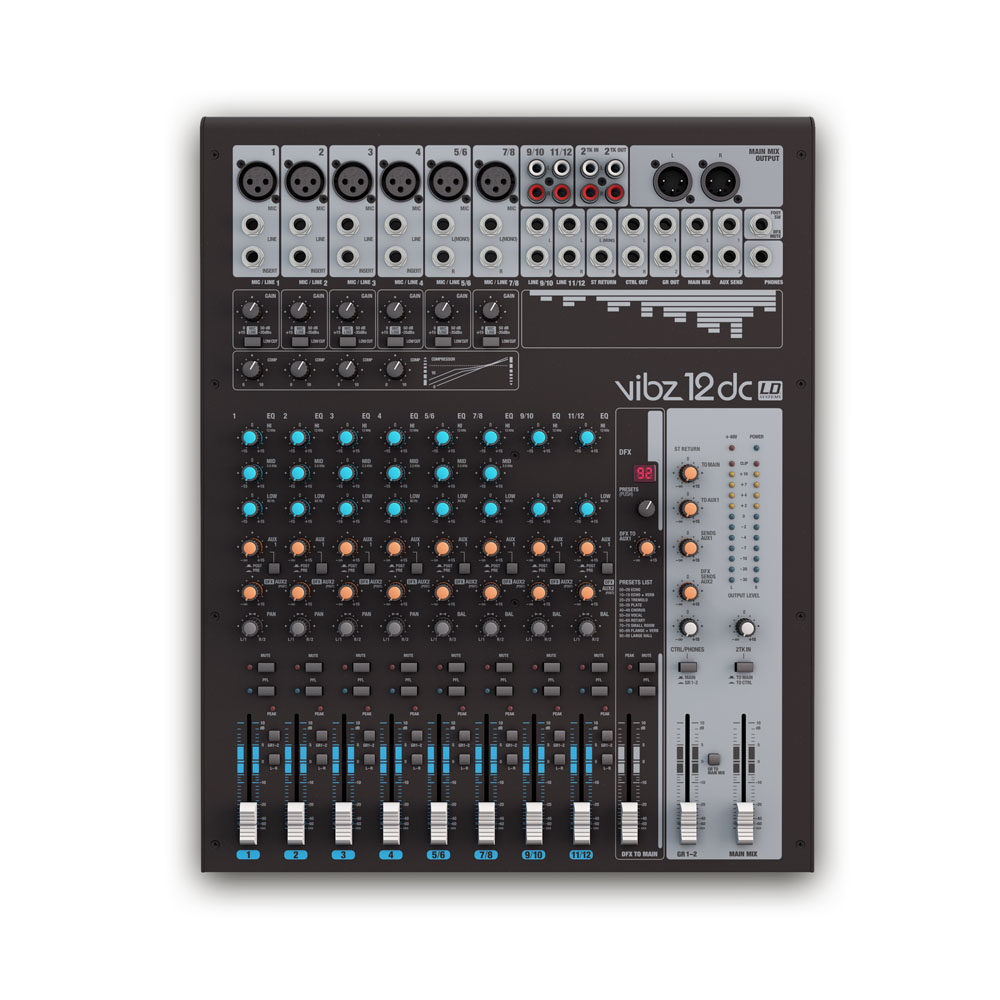

The VIBZ 12 is a versatile mixer with six balanced microphone inputs featuring high quality preamplifiers, a low-cut filter, an effective 3-band EQ with conveniently selected mids and switchable phantom power.
Four microphone channels can be processed separately using the built-in compressor for an effective control of dynamics; two more can alternatively be used as a stereo line channels. The other stereo channels are equipped with 2-band EQs.

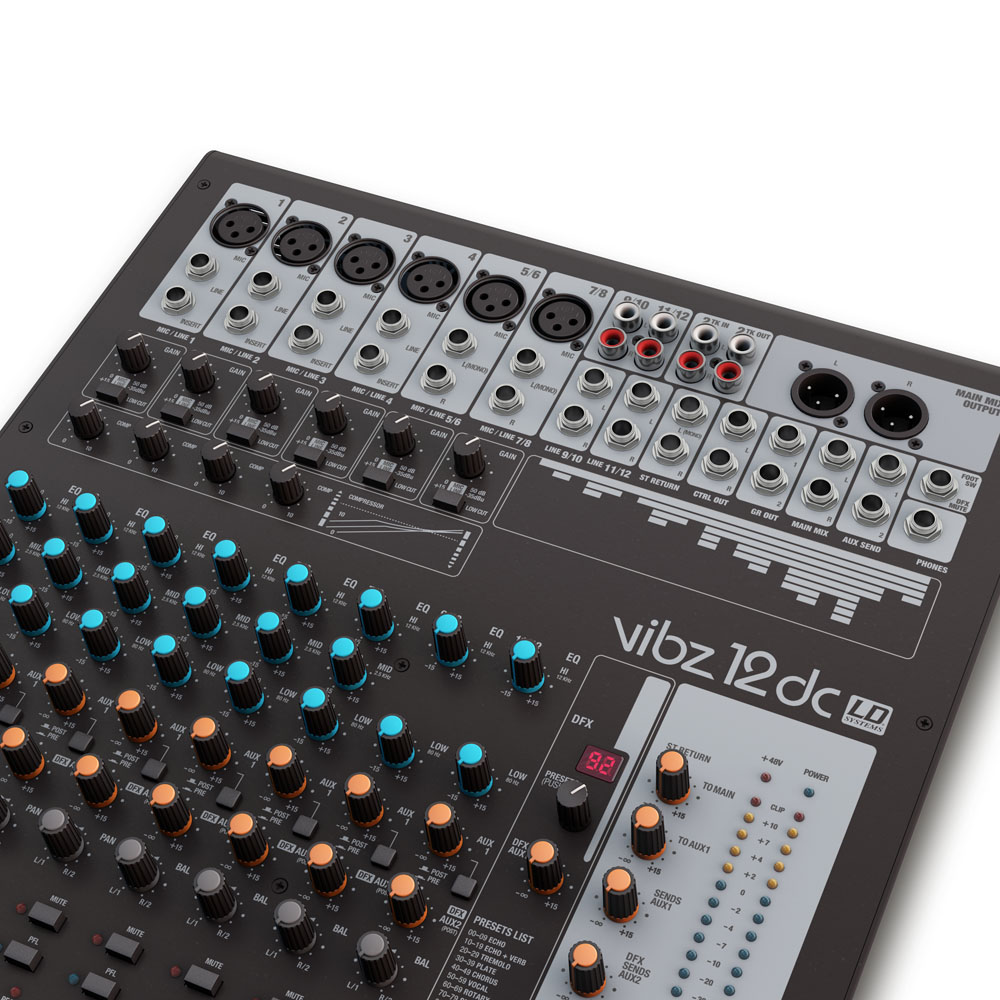

The master section of the mixer includes two effects loops, balanced XLR outputs, group and monitor outputs and a headphone jack. The VIBZ 12 also has RCA connectors for recording and playback devices and a digital Digital Effects Section with 100 presets.
With key features such as the PFL function or the Mute buttons and its natural, transparent sound, the VIBZ 12 is the perfect choice for live performances, installations and demanding home recording applications.
• Product type: Mixers
• Type: Live
• Channels: 6
○ MAIN SECTION -
• AUX / Effects Send Channels: 2
• AUX / Effects Send Connectors: 6.3 mm TRS
• Stereo AUX Return Channels: 1 x stereo
• Stereo AUX Return Connectors: 6.3 mm TRS
• Stereo Tape Out Channel: 1 x stereo
• Stereo Tape Out Connectors: 2 x RCA (Cinch)
• Stereo Tape In Channel: 1 x stereo
• Stereo Tape In Connenctors: 2 x RCA (Cinch)
• Balanced Stereo Main Out: 1
• Balanced Stereo Main Out Connectors: XLR
• Balanced Stereo Main Out Impedance: 120 Ohm(s)
• Max. Balanced Stereo Main Out Level: 23 dBu
• Stereo Control Room Out: 1
• Stereo Control Room Out Connectors: 6.3 mm TRS
• Headphones ouput: 1
• Headphones outputs: 6.3 mm TRS
• Digital Effects Processor: Yes, 24-bit AD/DA Resolution
• Number of Presets: 100
• Footswitch Connector DFX Mute: 6.3 mm TRS

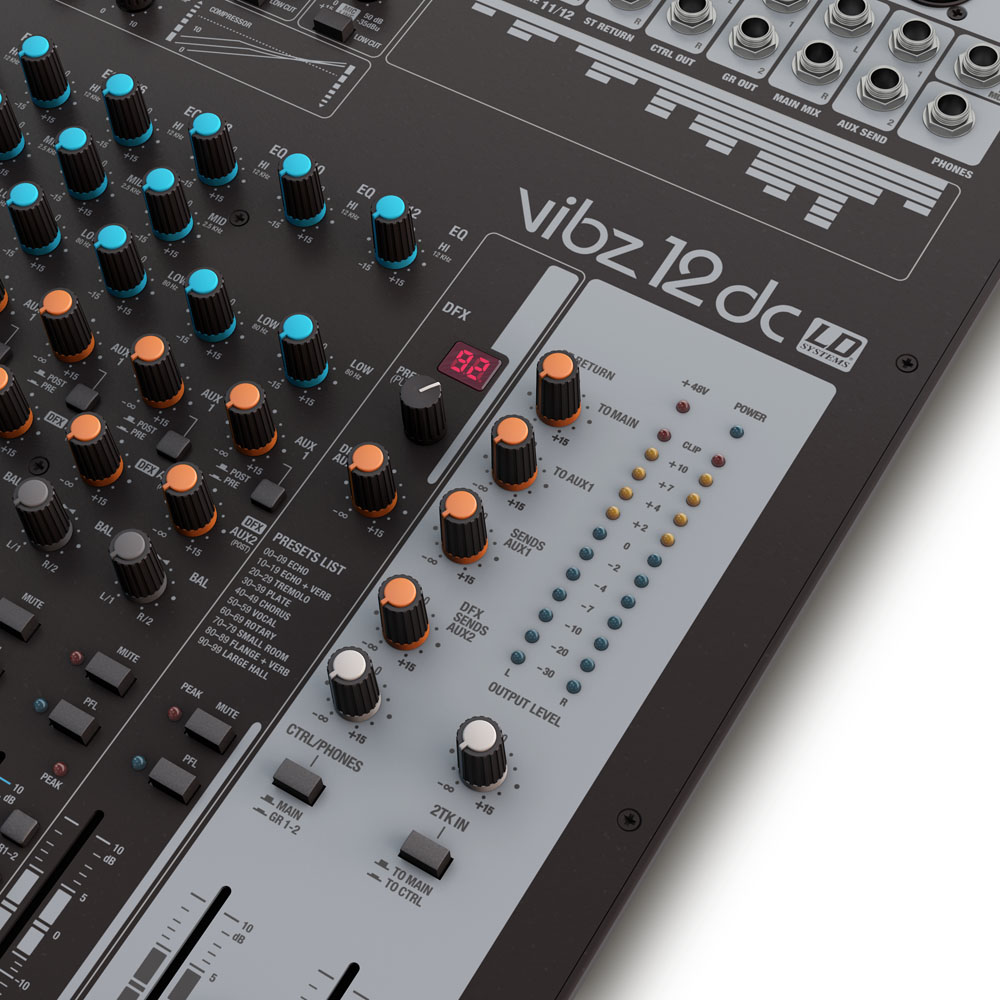

• Main section controls: 2-track Assignment (Main, Contr. Room), 2-track In Volume, AUX 2 Send Volume, CTRL / Phones assignment (Main/Group 1-2), DFX Mute Schalter, DFX TO AUX Volume, DFX To Main Volume, Group 1-2 assignment to Main MIX, Group 1-2 Volume, Master Volume, PFL, Phantom Power, Power, presets, Stereo Return to AUX Volume, Stereo Return to MAIN Volume, Volume Control CTRL / Phones
• Indicators: DFX Peak, DFX TO MAIN, PFL, Phantom Power, Power

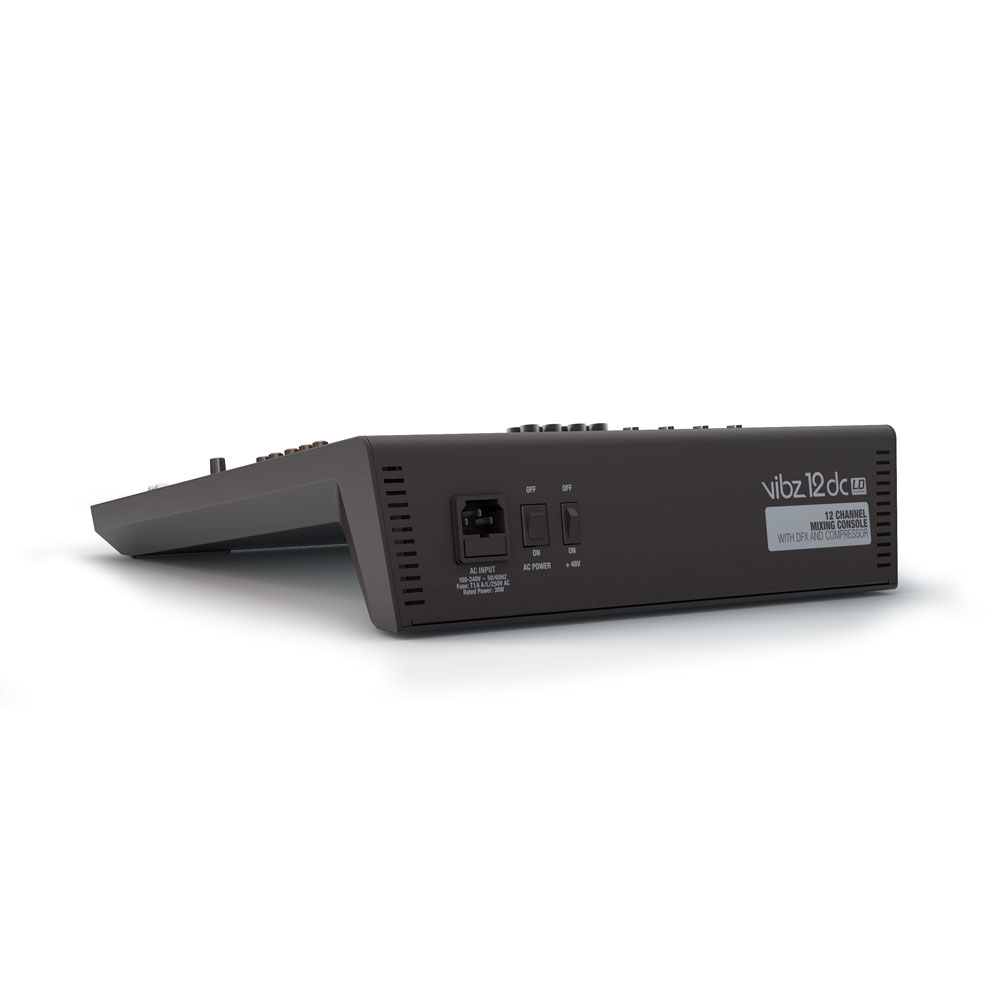

• Power supply: 100 V AC - 240 V AC, 50 - 60 Hz
• Width: 350 mm
• Height: 98 mm
• Depth: 440 mm
• Weight: 4,3 kg
