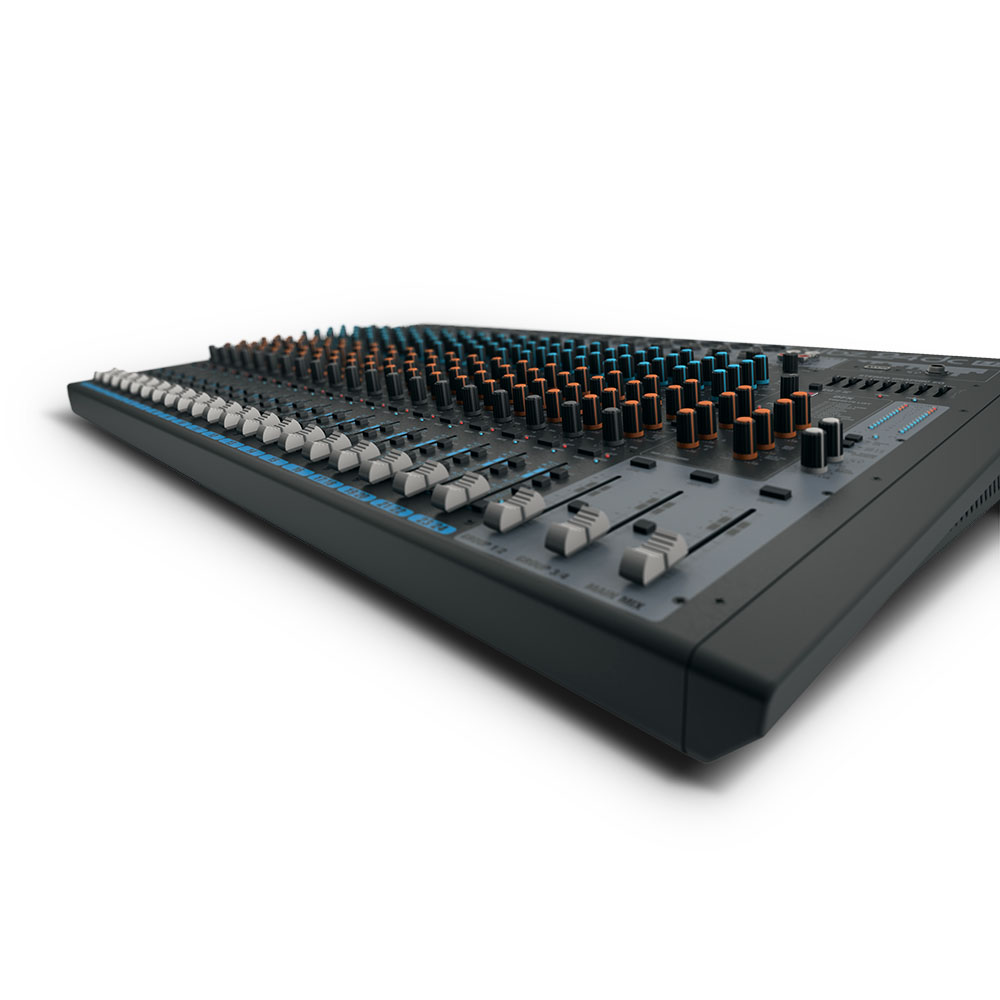

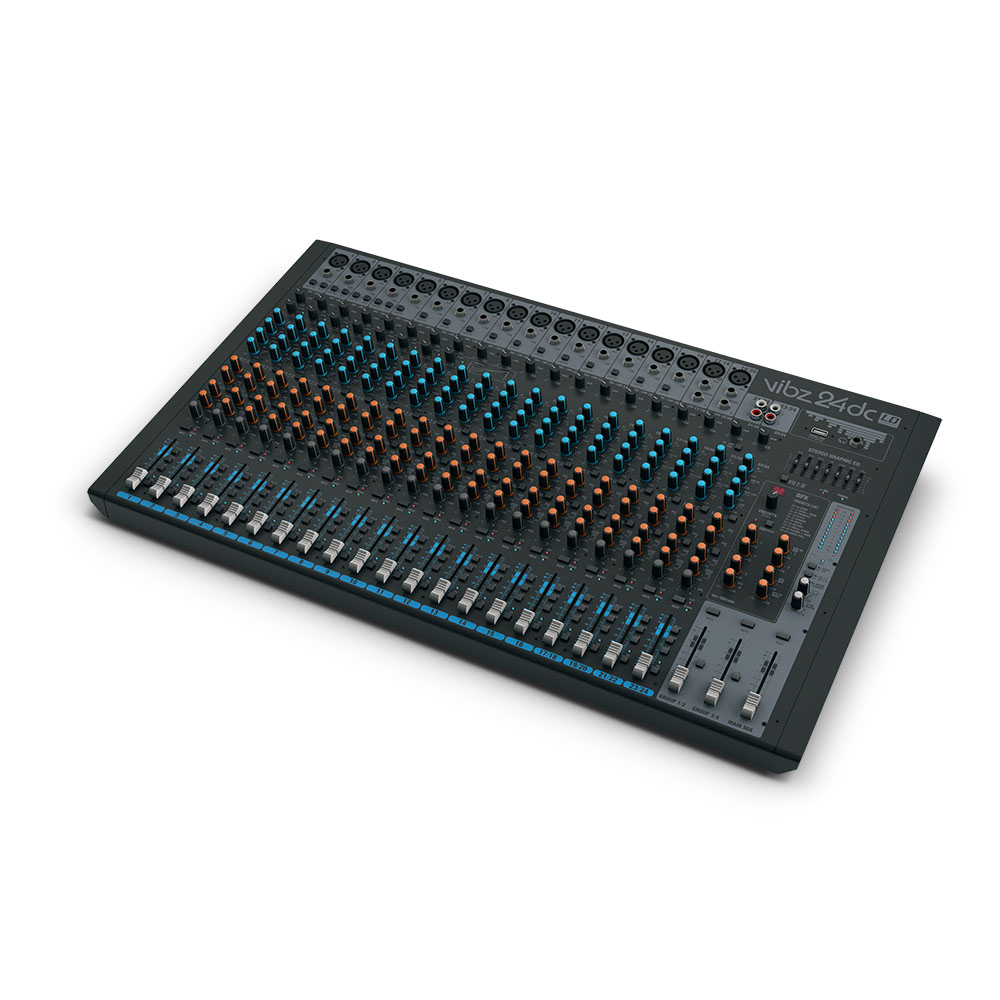

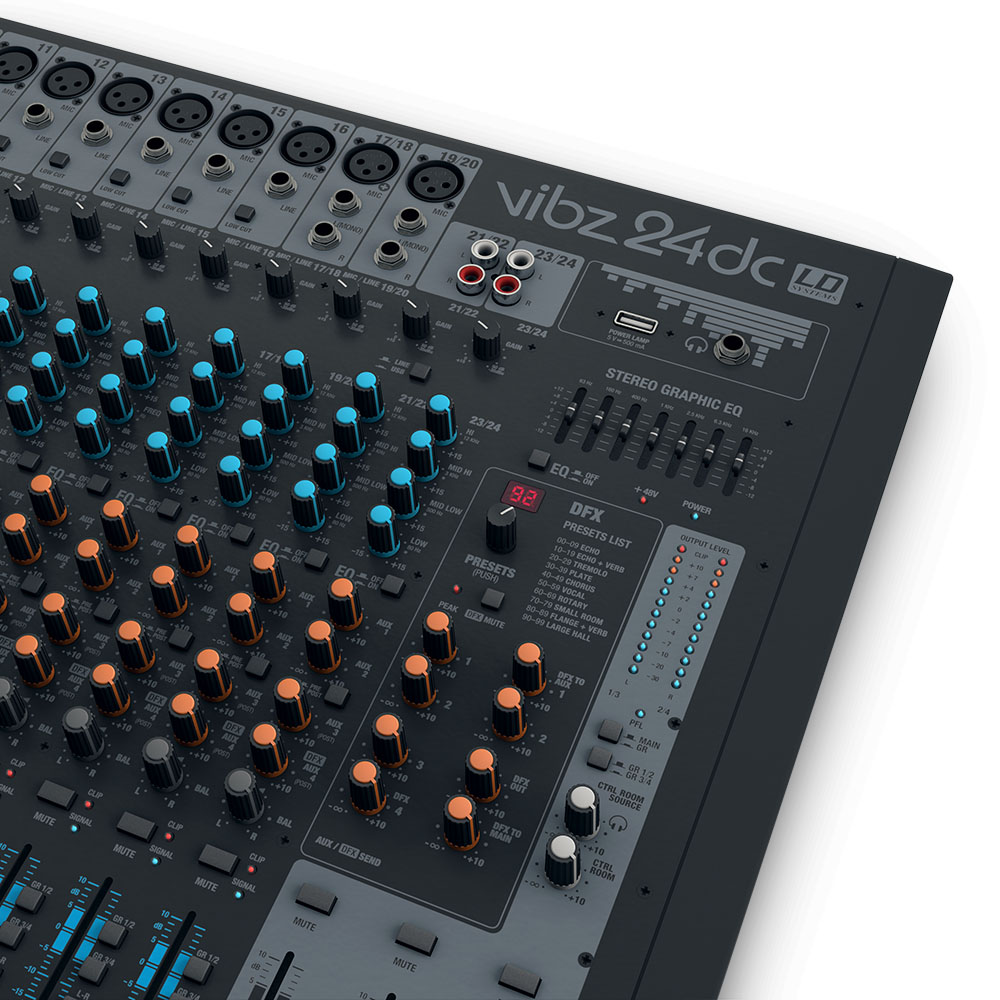

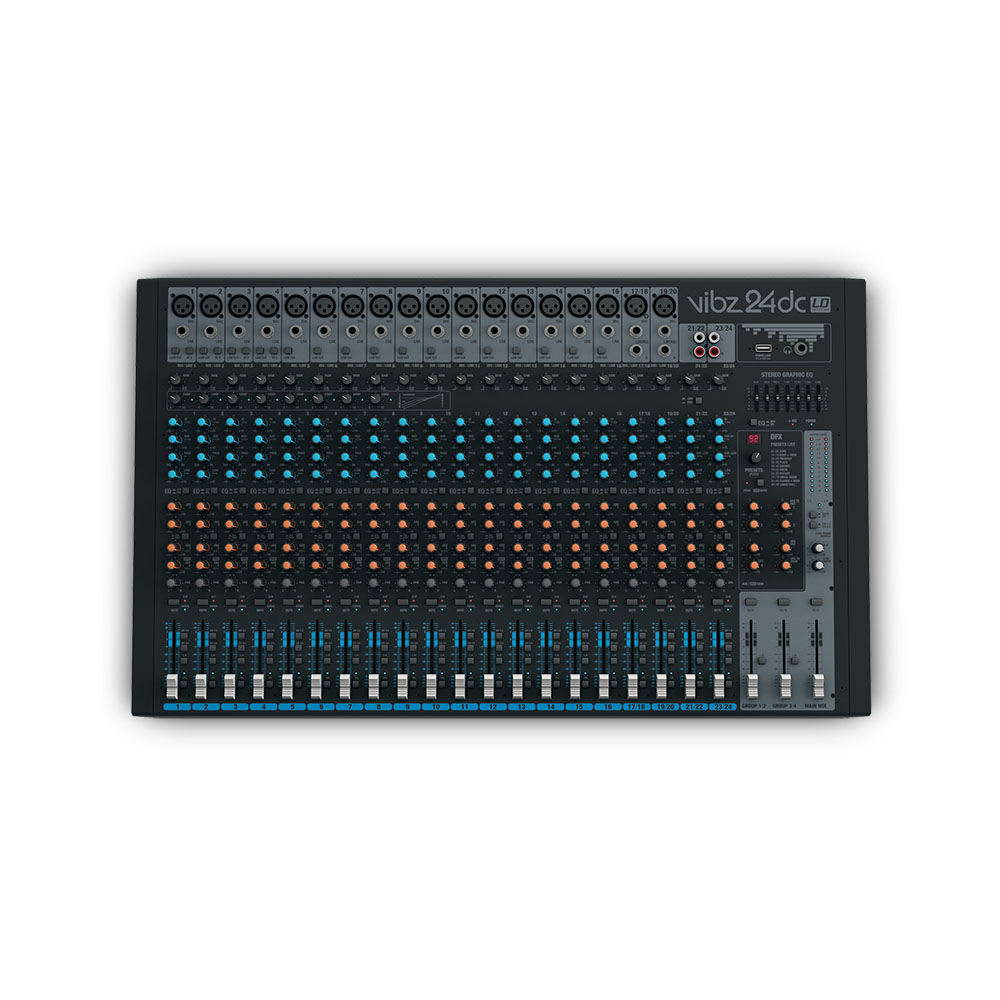

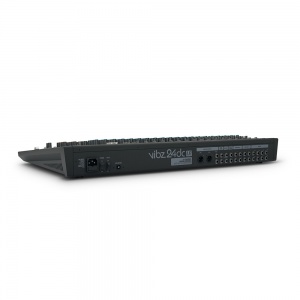

The flagship of the VIBZ Series of mixing desks, the VIBZ 24 DC is designed for superb audio in home studio and live applications. It sports 16 mono channels with 3-band EQ and semi-parametric midrange, 4 stereo channels with 4-band EQ, 4 subgroups, 24-bit digital effects with 100 presets and smooth 65 mm audio taper faders.

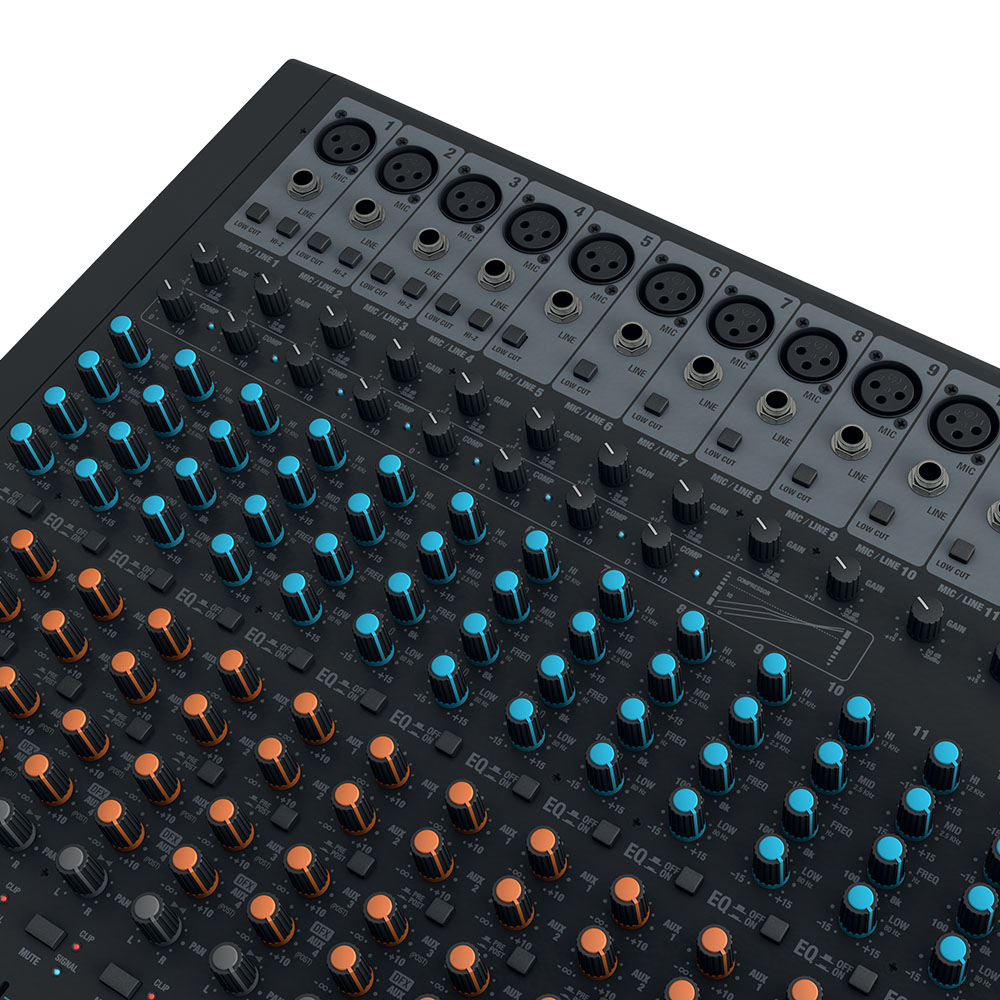

All channels feature high-quality preamps with gain control, 4 aux sends, mute, PFL and routing switches plus signal and clip LEDs. Two sends are switchable pre or post fader to enable monitoring or effects use. The mono channels' XLR mic and TRS line inputs are electronically balanced with channels 1 – 8 providing convenient one-knob control of the built-in compressor and individual insert points for outboard processing.

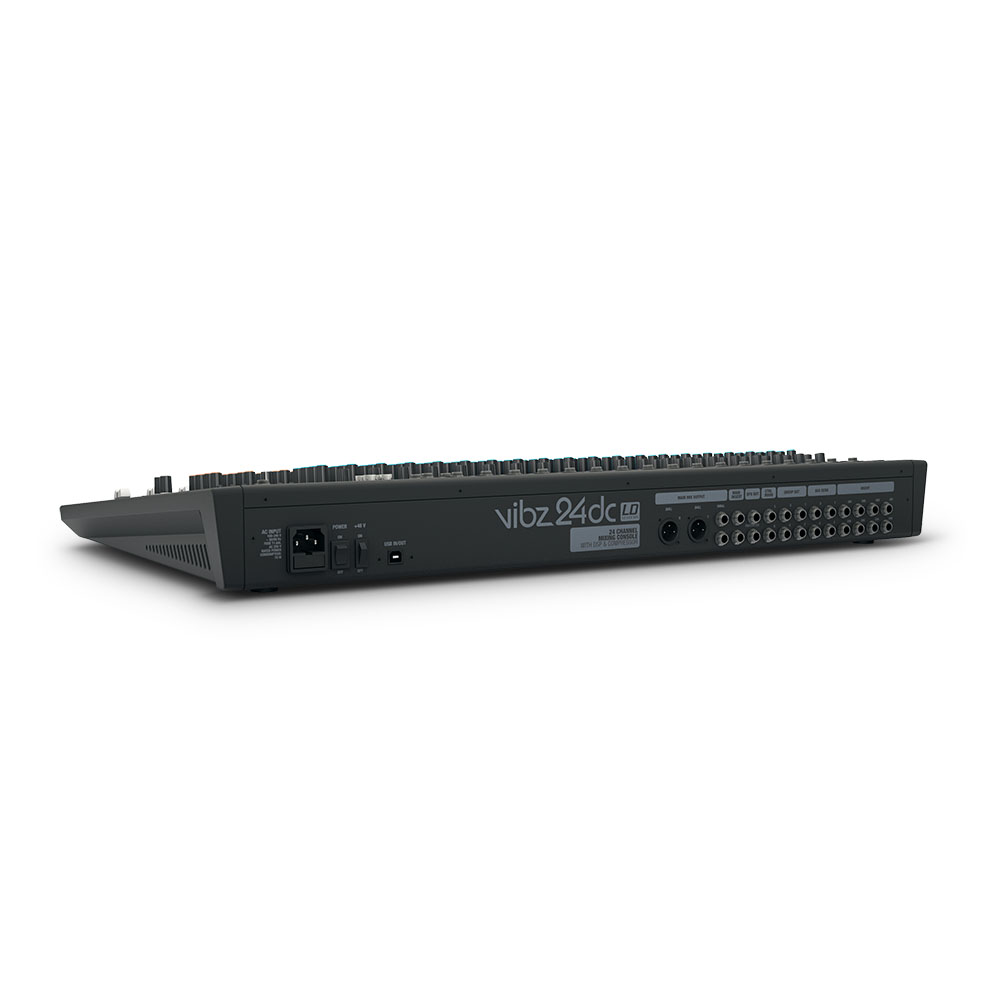

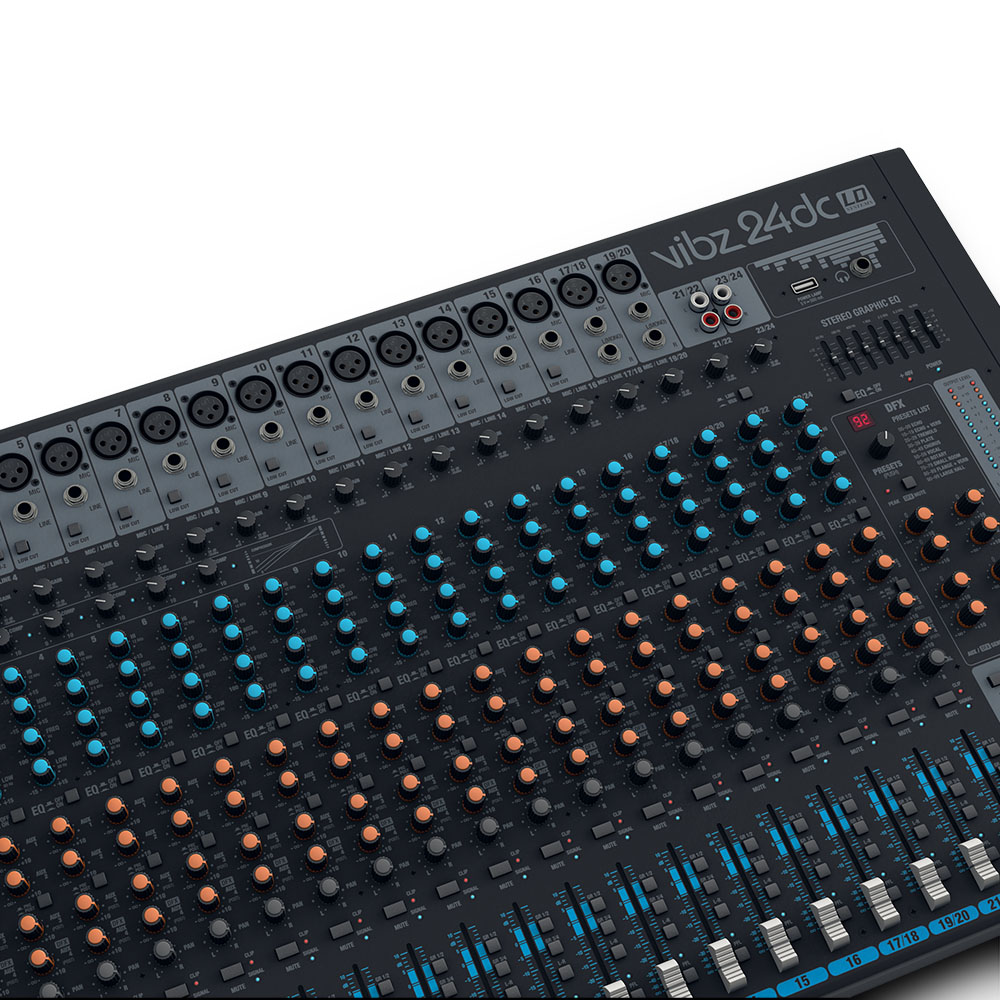

The master section offers balanced and unbalanced main mix and individual group outputs with precision metering, control room and headphone outputs with level controls and a global 7-band graphic EQ. The VIBZ 24 DC integrates a multi-voltage power supply for 100 – 240 V AC operation.
• Product type: Mixers
• Type: Live
• Channels: 24
○ Main Section:
• AUX / Effects Send Channels: 4
• AUX / Effects Send Connectors: 6.3 mm TS
• Stereo AUX Return Channels: 1
• Group Out: 4
• Group Out Connectors: 4 x 6,3mm TRS
• Balanced Stereo Main Out: 1
• Balanced Stereo Main Out Connectors: XLR
• Unbalanced stereo Main Outputs: 1
• Unbalanced stereo Main Output Connections: 2 x 6.3 mm TS
• Main-Insert Inputs: 1
• Main-Insert Input Ports: 2 x 6.3 mm TRS asymmetrically
• DFX Out Outputs: 1
• DFX Out Output Ports: 6.3 mm TRS
• USB In/Out In-/Outputs: 1
• USB In/Out Ports: USB-B
• Max. Unbalanced Stereo Main Out Level: 22 dBu
• Stereo Control Room Out: 1
• Stereo Control Room Out Connectors: 2x 6.3 mm TRS
• Headphones ouput: 1
• Headphones outputs: 6.3 mm TRS
• Digital Effects Processor: Yes
• Number of Presets: 100
• DMX output: 1
• Footswitch Connector DFX Mute: 6.3 mm TS
• Main section controls: 7-band graphic EQ, AUX/DFX Send 1 - 4, DFX Mute, DFX Presets, DFX to Aux, DFX to Main, EQ on/off, GROUP to Main -switch, Main Mix Fader, mains switch, Phantom Power, Phones/CTRL Fader, TK In To Main/To CTRL
• Indicators: DFX Peak, DFX to Main, PFL indicator, Phantom Power, Power, Signal
• Power supply: 100 V AC - 240 V AC, 50 - 60 Hz
• Width: 712 mm
• Height: 80 mm
• Depth: 425 mm
• Weight: 9,442 kg
