TW AUDIO SYSRACK-X

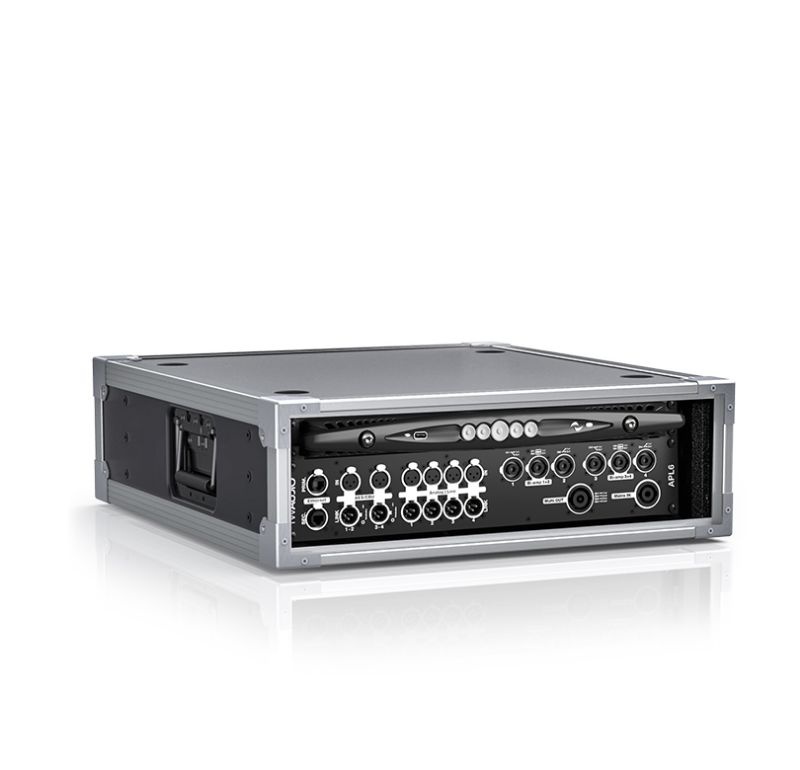

The SYSRACK-X contains one Powersoft X4 amplifier with an APL-6X connection panel in our 19" / 3U Rack3X.
Technical data
Design
- class-D technology with zero-latency- switched-mode power supply with power factor correction and three phase load balancing
Operating modes
- four channels- two channels bridged
Power specifications
4× 1600W @ 8 Ohms4× 3000W @ 4 Ohms4× 5200W @ 2 Ohms
Mains voltage
100-240V, 50/60Hz
Preset memory
1000+
DSP
- raised cosine equalization- 2000+ 100ms delay- FIR and parametric filters (IIR, highpass, lowpass, allpass)- definable peak- and power-limiter per channel- TruePower™- Active Damping Control™
Operation / remote
- via mobile browser on Android / iOS device- via network and Powersoft® Armonía Pro Audio Suite™
SYSRACK inputs and links
APL6-X patch panel input section:- 2× AES3 in & link via XLR- 4× analog in & link via XLR- ethernet primary/secondary for Dante™ audio network and controlling
SYSRACK outputs
APL6-X patch panel output section:- 6...× speakON™ NL4- 1× speakON™ NL8
SYSRACK mains connector
Neutrik powerCON 32A
SYSRACK dimensions(H x W x D)
700 × 505 × 186 mm [27.56 × 19.88 × 7.32 in]
SYSRACK weight
28.6 kg [63.05 lbs]
