TW AUDIO TOURACK-L

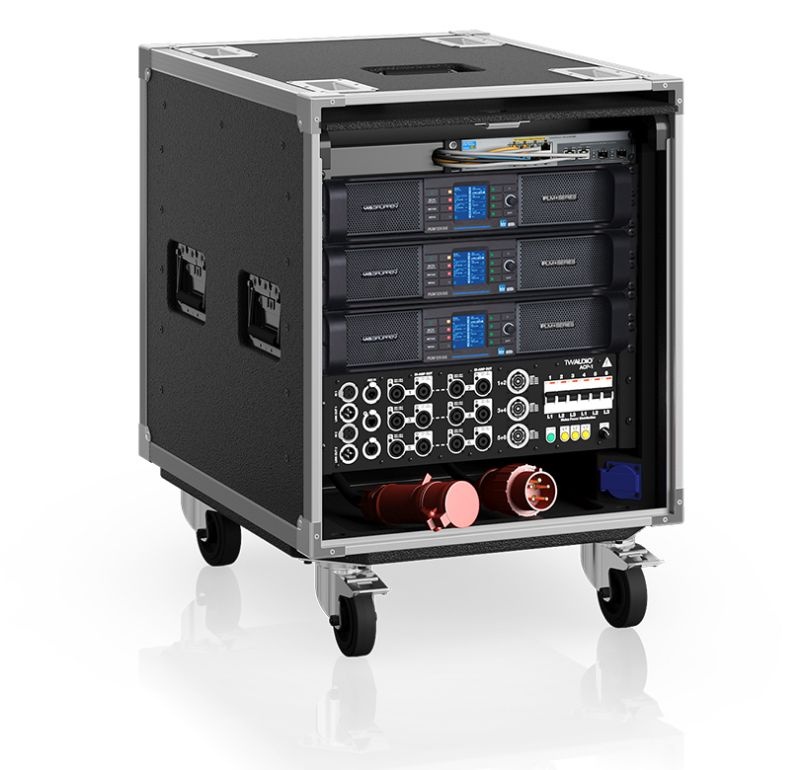

The TOURACK-L contains three Lab.gruppen PLM+ 12K44 amplifiers with an ACP1-L connection panel and a HP/Aruba J9777A switch in our 19" / 10U Rack10T.
echnical data
TOURACK design
- 1× Rack10T- 3× Lab.gruppen PLM+ 12K44 amplifiers with permanent connection to 3× 32A- 1× HP/Aruba J9777A switch- 1× ACP1-L connection panel- 3× back-fitted 16A safety socket- 1× front-fitted service socket (Schuko)- 2× rack fans- 1× rack light- 3× 32A circuit breakers- 3× 16A circuit breakers- 3× indicator lights (1× per phase)
Power specifications(per amp)
4× 1900W @ 8 Ohms4× 3000W @ 4 Ohms4× 3000W @ 2 Ohms
TOURACK mains voltage
380-400V, 47-63Hz
DSP
- raised cosine equalization- 1800ms delay- linear phase and parametric filters (IIR, highpass, lowpass, allpass)- definable LimiterMax™ - peak- and power limiter per channel
Operation / remote
- via display on the device- via network and Lake® controller software
TOURACK inputs and links
ACP1-L patch panel input section:- 1× XLR AES3 in, internal terminated- ...2× XLR analog in- 2× XLR analog link out- 2× etherCON for Dante™ audio network and controlling via connection to built-in switch
TOURACK outputs
ACP1-L patch panel output section:- 12× speakON™ NL4- 3× speakON™ NL8
TOURACK mains connector
- 1× 32A CEE in (3L+N+PE, 6h) male- 1× 32A CEE link out (3L+N+PE, 6h) female
TOURACK dimensions(H x W x D)
560 × 760 × 700 mm [22.05 × 29.92 × 27.56 in]
TOURACK weight
120 kg [264.55 lbs]
