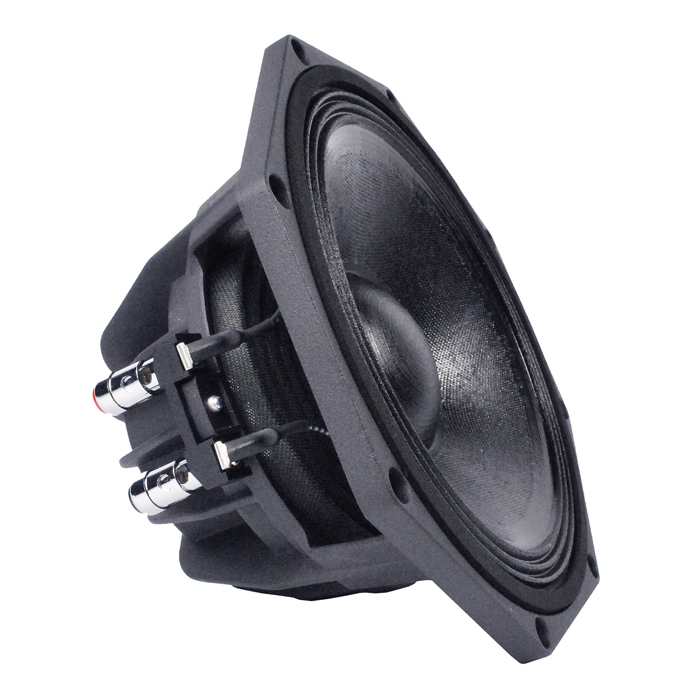

4049521112355-FP8PR200A_1
![]()
Product typeLoudspeaker ChassisTypePANominal Diameter8 ", 200 mmVoice Coil2 ", 52 mmOverall diameter203.9 mmPitch Circle Diameter210 mmCut- out Measurement184 mmMounting holes8Diameter of fixing holes6 mmDepth116.7 mmNominal Impedance8 Ohm(s)Nominal Load Capacity200 Wmaximum rated load400 WSensitivity (1 W / 1 m)95 dBFrequency response70 - 5000 HzVoice Coil MaterialAluminumMagnetNeodymiumDepth of the magnetic gap8 mmThiele & Small ParameterFs (Resonance Frequency)58 HzRe (DC resistance)5.1 Ohm(s)Qms (mechanical quality)9.4Le (inductance of the voice coil)0.55 mHQes (electrical quality)0.38Qts (overall quality)0.36Vas (equivalent volume)15.2Mms (moving mass)27.2 gBL (power factor)11.5 T/mXmax (maximum displacement)8.15 mmCms (elasticity of the suspension)0.28 mm/NSd (membrane area)196 cm2Rms (mechanical loss resistance)1.04 kg/sWeight2,1 kg
