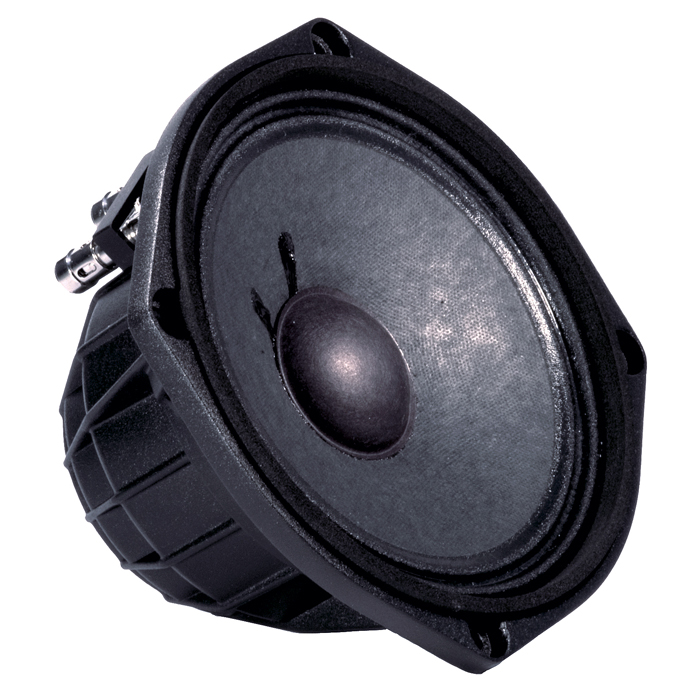

4049521112300-FPM5N1280D_1
![]()
Product typeLoudspeaker ChassisTypePANominal Diameter5 ", 130 mmVoice Coil1.26 ", 32 mmOverall diameter140 mmPitch Circle Diameter139 mmCut- out Measurement128 mmMounting holes4Diameter of fixing holes6 mmDepth79 mmNominal Impedance12 Ohm(s)Nominal Load Capacity80 Wmaximum rated load160 WSensitivity (1 W / 1 m)99 dBFrequency response180 - 6300 HzVoice Coil MaterialcopperMagnetNeodymiumDepth of the magnetic gap6 mmThiele & Small ParameterFs (Resonance Frequency)180 HzRe (DC resistance)7.2 Ohm(s)Qms (mechanical quality)2.7Le (inductance of the voice coil)0.15 mHQes (electrical quality)0.54Qts (overall quality)0.45Vas (equivalent volume)1.2Mms (moving mass)8.4 gBL (power factor)11.3 T/mXmax (maximum displacement)2.75 mmCms (elasticity of the suspension)0.09 mm/NSd (membrane area)94.2 cm2Rms (mechanical loss resistance)3.52 kg/sWeight0,95 kg
