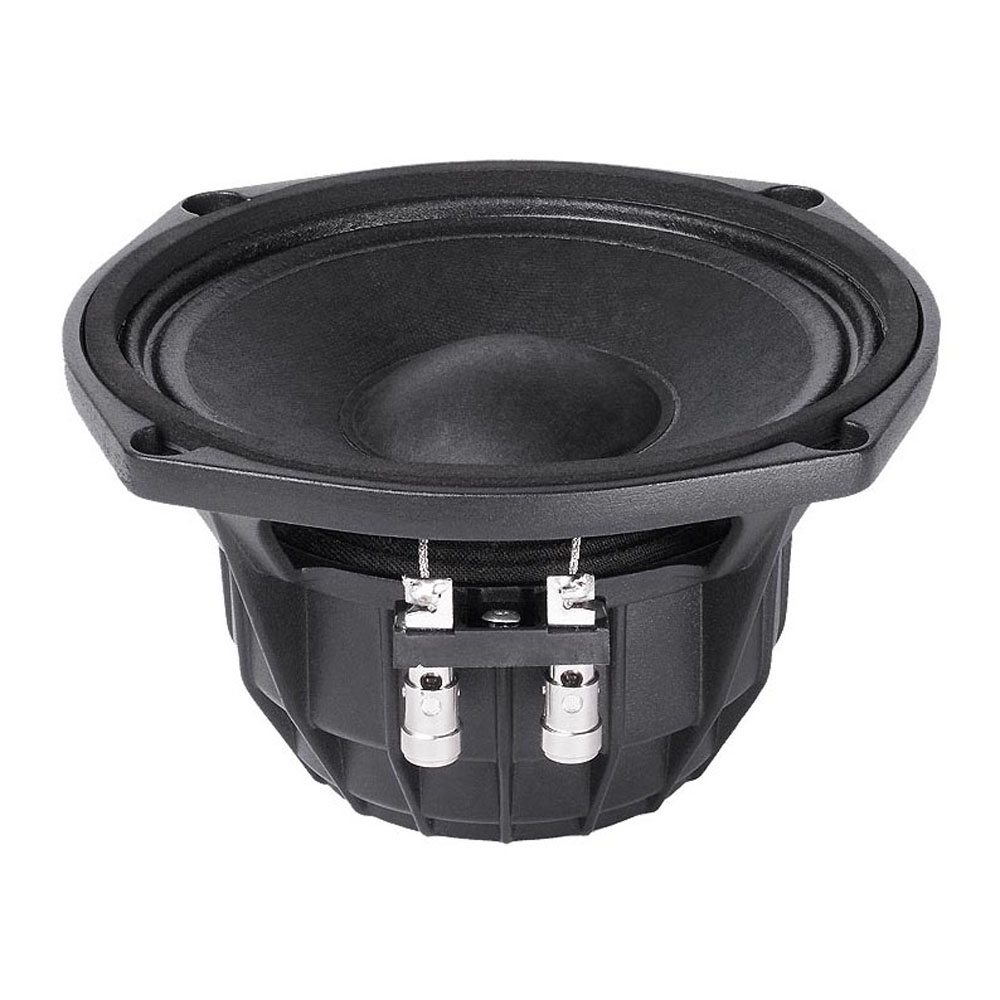

4049521187131-FPM5N880A_1
![]()
Product typeLoudspeaker ChassisTypePANominal Diameter5 ", 130 mmVoice Coil1.26 ", 32 mmOverall diameter153 mmPitch Circle Diameter139 mmCut- out Measurement129 mmMounting holes4Diameter of fixing holes5.3 mmDepth80.2 mmNominal Impedance8 Ohm(s)Nominal Load Capacity80 Wmaximum rated load160 WSensitivity (1 W / 1 m)99 dBFrequency response180 - 8000 HzVoice Coil MaterialAluminumMagnetNeodymiumDepth of the magnetic gap6 mmThiele & Small ParameterFs (Resonance Frequency)180 HzRe (DC resistance)5.5 Ohm(s)Qms (mechanical quality)1.9Le (inductance of the voice coil)0.22 mHQes (electrical quality)0.45Qts (overall quality)0.36Vas (equivalent volume)0.4Mms (moving mass)6.8 gBL (power factor)9.6 T/mXmax (maximum displacement)2.75 mmCms (elasticity of the suspension)0.11 mm/NSd (membrane area)94.2 cm2Rms (mechanical loss resistance)4 kg/sWeight2,3 kg
