LD Systems SAT 62 A G2 W - 6,5 " aktívny monitor pre inštalácie, biely

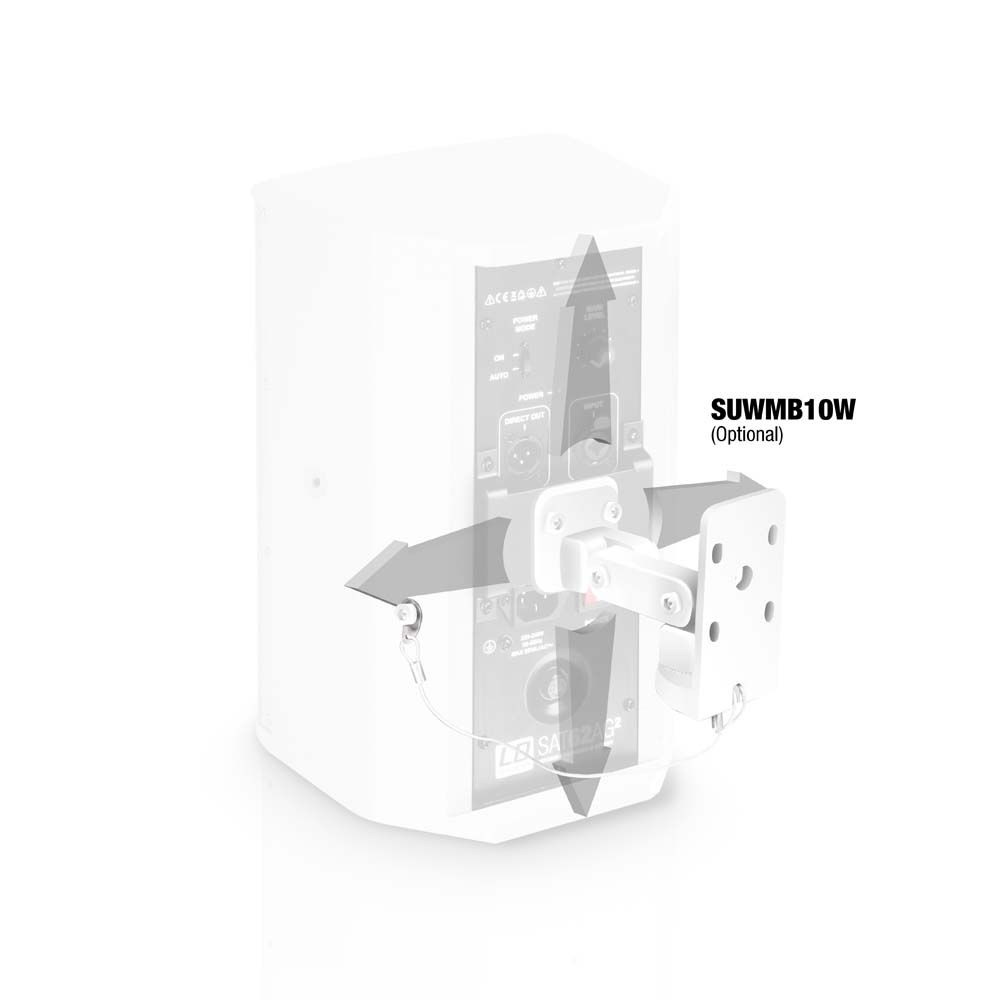

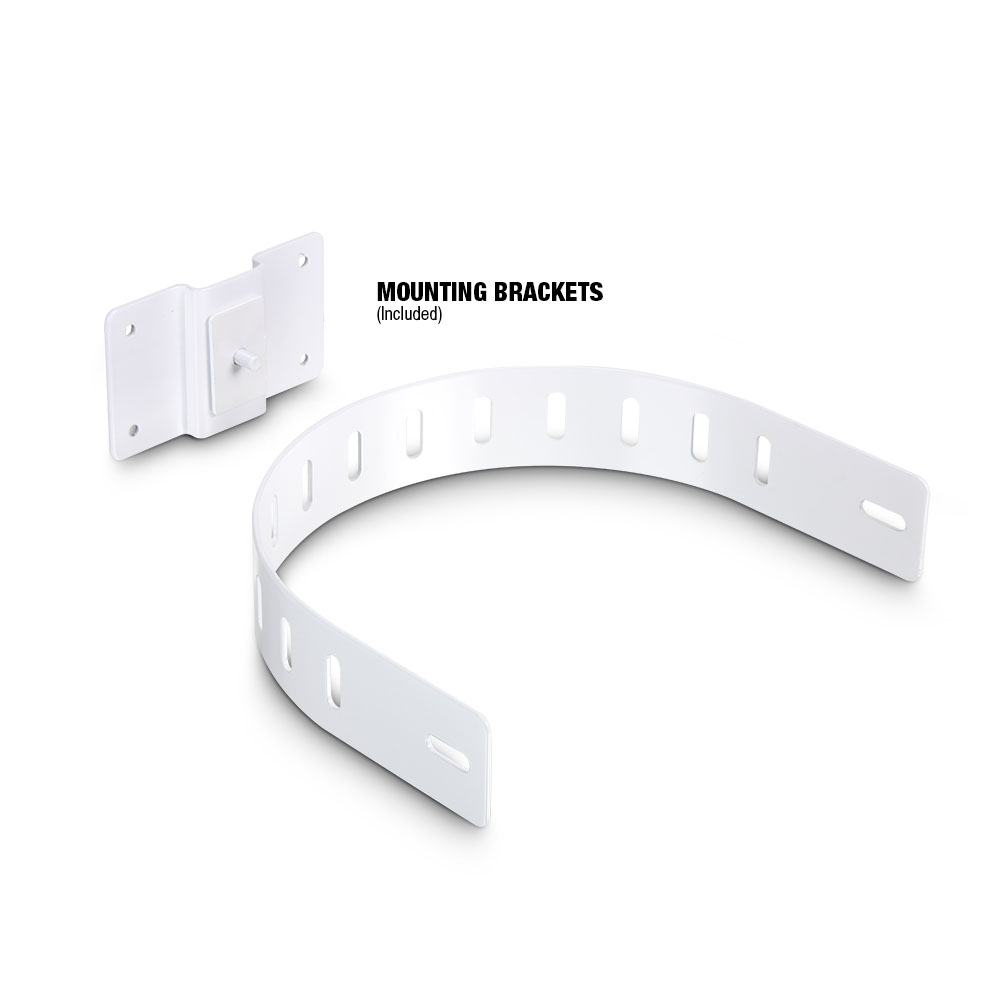

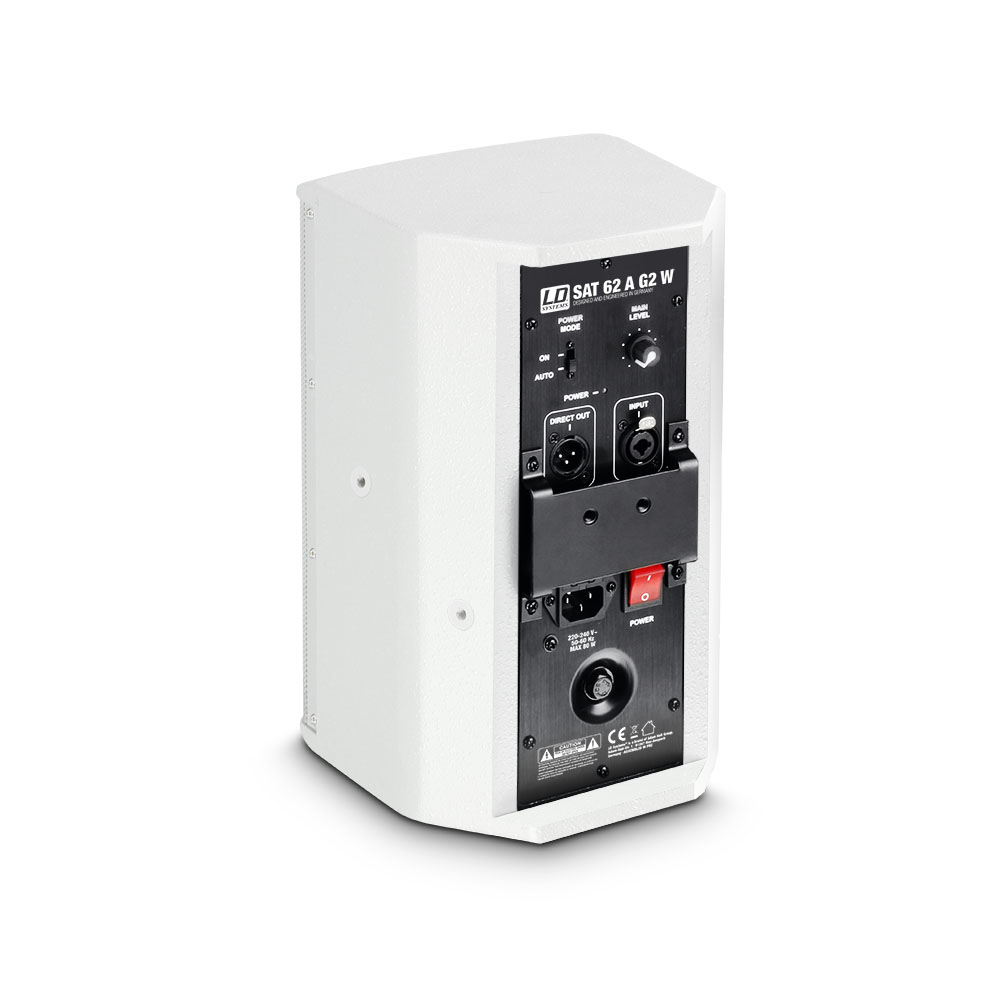

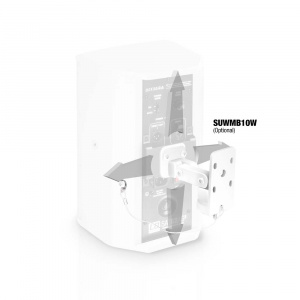

The LD Systems SAT62AG2 is the active version of the SAT62G2. The compact 2-way speaker is not only suitable for installation, but also as a home studio monitor and for other sound reinforcement tasks.The bass-reflex design is loaded with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide, which are driven by a Class AB power amplifier with 50 W RMS power and overcurrent protection. The input is a XLR-jack combo socket, an XLR socket permits looping through of the signal. Reproduction is balanced and dynamic throughout the frequency range of 55 Hz - 20 kHz and attains a maximum sound-level pressure of 108 dB. The SAT62AG2 features a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.The 12 mm MDF cabinet with a durable textured coating is available in black and white and equipped with M6 rigging points. An included mounting bracket offers additional possibilities for mounting; a universal joint mount is available as an accessory....The LD Systems SAT62AG2 is the active version of the SAT62G2. The compact 2-way speaker is not only suitable for installation, but also as a home studio monitor and for other sound reinforcement tasks.The bass-reflex design is loaded with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide, which are driven by a Class AB power amplifier with 50 W RMS power and overcurrent protection. The input is a XLR-jack combo socket, an XLR socket permits looping through of the signal. Reproduction is balanced and dynamic throughout the frequency range of 55 Hz - 20 kHz and attains a maximum sound-level pressure of 108 dB. The SAT62AG2 features a switchable power saving mode that automatically switches to standby if there is no signal for 3 minutes.The 12 mm MDF cabinet with a durable textured coating is available in black and white and equipped with M6 rigging points. An included mounting bracket offers additional possibilities for mounting; a universal joint mount is available as an accessory.
VIAC
Product typeInstallation LoudspeakersTypeWall-mounted LoudspeakerLow/mid driver dimensions6.5 "Woofer size165 mmWoofer magnetFerriteWoofer brandCustom-madeHF driver dimensions1 "HF Driver Size25 mmHF driver magnetFerriteHF driver brandCustom-madePower amplifier (Class A)Class A/BDispersion (H x V)60 x 60RMS50 WFrequency response55 - 20000 HzMax. SPL108 dBProtection circuitsHF Driver, over voltageControlsmains switch (on/off), switchable auto power mode, volume controlIndicatorsPowerLine input connectors6.3 mm jack, XLRLine output connectorsXLROperating voltagetransformer, 220 V AC - 240 V AC, 50-60 HzCabinet material12 mm MDFCabinet surfacetexture paintCabinet colourwhiteCabinet constructionBass ReflexWidth200 mmHeight320 mmDepth200 mmWeight5,25 kgFeaturesWall bracket
