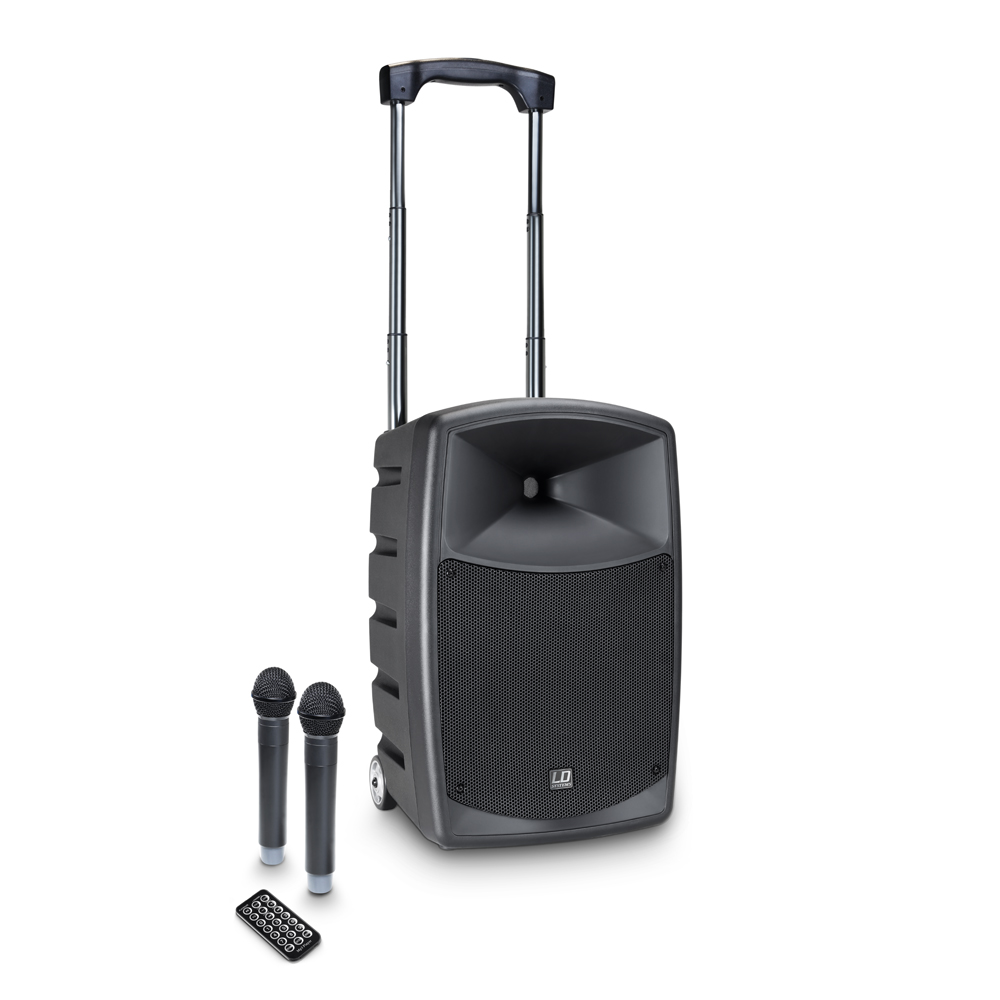

LD Systems ROADBUDDY 10 HHD 2 B6 - Batériový reproduktor s Bluetooth,mixom a 2 bezdrôtovým mikrofónmi
LD Systems Roadbuddy 10 je elegantné riešenie pre prenos hlasu a hudby na cestách. 2-pásmový reproduktor s 10 "vlastným basovým reproduktorom a 1" kompresným meničom pracuje s nabíjateľnou batériou až 8 hodín. Je napájaný výkonovým zosilňovačom triedy D s vysoko účinným spínacím zdrojom a špičkovým výkonom 480 wattov. Roadbuddy sa plne spolieha na bezdrôtový prenos: má dva rádiové prijímače UHF, ktoré pracujú v bezlicenčnom rozsahu 655 - 679 MHz. Vstavaný prehrávač Bluetooth s podsvieteným multifunkčným displejom, ekvalizérom, portom USB a slotom na kartu SD podporuje formáty mp3, wma a wav. Súčasťou dodávky je dva ručné mikrofóny s výstupným výkonom 10 mW (LDRBUD10HHD2), dva náhlavné mikrofóny s opaskom (LDRBUD10BPH2) alebo ako alternatíva ručný mikrofón a náhlavný mikrofón s opaskom (LDRBUD10HBH2) a infračervené diaľkové ovládanie prehrávača. Pre káblové zariadenia má Roadbuddy dva kanály s kombinovanými konektormi a individuálnymi ovládačmi hlasitosti, ktoré je možné prepnúť na úroveň ...mikrofónu a linky, stereo vstup cez zásuvky RCA (Cinch) a 3,5 mm vstup AUX. Ovládací panel dopĺňajú regulátory výšok, basov, ozveny a Master. LD Systems Roadbuddy je ľahko prenosný vďaka vstavaným kolieskam a výsuvnej rukoväti. Na vrchnej strane je praktický úložný priestor až pre dva ručné mikrofóny vysielača. Plastové puzdro tohto ľahkého zariadenia bolo navrhnuté tak, aby pojalo 35 mm držiak na statív.
VIAC

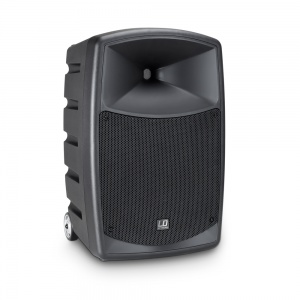

The LD Systems Roadbuddy 10 is an elegant solution for voice and music transmission on the go. The 2-way speaker with a 10" custom woofer and a 1" compression driver is operated with a rechargeable battery for up to 8 hours and is powered by a class D power amplifier with a highly efficient switching power supply and 480 watts of peak power.
The Roadbuddy relies fully on wireless transmission: it has two UHF radio receiver who operates with 655 - 679 MHz range. The on-board Bluetooth player with backlit multifunction display ,equalizer, USB port and SD card slot supports the mp3, wma and wav formats. Two handheld microphone with 10 mW output power(LDRBUD10HHD2B6), two headset microphones with belt pack (LDRBUD10BPH2B6) or as an alternative a handheld microphone and a headset microphone with belt pack (LDRBUD10HBH2B6) and an IR-remote control for the player are included.

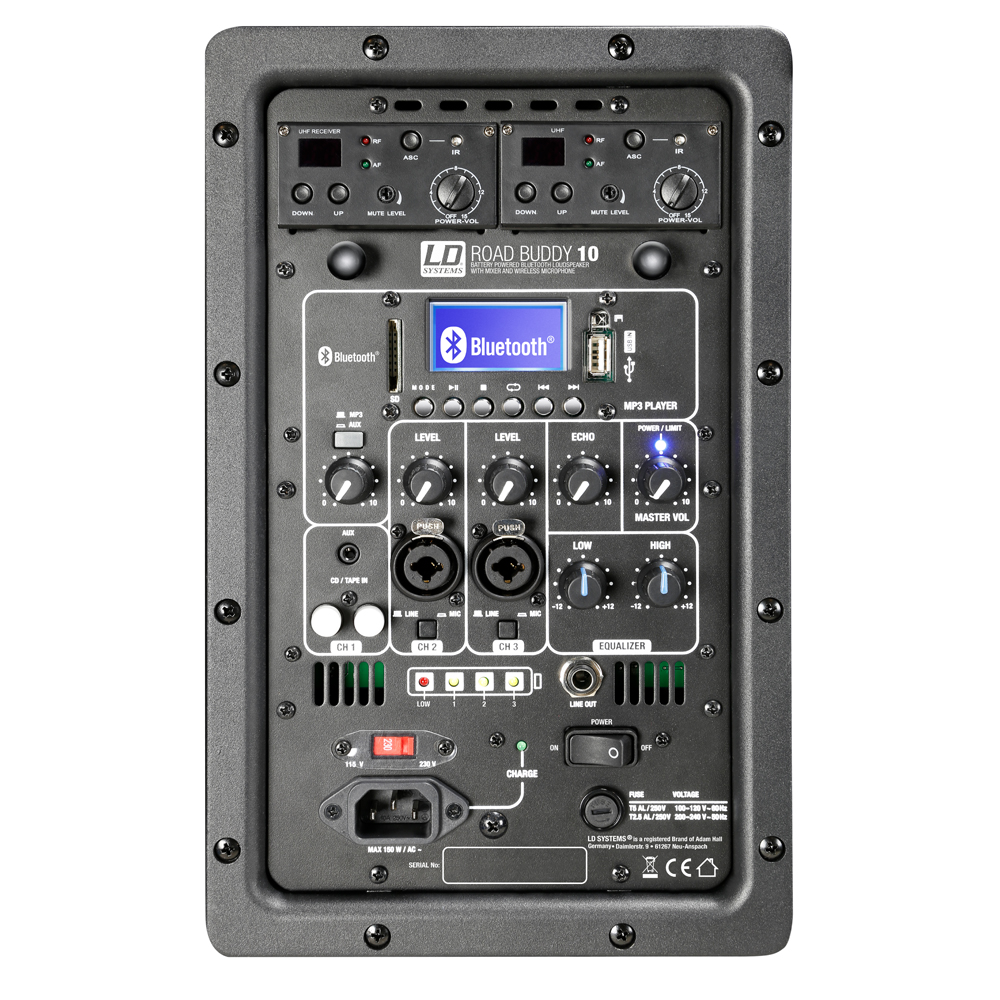

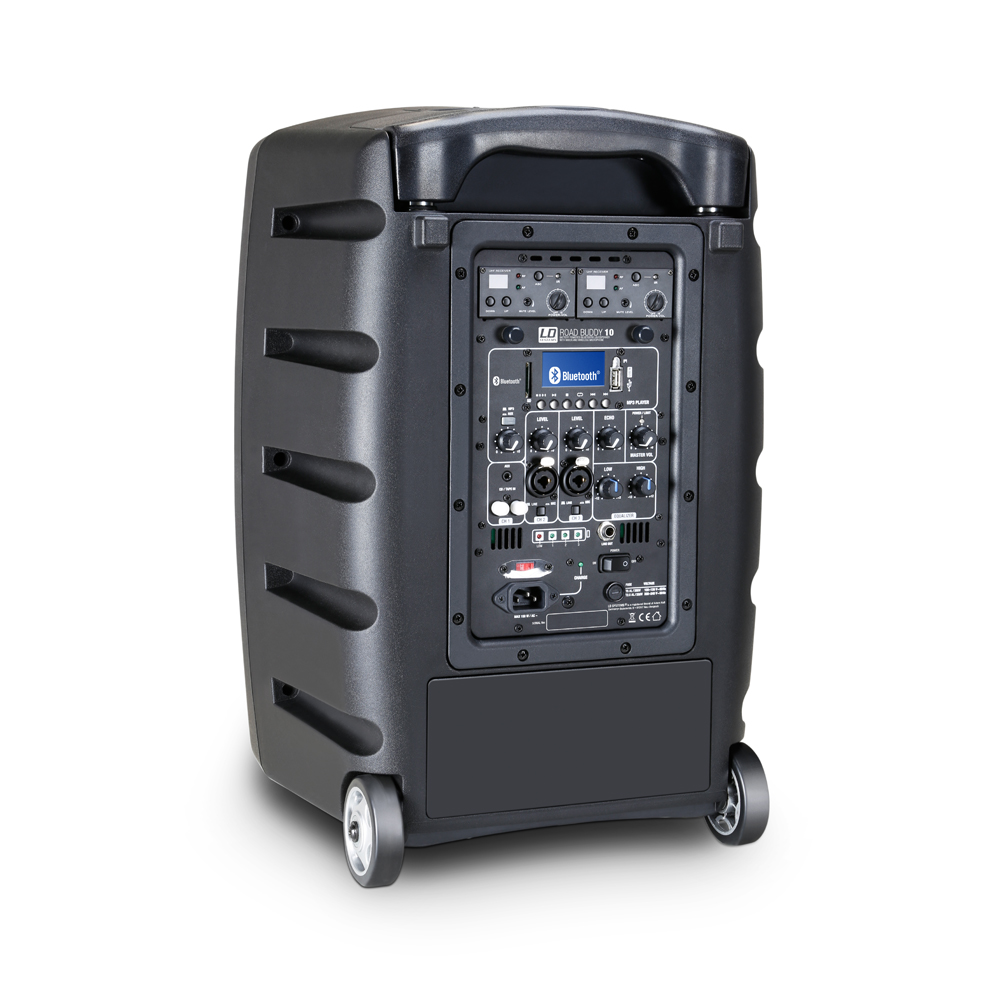

For wired devices, the Roadbuddy has two channels with combo jacks and individual volume controllers that are switchable for microphone and line level, a stereo input via RCA (Cinch) sockets (mono summed) and a 3.5 mm Aux input. Treble, Bass, Echo and Master volume controllers complete the control panel.

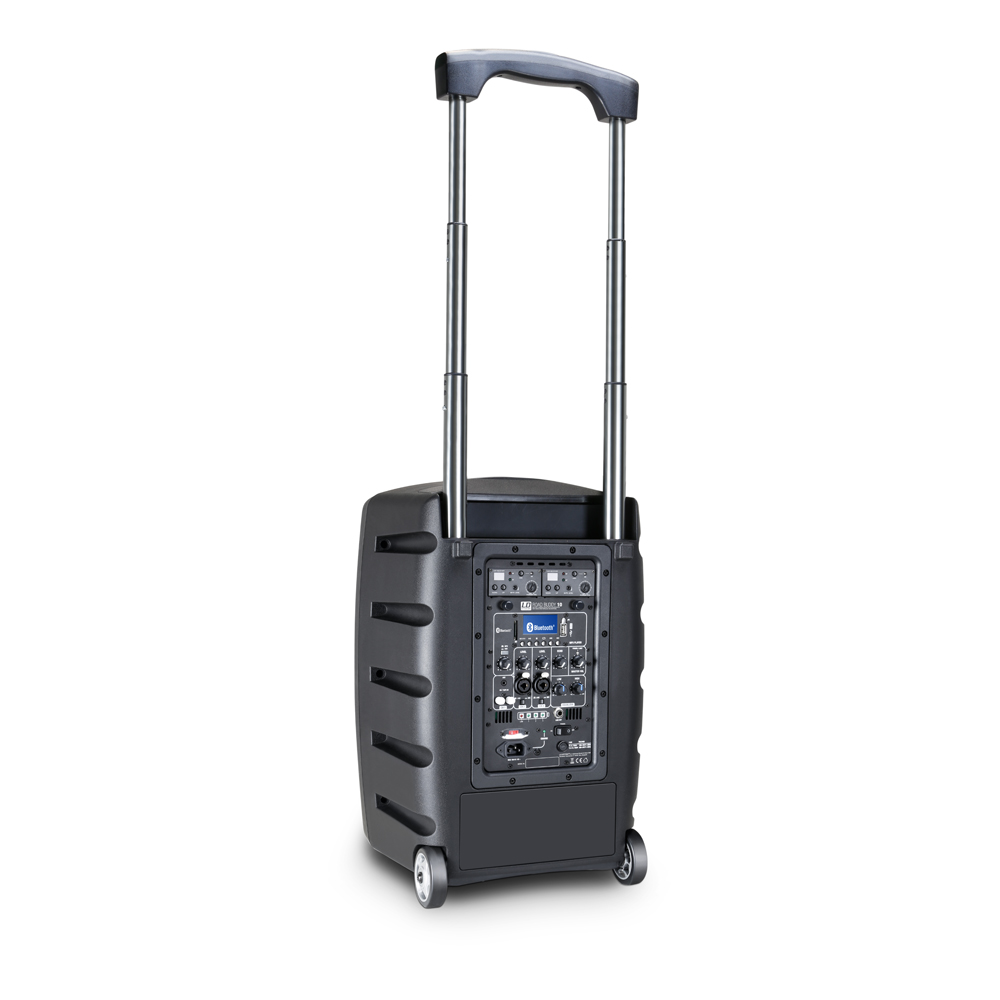

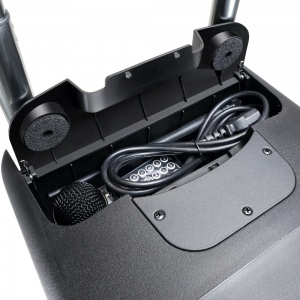

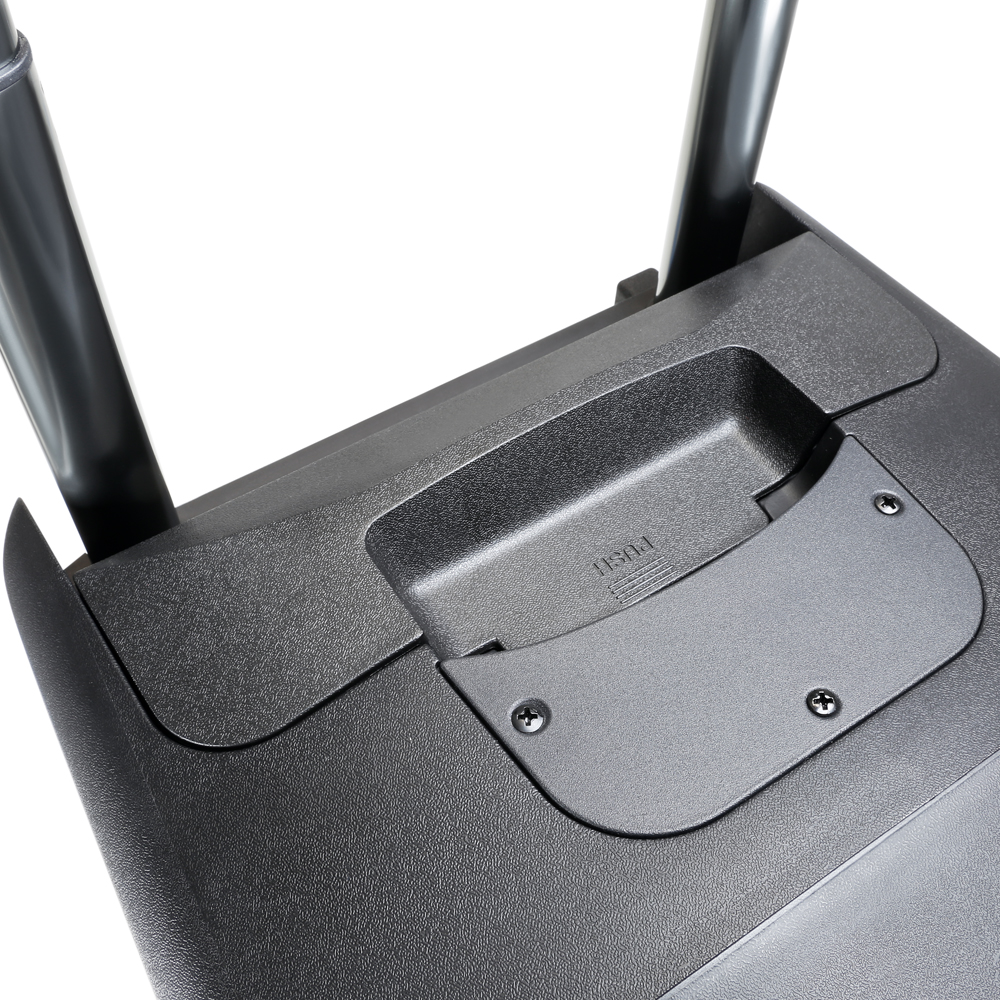

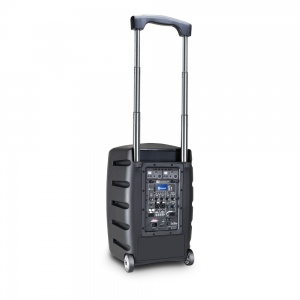

The LD Systems Roadbuddy is easily transportable thanks to built-in castor wheels and a pull-out handle. On the top, there is a handy storage compartment for up to two hand-held transmitter microphones. The plastic housing of this lightweight device has been designed to accommodate a 35 mm tripod mount.
• Battery-powered speaker solution
• Integrated radio receiver 655 - 679 MHz
• Bluetooth player with USB port and SD card slot
• Class D power amplifier with 480 watts of peak power
• 2 combo sockets for microphone or line inputs
• 3.5 mm Aux input
• Master section with 2-band EQ

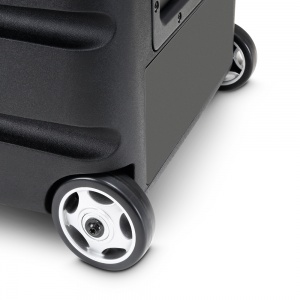

• Built-in wheels, pull-out handle and fixing for 35 mm tripod mount

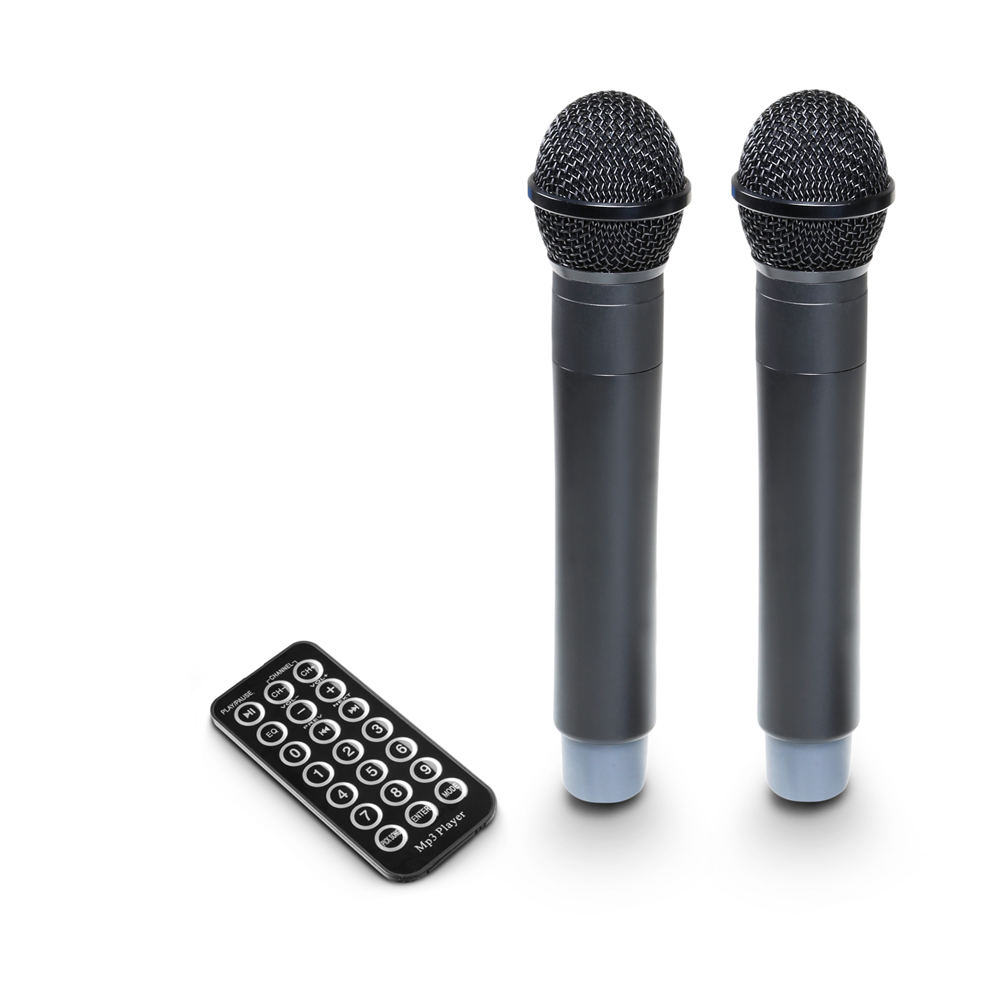

• 2 Wireless microphones and IR-remote control included
○ GENERAL
• Product type: Battery-powered PA speaker
• Low/mid Woofer dimensions: 10 "
• Woofer dimensions: 254 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• HF driver dimensions: 1 "
• HF driver dimention: 25.4 mm
• HF driver magnet: Ferrite
• HF driver brand: Custom-made
• Amplifier: Class D
• RMS: 120 W
• Peak power: 480 W
• Frequency response: 55 - 18000
• SPL (1W/1m): 96 dB
• Max. SPL: 115 dB
• Protection circuits: over-current, overload protection, Short circuit
• Controls: AUX / MP3 switch, CD / Tape IN Level, Echo, high, low, Mic 1 Level, Mic 2 Level, Total volume
• Indicators: Charge/battery status, Power
○ MEDIA PLAYER
• Supported media: SD Card, USB stick
• Supported formats: MP3 file, WAV-CD, WMA file
• Media player controls: equalizer, Mode (Menu / Bluetooth /SD / USB), Next Track, Previous Track, Repeat, Stop
