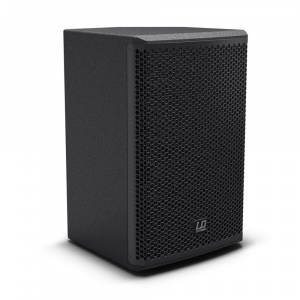

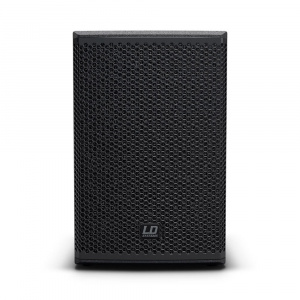

This passive 2-way loudspeaker has been designed as a companion to the active MIX 10 A G3 for small-scale PA and personal monitoring applications. It features the same 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering crystal clear sound with punch and detail.

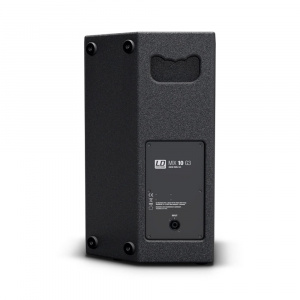

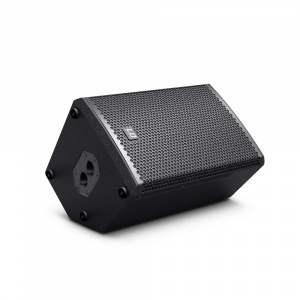

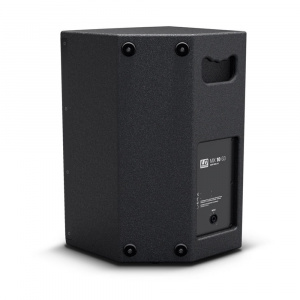

The compact bass reflex enclosure is constructed with tough birch plywood sporting a speakON-compatible input, 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. In a main-and-followe setup with the active unit , the MIX 10 G3 provides amazing performance and versatility in a lightweight, easily portable package.
• Product type: PA loudspeaker
• Type: passive
• Low/mid Woofer dimensions: 10 "
• Woofer dimensions (mm): 254 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• Woofer voice coil: 2 "
• Woofer voice coil (mm): 50.8 mm
• Horn: CD Horn
• HF driver dimensions: 1 "
• HF driver dimention (mm): 25.4 mm
• HF driver magnet: Ferrite
• HF driver brand: Celestion
• HF driver voice coil: 1 "
• HF driver voice coil: 25.4 mm
• Dispersion (H x V): 80 x 70 °
• Load rating (RMS): 200 W
• Peak power: 400 W
• Frequency response: 65 - 20.000
• SPL (1W/1m): 95 dB
• Max. SPL: 121 dB
• Impedance: 4 Ohm(s)
• Protection circuits: HF Driver
• Loudspeaker inputs: 1
• Speaker input connections: Speakon compatible
• Cabinet material: 16 mm Plywood
• Cabinet surface: PA painting
• Cabinet construction: Bass Reflex
• Monitor angle: 50 °
• Width: 315 mm
• Height: 489 mm
• Depth: 307 mm
• Features: dual-tilt flange (0°/5°), Ergonomic handle
• Weight: 10,8 kg
