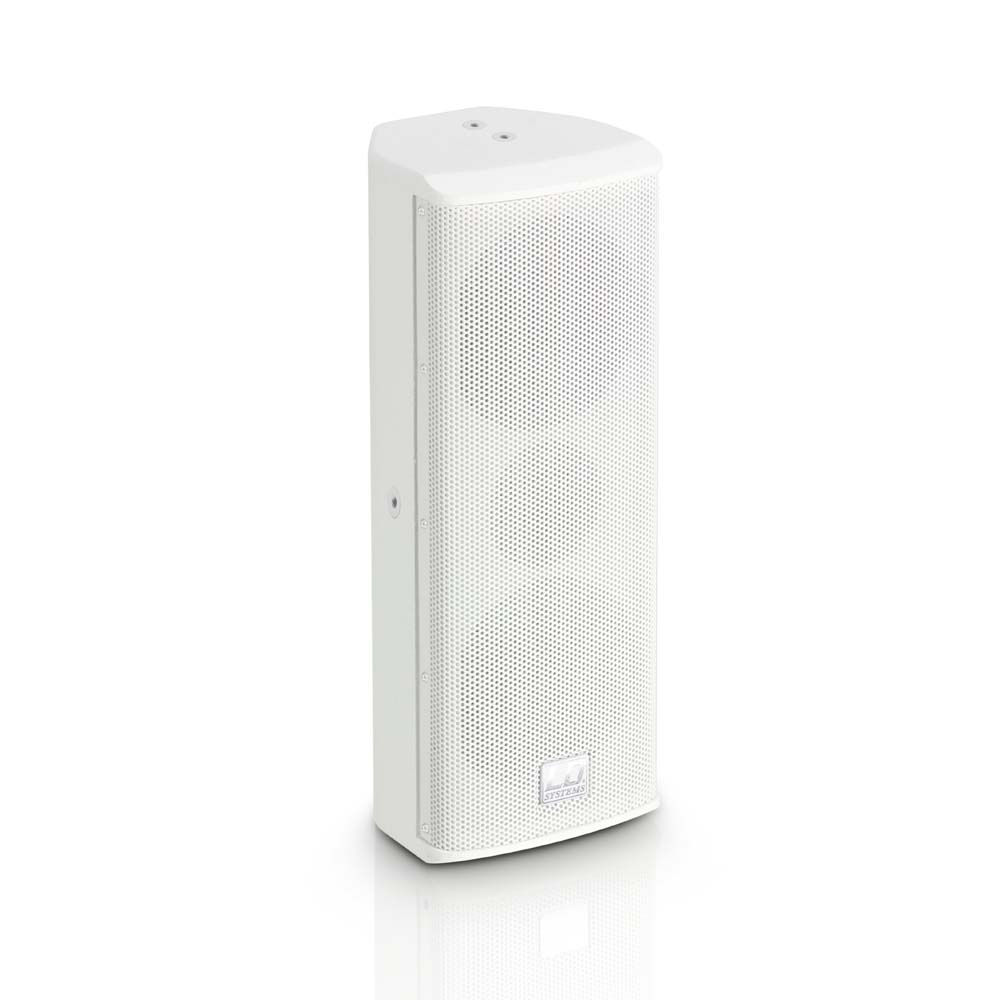

The closed design of the sleek, compact speaker is loaded with 4" custom woofers and a 1“ silk dome tweeter with wave guide, which provide for a maximum sound-level pressure of 108 dB. The LD SAT242G2 is rated for 100 W RMS power can can be used alone as a full-range speaker or with a subwoofer in the in the LD installation series for bass expansion.

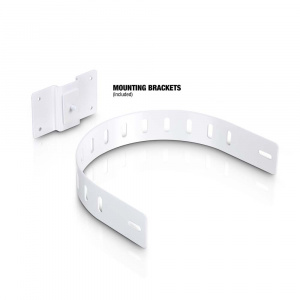

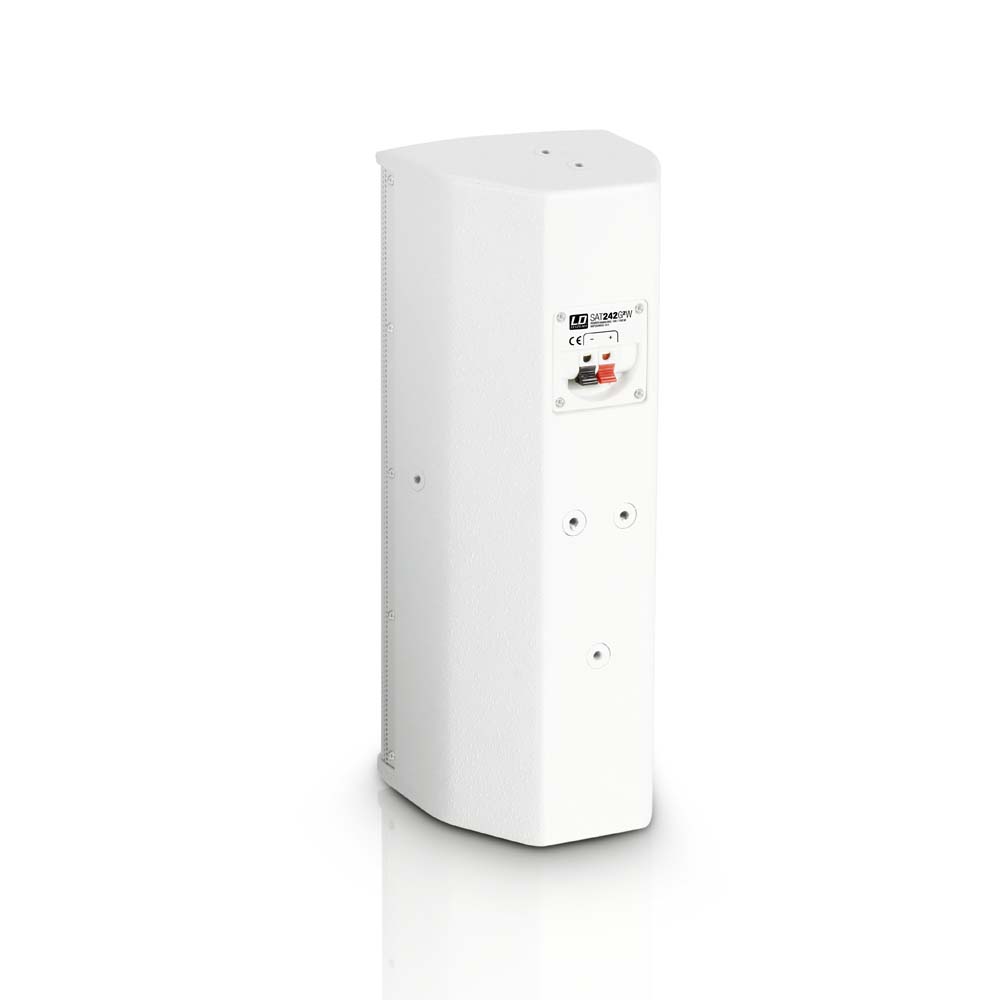

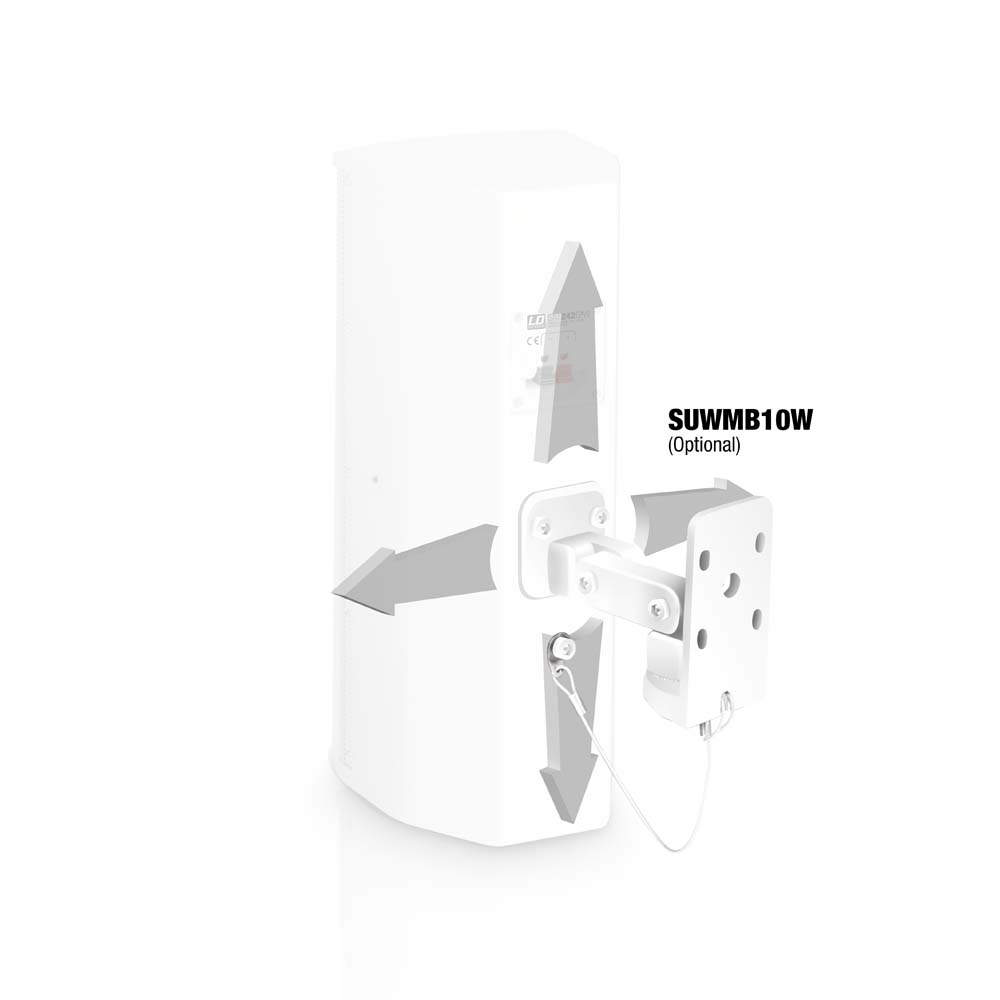

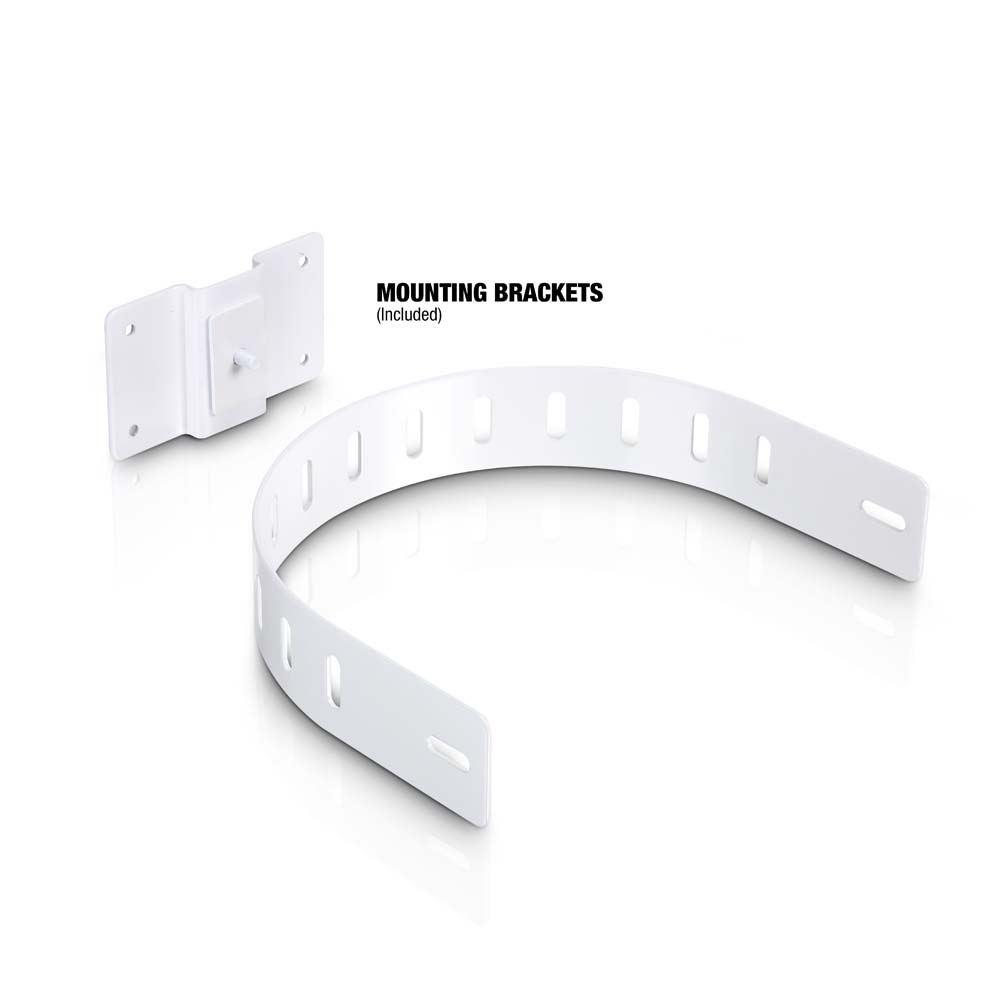

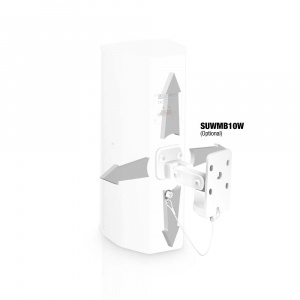

The cabinet of the SAT242G2 is made of 12mm MDF with a durable textured finish and is available in black and white. It is connected via spring terminals. M6 inserts and an included mounting bracket provide numerous possibilities for mounting; a universal joint mount is available as an accessory.
• Product type: Installation Loudspeakers
• Type: Wall-mounted Loudspeaker
• Low/mid Woofer dimensions: 2 x 4 "
• Woofer dimensions: 2 x 101 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• HF driver dimensions: 1 "
• HF driver dimention: 25 mm
• HF driver magnet: Ferrite
• HF driver brand: Custom-made
• Dispersion (H x V): 60 x 60 °
• Load rating (RMS): 100 W
• Frequency response: 75 - 20000
• SPL (1W/1m): 88 dB
• Max. SPL: 108 dB
• Impedance: 8 Ohms
• Protection circuits: HF Driver
• Loudspeaker inputs: 1
• Speaker input connections: Clamp connector
• Speakers per amplifier channel (DSP44/45K): 4
• Cabinet material: 12 mm MDF
• Cabinet surface: texture paint
• Cabinet colour: White
• Cabinet construction: Closed
• Width: 140 mm
• Height: 378 mm
• Depth: 125 mm
• Weight: 4,15 kg
