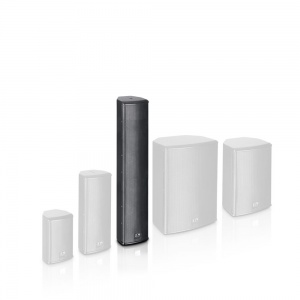

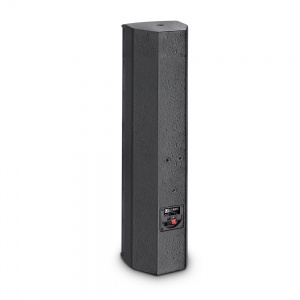

The LD Systems SAT442G² is an extremely slim installation monitor that can be unobtrusively integrated into almost any environment.
The elegant column design of the SAT442G² achieves a smooth balanced 120° horizontal dispersion with a focused 30° vertical directivity and a maximum sound pressure of 114 db. Four 4" custom-made woofers and a 1" compression driver from Celestion provide a balanced playback with a frequency response of 75 Hz to 20 kHz; spring terminals are used as connection. For a powerful, deep bass extension, we recommend the subwoofer installation series from LD Systems.

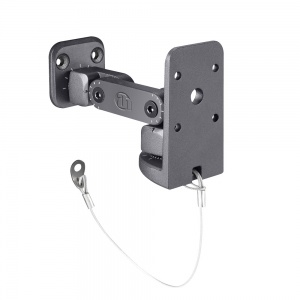

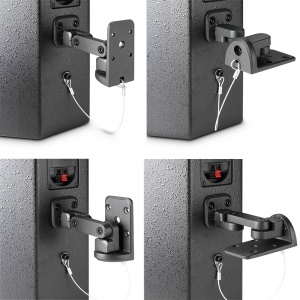

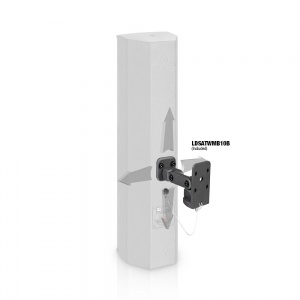

The rugged cabinet of the SAT442G², featuring a durable textured coating, is made of 12 mm MDF and is available in black or white. M6 inserts and an included universal joint mount (LDSATWMB10B) provide a wide range of possibilities for mounting.
• Product type: Installation Loudspeakers
• Type: Wall-mounted Loudspeaker
• Low/mid Woofer dimensions: 4 x 4 "
• Woofer dimensions: 4 x 101 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• HF driver dimensions: 1 "
• HF driver dimention: 25 mm
• HF driver magnet: Ferrite
• HF driver brand: Celestion
• Dispersion (H x V): 120 x 30 °
• Load rating (RMS): 200 W
• Frequency response: 75 - 20000
• SPL (1W/1m): 94 dB
• Max. SPL: 1114 dB
• Impedance: 8 Ohms
• Protection circuits: HF Driver
• Loudspeaker inputs: 1
• Speaker input connections: Clamp connector
• Speakers per amplifier channel (DSP44/45K): 4
• Cabinet material: 12 mm MDF
• Cabinet surface: texture paint
• Cabinet colour: Black
• Cabinet construction: Closed
• Width: 140 mm
• Height: 670 mm
• Depth: 155 mm
• Weight: 8 kg
• Features: incl. universal joint mount
