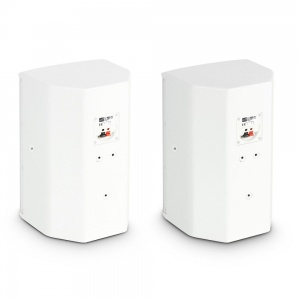

The LD Systems SAT62G2 is an extremely compact, dependable 2-way speaker for numerous installation applications. It blends unobtrusively into practically any surroundings, e.g., in bars and restaurants, retail shops or even at home.
The bass-reflex design with a 6.5" custom woofer and a 1“ silk dome tweeter with wave guide provides for powerful and sonorous reproduction throughout a frequency range of 55 Hz - 20 kHz with a sound-level pressure of up to 108 dB. Thus the SAT62G2 is suitable for full-range operation and as a satellite in conjunction with a subwoofer from the LD installation series. It has a RMS power rating of 80 W. The impedance of 16 ohms permits parallel operation of eight SAT62G2 speakers on 2 ohms.

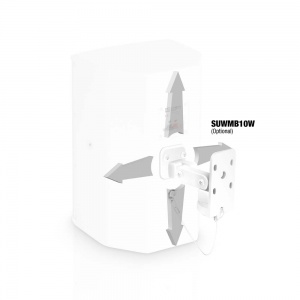

The 12 mm MDF cabinet with a rugged textured coating is available in black and white. The included mounting bracket and M6 rigging points offer extensive possibilities for mounting; a universal joint mount is available as an accessory. It is connected via spring terminals.
• Product type: Installation Loudspeakers
• Type: Wall-mounted Loudspeaker
• Low/mid Woofer dimensions: 6.5 "
• Woofer dimensions (mm): 165 mm
• Woofer magnet: Ferrite
• Woofer brand: Custom-made
• HF driver dimensions: 1 "
• HF driver dimention (mm): 25 mm
• HF driver magnet: Ferrite
• HF driver brand: Custom-made
• Dispersion (H x V): 60 x 60 °
• Load rating (RMS): 80 W
• Frequency response: 55 - 20000
• SPL (1W/1m): 89 dB
• Max. SPL: 108 dB
• Impedance: 16 Ohm(s)
• Protection circuits: HF Driver
• Loudspeaker inputs: 1
• Speaker input connections: Clamp connector
• Speakers per amplifier channel (DSP44/45K): 8
• Cabinet material: 12 mm MDF
• Cabinet surface: texture paint
• Cabinet colour: white
• Cabinet construction: Bass Reflex
• Width: 200 mm
• Height: 320 mm
• Depth: 200 mm
• Weight: 8,2 kg
